Product Overview

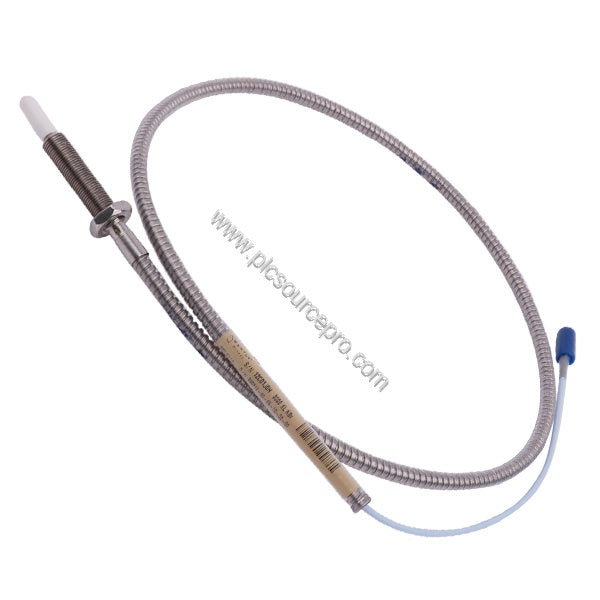

When machinery vibration threatens uptime, the Bently Nevada 330910-00-18-50-02-00 delivers precision measurement. This 3300 NSv proximity probe, part of the Bently Nevada 3300 series, is engineered for continuous monitoring of rotating equipment. With its rugged construction and exacting specifications, it provides the data you need to prevent unplanned downtime.
Technical Specifications
The Bently Nevada 330910-00-18-50-02-00 is built to perform in demanding industrial environments. Key specifications include:
| Specification |
Value |
| Model |
3300 NSv Probe, M10X1 thread, with armor |
| Unthreaded Length |
00 mm |
| Overall Case Length |
180 mm |
| Total Length |
5.0 meters (16.4 feet) |
| Connector / Cable |
Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval |
Not required |
| Probe DC Resistance (RPROBE) |
5.3 ± 0.7 ohms (for 5.0 m probe) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel (SST) |
| Probe Cable |
75 Ω coaxial, FEP insulated, lengths: 0.5, 1, 5, or 7 meters |
| Probe Case Torque (max / recommended) |
33.9 N•m / 11.3 N•m |
| Connector-to-Connector Torque (max) |
0.56 N•m (5 in•lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Probe Weight |
Approximately 14 to 150 g |
| Probe Case Thread |
M10x1, max engagement 15 mm |
| Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
Industry Applications
The Bently Nevada 330910-00-18-50-02-00 excels in vibration monitoring for turbines, compressors, pumps, and motors. Its robust design and wide temperature range make it suitable for harsh environments. In a typical installation, the probe senses shaft displacement, providing critical data for condition-based maintenance. This proactive approach reduces costly downtime and extends machinery life.
Installation & Setup
Proper installation ensures accurate readings. Mount the probe with the M10X1 thread, ensuring the unthreaded length (00 mm) is at least 20 mm less than the case length (180 mm). Use the recommended torque of 11.3 N•m for the probe case. Connect the miniature coaxial ClickLoc connector securely, avoiding sharp bends beyond the 25.4 mm minimum bend radius. Calibrate the system according to the monitoring equipment's instructions.
Maintenance & Reliability
Regular inspection of the probe and cable is essential. Check for physical damage, especially at connection points. Avoid sustained exposure below -34°C (-30°F) to prevent premature failure of the pressure seal. The stainless steel case and PPS tip resist corrosion and wear, ensuring long-term reliability. Periodic cleaning and torque verification help maintain performance.
Selection Guide & Purchasing Advice
Before ordering, verify the total length (5.0 m), connector type (miniature coaxial ClickLoc), and thread size (M10X1). Confirm the probe is suitable for your machine's mounting configuration. For reliable supply and genuine parts, consider PLC Source PRO as your trusted source for industrial automation spares.
