Product Overview

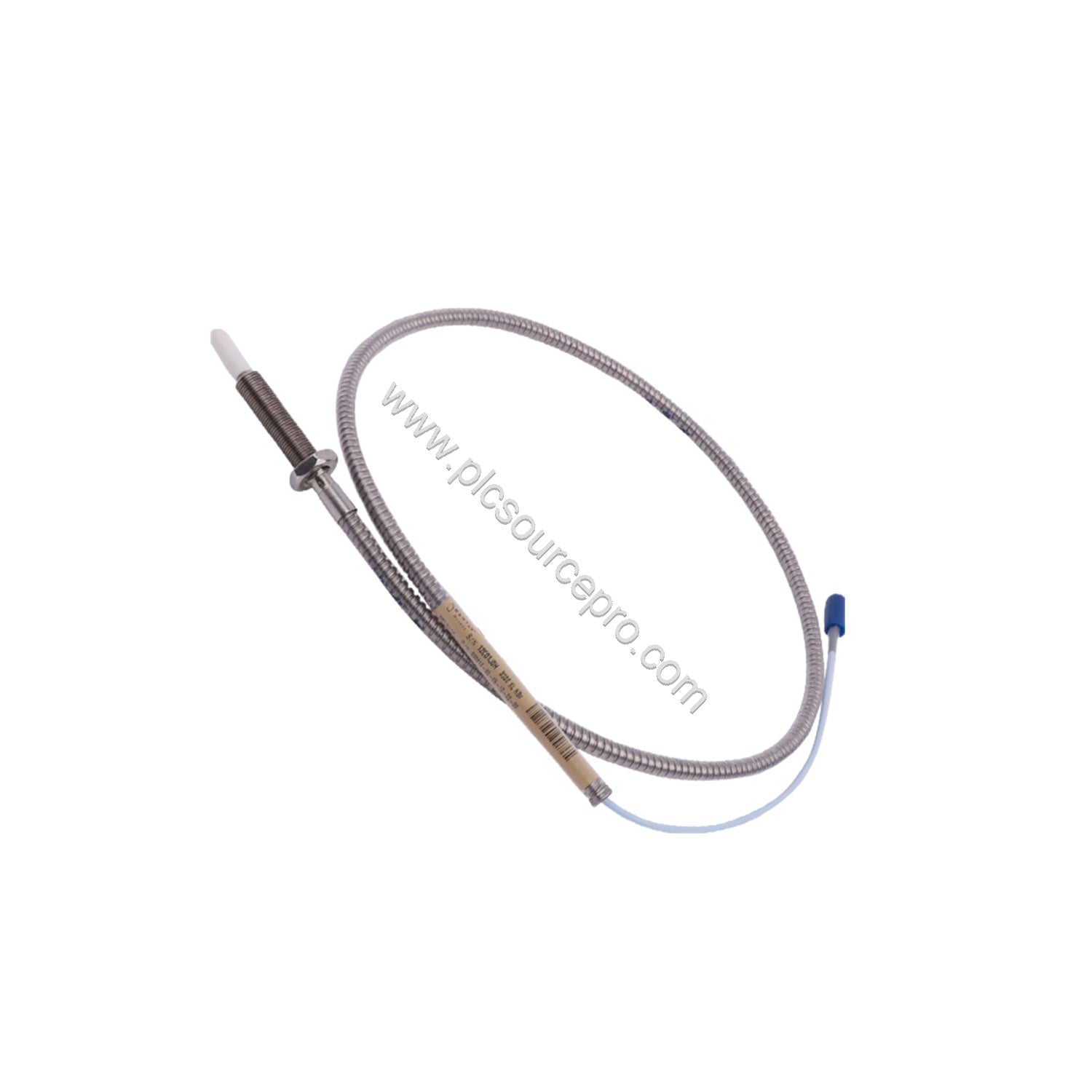

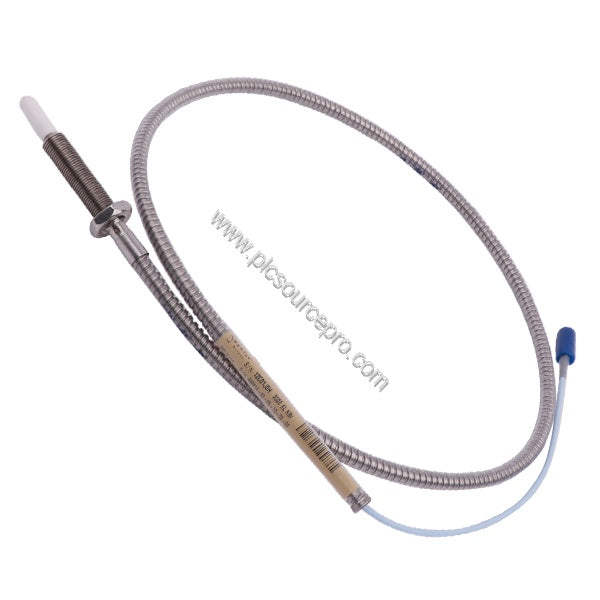

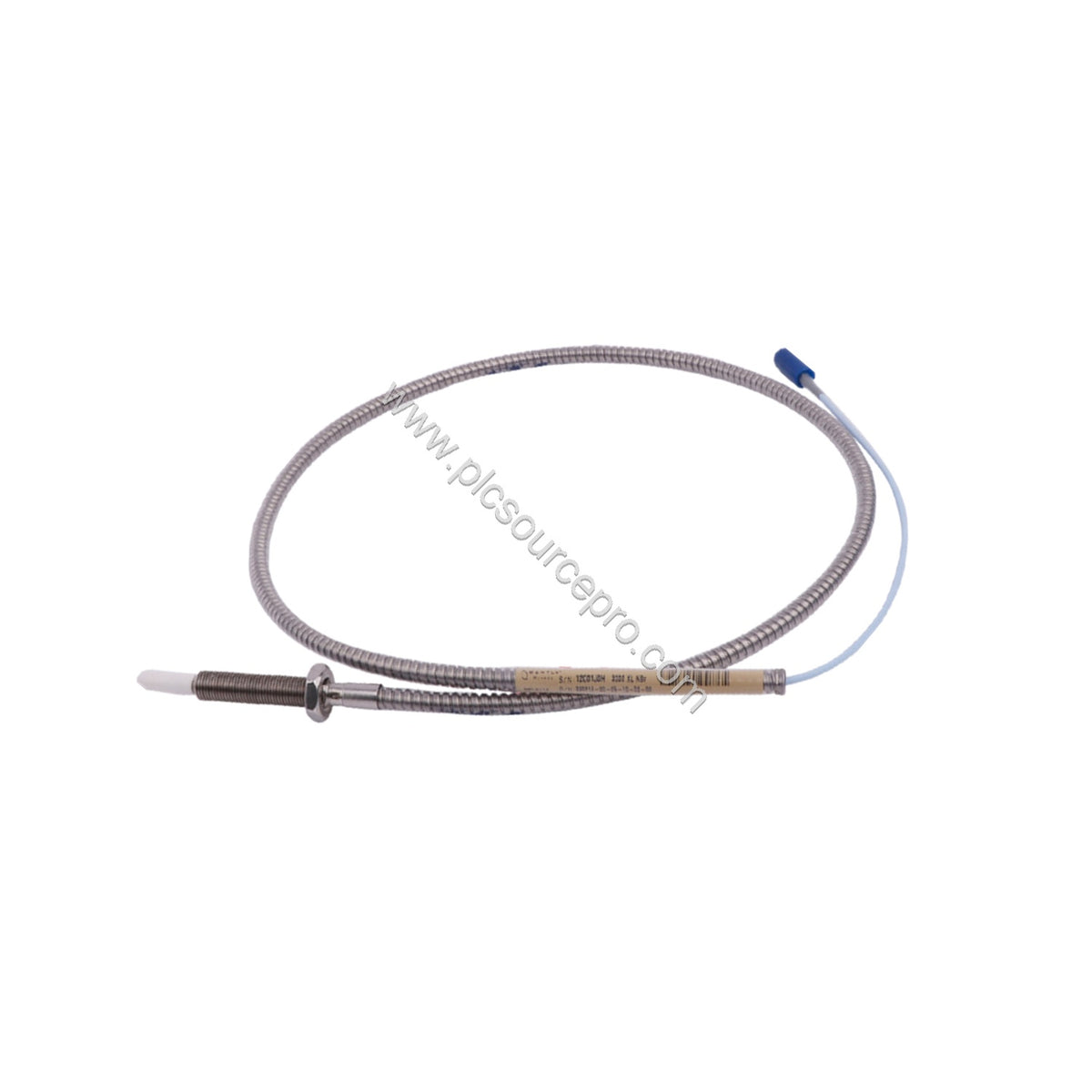

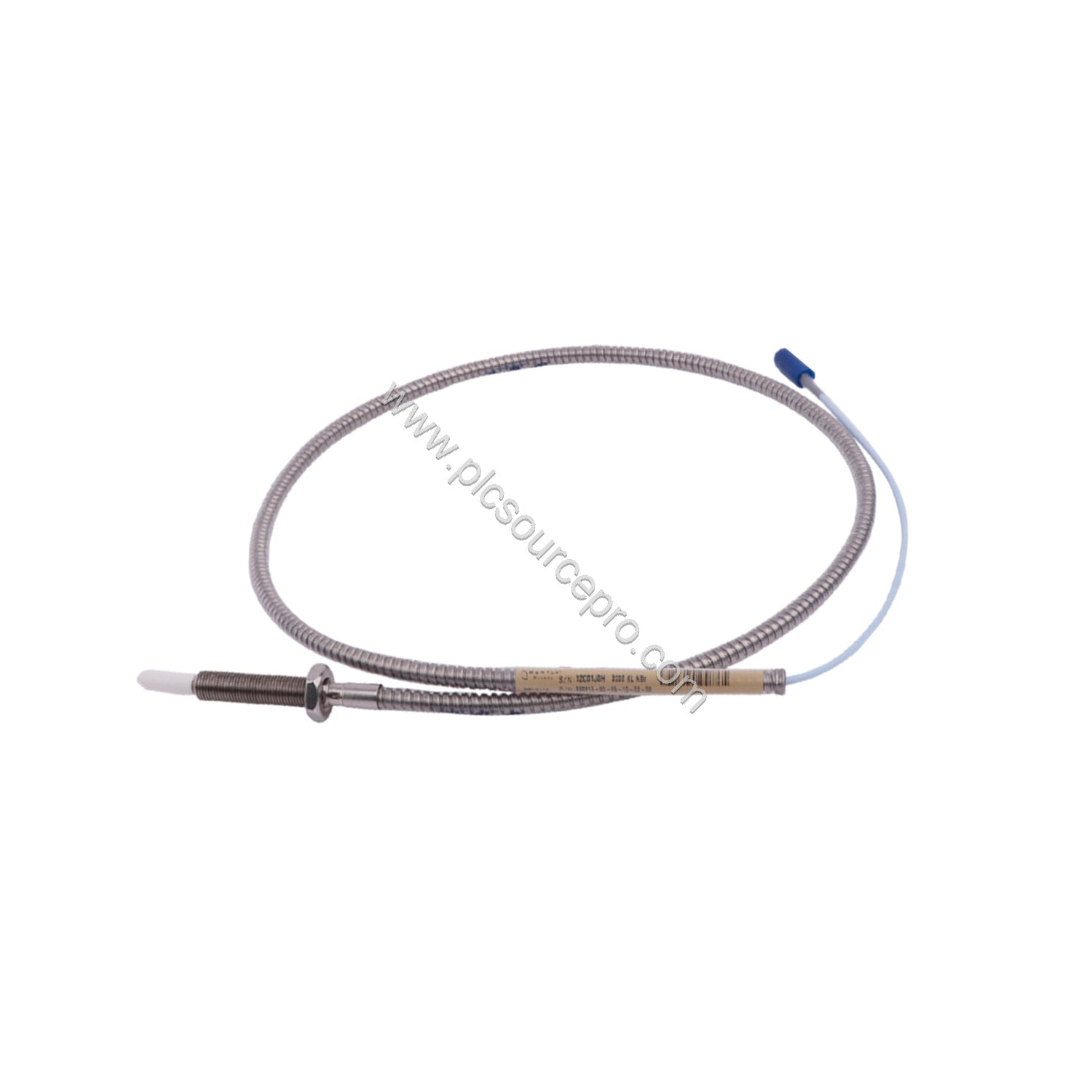

The Bently Nevada 330910-00-15-50-02-00 is a 3300 NSv proximity probe engineered for precise shaft vibration and position monitoring in rotating machinery. This industrial automation module delivers reliable, real-time data to protection and monitoring systems, helping operators detect issues before they escalate. With a rugged PPS tip and AISI 304 stainless steel case, the probe withstands harsh environments while maintaining accuracy.
Key Specifications
| Parameter |
Value |
| Model |
330910-00-15-50-02-00 |
| Probe Type |
3300 NSv, M10x1 thread, with armor |
| Unthreaded Length |
00 mm |
| Overall Case Length |
150 mm |
| Total Length |
5.0 meters (16.4 feet) |
| Connector |
Miniature coaxial ClickLoc, standard cable |
| Cable Impedance |
75 Ω coaxial, FEP insulated |
| Probe DC Resistance |
5.3 ± 0.7 ohms (center to outer conductor) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Maximum Thread Engagement |
15 mm (M10x1) |
Applications
The 330910-00-15-50-02-00 is ideal for monitoring shaft vibration in turbines, compressors, pumps, and motors. Its 5.0-meter cable length suits installations where the probe must be positioned away from the monitoring system. The PPS tip provides excellent chemical resistance, while the stainless steel case ensures durability in demanding industrial environments.
Installation & Setup
When installing the probe, ensure the unthreaded length is at least 20 mm less than the case length to avoid interference. Use the recommended torque of 11.3 N•m (100 in•lb) for the probe case—finger tight is acceptable, but do not exceed 33.9 N•m (300 in•lb). For the connector, apply only finger tight torque (maximum 0.56 N•m or 5 in•lb). Maintain a minimum bend radius of 25.4 mm to prevent cable damage.
Maintenance & Reliability
Regularly inspect the probe cable and connector for wear or damage. Avoid exposing the probe to temperatures below -34°C (-30°F) for extended periods, as this may compromise the pressure seal. The probe's robust construction minimizes maintenance needs, but periodic checks of the mounting torque and cable integrity ensure long-term reliability.
Selection Guide
When selecting a replacement probe, verify the total length, thread type, and connector style to match your system. The 330910-00-15-50-02-00 includes a 5.0-meter cable and ClickLoc connector—confirm compatibility with your monitor. For expert assistance, PLC Source PRO offers genuine Bently Nevada parts with a 12-month warranty.
