Product Introduction

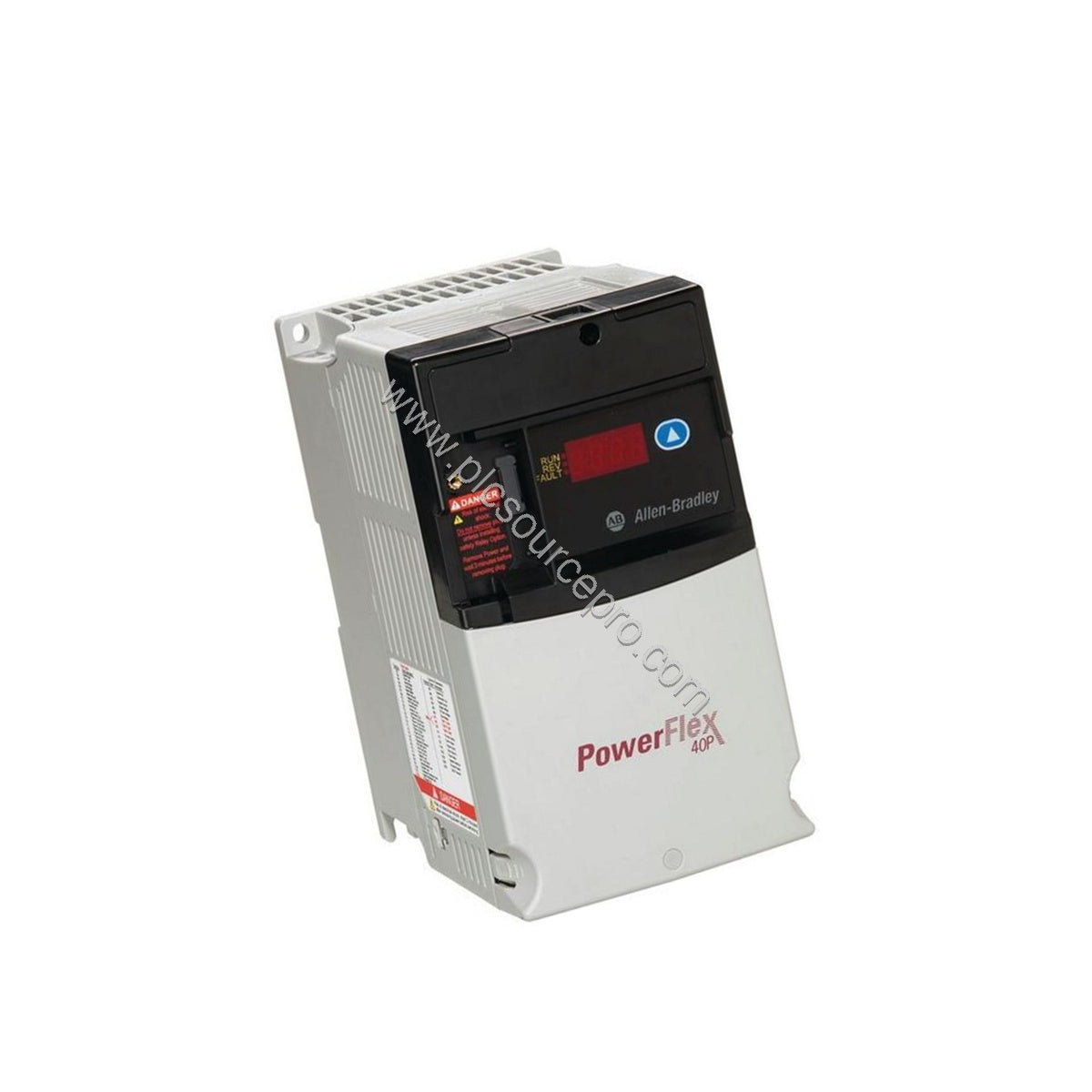

When your motor control system faces overloads, voltage transients, or ground faults, the Allen-Bradley 22D-E4P2N104 PowerFlex 40P Adjustable Frequency AC Drive delivers robust protection and reliable performance. This three-phase drive from the PowerFlex 40P series is designed to control the speed and torque of 3-phase induction motors in demanding industrial environments. With a 3 HP (2.2 kW) output rating and 4.2 A continuous current capacity, it is ideal for applications requiring precise motor control and built-in fault mitigation.
Technical Specifications Breakdown
The Allen-Bradley 22D-E4P2N104 drive offers a range of performance-enhancing specifications that directly address common failure modes:
| Parameter |
Value |
Protection Benefit |
| Input Voltage |
600 VAC (3-phase, 414–660 VAC range) |
Handles voltage sags and surges |
| Output Current |
4.2 A |
Supports 3 HP motor without overload |
| Overload Protection |
150% for 1 minute, 200% for 3 seconds |
Prevents motor burnout during temporary overloads |
| Instantaneous Current Fault Limit |
300% |
Immediate trip on short circuits or severe faults |
| Bus Overvoltage Trip |
1005 VDC |
Protects DC bus from high-voltage spikes |
| Bus Undervoltage Trip |
487 VDC |
Prevents operation under low-voltage conditions |
| Class 10 Electronic Overload |
i²t Algorithm |
Accurate thermal motor protection |
| Removable MOV |
Ground fault trip protection |
Shields against voltage transients and ground faults |
Additional features include a built-in DC brake transistor, DIP switch adjustable source/sink controls, and a displacement power factor of 0.98 for efficient energy use.
Industry Applications
The Allen-Bradley 22D-E4P2N104 is well-suited for a variety of industrial motor control tasks where reliability and protection are critical:
-
Conveyor Systems: Provides smooth acceleration and deceleration while protecting against belt jams or sudden load changes.
-
Pump Drives: Handles variable torque loads and safeguards against dry-run or cavitation events through overload limits.
-
Fan and Blower Control: Maintains consistent speed and torque even with fluctuating air pressure, preventing over-current trips.
In each scenario, the drive's fault detection and protection mechanisms reduce unplanned downtime and extend equipment life.
Troubleshooting & Common Issues
Many common drive failures stem from voltage anomalies, ground faults, or overload conditions. The Allen-Bradley 22D-E4P2N104 is engineered to handle these situations:
-
Overvoltage / Undervoltage: The bus trip limits (1005 VDC / 487 VDC) disconnect the drive before damage occurs. Check supply voltage stability if trips recur.
-
Ground Faults: The removable Metal Oxide Varistor (MOV) provides a dedicated path for ground fault currents. Replace MOV after a fault event per manufacturer guidance.
-
Motor Overload: The Class 10 i²t algorithm protects the motor. Verify motor nameplate matches drive settings if nuisance trips happen.
-
Instantaneous Overcurrent: The 300% current limit trip clears short circuits rapidly. Inspect motor windings and cabling if this trip occurs.
Regular inspection of input power quality and motor insulation resistance helps prevent these conditions.
Selection Guide & Purchasing Advice
When purchasing the Allen-Bradley 22D-E4P2N104, verify that your application requires a 3 HP, 4.2 A drive with 600 VAC three-phase input and an IP20 (NEMA Open) panel-mount enclosure. This drive is part of the PowerFlex 40P series and accepts standard flange mounting. For additional assistance, consult the technical documentation or contact PLC Source PRO for expert guidance and availability.
