Product Introduction

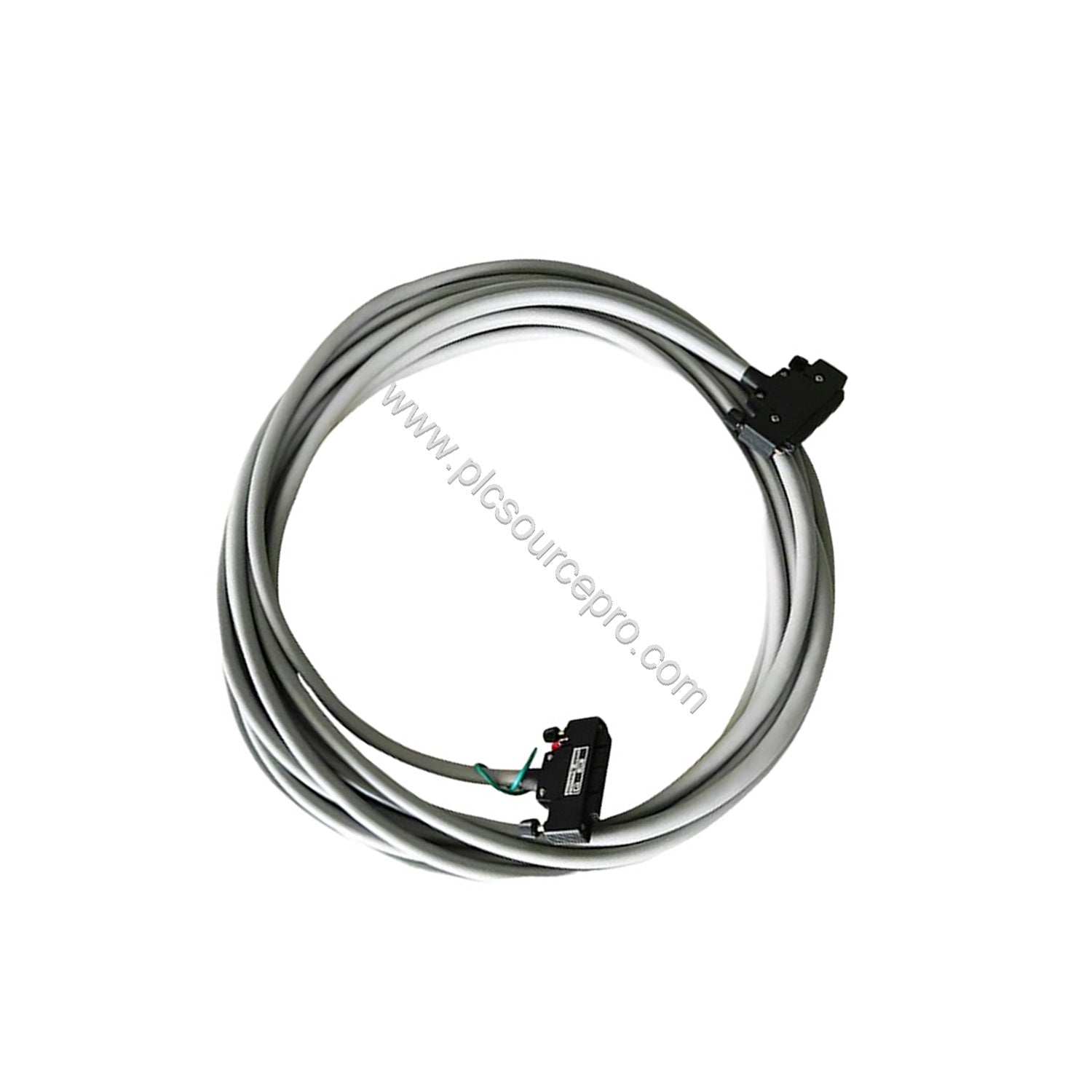

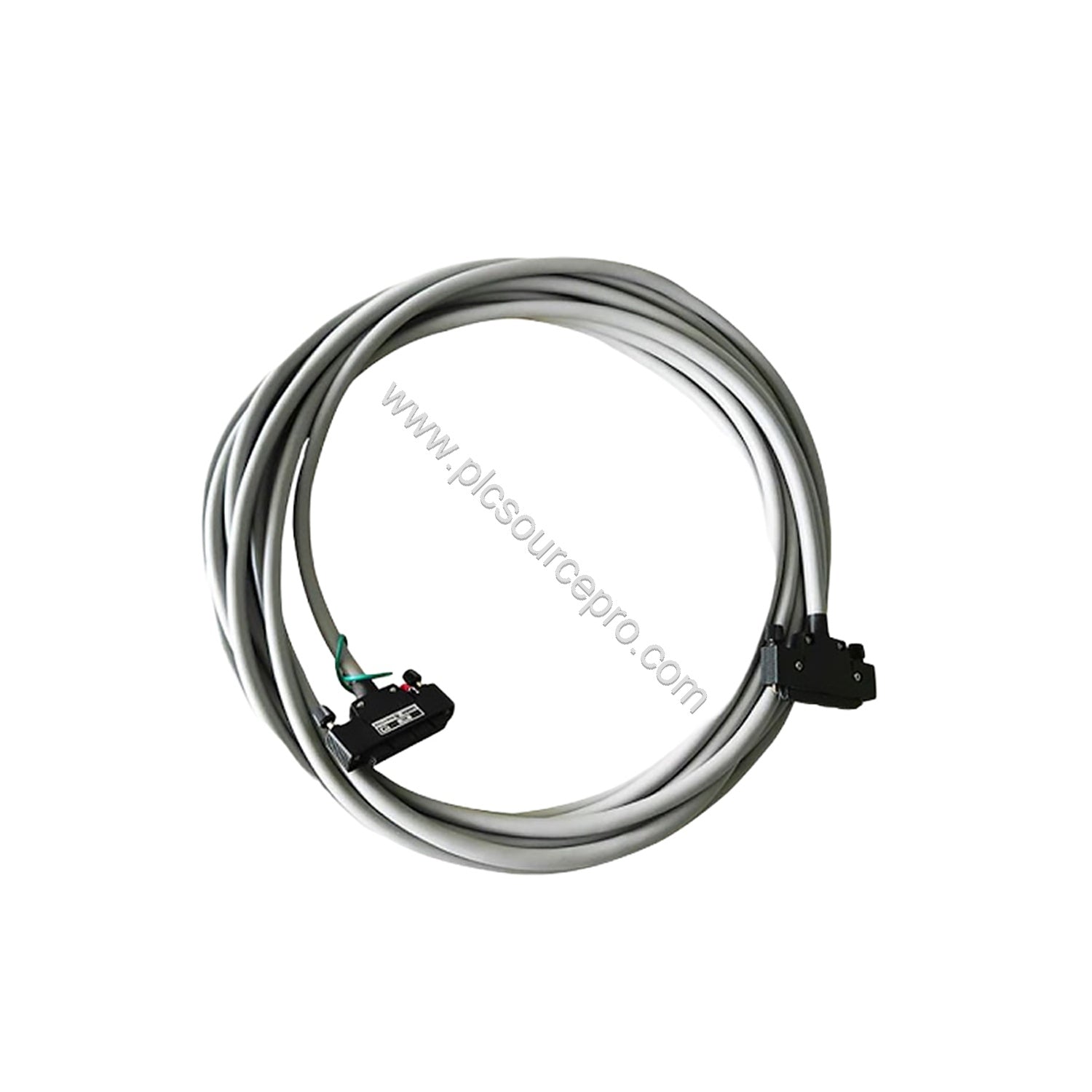

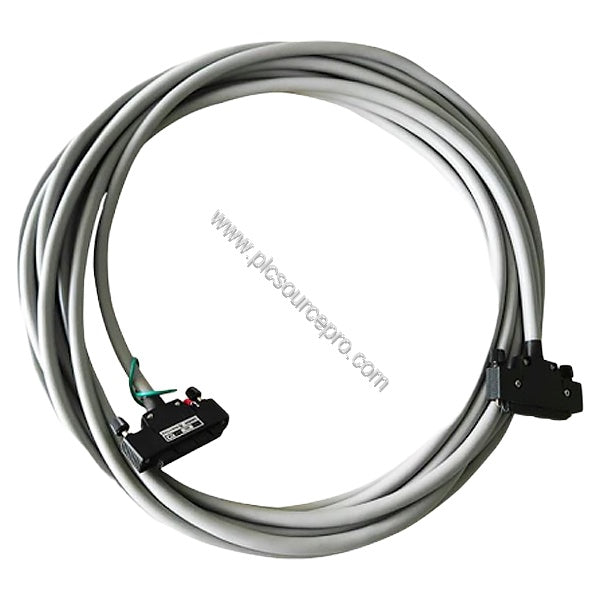

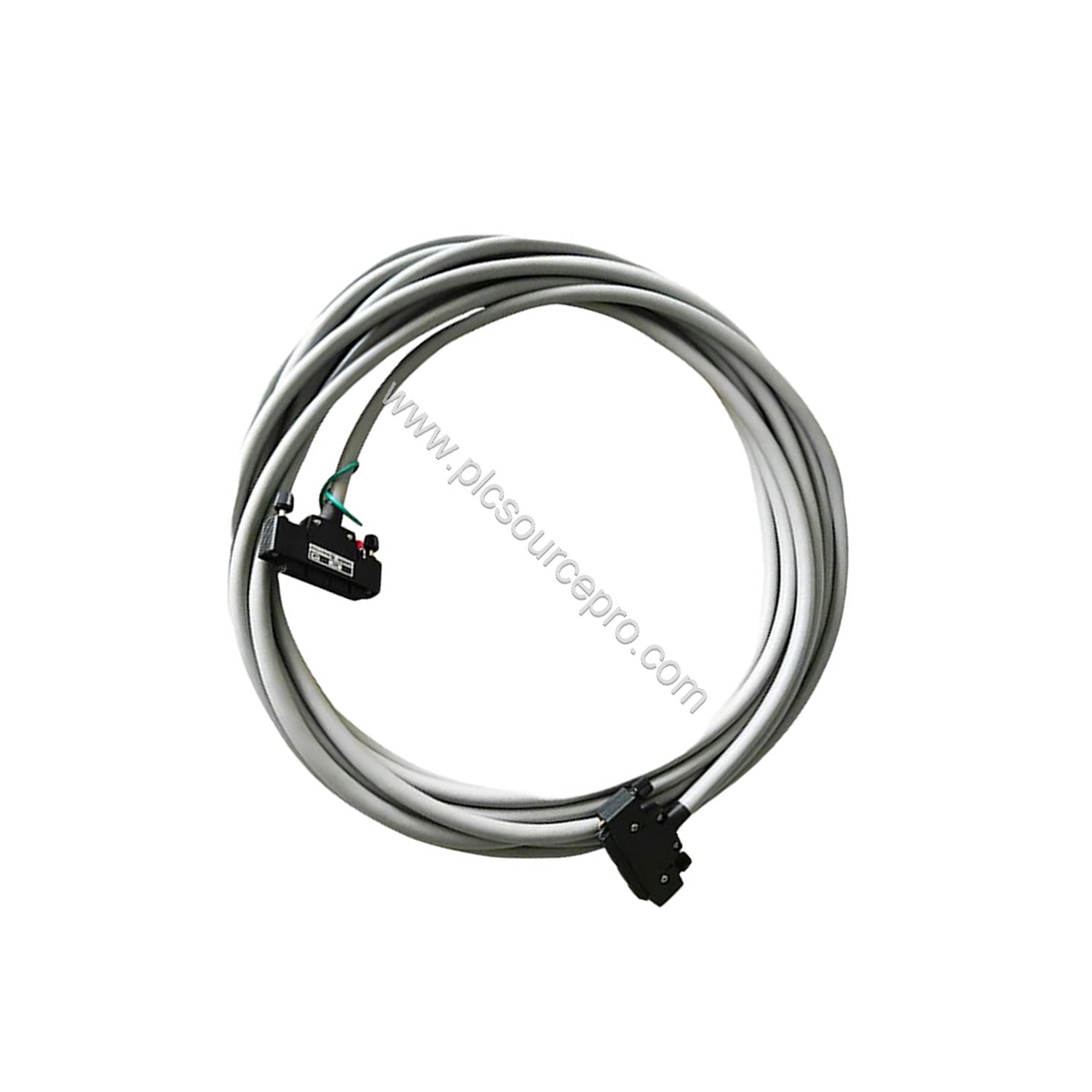

In industrial automation systems where signal integrity is paramount, the Yokogawa AKB331-M020 Signal Cable provides a dedicated connection between critical modules and terminal boards. Designed specifically for use with SDV144, SDV531, SDV53A, SDV541, and SAT145 units, this 20-meter cable ensures reliable data transfer in DCS and control loops. The 50-50 pin configuration delivers precise pin-to-pin matching, reducing noise and preventing miswiring. Whether upgrading an existing system or replacing worn cables, the AKB331-M020 maintains signal clarity over long distances.
Technical Specifications
The Yokogawa AKB331-M020 is a purpose-built signal cable with the following key specifications derived from the model code:
| Parameter |
Value |
| Model Number |
AKB331-M020 |
| Type |
Signal Cable (50-50 pins) |
| Length |
20 meters |
| Compatible Modules |
SDV144, SDV531, SDV53A, SDV541, SAT145 |
| Connection |
Between module and Terminal Board |
Note: Additional technical parameters such as voltage rating and insulation resistance are not provided. For detailed electrical specifications, contact UBEST Automation directly.
Industry Applications
The Yokogawa AKB331-M020 Signal Cable is essential in process control environments where Yokogawa DCS modules communicate with field termination assemblies. Typical applications include:
- Connecting SDV144 digital input modules to marshalling cabinets in oil and gas refineries.
- Linking SDV531 analog output modules to terminal boards in chemical plant control systems.
- Replacing aging cables in SAT145-based safety instrumented systems to prevent intermittent faults.
By using the AKB331-M020, engineers reduce common failure modes such as pin misalignment and signal attenuation over long cable runs, ensuring higher system uptime.
Installation & Setup Guidance
When installing the Yokogawa AKB331-M020, follow these best practices to maximize performance:
- Verify that the cable length (20 m) is appropriate for the distance between the module and terminal board. Avoid sharp bends or kinks that could damage internal conductors.
- Secure both ends using the locking mechanisms on the 50-pin connectors. Ensure pins are fully seated to prevent intermittent connections.
- Route the cable away from high-voltage power lines and sources of electromagnetic interference (EMI) such as variable frequency drives. If crossing power cables is unavoidable, do so at 90-degree angles.
- Label both ends of the cable with the corresponding module and terminal numbers to simplify troubleshooting.
Maintenance & Reliability
Regular inspection of the Yokogawa AKB331-M020 can prevent unexpected downtime. Check connectors for corrosion or bent pins every six months. Verify that the cable jacket is intact, especially near cable ties or conduit entries. If signal degradation is suspected, perform a continuity test with a multimeter. The 20-meter length offers flexibility while minimizing signal loss; however, for longer distances, consider a signal repeater. Keeping spare AKB331-M020 cables onsite ensures rapid replacement during critical process outages.
Selection Guide & Purchasing Advice
Before purchasing the Yokogawa AKB331-M020, confirm that your system uses modules with 50-pin female connectors that match the cable's 50-50 pin configuration. The -M020 suffix indicates a 20-meter cable; shorter or longer lengths are available under different suffix codes. For assistance with compatibility or to order genuine replacement cables, contact UBEST Automation. With a broad inventory of Yokogawa spares, UBEST Automation helps maintain your DCS infrastructure with minimal lead time.
