Product Overview

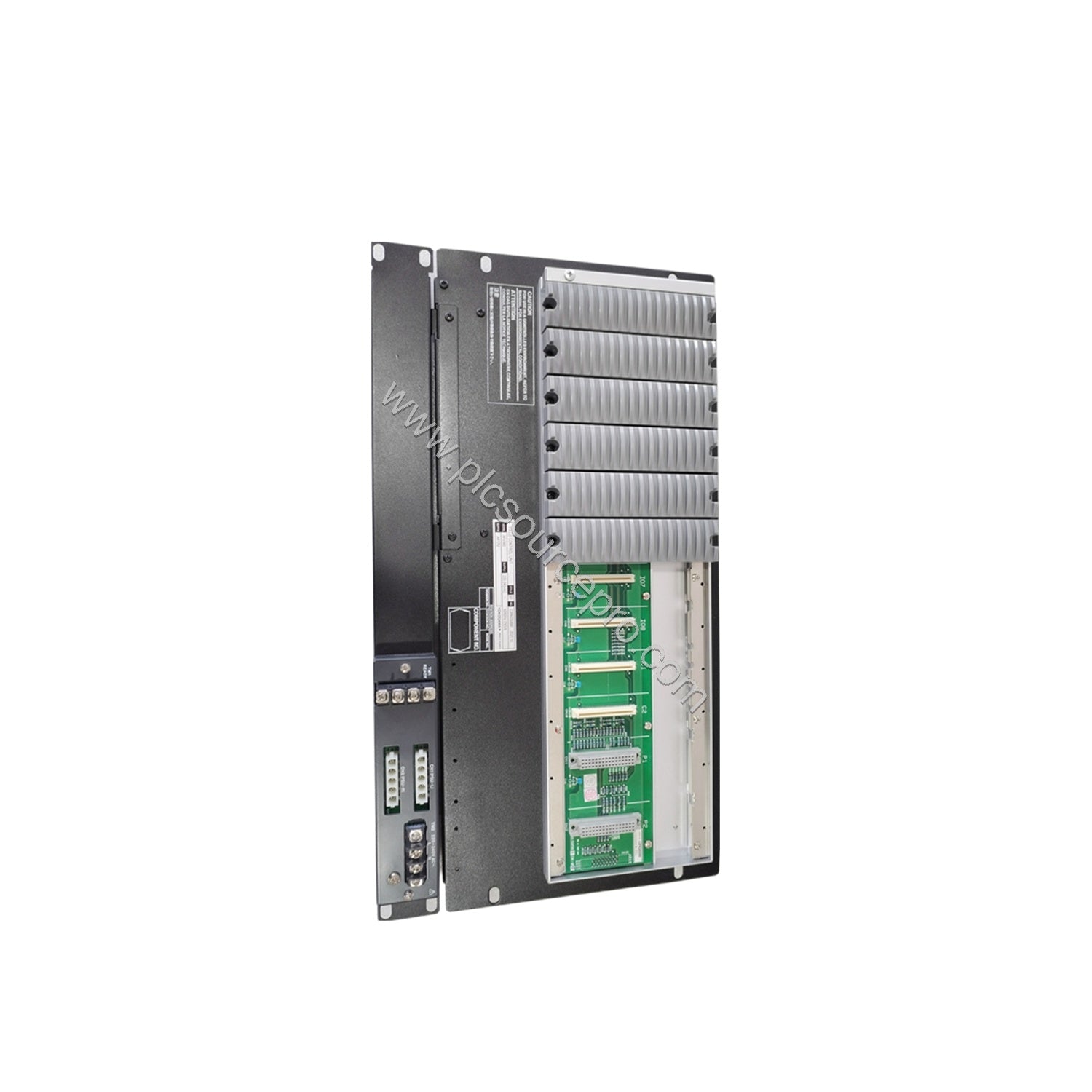

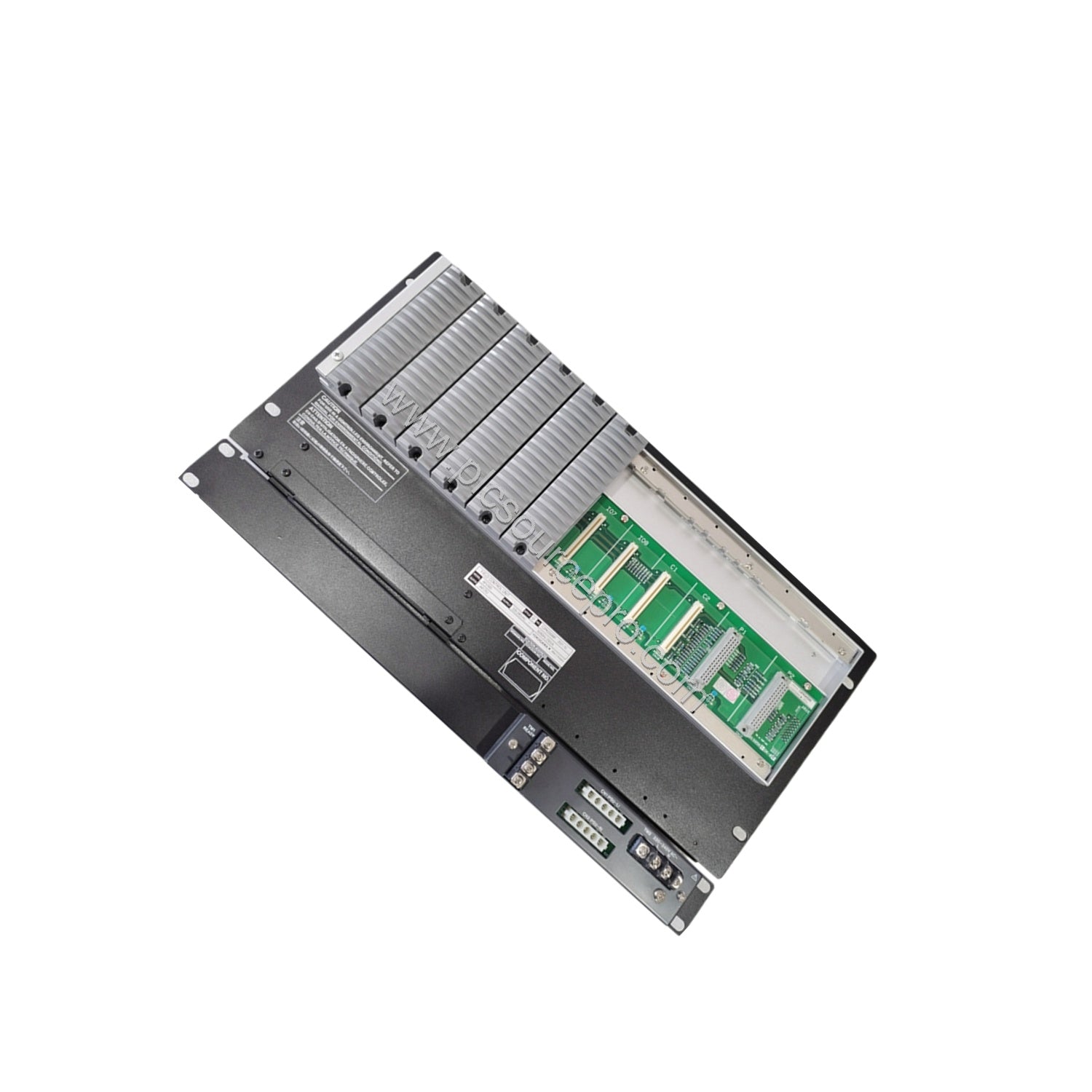

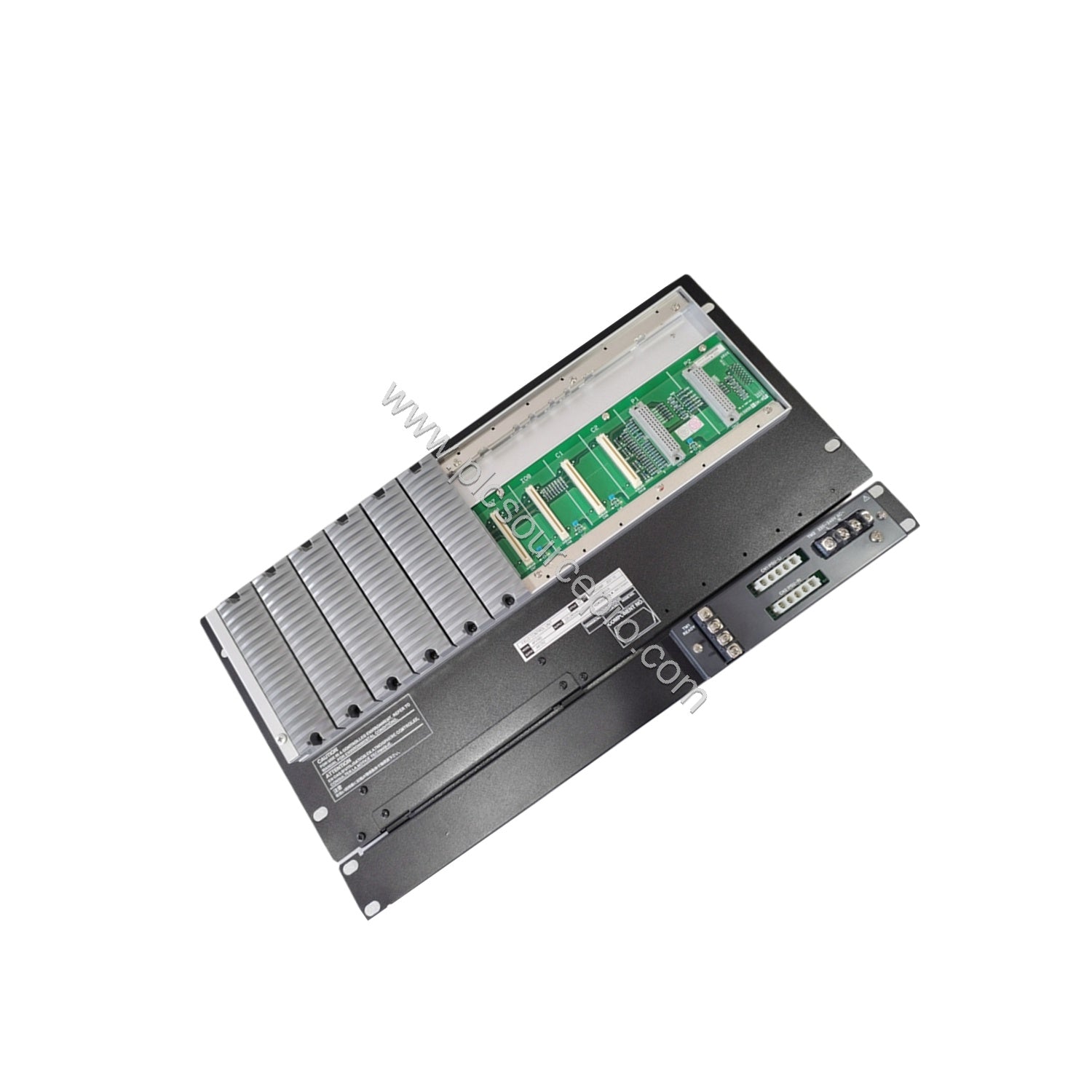

The Yokogawa AFV30D-A41252 is a duplexed Field Control Unit designed for high-availability process automation. Part of the AFV30 series, this unit integrates with Vnet/IP and FIO systems, offering dual-redundant Vnet/IP and power supply to eliminate single points of failure. In critical industrial environments, the AFV30D-A41252 minimizes costly downtime by ensuring continuous control even if one component fails.
Technical Specifications
The AFV30D-A41252 provides robust performance with the following key parameters:
-
Power Consumption: 100-120 V AC: 200 VA; 220-240 V AC: 230 VA; 24 V DC: 5.5 A
-
Weight: Approx. 8.0 kg (AFV30D)
-
Mounting: 19-inch rack mountable with M5x8 screws and insulation bush (accessory)
-
Connections: Power supply, grounding, and READY contact output via M4 screw terminals; network via UTP cable (CAT5e or better) to Layer 2 switch
-
Redundancy: Dual-redundant Vnet/IP and dual-redundant power supply
Industry Applications
The Yokogawa AFV30D-A41252 excels in sectors where process continuity is paramount. In oil and gas refineries, its duplexed architecture ensures uninterrupted control of critical loops during maintenance or power fluctuations. In chemical plants, the AFV30D-A41252 supports high-speed data exchange over Vnet/IP, enabling real-time monitoring and adjustment of batch processes. In power generation, the dual-redundant design of the AFV30D-A41252 guarantees that even during a network path failure, control remains stable, directly contributing to reduced unplanned downtime and higher operational ROI.
Installation & Setup Guidance
Install the Yokogawa AFV30D-A41252 in a standard 19-inch rack using the provided M5x8 screws and insulation bush. Ensure all M4 screw terminals for power, grounding, and READY contact are securely torqued to manufacturer specifications. For network connectivity, use CAT5e or better UTP cables directly to a Layer 2 switch. Verify that the dual-redundant power supply inputs (220-240 V AC in this variant) are connected to separate circuits for true redundancy. The A (standard) suffix indicates compatibility with CP471 controllers; confirm your system revision prior to mounting.
Maintenance & Reliability
To maximize the long-term value of the AFV30D-A41252, follow a routine inspection schedule. Check M4 terminal connections biannually for signs of corrosion or loosening. Verify that all network cables meet CAT5e standards and that the Layer 2 switch ports are error-free. The duplexed design of the AFV30D-A41252 allows for hot-swap of one redundant path during service, significantly extending mean time between failures (MTBF) and reducing lifecycle costs.
Selection Guide & Purchasing Advice
Before ordering the Yokogawa AFV30D-A41252, verify your system’s voltage requirements (this unit is configured for 220-240 V AC) and confirm compatibility with your existing FIO and Vnet/IP infrastructure. The duplexed variant is ideal for applications where downtime is not acceptable. For standard (non-redundant) needs, consider the AFV30S. UBEST Automation offers the AFV30D-A41252 with fast global shipping and expert support to match your project schedule. Contact our team at ubest101 for further technical guidance.
