Product Overview

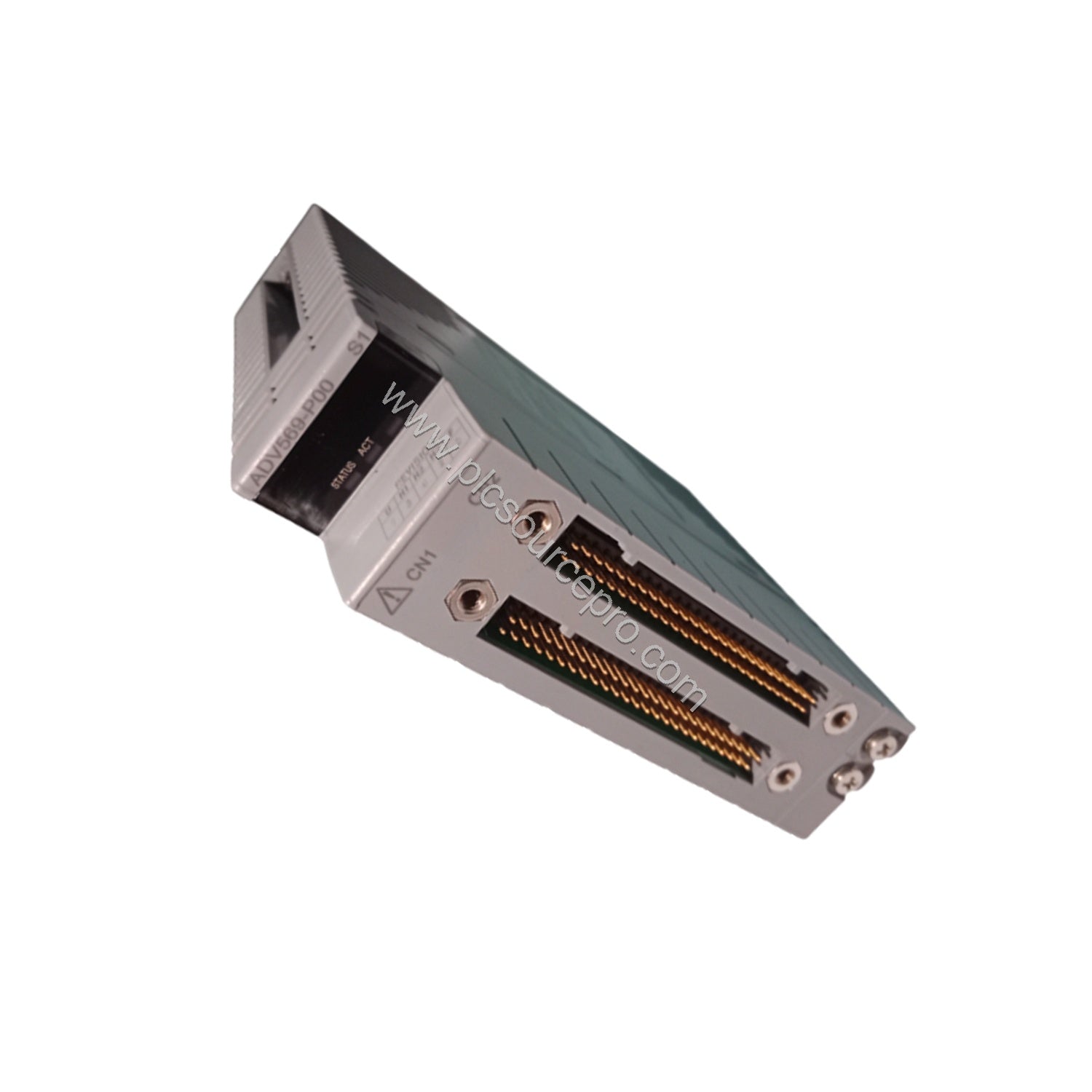

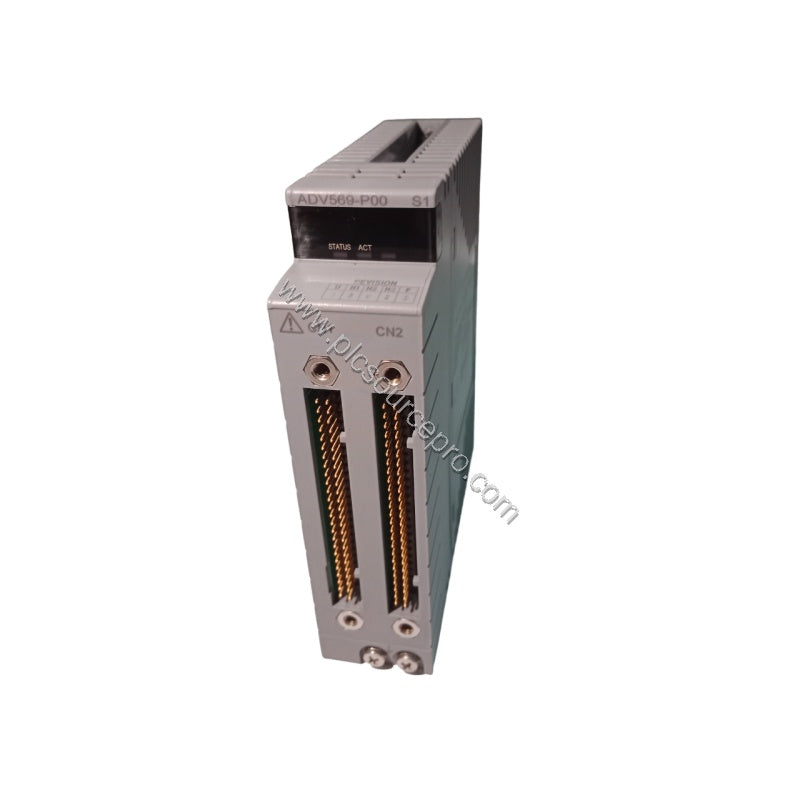

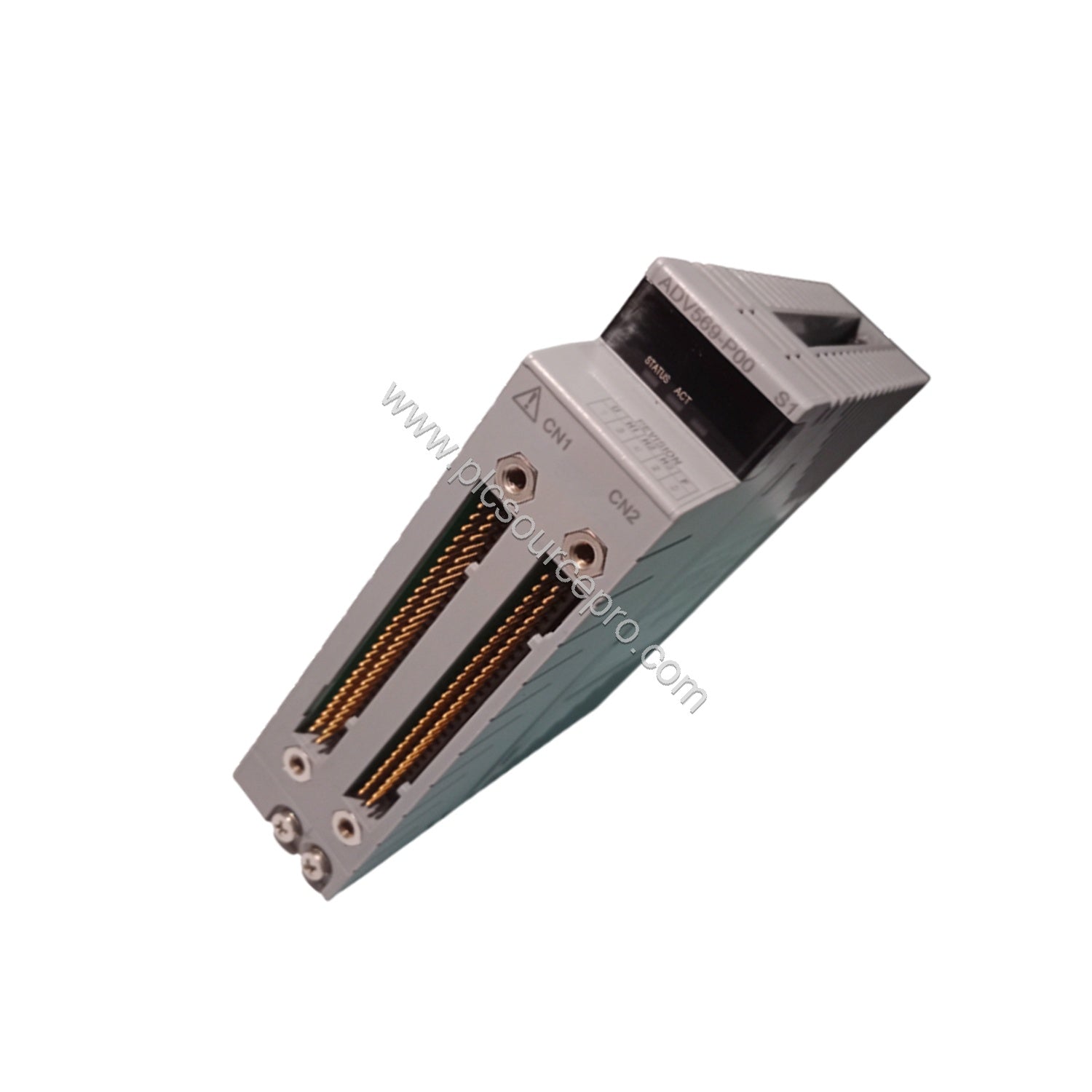

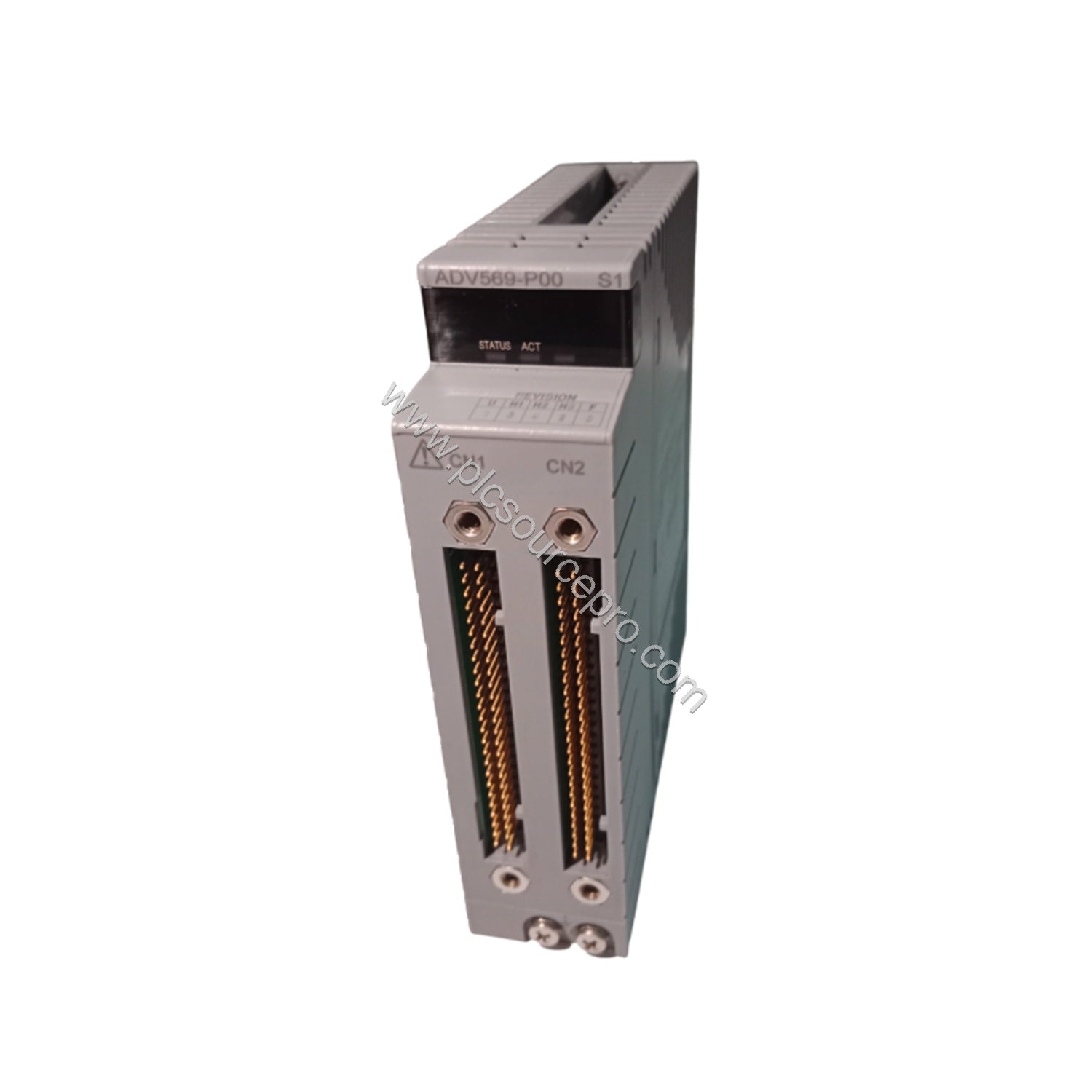

When precise digital output control is critical in industrial automation, the Yokogawa ADV569-P00 delivers reliable 64-channel input with isolated common per 16-channel. This digital output module is designed for ST7 compatible systems, offering a transistor contact output with a pulse width function and time-proportional output capability. The ADV569-P00 ensures accurate signal handling and efficient operation in demanding environments.
Technical Specifications
| Parameter |
Value |
| Number of I/O channels |
64-channel input |
| Signal isolation |
Common every 16-channel |
| Output signal |
Transistor contact |
| Output contact rating (inductive/resistive load) |
30 V DC, 100 mA |
| Output response time |
16 ms or less |
| Pulse width |
8 ms to 7200 s |
| Pulse width resolution |
8 ms, add max. 1 ms for ON/OFF delay time |
| Input contact rating |
5 V DC, 20 mA or more |
| Maximum current consumption |
800 mA (5 V DC) |
| Weight |
Approx. 0.30 kg |
| External connection |
Dedicated cable (KS9) |
| Compatible card |
ST7 compatible |
Key Applications
The Yokogawa ADV569-P00 64-channel input module excels in process control systems, manufacturing assembly lines, and material handling automation. Its isolated common per 16-channel reduces electrical noise interference, ensuring stable operation in high-vibration environments. The pulse width function enables precise timing for valve actuation and conveyor control, improving overall system efficiency and reducing energy waste.
Installation Guidance
Mount the Yokogawa ADV569-P00 on a compatible ST7 backplane. Use the dedicated KS9 cable for external connections. Ensure the power supply provides 5 V DC with sufficient current (800 mA max). Verify signal isolation per 16-channel group to prevent ground loops. For systems requiring pulse width modulation, configure the time-proportional output via the module's pulse function.
Maintenance and Reliability
The ADV569-P00's isolated design minimizes wear from electrical surges, extending service life. Inspect connections annually for corrosion or loose terminals. Keep the module clean and within specified temperature ranges. The robust transistor output handles frequent switching without degradation, reducing unplanned downtime and lowering total cost of ownership.
Selection Guide
Before purchasing the Yokogawa ADV569-P00, confirm that your system uses an ST7 compatible rack. Verify that the 64-channel input configuration meets your I/O requirements. If you need pulse width functionality, ensure the module includes the '-P' option. For reliable supply and technical support, choose UBEST Automation (ubest101). We stock genuine Yokogawa modules and can assist with compatibility questions.
