Product Introduction

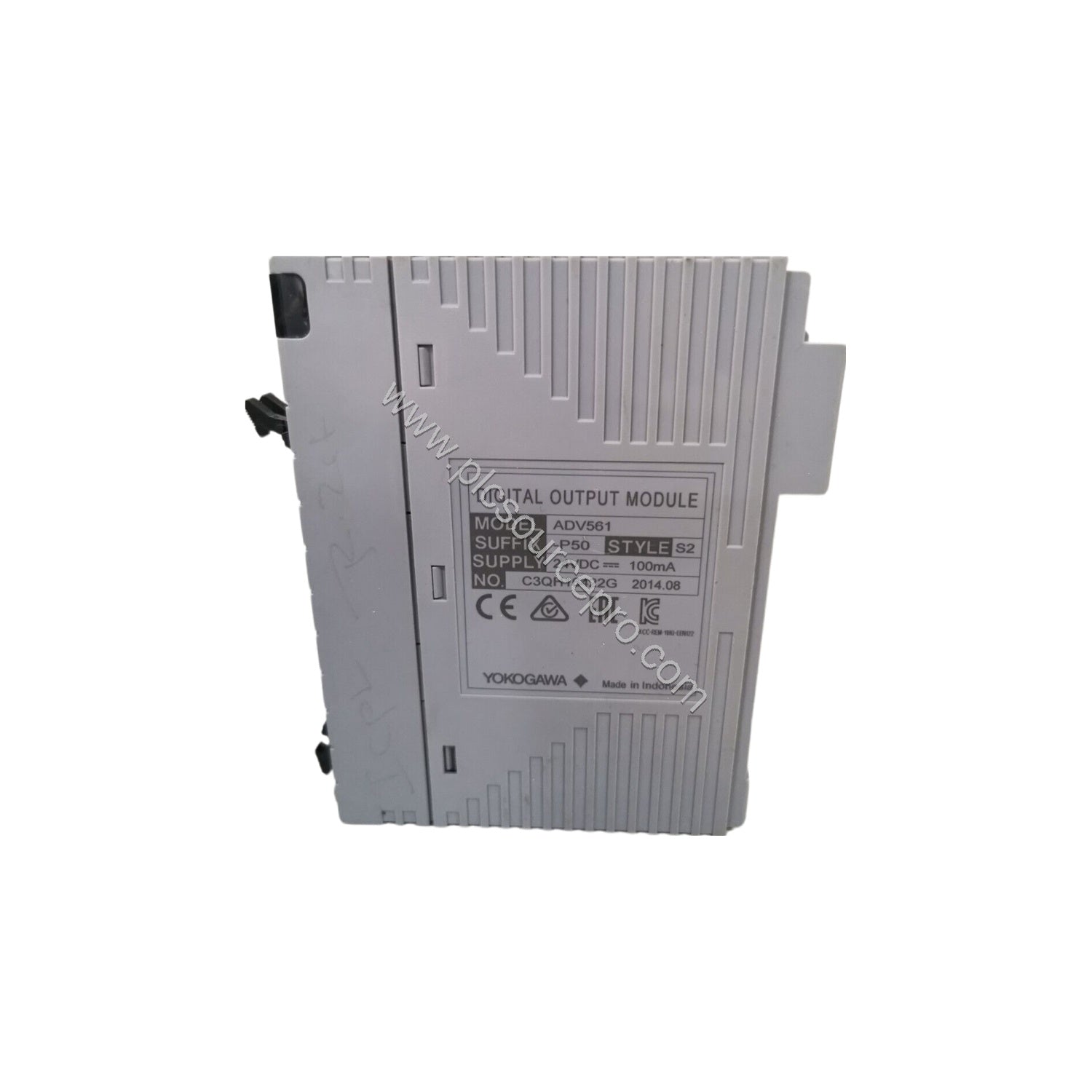

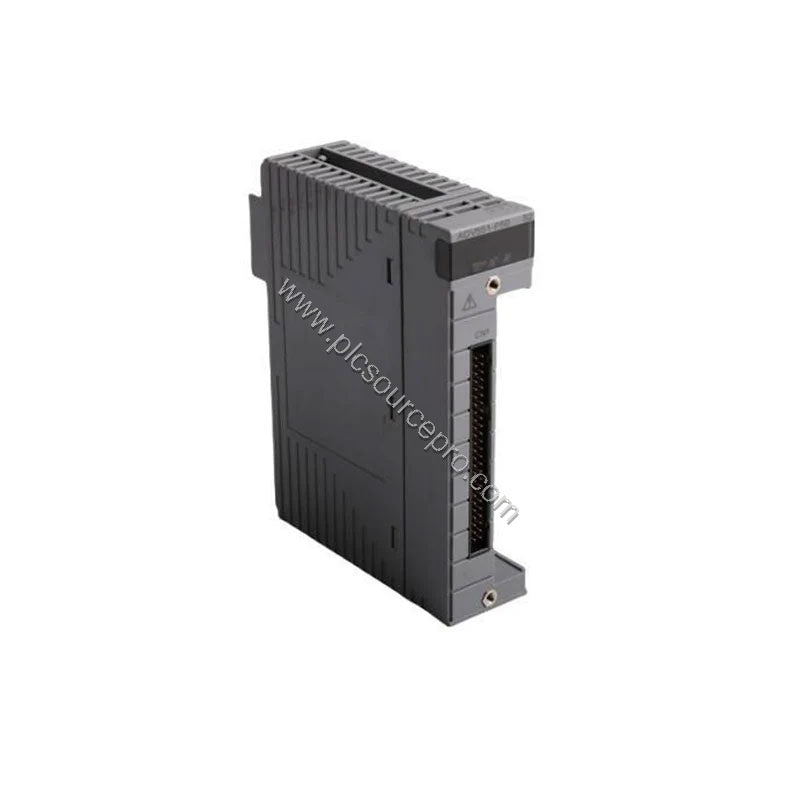

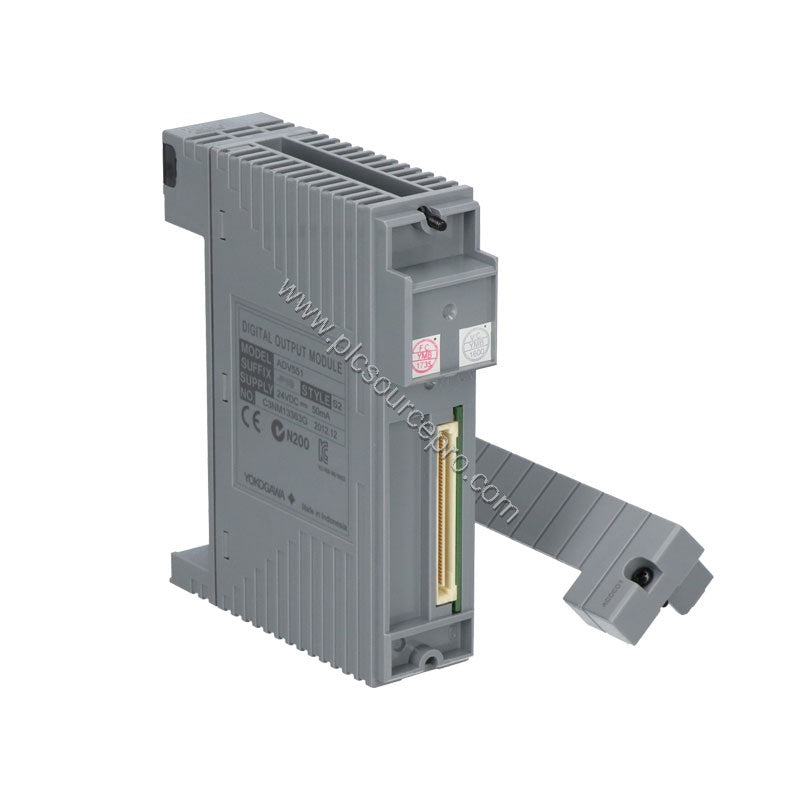

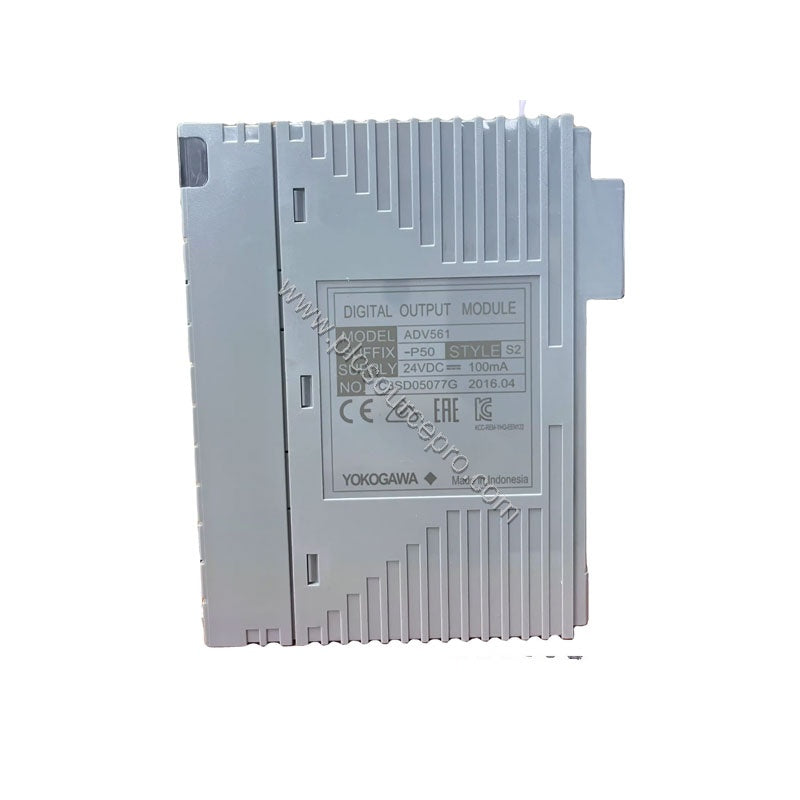

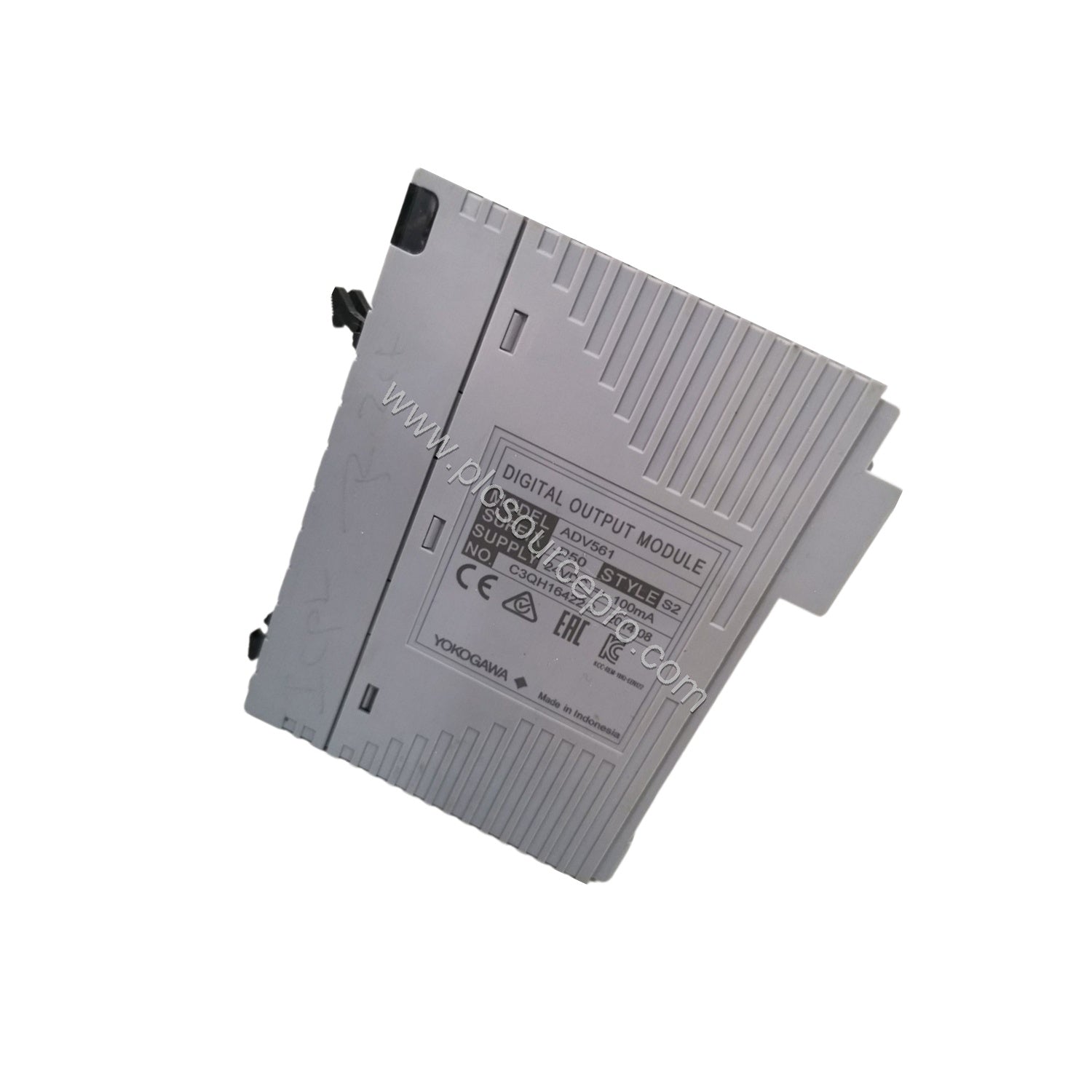

When industrial control systems demand precise digital output switching with advanced timing functions, the Yokogawa ADV561-P50 steps in as a reliable solution. This Digital Output Module, part of the ADV561 series, delivers 64 channels of isolated 24 V DC output with pulse width and time-proportional output capabilities. Designed for harsh automation environments, the ADV561-P50 ensures safe, accurate signal control for PLC and DCS systems.
Technical Specifications
Although detailed specifications are not fully available, the Yokogawa ADV561-P50 is known to be a high-density digital output module. For complete technical data, please contact UBEST Automation directly. The module features 64 output channels, a rated applied voltage of 24 V DC, and supports current sink output format. Its pulse width output function allows one-shot pulse generation from 8 ms to 7200 s, with 8 ms resolution. The time-proportioning output enables on/off duty cycle control. The output response time is 3 ms or less for status output and 10 ms or less when mixed with pulse outputs. The maximum load current is 100 mA per channel at 26.4 V. Withstanding voltage between output signal and system is 2 kV AC for 1 minute, and between commons is 500 V AC for 1 minute (common minus side every 16 channels). The module consumes 700 mA at 5 V DC and 120 mA from the external power supply. Weight is approximately 0.30 kg. External connection uses a dedicated cable (AKB337) or MIL connector cable.
Industry Applications
The Yokogawa ADV561-P50 excels in manufacturing lines where precise valve or solenoid control is required. Its pulse width output function is ideal for applications like conveyor belt indexing or timed dispense operations. In process industries, the time-proportional output suits temperature or flow control loops that require gradual on/off cycling. Upgrading older fixed-output modules with the ADV561-P50 allows for greater flexibility and reduced wiring complexity, thanks to its isolated channels and high channel count.
Selection Guide & Purchasing Advice
Before purchasing the Yokogawa ADV561-P50, verify your system's compatibility with the 24 V DC external supply and the current sink output format. Ensure you have the appropriate cable (AKB337 or MIL connector) for connection. For expert guidance and competitive pricing, rely on UBEST Automation – your trusted partner for industrial automation spares. Contact us to confirm stock and lead times.
