Product Introduction

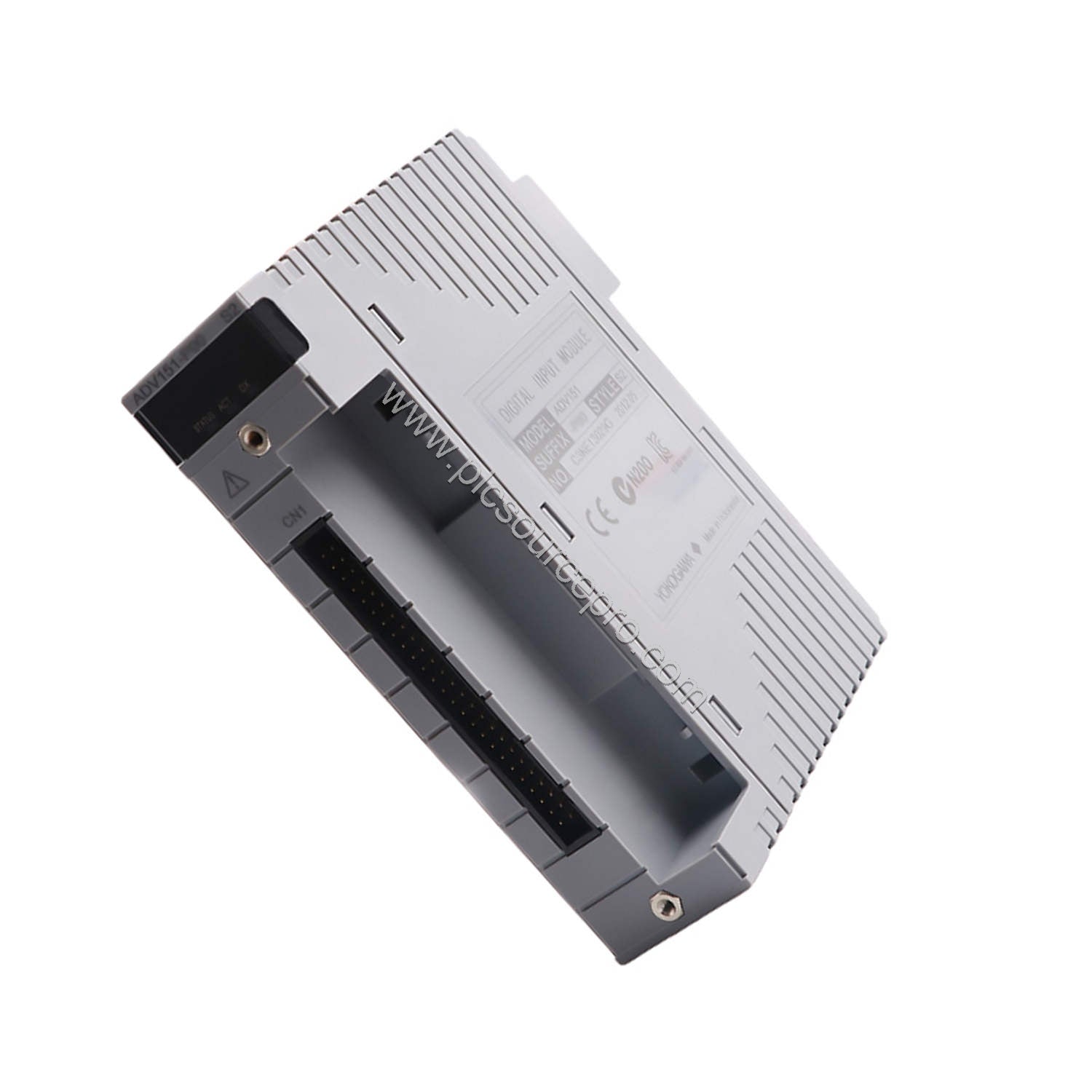

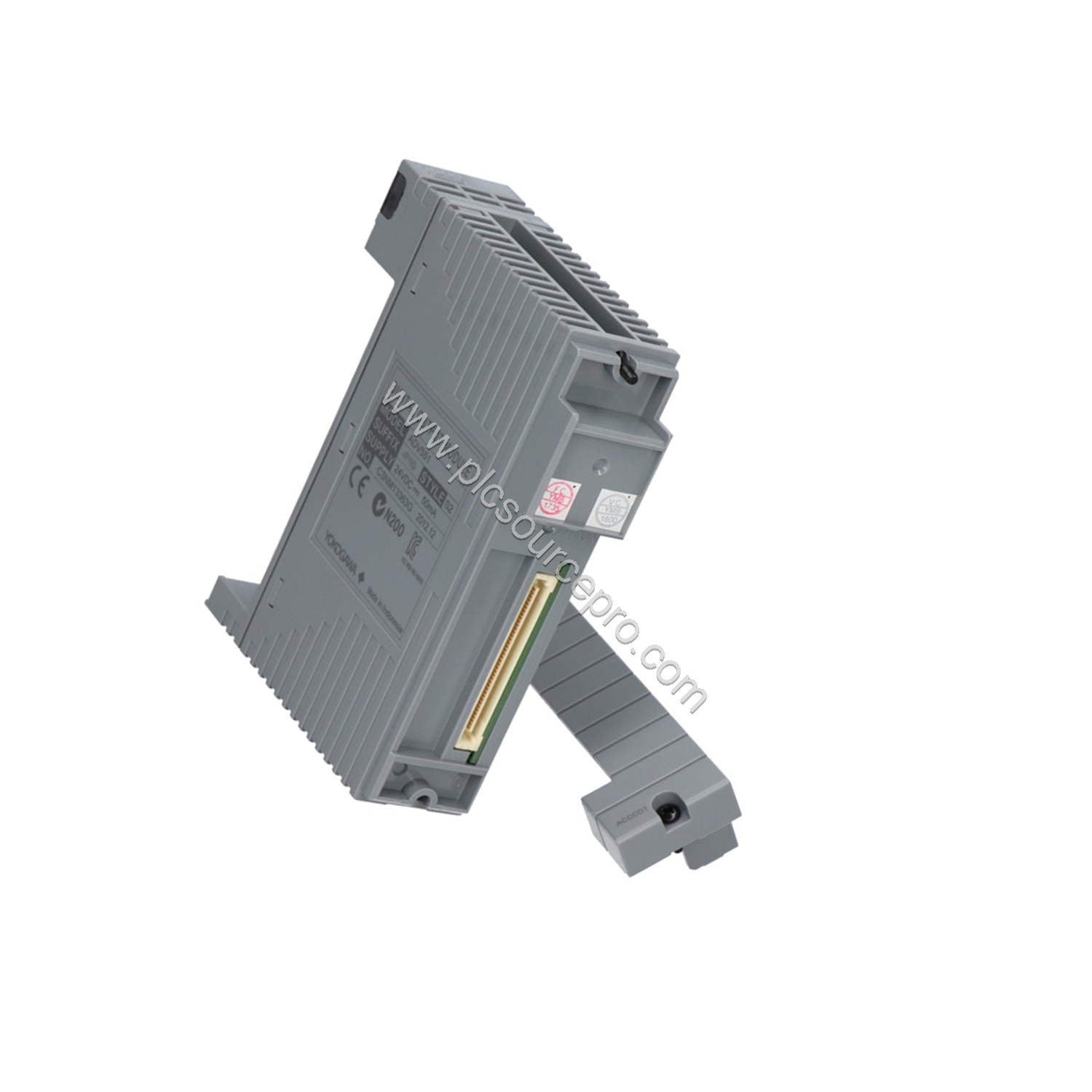

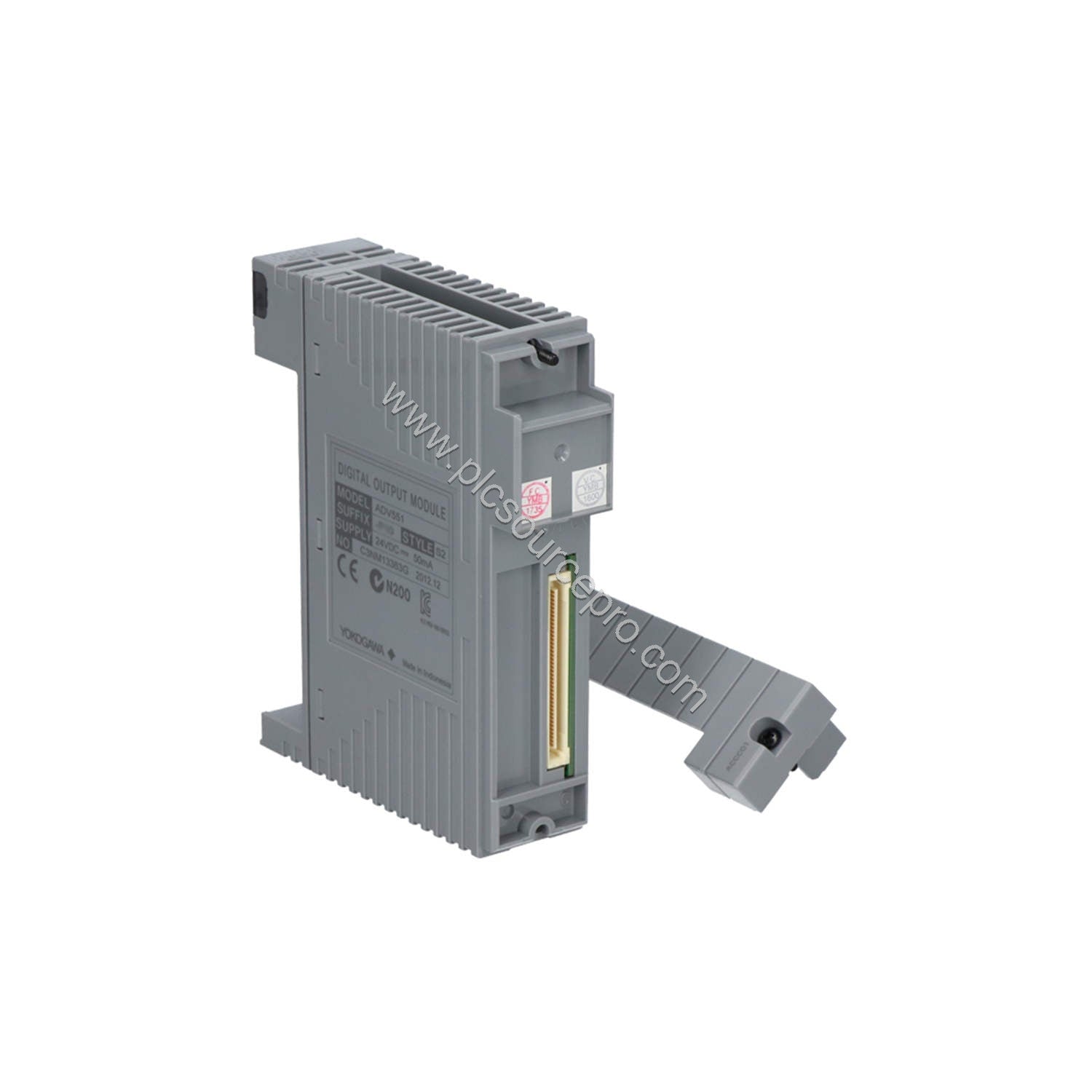

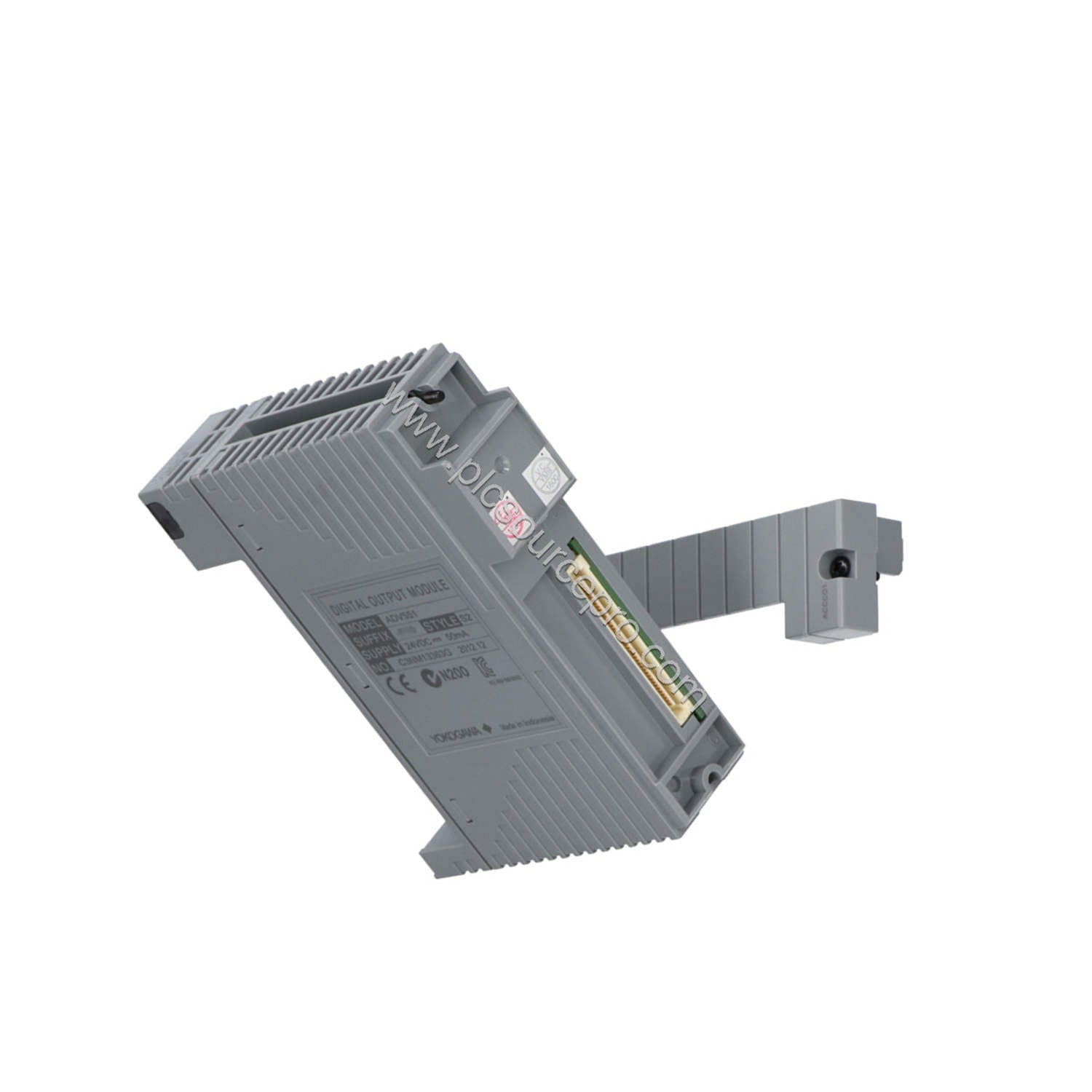

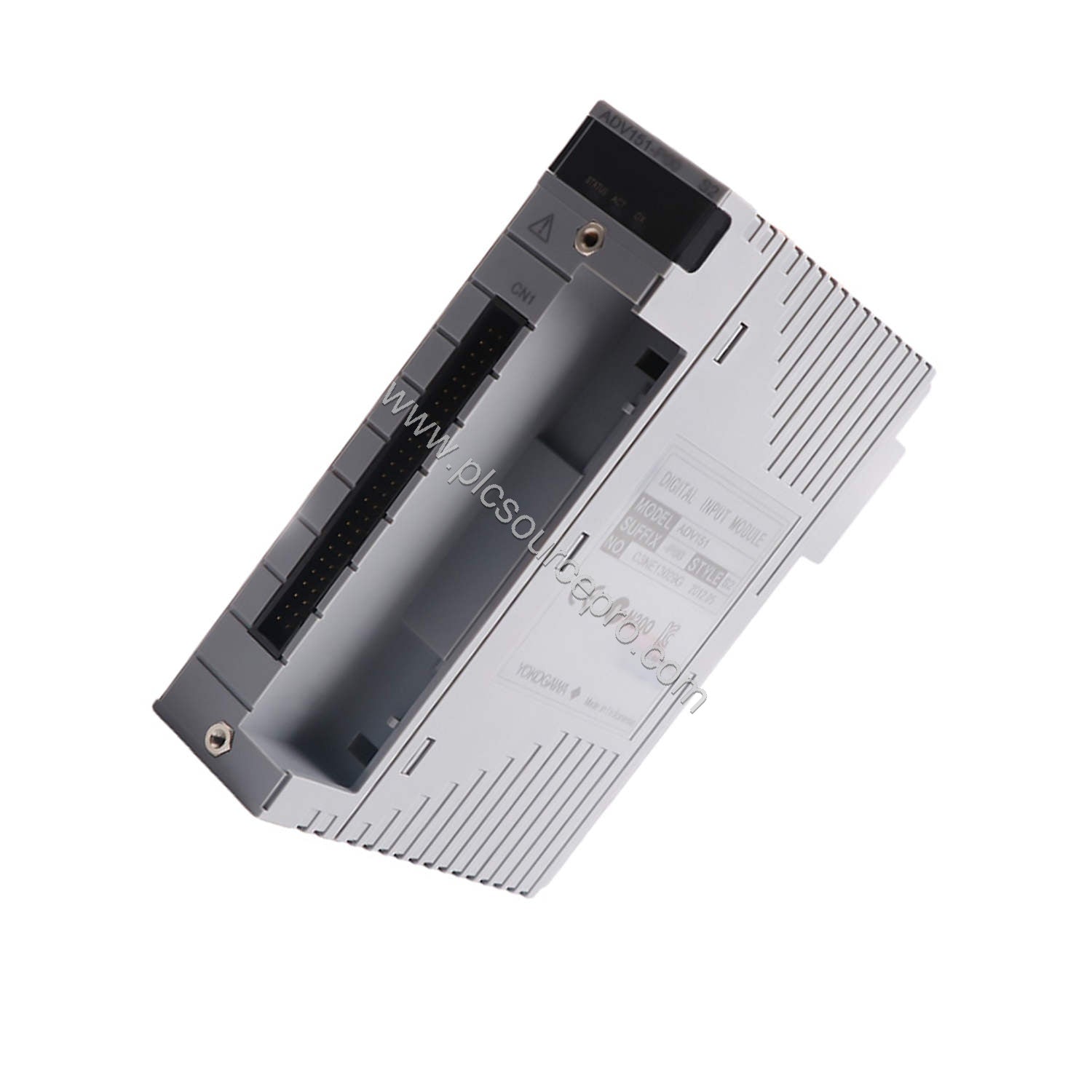

In demanding industrial environments, precise and reliable digital output control is critical for system uptime and process efficiency. The Yokogawa ADV551-P53/D5A00 Digital Output Module provides a robust solution with 32 isolated channels, 24 VDC operation, and advanced pulse width and time-proportioning output functions. Designed to withstand harsh conditions, this module ensures consistent performance in automation, process control, and manufacturing applications.
Technical Specifications Breakdown
The ADV551-P53/D5A00 delivers exceptional technical parameters that maximize operational value. Below are key specifications that enable precise control and long-term reliability:
| Parameter |
Value |
| Number of Output Channels |
32 |
| Rated Applied Voltage |
24 VDC |
| External Power Supply Rating |
24 V DC, 50 mA |
| Output ON Voltage (max) |
2 VDC |
| Leak Current (OFF, max) |
0.1 mA |
| Output Format |
Current sink |
| Maximum Load Current |
100 mA/channel at 26.4 V |
| Output Response Time |
≤3 ms (status output); ≤10 ms (mixed output) |
| Pulse Width Range |
8 ms to 7200 s |
| Pulse Width Resolution |
8 ms |
| Maximum Current Consumption |
700 mA (5 V DC) + 60 mA (external) |
| Weight |
Approx. 0.20 kg |
| Withstanding Voltage |
2 kV AC (signal to system); 500 V AC (between commons) |
These specifications make the Yokogawa ADV551-P53/D5A00 ideal for high-density, isolated output applications where accuracy and protection are paramount.
Industry Applications
With its pulse width and time-proportioning output capabilities, the ADV551-P53/D5A00 offers significant cost-benefit advantages by reducing mechanical wear and energy consumption. Typical applications include:
-
Valve Positioning: Time-proportioning output enables controlled actuator movement, minimizing overshoot and extending valve life.
-
Motor Starters: Pulse width output reduces inrush current, protecting contactors and reducing maintenance costs.
-
Alarm Annunciators: Fast 3 ms response ensures critical alerts are triggered without delay, improving safety.
-
Process Control Panels: 32 isolated channels simplify wiring in multi-zone temperature or pressure control systems.
By integrating the Yokogawa ADV551-P53/D5A00, facilities achieve lower total cost of ownership through reduced downtime and extended component life.
Installation & Setup Guidance
The ADV551-P53/D5A00 supports multiple external connection options: pressure clamp terminals, dedicated AKB331 cable, or MIL connector cable (with KS Cable Interface Adapter ATD5A-00 included via suffix /D5A00). Ensure the module is mounted in a suitable enclosure with adequate cooling, considering the 700 mA current draw on the 5 V supply. Wire each channel according to the sink output format, observing polarity and using twisted-pair cables for long runs. Verify that the external power supply meets 20.4 to 26.4 V DC range to maintain output voltage compliance.
Selection Guide & Purchasing Advice
When selecting the Yokogawa ADV551-P53/D5A00, verify compatibility with your existing system: confirm 24 VDC field power, sink output requirements, and pulse width timing needs. The suffix codes (-P53/D5A00) indicate pulse width function, standard temperature range, and cable interface adapter. For bulk or urgent requirements, PLC Source PRO (PLC Source PRO) stocks this module as part of a comprehensive Yokogawa inventory. Contact our team for volume pricing or alternative suffix variants.
