Product Introduction

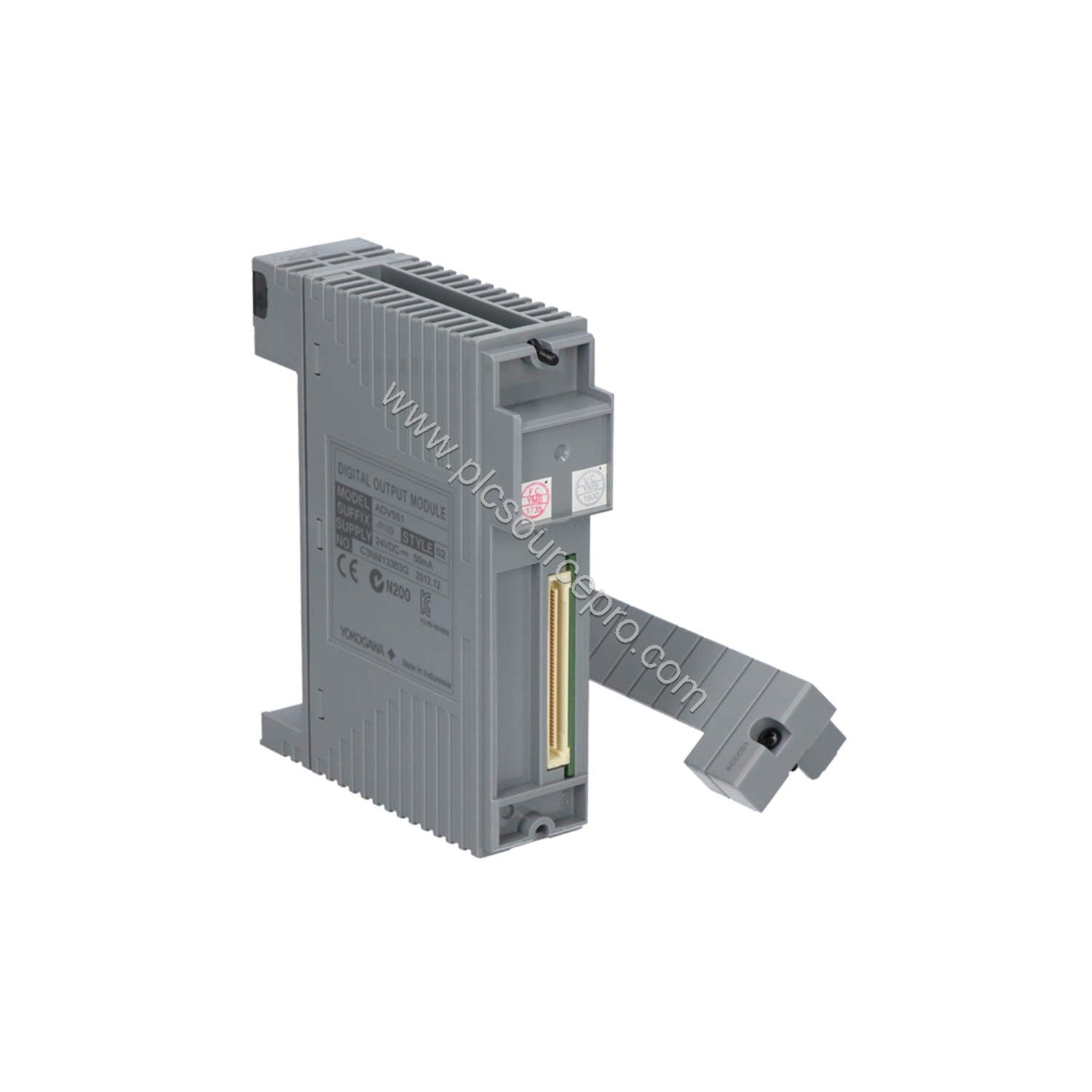

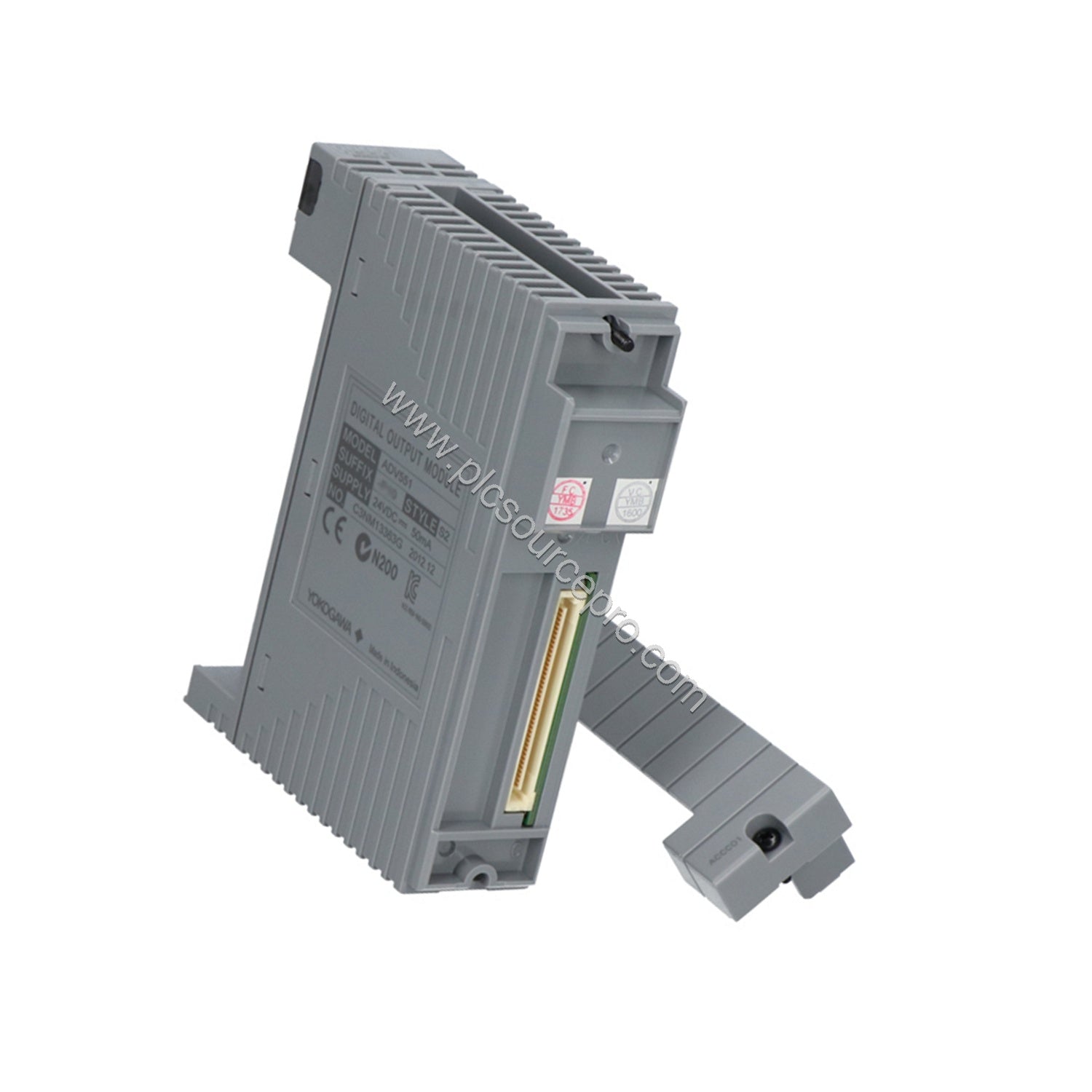

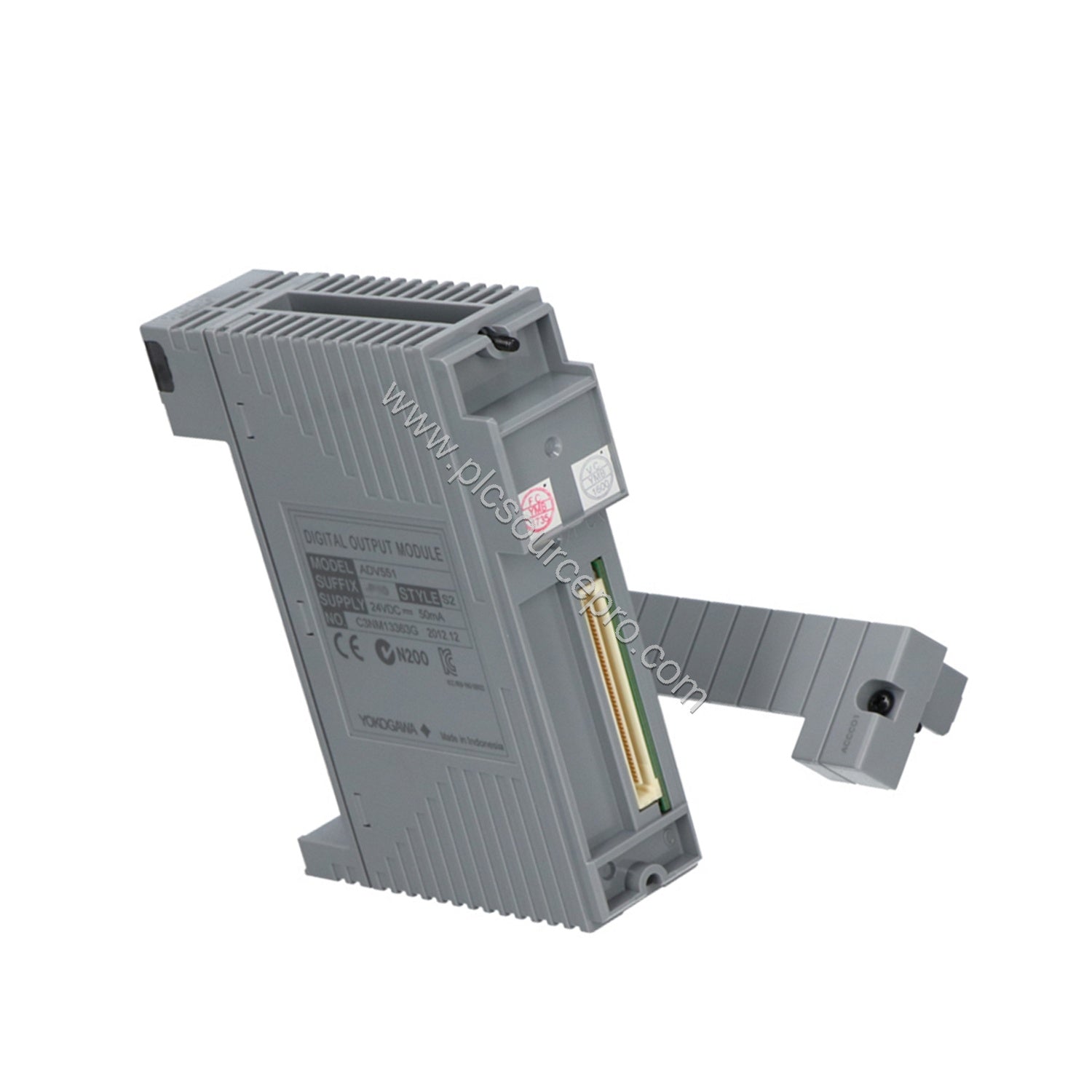

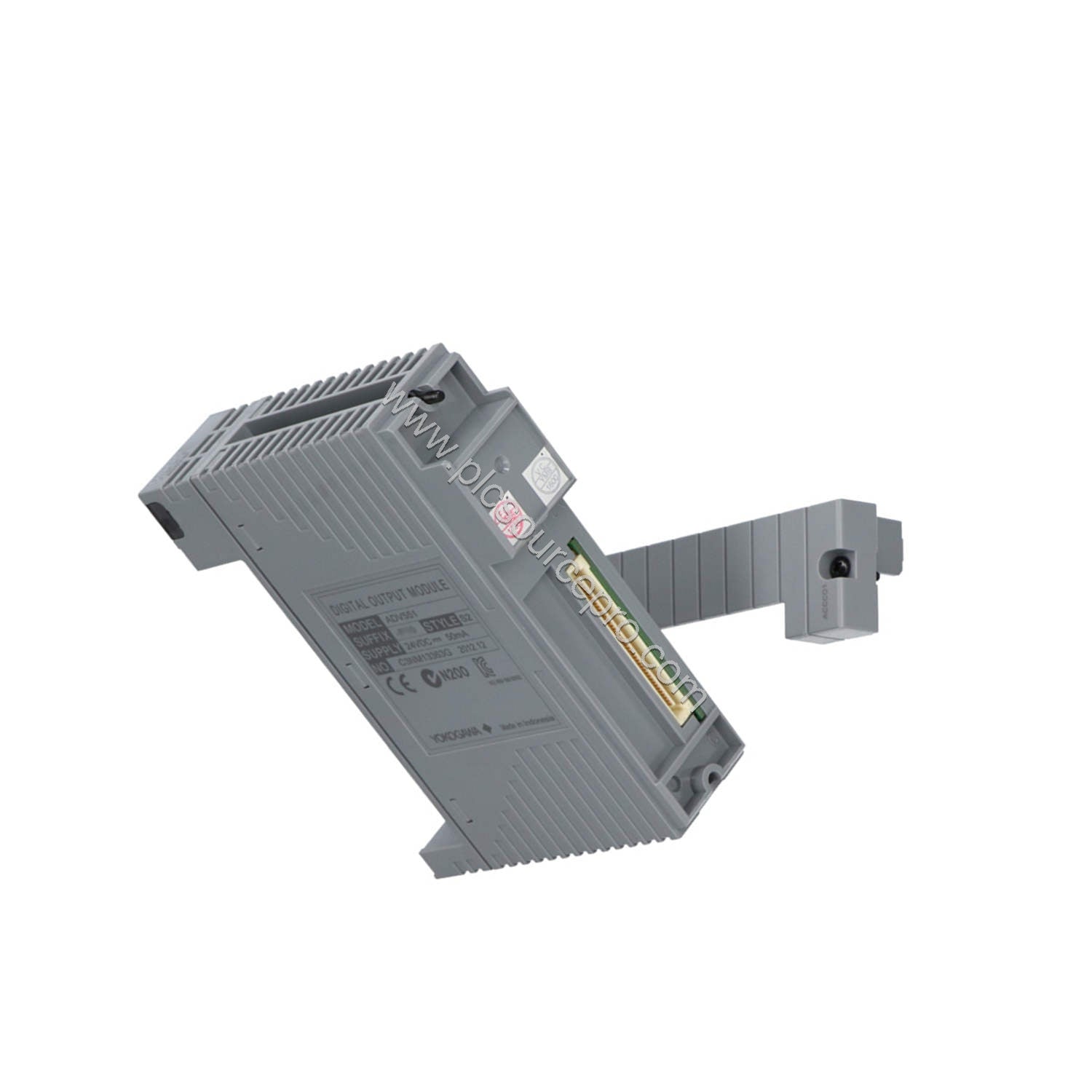

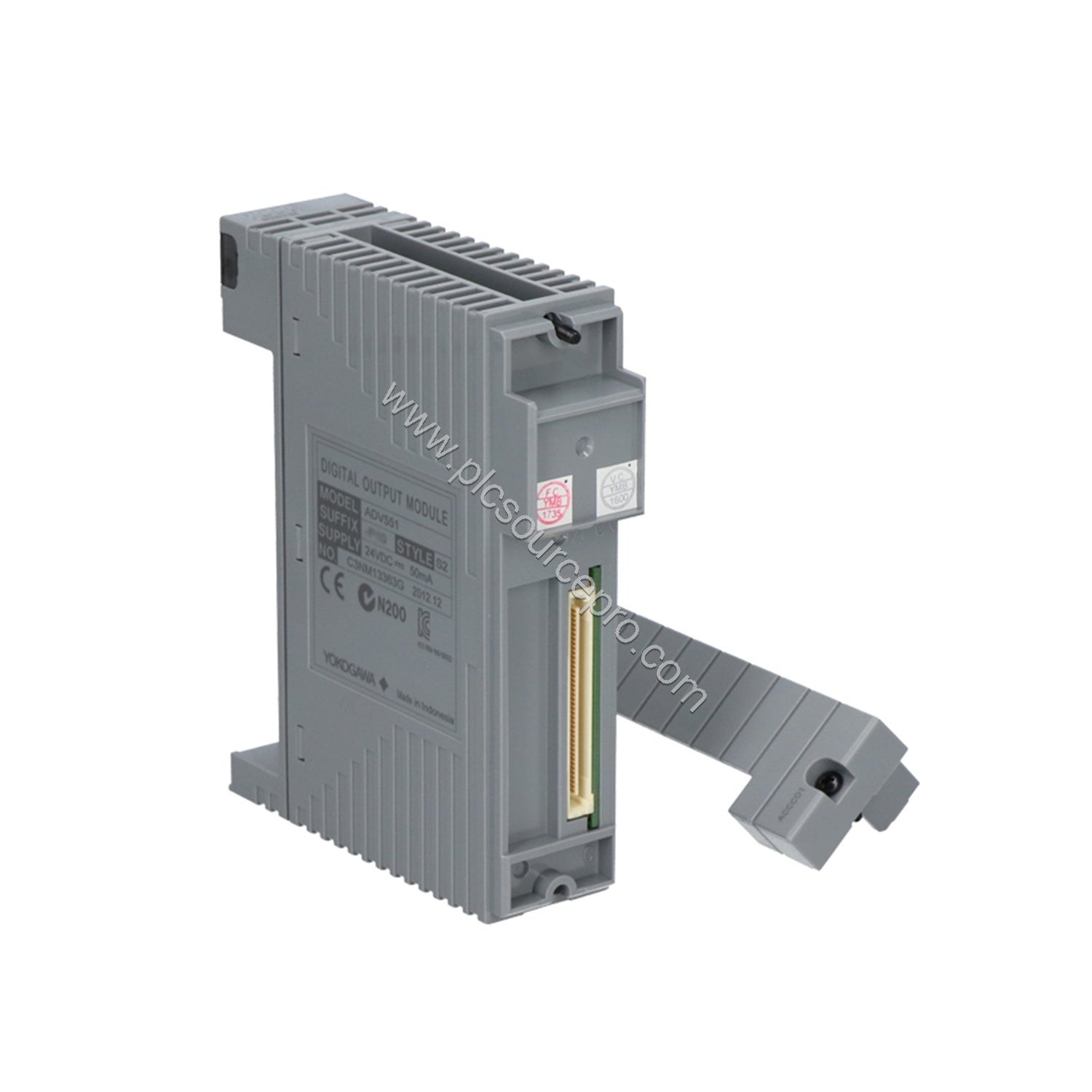

When upgrading a process control system, the digital output module often becomes the bottleneck for precise timing and load handling. The Yokogawa ADV551-P50/D5A00 Digital Output Module solves this with a 32-channel current sink design that supports both status and pulse width outputs. This module is part of the ADV551 series and delivers reliable on/off control for a wide range of industrial actuators, solenoids, and indicators. Its pulse width and time-proportional output functions make it an ideal replacement for older, less flexible output modules.
Technical Specifications Breakdown
Below are the key parameters from the Yokogawa ADV551-P50/D5A00. Each spec is taken from the product database and interprets its real-world advantage.
| Parameter |
Value |
Practical Meaning |
| Number of Output Channels |
32 |
Controls 32 individual loads, saving panel space compared to multiple 8- or 16-channel modules. |
| Rated Applied Voltage |
24 V DC |
Standard industrial voltage; compatible with most PLC and DCS systems. |
| Output Format |
Current sink |
Sinks current to ground; typical for sourcing PLCs and reduces wiring complexity. |
| Output Response Time (Status) |
3 ms or less |
Fast switching for time-critical applications like high-speed sorting or valve control. |
| Pulse Width Range |
8 ms to 7200 s |
Flexible timing from milliseconds to two hours; suitable for proportional control. |
| Withstanding Voltage |
2 kV AC (system to output); 500 V AC between commons |
High isolation protects the control system from voltage transients in harsh environments. |
Industry Applications
The Yokogawa ADV551-P50/D5A00 excels in three common scenarios:
-
Batch Process Control: Use the time-proportioning output to control heating elements in reactors. The 8 ms to 7200 s pulse width range allows precise duty-cycle modulation without a separate controller.
-
Assembly Line Sorting: With 32 channels and 3 ms response, this module can quickly actuate solenoids for diverting products on fast-moving conveyors.
-
Upgrading Older Systems: Replace legacy 16-channel modules with this 32-channel unit to double output density while retaining existing 24 V DC wiring. The included KS Cable Interface Adapter (option /D5A00) simplifies connection to existing cabling.
Installation & Setup Guidance
Mount the ADV551-P50/D5A00 securely on a DIN rail in a clean, dry enclosure. Ensure the external power supply is within 20.4 to 26.4 V DC and can deliver 60 mA (plus load current). Use pressure clamp terminals or the dedicated AKB331 cable for wiring. For pulse width output mode, configure the pulse width (8 ms to 7200 s) and resolution (8 ms) in the host controller. The module's current sink output requires the load to be connected between the output terminal and the positive supply rail.
Maintenance & Reliability
Routine inspection of the ADV551-P50/D5A00 should focus on the external power supply and connector integrity. The module draws up to 700 mA from the 5 V DC backplane, so ensure the rack power budget is adequate. Check that the pulse width resolution (8 ms) meets the application timing requirements—if faster response is needed, consider using only status outputs (3 ms). The withstanding voltage rating of 2 kV AC ensures long-term reliability in electrically noisy environments. No scheduled calibration is required, but periodic visual checks for loose terminals are recommended.
Selection Guide & Purchasing Advice
Before ordering the Yokogawa ADV551-P50/D5A00, verify that your system supports 32-channel digital output modules with current sink format. The suffix code 'P' includes the pulse width output function; if you do not need this, consider the base model. Option /D5A00 adds the KS Cable Interface Adapter (ATD5A-00) for simplified wiring—recommended for new installations. UBEST Automation stocks this module and can provide detailed documentation. Visit ubest101 for more information or to request a quote.
