Product Introduction

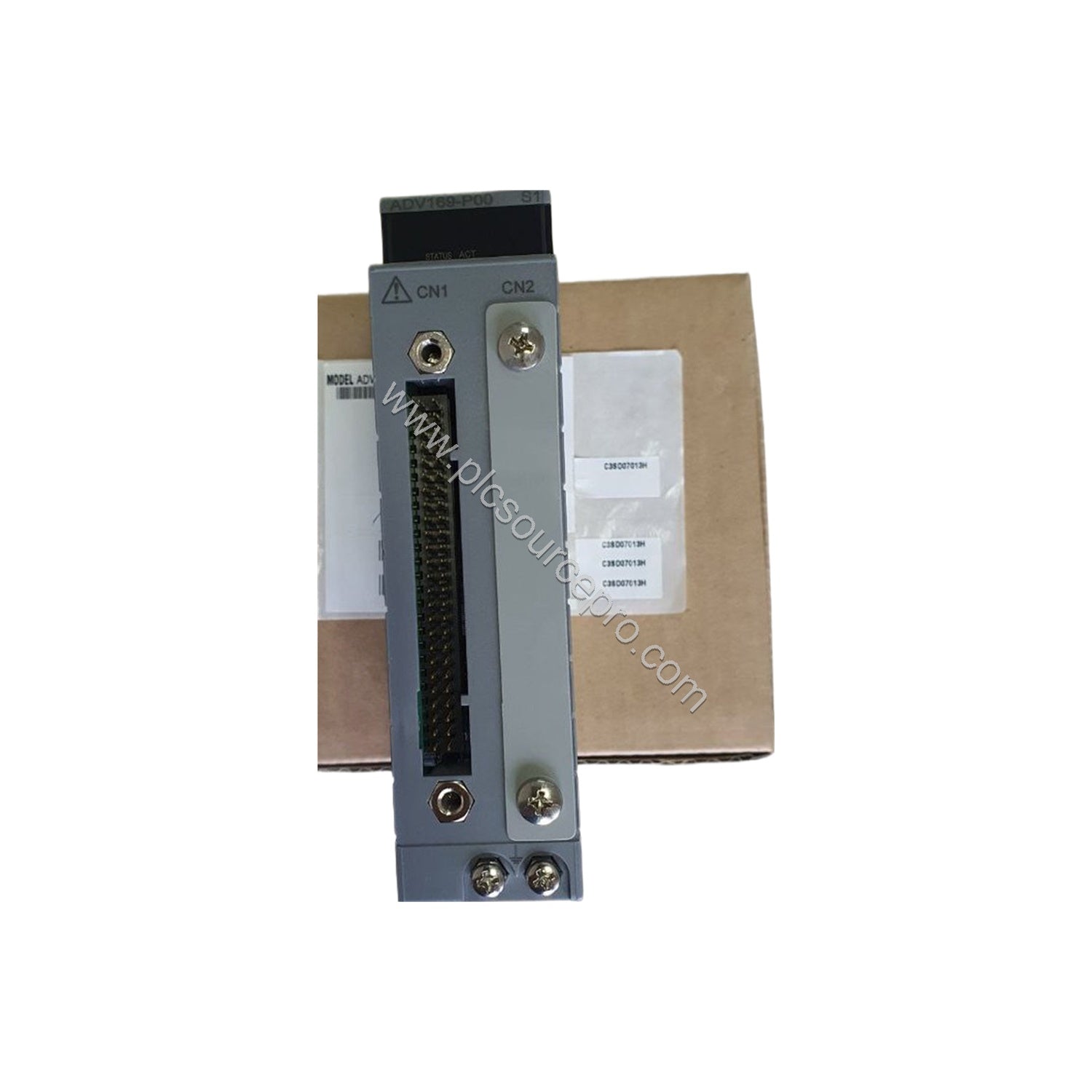

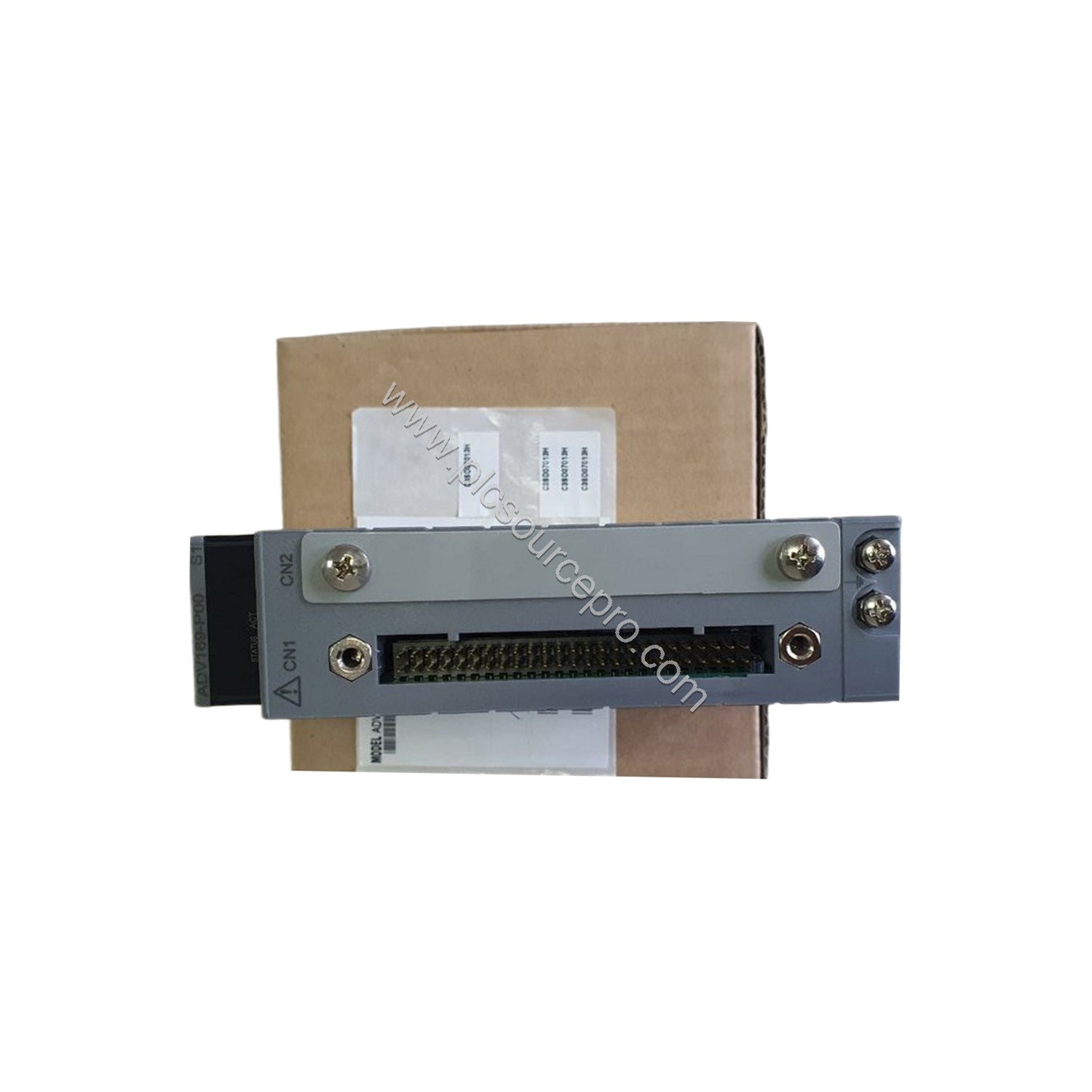

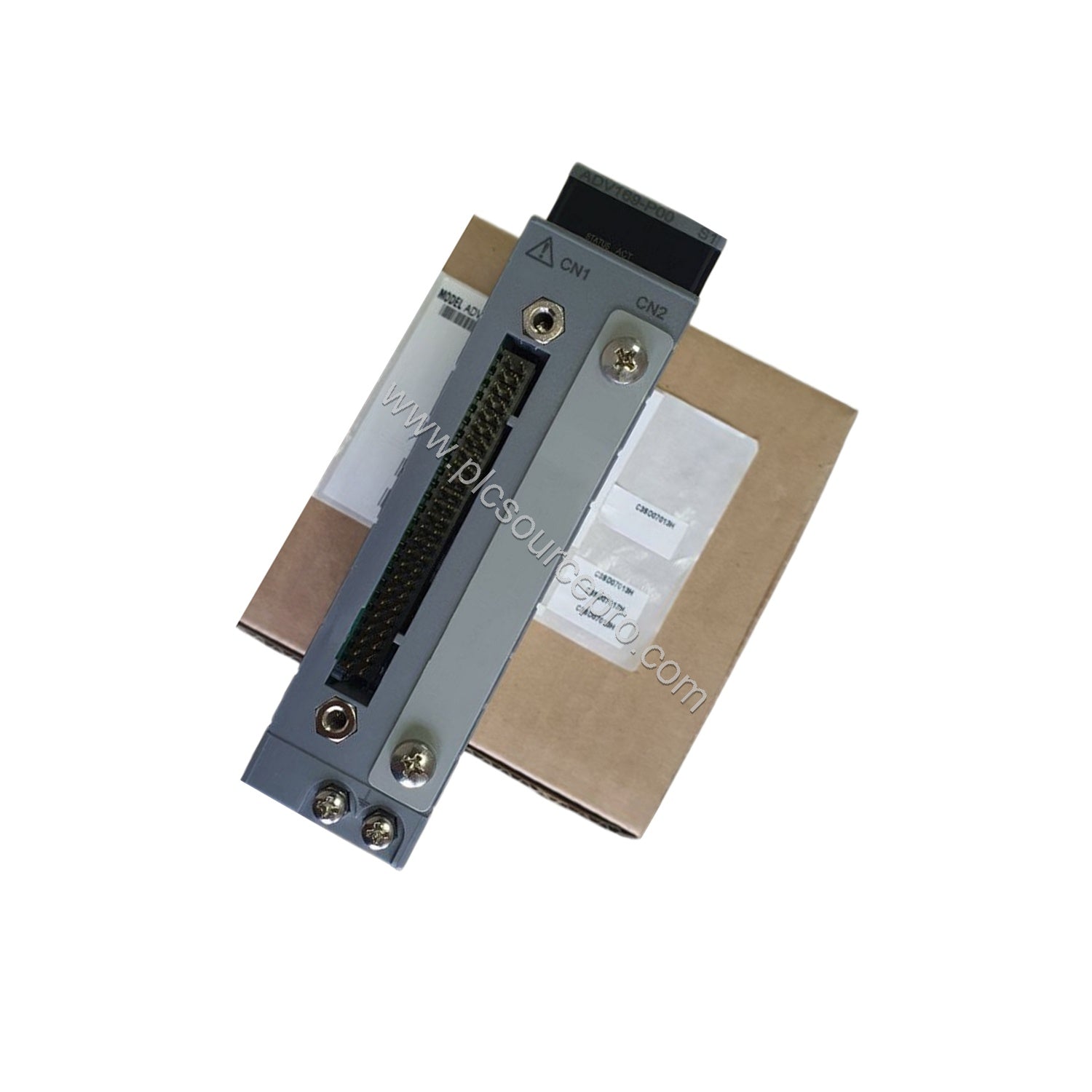

When electrical noise and ground loops disrupt signal integrity in industrial environments, the Yokogawa ADV169-P00 Digital Input Module provides a robust solution. Designed for the ST6 system, this 64-channel common-minus isolated module ensures reliable status acquisition across 16-channel groups. The ADV169-P00 accepts both contact and voltage inputs, with an OFF signal threshold above 100 kΩ and ON signal below 200 Ω.
Technical Specifications Breakdown
The Yokogawa ADV169-P00 offers precise input characteristics tailored for demanding control tasks. Key specifications include:
-
Number of I/O channels: 64-channel input – ideal for large-scale monitoring.
-
Signal isolation: Common every 16-channel – prevents cross-channel interference.
-
Input contact rating: 5 V DC, 20 mA or more – ensures reliable wetting current.
-
Maximum current consumption: 800 mA (5 V DC) – low power draw for dense installations.
-
Input response time: 8 ms (status input) – fast enough for most discrete logic applications.
-
Weight: Approx. 0.30 kg – lightweight and easy to mount.
These specs confirm the ADV169-P00 handles typical plant floor signals without additional conditioning.
Installation & Setup Guidance
Mount the Yokogawa ADV169-P00 in a clean, dry cabinet away from high-voltage sources. Use the dedicated KS9 cable for external connection. For contact inputs, ensure the OFF signal resistance exceeds 100 kΩ and ON signal is below 200 Ω. For voltage inputs, apply 4.5–25 V DC for OFF status and ±1 V DC for ON. The pushbutton input function is not supported – use status input mode. Verify compatibility with your ST6 base unit before installation.
Compatibility & Integration
The Yokogawa ADV169-P00 is specifically compatible with ST6 systems. It integrates seamlessly with Yokogawa’s distributed control architecture. Use the module for binary status monitoring in process plants, power generation, or manufacturing lines. The common-minus isolation simplifies wiring for field devices sharing a common return line.
Selection Guide & Purchasing Advice
Before ordering the ADV169-P00, confirm your system requires 64 digital inputs with common-minus isolation every 16 channels. Check that your controller supports the KS9 cable interface. For bulk orders or technical support, contact UBEST Automation (visit ubest101). We stock genuine Yokogawa modules with fast shipping.
