Product Introduction

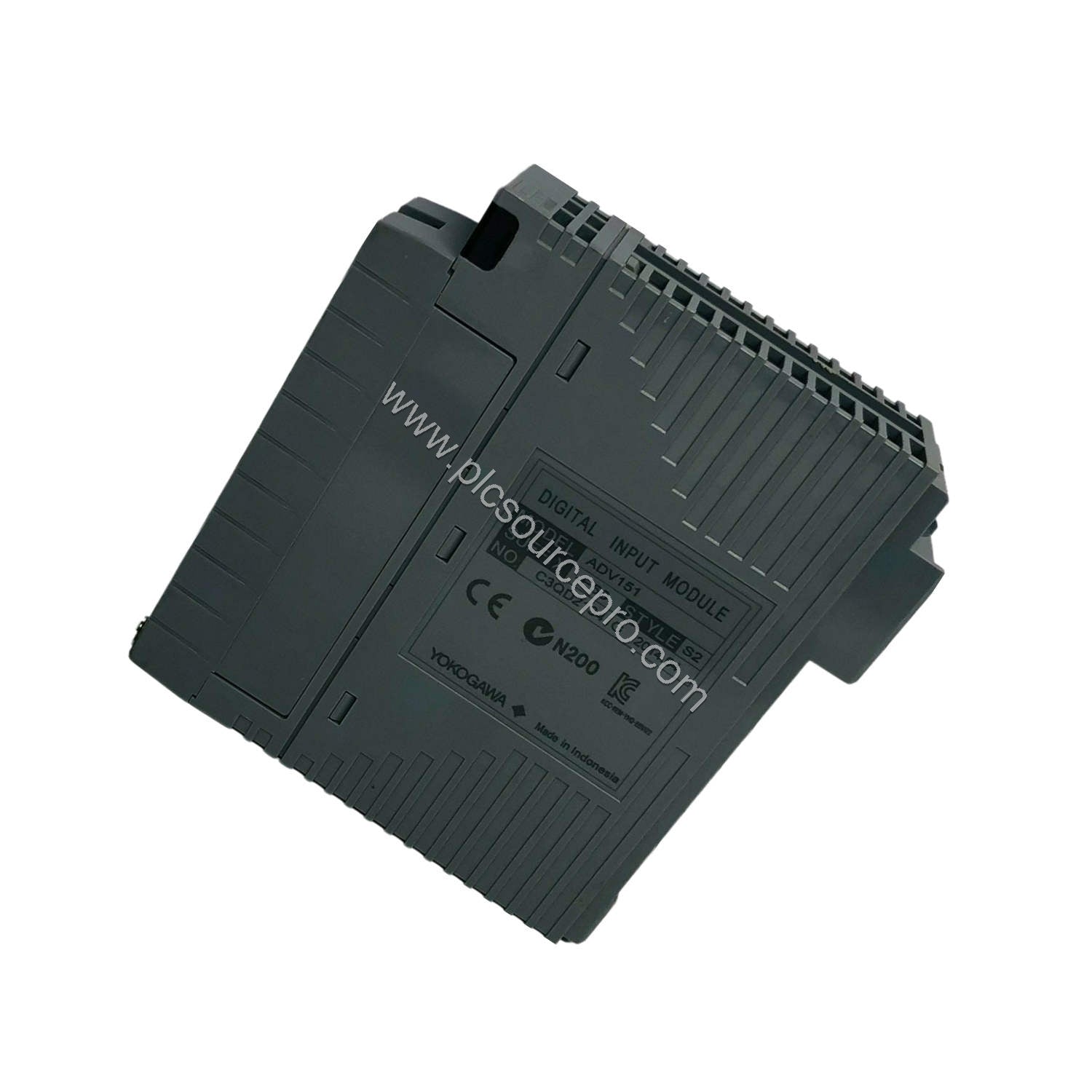

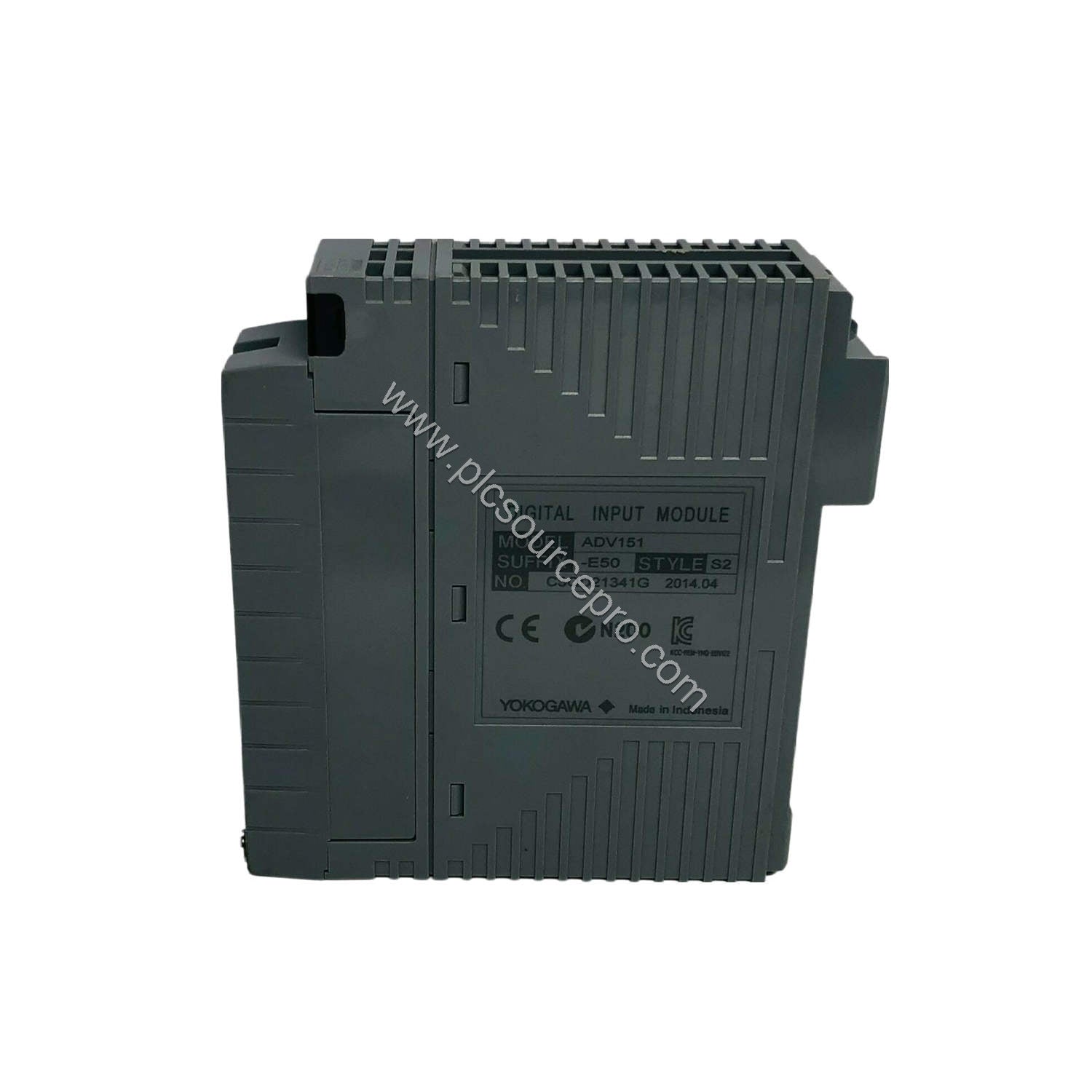

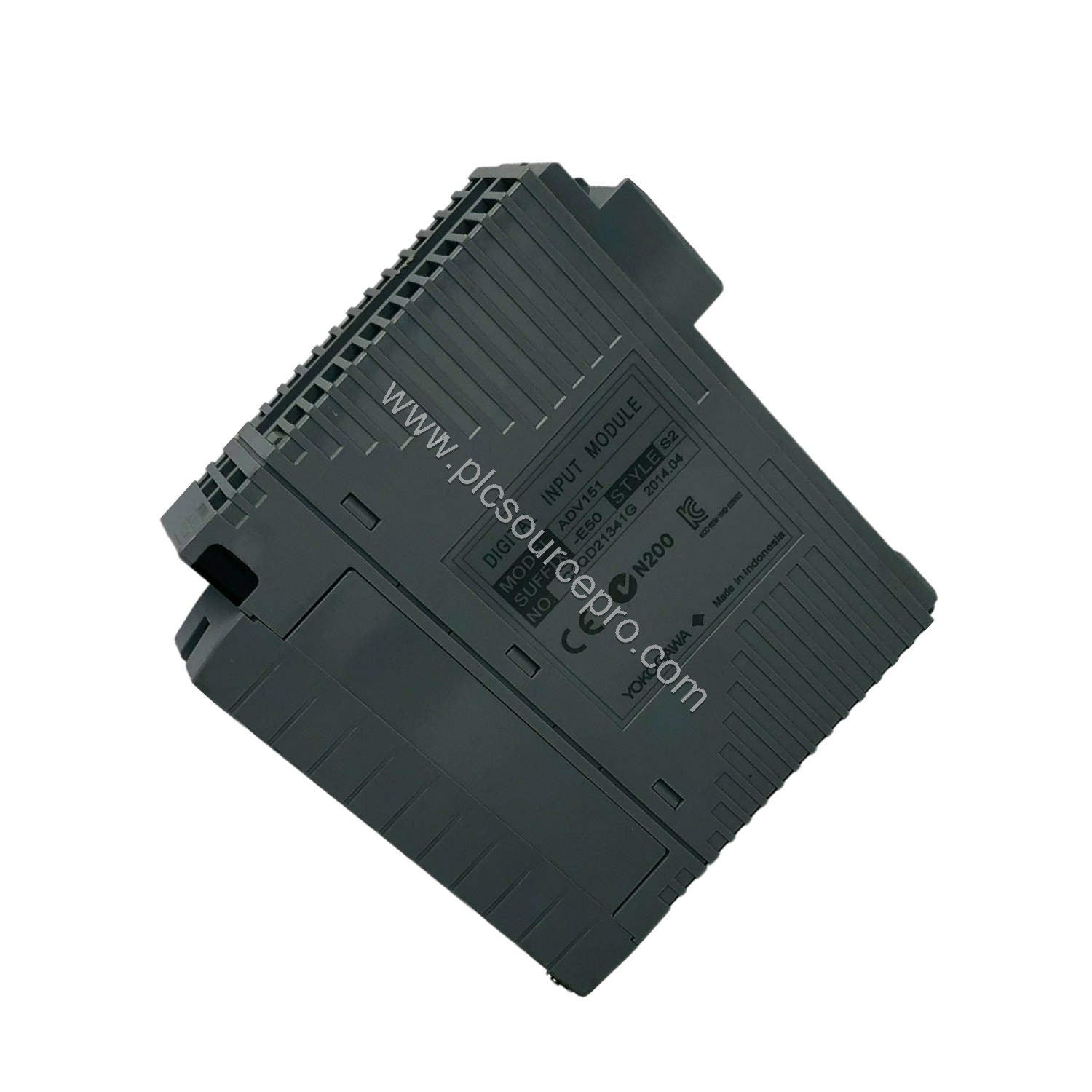

When industrial control systems suffer from unreliable input signals or missing event data, the Yokogawa ADV151-P53/D5A00 Digital Input Module provides a robust solution. This high-density module is designed for demanding automation environments where noise immunity and precise event capture are critical. Part of Yokogawa’s ADV151 series, the ADV151-P53/D5A00 offers 32 isolated input channels with pushbutton edge counting and sequence-of-events (SOE) recording.
Key Features & Specifications
- Number of input channels: 32
- Rated input voltage: 24 V DC (sink/source)
- Input ON voltage: 18 to 26.4 V DC
- Input OFF voltage: 5.0 V DC or less
- Input current: 4.1 mA ±20% per channel
- Maximum allowable input voltage: 30.0 V DC
- Withstanding voltage: 2 kV AC between input and system (1 min), 500 V AC between commons (1 min, every 16 channels)
- Functions: Status input, pushbutton input (edge counting), SOE input
- Input response time: 8 ms or less (status input)
- Minimum ON detection time: 20 ms (pushbutton input)
- Maximum ON/OFF cycle: 25 Hz (pushbutton input)
- Maximum current consumption: 500 mA at 5 V DC
- Weight: Approx. 0.30 kg
- External connection: Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable
Applications
The Yokogawa ADV151-P53/D5A00 excels in applications requiring reliable detection of fast events. In power generation, it captures turbine trip signals with SOE precision to help post-incident analysis. In chemical processing, the isolated inputs prevent ground loops and false triggering when monitoring valve limit switches. The pushbutton feature is ideal for manual operator stations where each press must be counted accurately.
Installation Guide
Mount the ADV151-P53/D5A00 in a suitable Yokogawa backplane. Use the provided KS Cable Interface Adapter (model ATD5A-00) for simplified wiring. For optimum noise immunity, use shielded cables for sensor connections and keep signal wires away from high-voltage power lines. The pressure clamp terminal version allows fast, tool-free termination. Ensure the module is inserted firmly and the locking mechanism engages.
Maintenance & Reliability
The ADV151-P53/D5A00 requires minimal routine maintenance. Periodically check for loose connections and inspect for signs of corrosion or excessive heat. The module’s G3 coating (ISA Standard G3 option) provides protection against harsh industrial atmospheres. With no moving parts, this digital input module offers long service life. Clean the module body with a dry cloth only.
Selection Guide & Purchasing Advice
Before purchasing, verify compatibility with your Yokogawa system’s backplane and power supply. The ADV151-P53/D5A00 includes the /D5A00 option with KS Cable Interface Adapter (ATD5A-00). For replacement or upgrade projects, check that your existing cables match the MIL connector or clamp terminals. UBEST Automation offers this module as a genuine Yokogawa spare. Contact us for technical support or volume discounts.
