Product Introduction

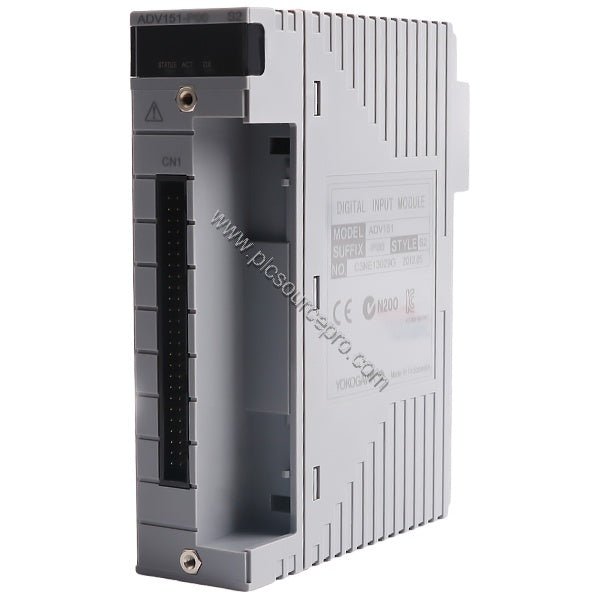

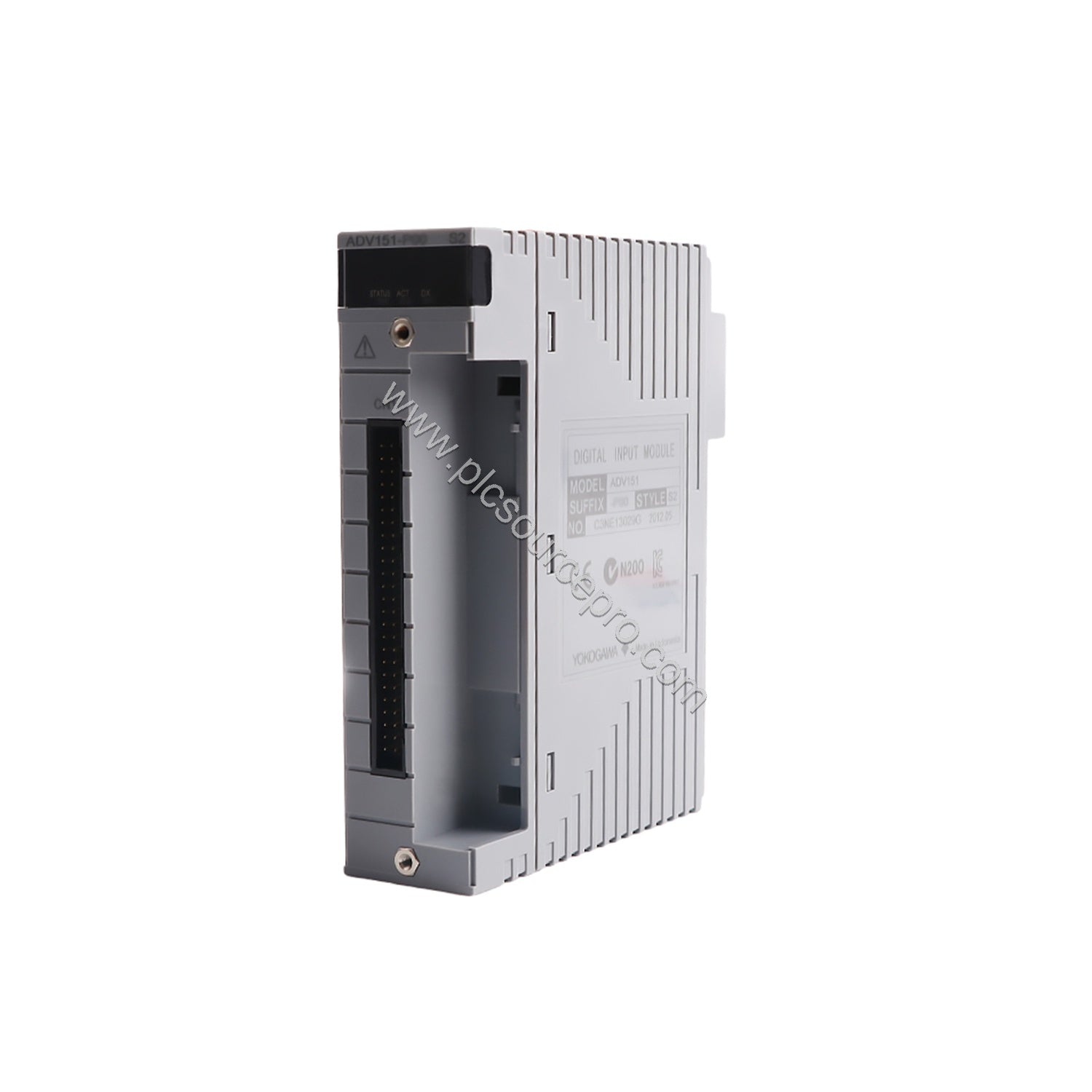

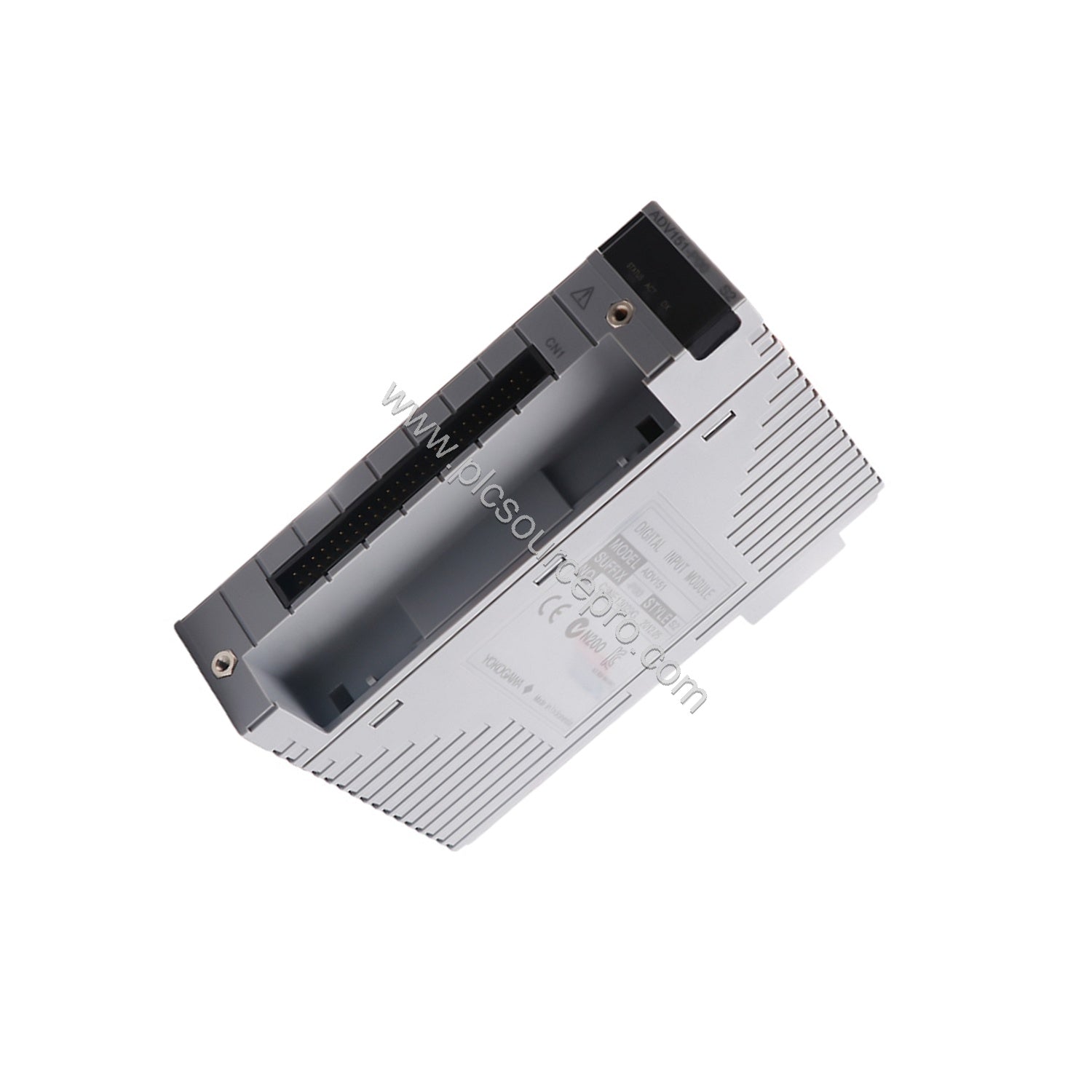

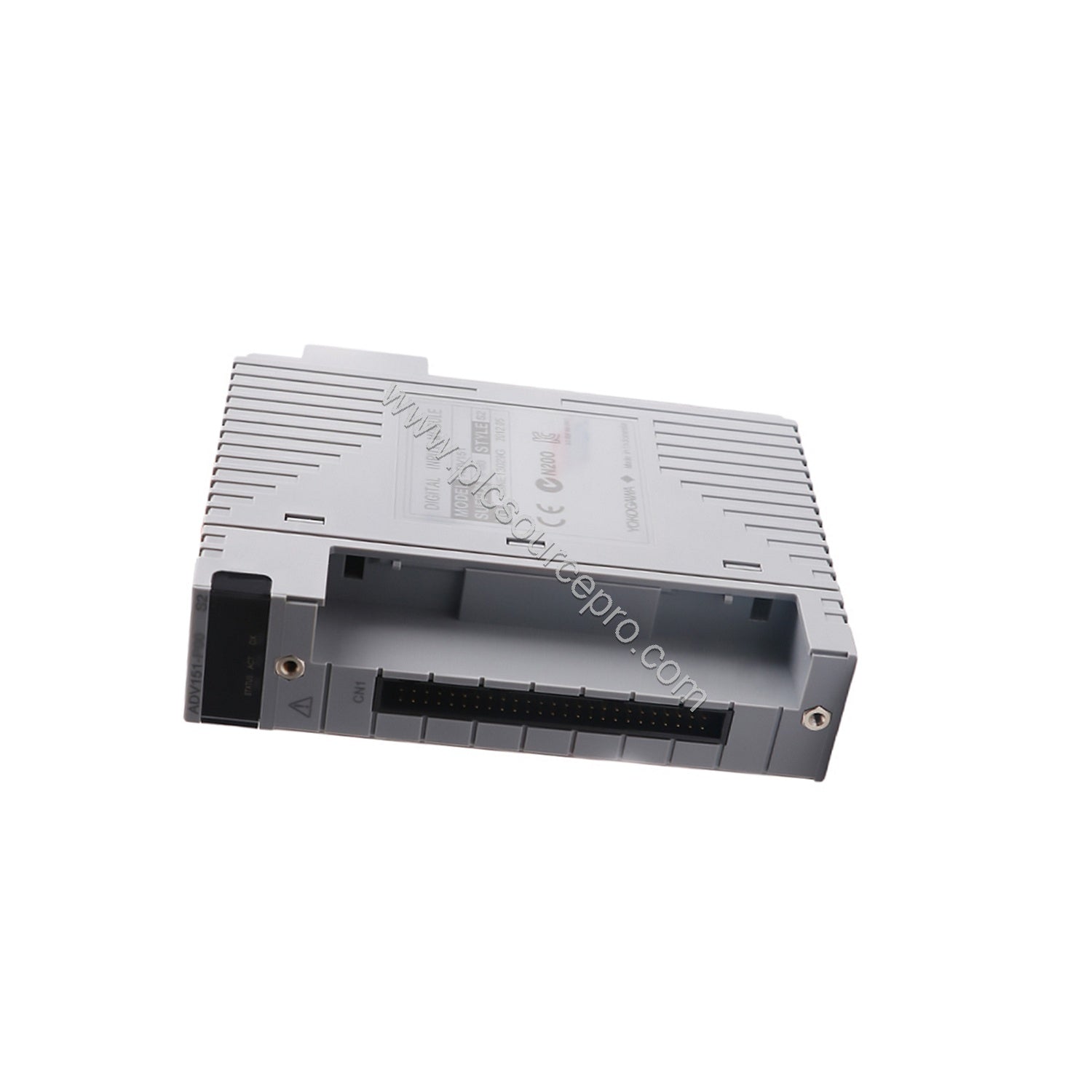

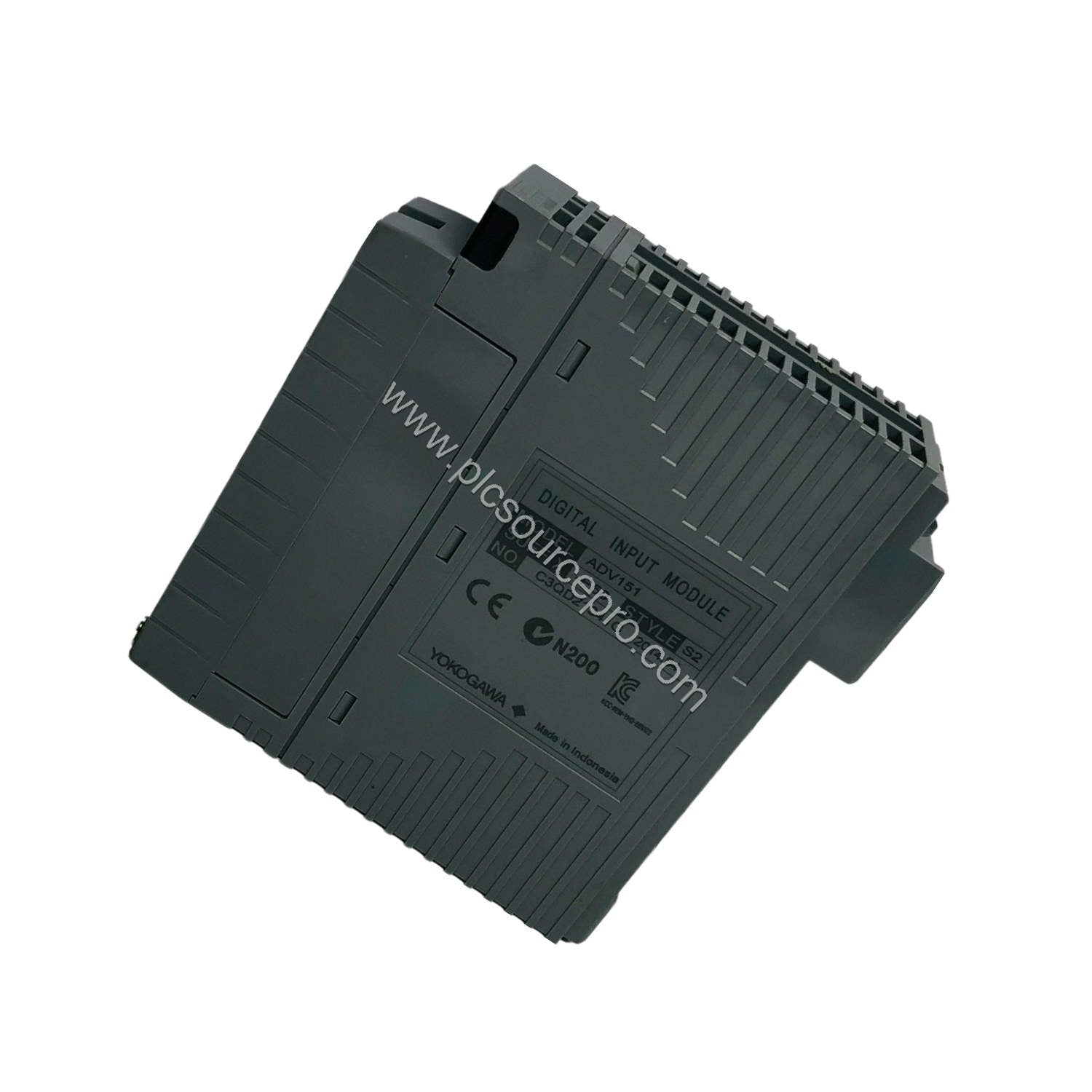

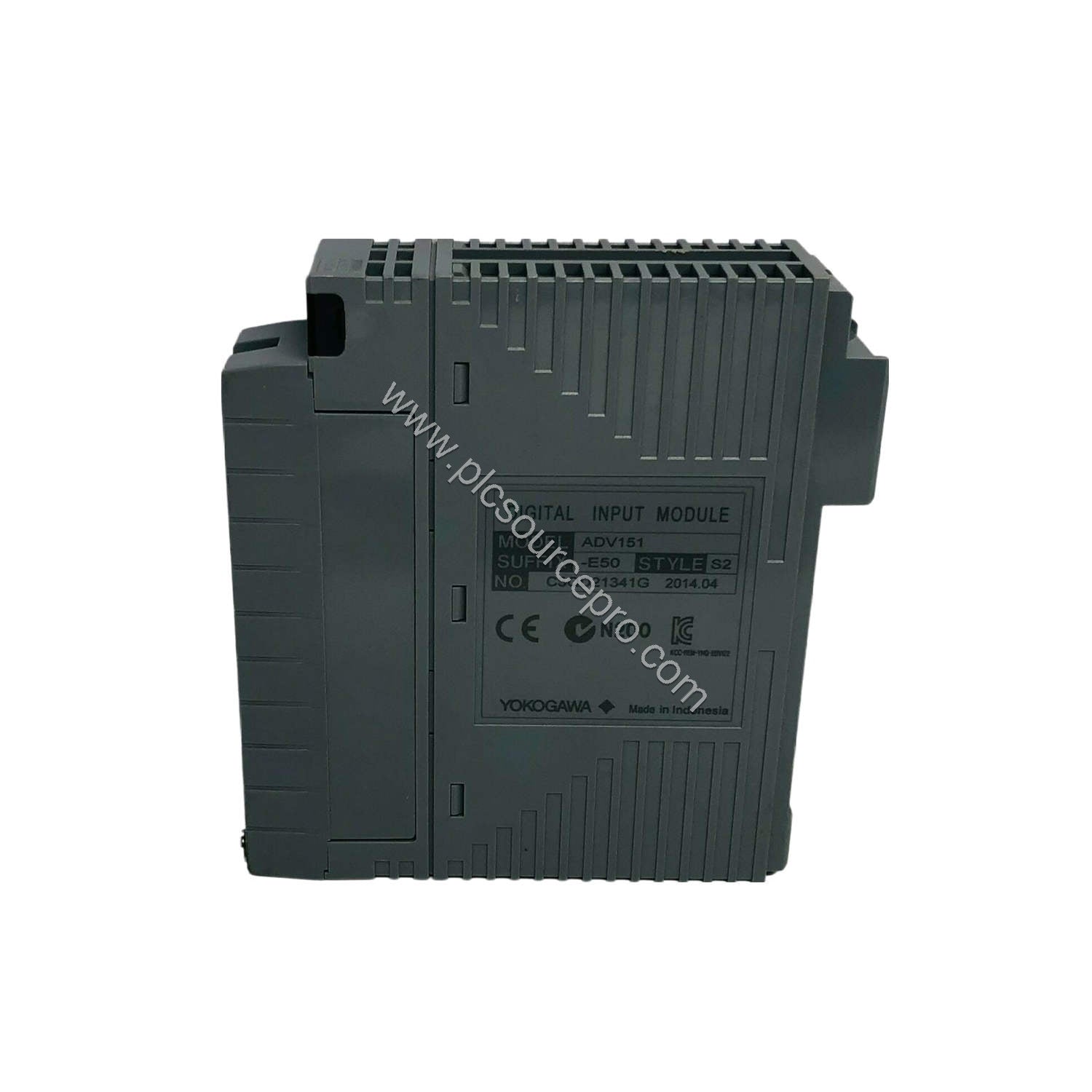

When downtime costs escalate in process control environments, the Yokogawa ADV151-P50/D5A00 Digital Input Module delivers dependable performance and precise status detection. Part of the ADV151 series, this 32-channel module accepts 24 V DC sink/source inputs and is engineered for high-noise immunity. Its robust design minimizes false triggers, reducing unplanned shutdowns and maintenance interventions.
Technical Specifications Breakdown
The Yokogawa ADV151-P50/D5A00 offers key parameters that ensure accurate signal acquisition:
-
Number of input channels: 32 – suitable for monitoring multiple field devices simultaneously.
-
Rated input voltage: 24 V DC (sink/source) – flexible wiring with common industrial supplies.
-
Input ON voltage: 18 to 26.4 V DC – wide tolerance ensures reliable detection even with voltage drops.
-
Input OFF voltage: 5.0 V DC or less – clear threshold to avoid noise-induced false ons.
-
Input current (at rated input voltage): 4.1 mA ±20% per channel – low power consumption reduces thermal stress.
-
Maximum allowable input voltage: 30.0 V DC – built-in overvoltage protection safeguards the module.
-
Withstanding voltage: Between input signal and system: 2 kV AC for 1 minute; between commons: 500 V AC for 1 minute (common every 16-channel) – high isolation integrity for industrial environments.
-
Input response time: 8 ms or less (for status input) – fast enough for most monitoring applications.
-
External connection: Pressure clamp terminal, dedicated cable (AKB331), or MIL connector cable – versatile field wiring options.
-
Weight: 0.3 kg – lightweight for easy panel mounting.
These specifications directly contribute to system reliability: the 2 kV AC isolation prevents ground loops, while the 4.1 mA current draw keeps overall power consumption low, extending supply life and reducing heat buildup.
Industry Applications
The Yokogawa ADV151-P50/D5A00 Digital Input Module excels in chemical processing, power generation, and water treatment facilities where continuous monitoring of limit switches, pushbuttons, and proximity sensors is critical. For example, in a batch reactor, the module monitors 32 valve position feedback signals; its high immunity to electrical noise ensures that spurious signals do not cause false interlocks. In a power substation, the pushbutton input function (enabled by suffix code P) can count operator commands, aiding sequence-of-events logging. These real-world uses demonstrate how the ADV151-P50/D5A00 reduces false alarms and improves process uptime, delivering a tangible return on investment through reduced troubleshooting and maintenance costs.
Installation & Setup Guidance
Mount the Yokogawa ADV151-P50/D5A00 securely on a DIN rail in a clean, dry cabinet. Use pressure clamp terminals for direct field wiring or the dedicated AKB331 cable for a shielded connection. For MIL connector cables, ensure proper strain relief. When connecting pushbutton inputs, set the minimum ON detection time to 20 ms (per spec) to debounce the signal. Avoid running input cables alongside high-power lines to maintain noise immunity. Verify the input voltage is within 18–26.4 V DC at the module terminals—voltage drops over long cables can cause false OFF readings. This module does not require calibration, but a quick functional test after installation confirms wiring integrity.
Troubleshooting & Common Issues
Common field issues with the ADV151-P50/D5A00 include intermittent input signals caused by loose wiring at the pressure clamp terminals—tighten connections to 0.5 Nm. If the module fails to detect an ON state, check that the input voltage exceeds 18 V DC. For pushbutton inputs, ensure the ON/OFF cycle frequency does not exceed 25 Hz (per spec) to avoid missed edges. If the SOE function produces erratic timestamps, verify that the system clock is synchronized. The withstanding voltage test should be performed only by qualified personnel; repeated high-voltage stress can degrade the isolation barrier. Regular inspection of the terminal block for corrosion every six months extends module life.
Selection Guide & Purchasing Advice
Before ordering the Yokogawa ADV151-P50/D5A00, confirm your system requires 32 digital inputs at 24 V DC sink/source. The suffix codes indicate: P = pushbutton input capability, 5 = without status display and explosion protection, 0 = basic type. The option code /D5A00 includes a KS Cable Interface Adapter (Model ATD5A-00) for 32-channel digital signals—verify that your cabinet has space for this adapter. UBEST Automation stocks genuine Yokogawa modules with full traceability. Contact us via ubest101.myshopify.com for bulk pricing or to confirm compatibility with your existing I/O base. This module is an ideal replacement for older 32-point input cards, offering improved noise immunity and lower power consumption.
