Product Overview

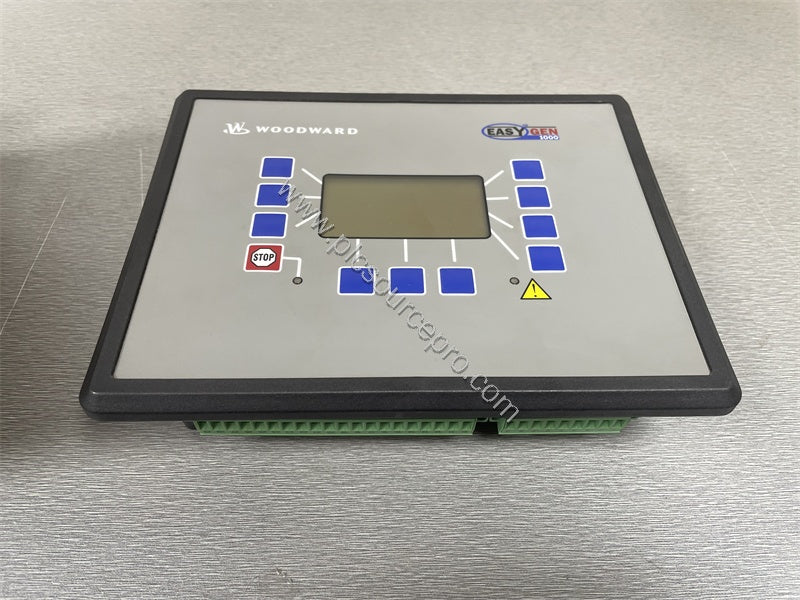

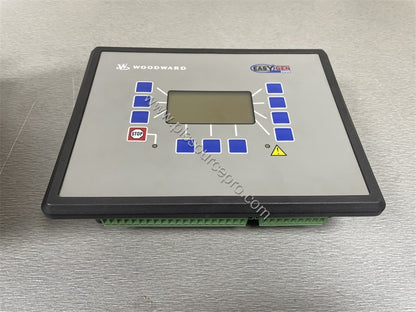

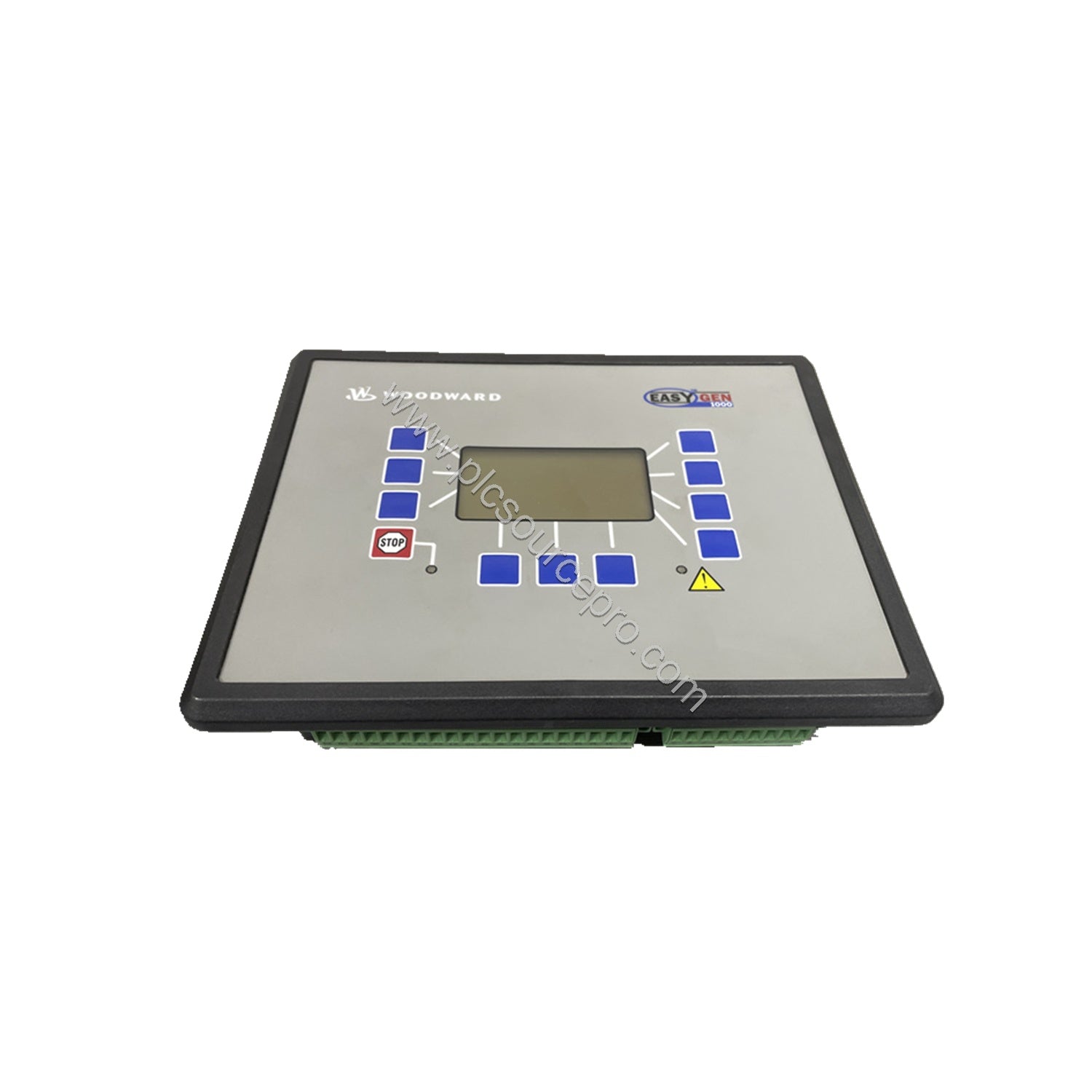

When managing multiple generator sets in parallel, the Woodward 8440-2049 Industrial Automation Module delivers precise control and monitoring. Part of the easYgen 3000 series, this module can supervise up to 32 connected gensets, offering a built-in HMI for configuration. With support for open/closed transition, mains parallel, and soft loading/unloading, the 8440-2049 ensures smooth power transfer. Its robust design includes a 5.7" LCD with soft keys and multi-level password protection.
Technical Specifications
Key parameters of the Woodward 8440-2049 are listed below:
-
Front Panel Dimensions: 282W x 216H x 96D mm
-
Max. Power Consumption per Path: < 0.15 W
-
Measurable Alternator Windings: 3p-3w, 3p-4w, 3p-4wOD, 1p-2w, 1p-3w
-
Setting Range (Current): 1 - 32,000 A
-
Relay Outputs: Isolated
-
Multi-lingual Support: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish
-
Operating Temperature: -20 to 70 °C
-
Storage Temperature: -30 to 80 °C
-
Supply Voltage: 12/24 V DC
Industry Applications
The Woodward 8440-2049 is ideal for critical power applications such as data centers, hospitals, and manufacturing facilities that require reliable backup generation. Its ability to manage multiple set points—including speed, frequency, voltage, and power factor—makes it suitable for complex paralleling systems. The module’s isolated relay outputs enhance safety in high-noise industrial environments.
Installation & Setup Guidance
Mount the Woodward 8440-2049 in a clean, dry control panel using the provided dimensions. Connect to the genset using RS-232, RS-485, or CAN as needed. Ensure the supply voltage is within 12/24 V DC. Use the built-in HMI to configure breaker control, synchronization, and alarm thresholds. Multi-language support simplifies setup for international teams.
Compatibility & Integration
The 8440-2049 communicates via RS-232, RS-485, and CAN, allowing integration with common SCADA systems and other easYgen controllers. It supports up to 32 gensets in a paralleling scheme. The module’s flexible I/O and set point configuration enable seamless replacement of older genset controllers without extensive rewiring.
Selection Guide
Before purchasing the Woodward 8440-2049, verify your generator set’s winding configuration and current rating. The module supports alternator windings 3p-3w, 3p-4w, 3p-4wOD, 1p-2w, and 1p-3w with a setting range up to 32,000 A. For expert advice and competitive pricing, contact PLC Source PRO (available through ubest101) to ensure the right fit for your application.
