Product Introduction

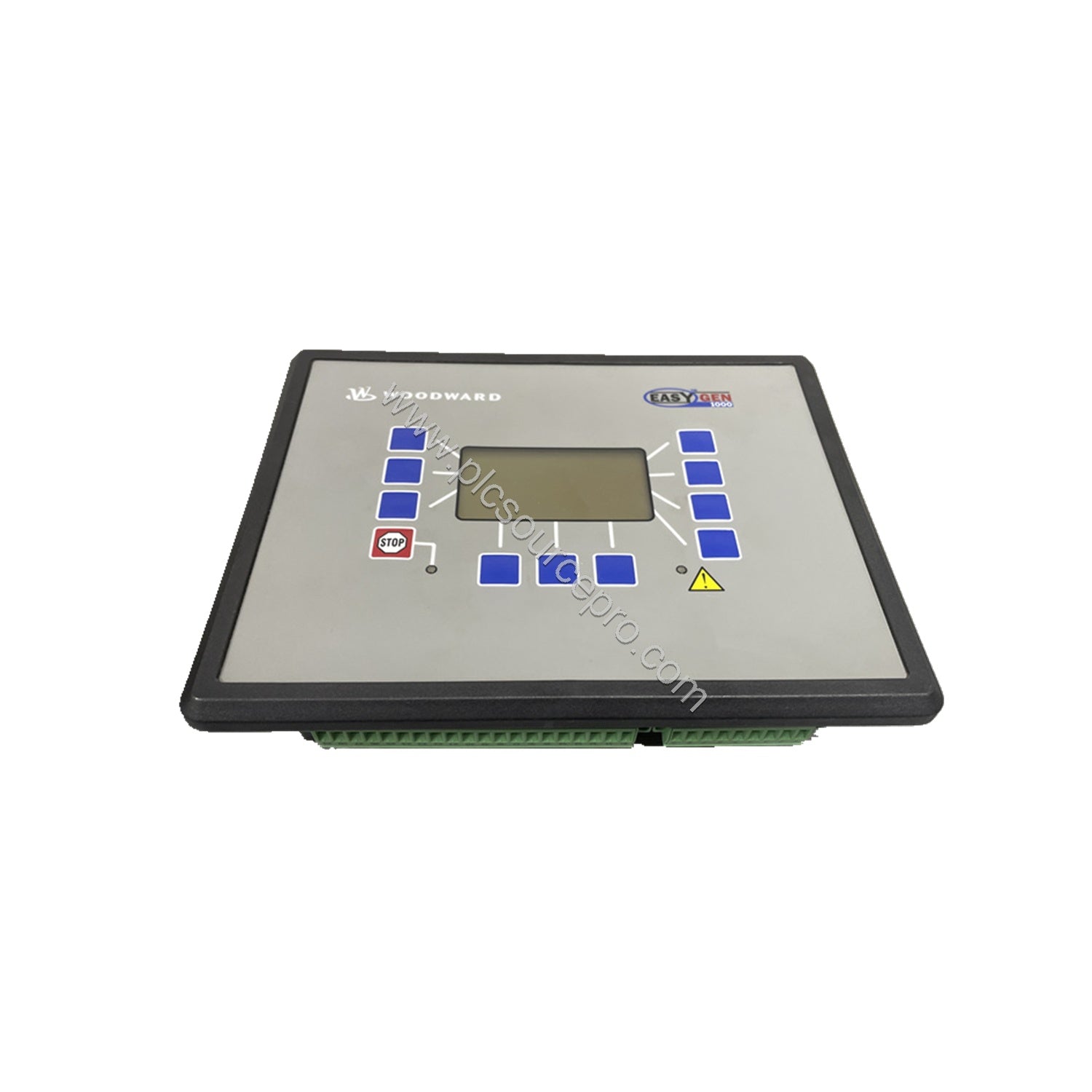

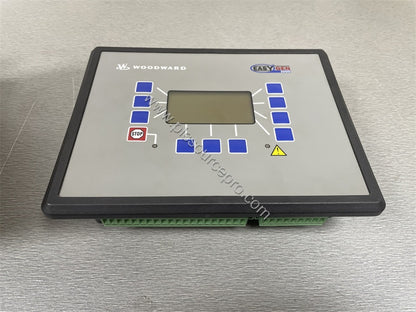

The Woodward 8440-2047 is a marine genset controller from the easYgen-3000 series, designed for precise generator management. As an industrial automation module, it offers robust control and monitoring capabilities for demanding marine environments. This model, also known as the easYgen-3500-5 Marine, provides reliable performance with advanced features like an event recorder and PC-Tool for system configuration.
Technical Specifications
| Parameter |
Value |
| Accuracy Class |
0.5 |
| Front Panel Dimensions |
282W x 216H x 96D mm |
| Linear Measuring Range |
1.25x Vrated |
| Power Supply |
12/24 Vdc (8 to 40 Vdc) |
| Weight |
Approx. 1,850 g (4 lbs) |
| Languages |
English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish |
The Woodward 8440-2047 achieves an Accuracy Class of 0.5, ensuring precise voltage and frequency regulation. Its linear measuring range of 1.25x Vrated allows for robust overvoltage detection. The wide power supply input (8 to 40 Vdc) ensures compatibility with various battery systems. The compact panel dimensions (282x216x96 mm) facilitate flush mounting in generator control panels.
Industry Applications
This controller is ideal for marine generator sets where reliability and accuracy are critical. Its multilingual interface supports global operations. The Woodward 8440-2047 excels in applications requiring load sharing, trending, and system overview, making it a versatile upgrade for older marine genset controllers. For example, replacing a legacy Woodward 2301A with the 8440-2047 enhances diagnostics and event recording capabilities.
Installation & Setup Guidance
Mount the Woodward 8440-2047 in a cool, dry area. Operating temperature range: -20 to +70 °C. Storage range: -30 to +80 °C. Use the provided mounting frame for flush installation. Connect the power supply (12/24 Vdc) with proper fusing. Configure the controller via the PC-Tool software for marine-specific parameters like load sharing and system overview. Ensure the real-time clock battery is installed for event recording.
Maintenance & Reliability
Periodically inspect the controller for dust or moisture buildup. The event recorder holds up to 300 time-stamped events, aiding predictive maintenance. The robust plastic housing protects against vibration. As a replacement upgrade, the Woodward 8440-2047 reduces downtime with its self-diagnostic features. Verify firmware updates via the easYgen-3000 series tool to maintain compatibility.
Selection Guide & Purchasing Advice
Before purchasing the Woodward 8440-2047, confirm your generator’s voltage rating and connection type. This model is a direct replacement for easYgen-3500 Marine units. For technical support or to check stock, contact PLC Source PRO (formerly ubest101). Ensure you have the required mounting accessories and PC-Tool software. The 8440-2047 is a critical upgrade for marine genset control systems.
