Product Overview

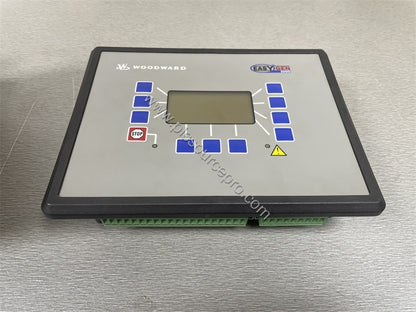

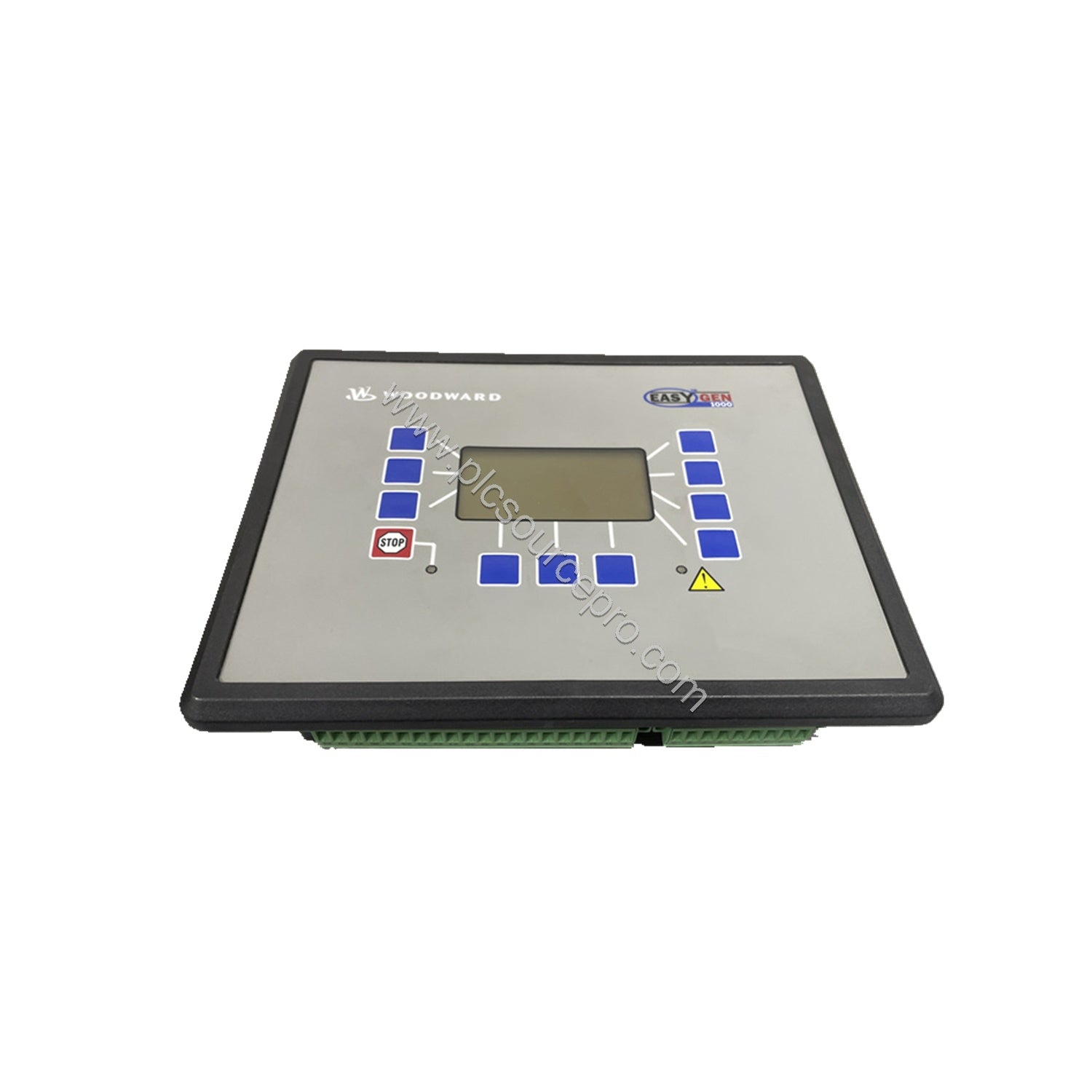

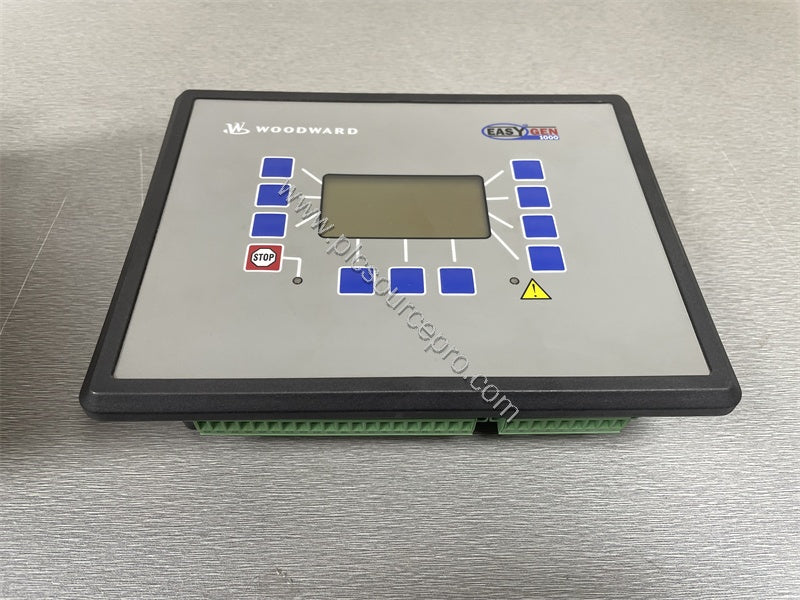

When reliable generator set control is critical in marine or harsh industrial environments, the Woodward 8440-2045 delivers robust performance. This Industrial Automation Module is part of the easYgen-3000 series and is also known as the easYgen-3400-5 Marine. Designed for single-operation generator sets, the 8440-2045 features an aluminum construction that withstands severe conditions, making it an affordable yet dependable upgrade or replacement for aging control systems.
Technical Specifications
| Parameter |
Value |
| Accuracy Class |
0.5 |
| Analog Input Resolution |
16 Bit |
| Front Panel Dimensions |
282W x 216H x 96D mm |
| Manufacturer |
Woodward |
| Multi-lingual Support |
English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish |
| Power Supply |
12/24 Vdc (8 to 40 Vdc) |
| Setting Range |
0.5 – 99,999.9 kW/kvar |
| Intrinsic Consumption |
Maximum 17 W |
Real-World Applications
The Woodward 8440-2045 excels in applications requiring precise generator synchronization and load sharing. Typical use cases include:
-
Marine generator sets – The marine-rated aluminum housing resists corrosion and vibration.
-
Standby emergency generators – It can operate as a stand-alone controller without a remote panel.
-
Industrial backup power systems – Supports adjustable vector groups and configurable voltages for smooth synchronization when using transformers.
Installation & Setup Guidance
Mount the Woodward 8440-2045 panel securely in a dry, ventilated enclosure. The front panel cutout dimensions are 282W x 216H x 96D mm. Connect the power supply within the 8 to 40 Vdc range; use a 12/24 Vdc source rated for at least 17 W. For ECU integration, the controller supports MTU ADEC, Special Scania S6, CAT ADEM, Deutz EMR2, MAN MFR/EDC7 & SaCos, SISI EEM, Woodward E3, Cummins, Volvo EMS2 & EDC4. If using expansion I/O, connect compatible modules from the Phoenix Contact IL or Woodward IDK 1 series. Always verify wiring with the product manual before energizing.
Compatibility & Integration
The Woodward 8440-2045 integrates seamlessly with a wide range of generator ECUs and remote panels. Its multi-lingual interface (14 languages) simplifies global deployment. The controller can be used with or without transformers, and its configurable vector groups assist in synchronizing with existing grid or generator systems. For discrete and analog I/O expansion, the recommended add-on boards (Phoenix Contact IL and Woodward IDK 1 series) extend its capabilities without complex rewiring.
Selection Guide & Purchasing Advice
Before purchasing the Woodward 8440-2045, confirm that your application requires a single-operation generator controller with the specified power supply range and setting range. This unit is ideal for replacing older easYgen-3000 series models or upgrading to a marine-rated version. For expert assistance and genuine parts, contact ubest101 – your trusted source for industrial automation spares. Ensure compatibility with your existing ECU and expansion I/O modules to avoid integration issues.
