Product Introduction

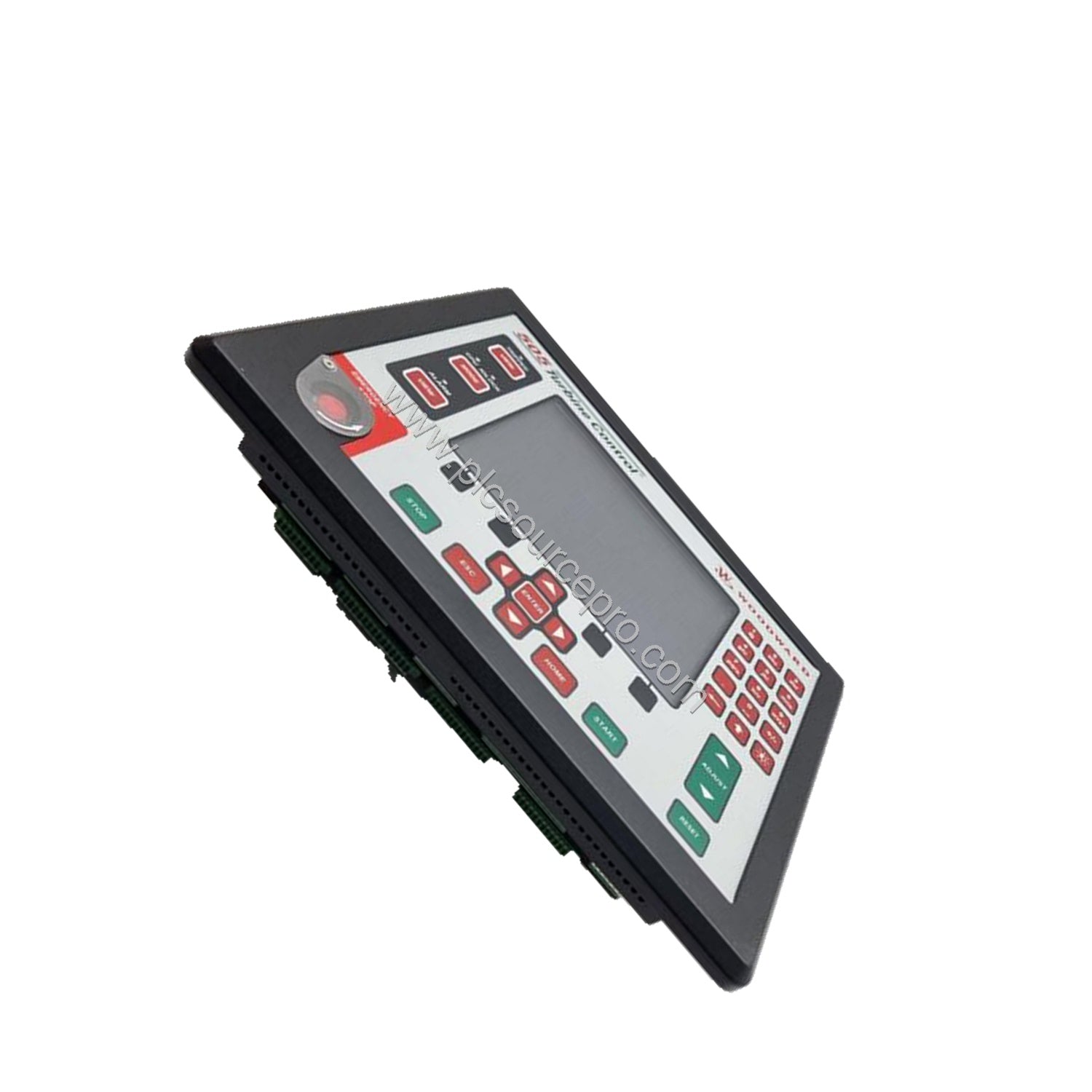

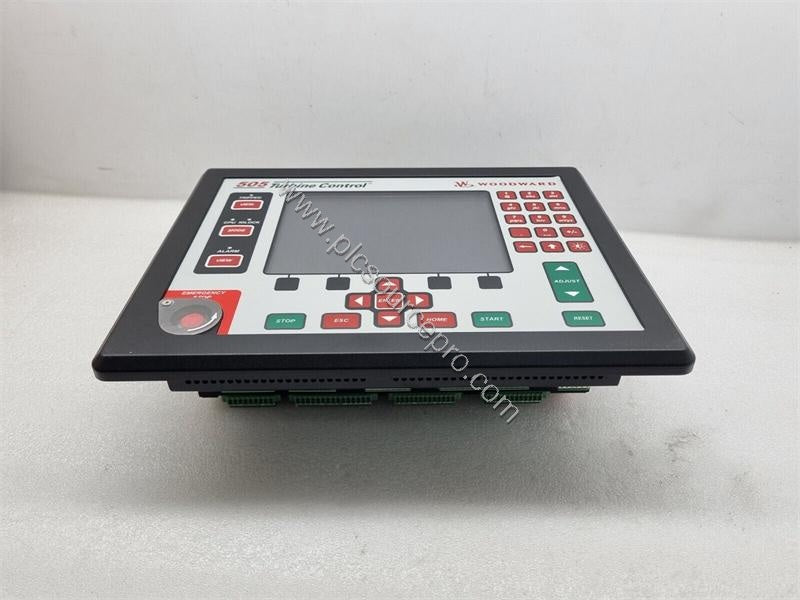

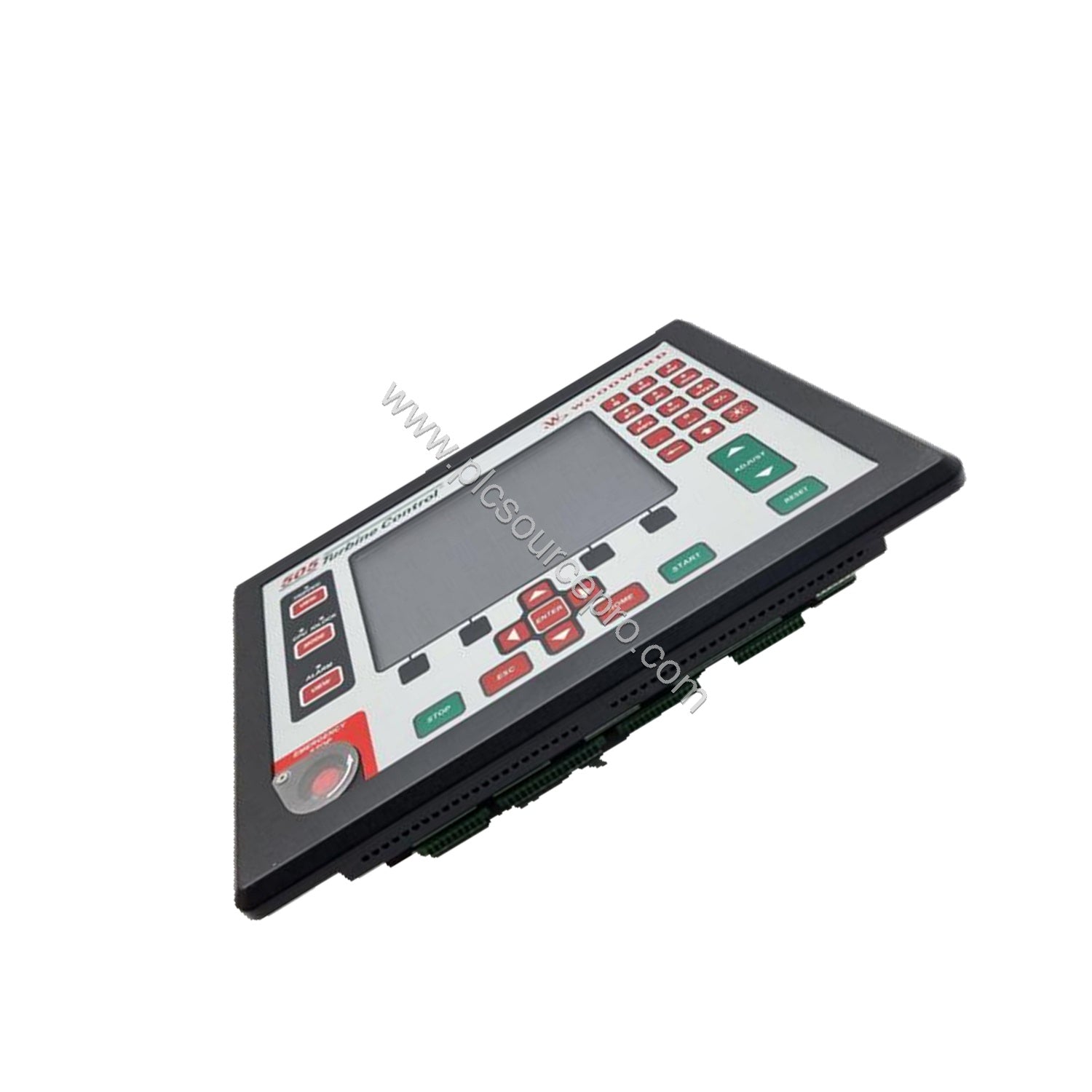

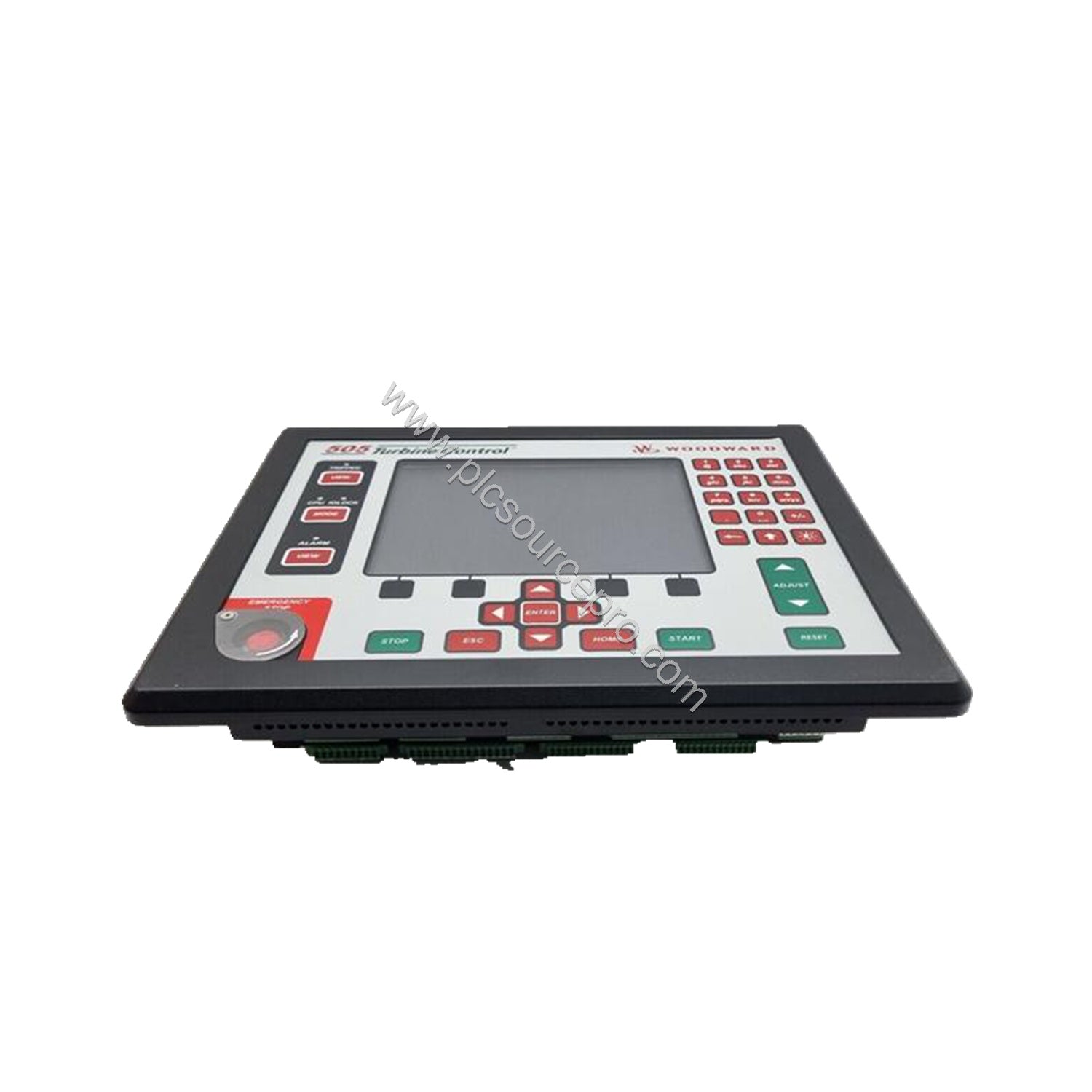

When upgrading legacy control systems in marine or ATEX-classified environments, the Woodward 8200-1302 Industrial Automation Module delivers a significant performance boost. As a key member of the Flex505 controller family, this unit replaces older 505 controllers with an enhanced CPU, graphical display, and expanded I/O capabilities. The 8200-1302 is designed for low-voltage DC (LVDC) systems operating between 18–32 Vdc, meeting stringent marine and ATEX compliance requirements.
Technical Specifications
Below are the key performance metrics derived from the product documentation. Each specification is critical for integration into demanding industrial applications.
| Parameter |
Value |
| Input Power (LV) |
18–36 Vdc isolated |
|
| Input Power (HV) |
88–264 Vac / 90–150 Vdc isolated |
|
| Operating Temperature |
–30 °C to +70 °C (with display) |
|
| Display |
8.4” LCD (800×600) with keypad |
|
| Ethernet Ports |
4 × 10/100 isolated |
|
| CAN Ports |
4 × 1 Mbit isolated |
|
| RS-232/RS-485 Port |
1 isolated |
|
| RS-232 Service Port |
1 isolated |
|
| Speed Sensor Inputs |
2 (MPU/Prox with Prox Power) |
|
| Analog Inputs |
8 channels 4–20 mA (with Loop Power) |
|
| Analog Outputs |
6 channels 4–20 mA |
|
| Actuator Outputs |
2 configurable 4–20 mA / 20–200 mA |
|
| Discrete Inputs |
20 channels (with Contact Power) |
|
| Relay Outputs |
8 form-C |
|
| GAP Update Rate |
5 ms to 160 ms configurable |
|
Compatibility & Integration
The Woodward 8200-1302 integrates seamlessly with existing 505 installations — same mounting footprint. For expanded I/O, use Woodward CAN distributed nodes (RTCnet and LINKnet HT). Communication options include four isolated Ethernet ports, four CAN ports, and RS-232/RS-485 connectivity, making it suitable for modern distributed control architectures. This module supports both low-voltage (18–36 Vdc) and high-voltage (88–264 Vac / 90–150 Vdc) power inputs, offering flexibility in retrofit scenarios.
Maintenance & Reliability
Designed for harsh environments, the Woodward 8200-1302 operates reliably from –30 °C to +70 °C. The isolated power supply and I/O circuits protect against ground loops and electrical noise. Regular inspection of connectors and cooling airflow is recommended. Given its marine and ATEX compliance, the module withstands vibration and corrosive atmospheres, reducing unscheduled downtime in critical processes.
Selection Guide & Purchasing Advice
Before purchasing the Woodward 8200-1302, verify your system voltage range (LV vs. HV) and I/O count. Confirm CAN network compatibility with existing Woodward nodes. For reliable supply and technical support, source from ubest101, a trusted distributor of industrial automation spares. Ensure your application meets the ATEX or marine classification requirements to fully leverage the module’s certifications.
