Product Overview

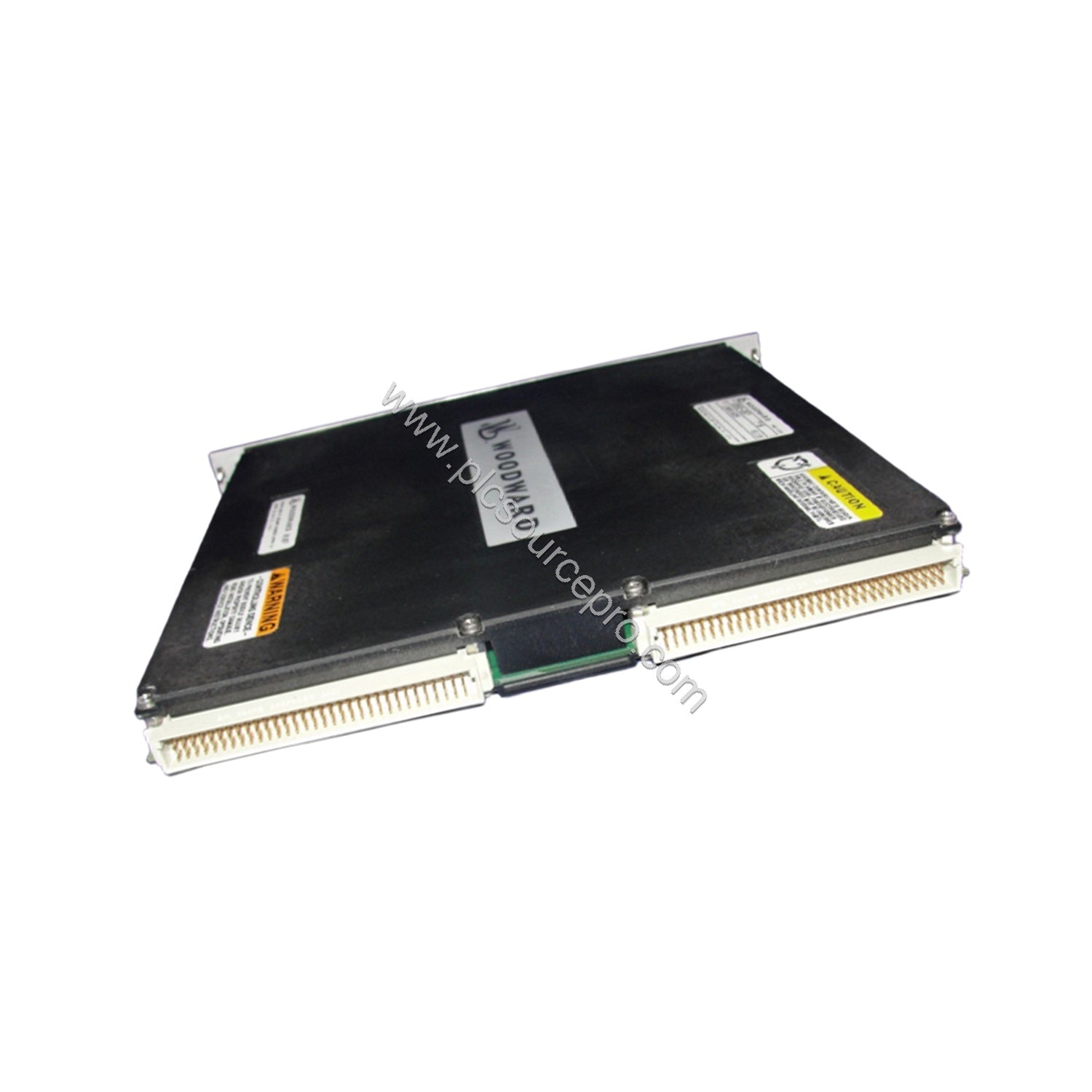

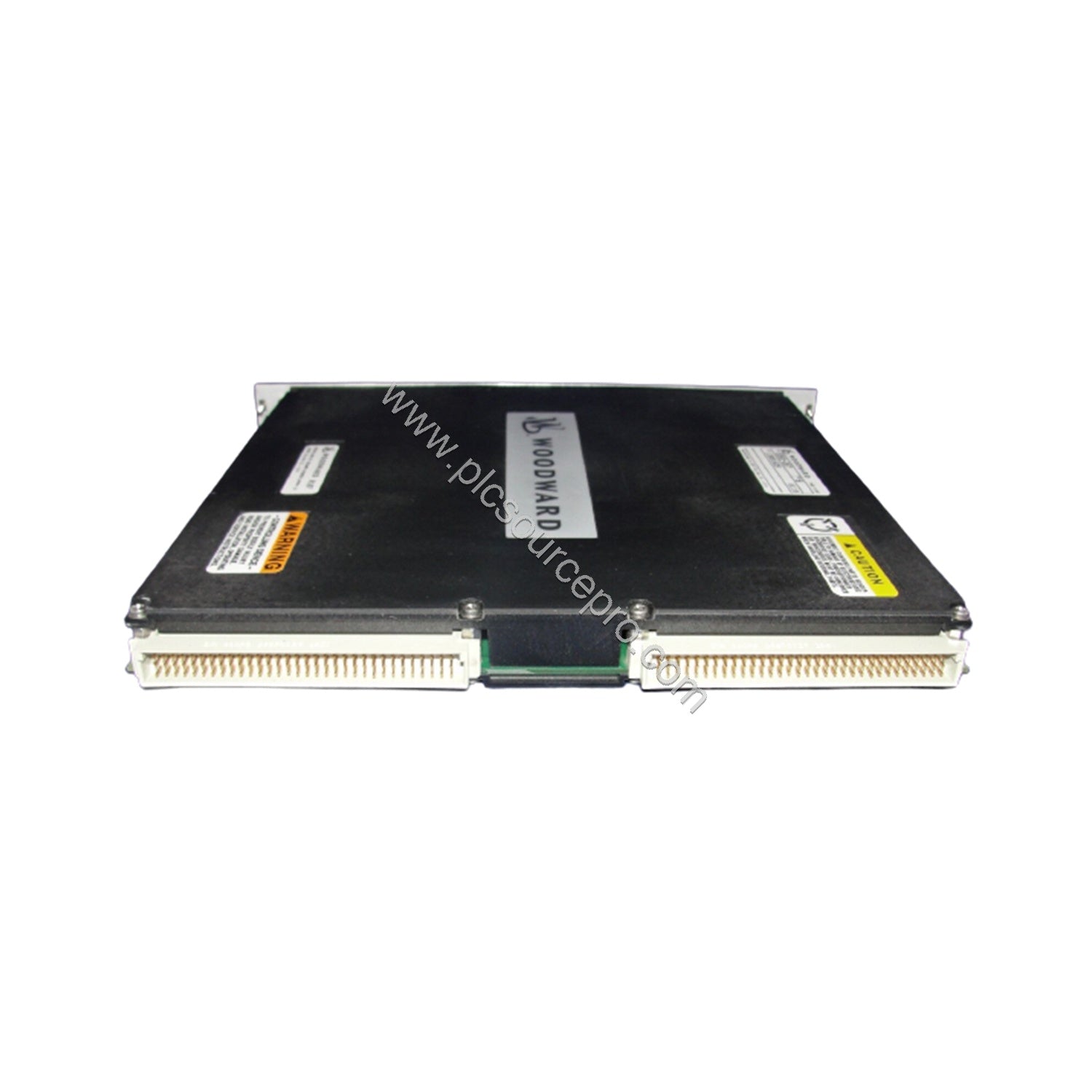

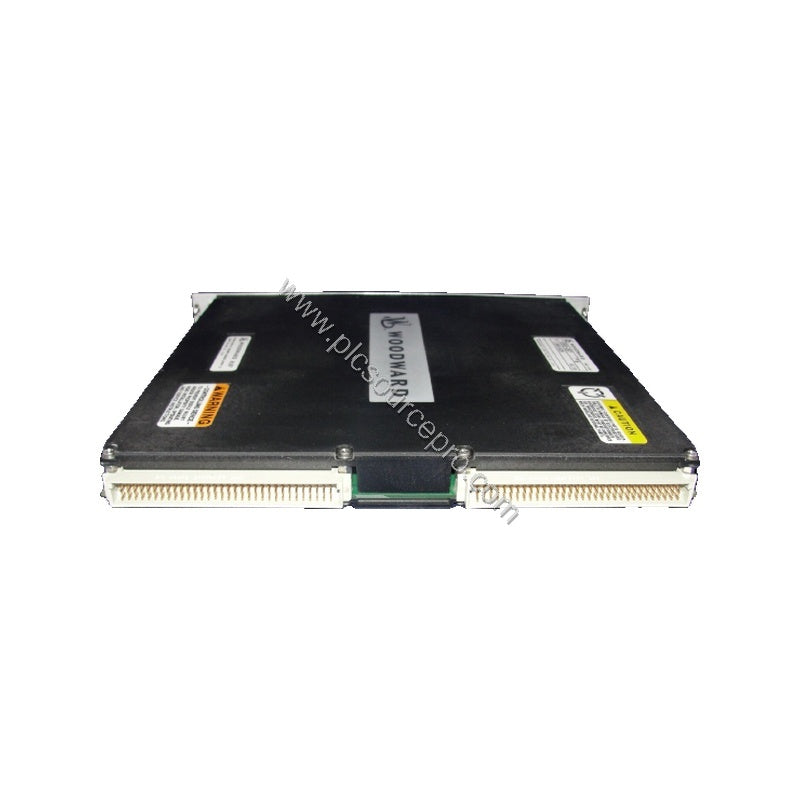

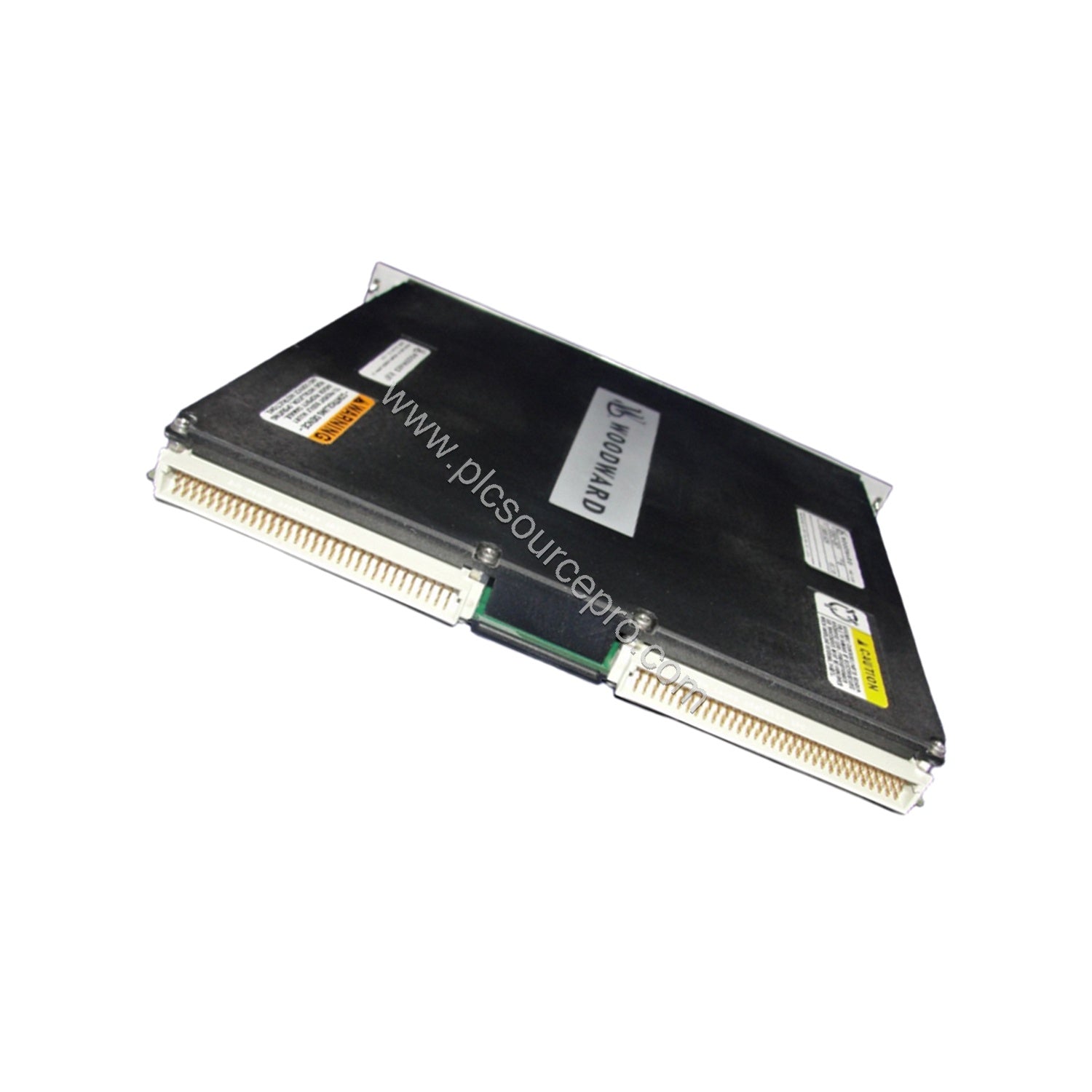

The Woodward 5503-335 is a MicroNet 5200 CPU Module designed for gas turbine control systems. This industrial automation module features a Power PC processor operating at 400 MHz, 64 MB of flash memory, and 128 MB of RAM. It includes CAN, Real-Time Network, and Ethernet ports for flexible integration. As a legacy module, the 5503-335 is suitable for upgrading or replacing earlier MicroNet CPUs in existing installations.
Technical Specifications
| Parameter |
Value |
| Part Number |
5503-335 |
| Manufacturer |
Woodward |
| Product Type |
MicroNet 5200 CPU Module |
| Dimensions |
16 cm x 16 cm x 12 cm |
| Weight |
1.82 kg |
| Operating Temperature |
0 to +55 °C (+32 to +131 °F) |
| Storage Temperature |
–20 to +45 °C (–4 to +113 °F) |
| Humidity |
Lloyd’s Register (2 cycles 20–55 °C at 95% RH non-condensing, over 48 hours) |
| Max Altitude |
4000 m |
| Overvoltage Rating |
Cat 2 |
| Protection Rating |
IP20 (IEC 529) |
| Sound Level |
Less than 70 dBA |
Industry Applications
The Woodward 5503-335 is ideal for upgrading gas turbine control systems in power generation and industrial gas compression. Its robust design supports reliable operation in harsh environments. For example, in a combined-cycle plant, this CPU module can replace an older MicroNet processor to improve computational performance and maintain compatibility with existing I/O and communication networks.
Installation & Setup Guidance
When installing the Woodward 5503-335, use an expansion chassis equipped with a Remote RTN module. Secure the unit using its rugged connectors. Ensure the ambient temperature stays within 0 to +55 °C. The front faceplate includes ten LEDs (TX/RX, LINK, STANDBY, SYSCON, RUN, IOLOCK, LVCC, WATCHDOG, CAN #1/#2, FAULT) for quick status monitoring during startup.
Compatibility & Integration
The Woodward 5503-335 supports multiple industrial communication protocols including Modbus, CANbus, and PROFIBUS. It also features dedicated CAN and Real-Time Network ports. This allows seamless integration with existing PLCs, DCS, and SCADA systems in gas turbine applications. The module can be used as a direct replacement for earlier 5200 series CPUs.
Selection Guide & Purchasing Advice
Before purchasing the Woodward 5503-335, verify that your system uses a MicroNet expansion chassis with a Remote RTN module. Ensure the model number matches exactly – substitutes are not compatible. For reliable supply, choose an experienced distributor like PLC Source PRO, which offers certified tested units and technical support.
