Product Introduction

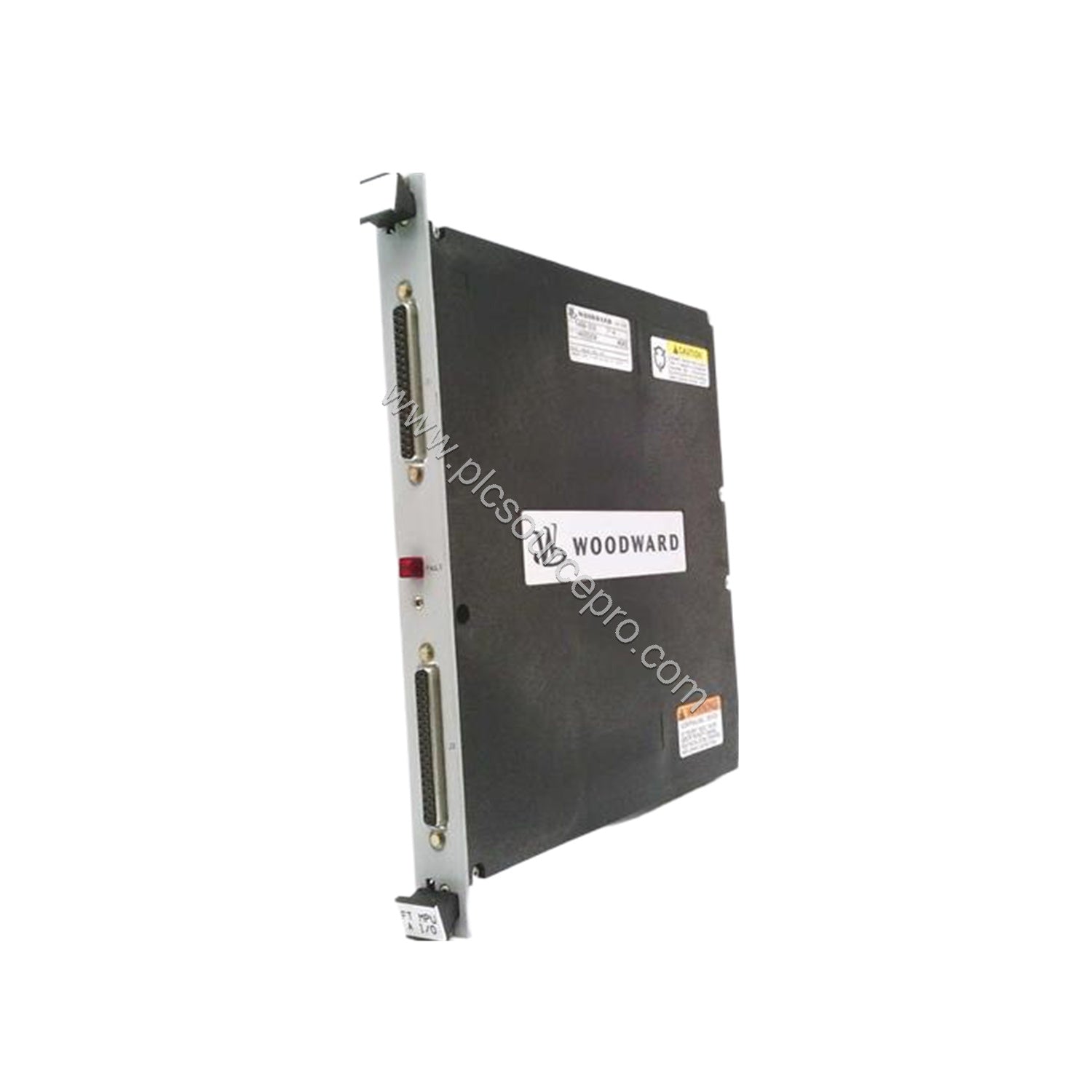

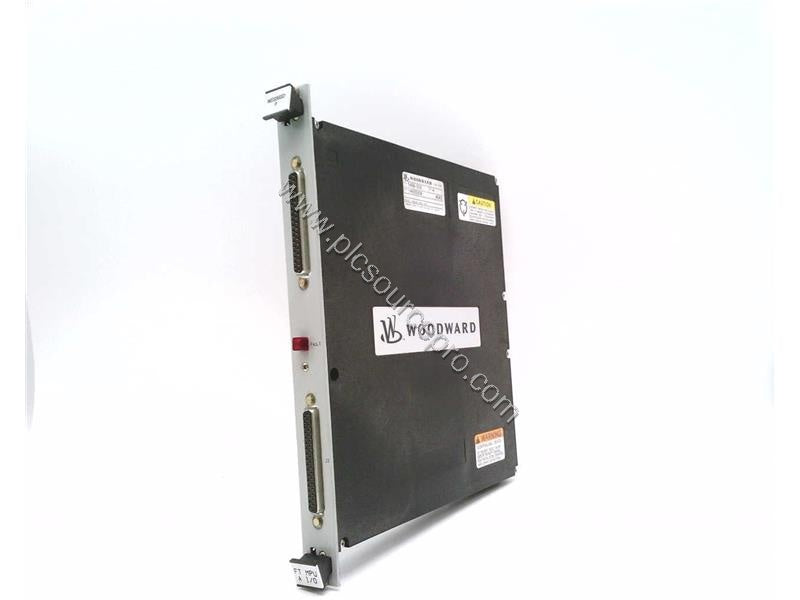

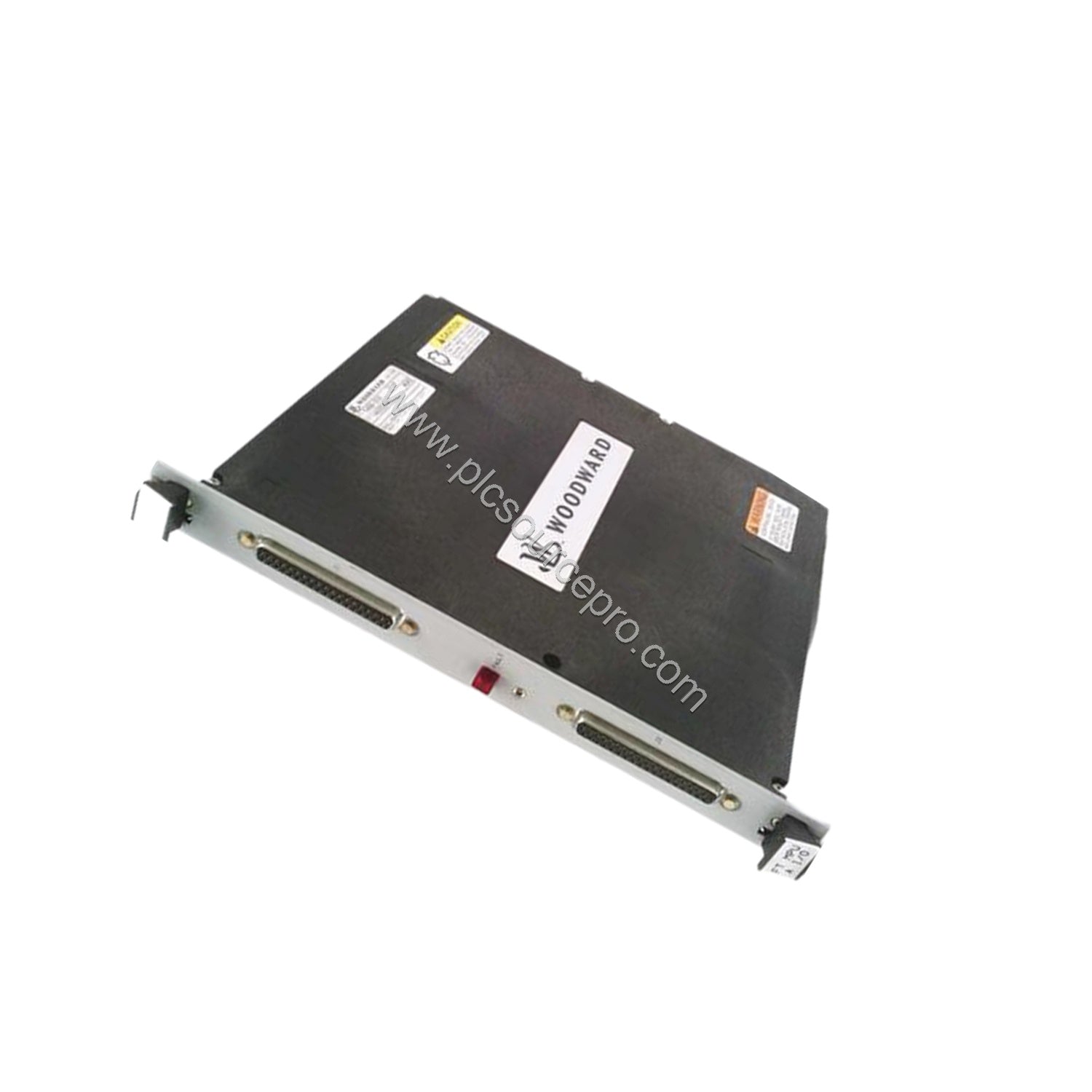

When signal degradation or electromagnetic interference threatens the stability of your distributed control system, the Woodward 5466-355 Remote Chassis Transceiver provides a reliable solution. Designed exclusively for CPU 68040 systems, this module handles the exchange of control, data, and address information between the Main XCVR and Remote I/O Chassis. Its high-speed differential line drivers operate at the VME transmission rate, ensuring efficient data transfer and minimizing communication errors. The robust design includes two 100-pin metal shell Micro-D connectors per module, guaranteeing secure cable connections and reducing downtime caused by loose or faulty interfaces.
Application Scenarios
The Woodward 5466-355 excels in environments requiring expansion of I/O capacity without sacrificing signal integrity. In a turbine control system, for example, adding remote I/O chassis allows for more sensor inputs while the transceiver maintains error-free communication over the VME bus. Another common use case is upgrading legacy CPU 68040 systems: replacing older transceivers with this module reduces signal reflection and electromagnetic interference, leading to fewer system interruptions and lower maintenance costs. In both scenarios, the parallel interface with termination resistor options prevents signal distortion, making the 5466-355 a key component for building robust distributed control architectures.
Installation & Setup Guidance
Proper installation is critical for the Woodward 5466-355 to function correctly. Follow these guidelines:
- Install the module in Slot 1 of each Remote I/O Chassis. Expansion chassis except the last in the chain require the version without termination resistors to prevent signal reflection.
- The final expansion chassis must use the module with termination resistors installed in Slot 1 to manage signal reflections properly.
- For shorter connections (up to 3 feet or 0.9 m) between expansion chassis and T-Modules, use the provided three-foot cables. For connections from the Main Chassis or between T-Modules, use ten-foot (3 m) cables to maintain signal quality over longer distances.
- The module has no switches or LEDs, so verify correct slot and resistor configuration before powering up.
Maintenance & Reliability
Routine maintenance for the Woodward 5466-355 focuses on physical connections. Because the module has no active indicators, regularly inspect the 100-pin Micro-D connectors for bent pins or corrosion. Check cable integrity, especially in high-vibration environments. If communication issues arise, replace the cables first; if problems persist, replace the module itself. The absence of onboard switches or LEDs simplifies troubleshooting but underscores the need for systematic cable and connection checks. With proper care, this transceiver delivers consistent performance in demanding industrial settings.
Troubleshooting Common Issues
When the Woodward 5466-355 stops working or behaves erratically, follow these steps:
- Verify all cable connections are secure and free of damage. Loose or frayed cables are the most frequent cause of failure.
- Confirm that the correct module version (with or without termination resistors) is installed in the appropriate chassis. An incorrect termination setup leads to signal reflection and data errors.
- Check that the module is seated properly in Slot 1 – incorrect slot assignment prevents the VME bus from addressing the transceiver.
- If the module still fails after cable replacement, substitute the transceiver with a known working unit to confirm the component itself is faulty.
Selection Guide & Purchasing Advice
Before purchasing a Woodward 5466-355, verify that your system uses a CPU 68040 and that you require a remote chassis transceiver. Determine whether you need the version with or without termination resistors based on your chassis sequence. For reliable sourcing, visit PLC Source PRO – your trusted supplier of industrial automation spares. We keep the Woodward 5466-355 in stock and can provide compatibility confirmation. For detailed assistance, contact our team (reference product 5466-355) and we will help you select the right configuration.
