Product Introduction

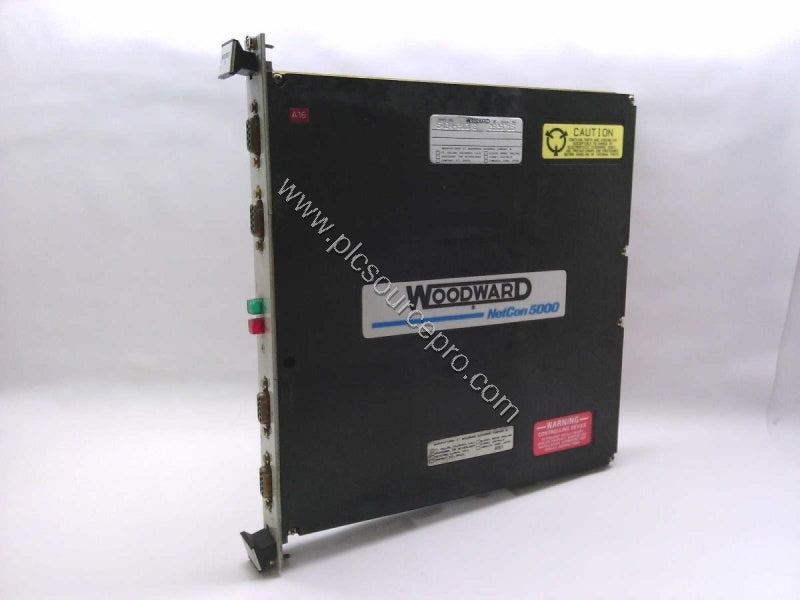

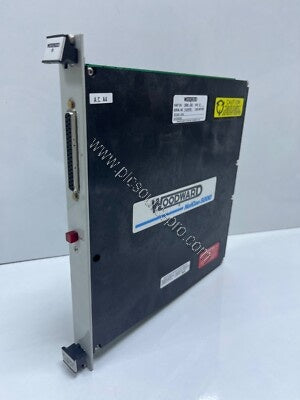

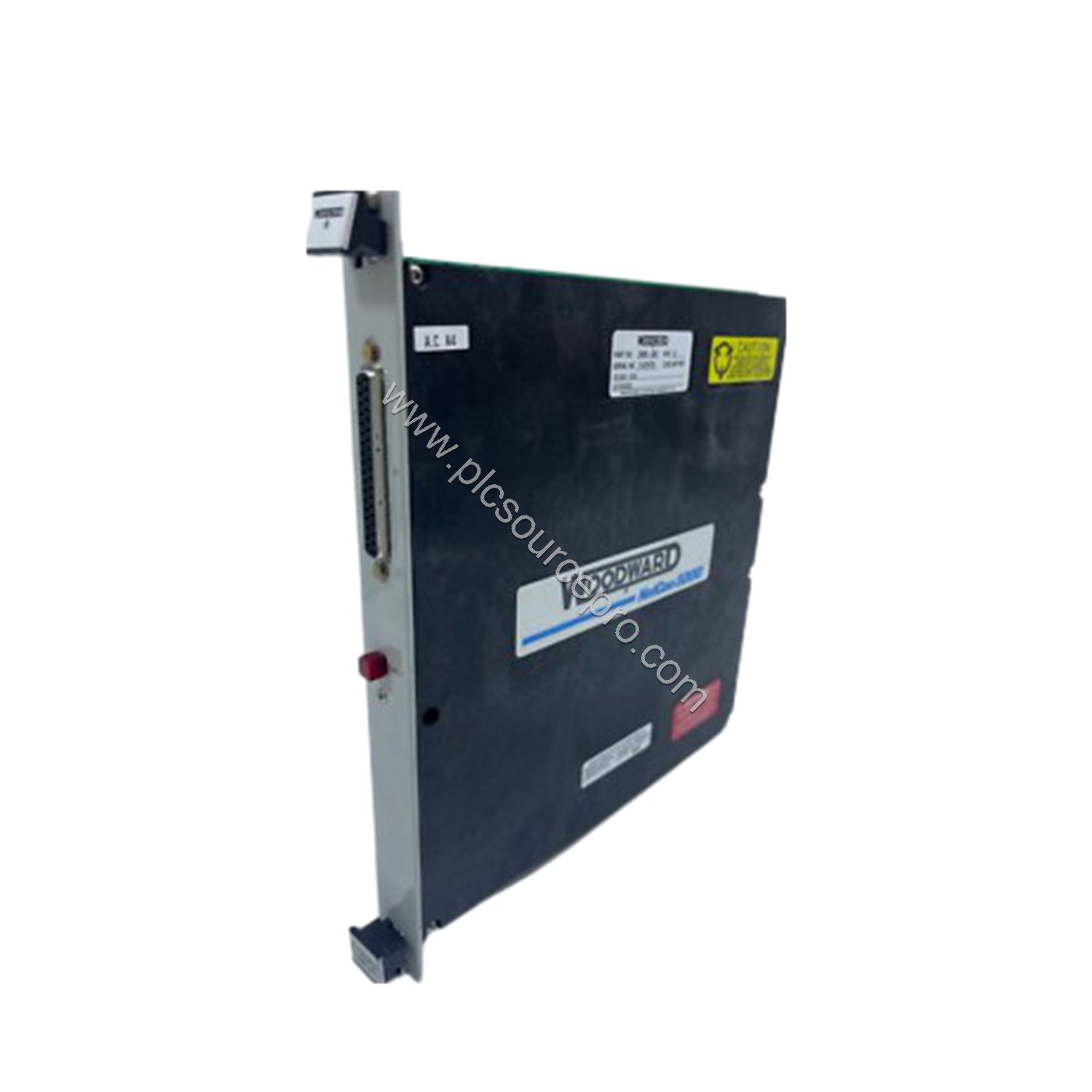

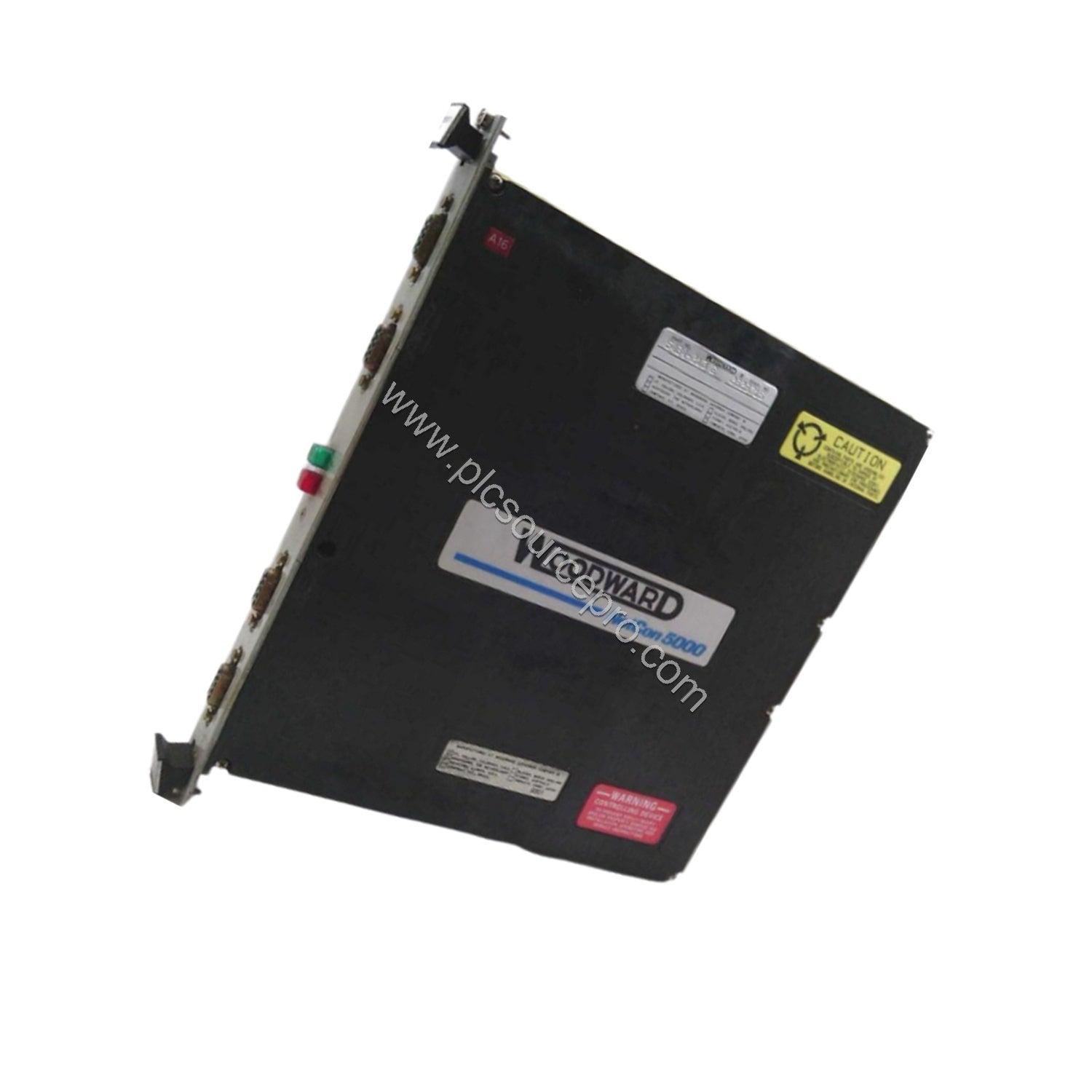

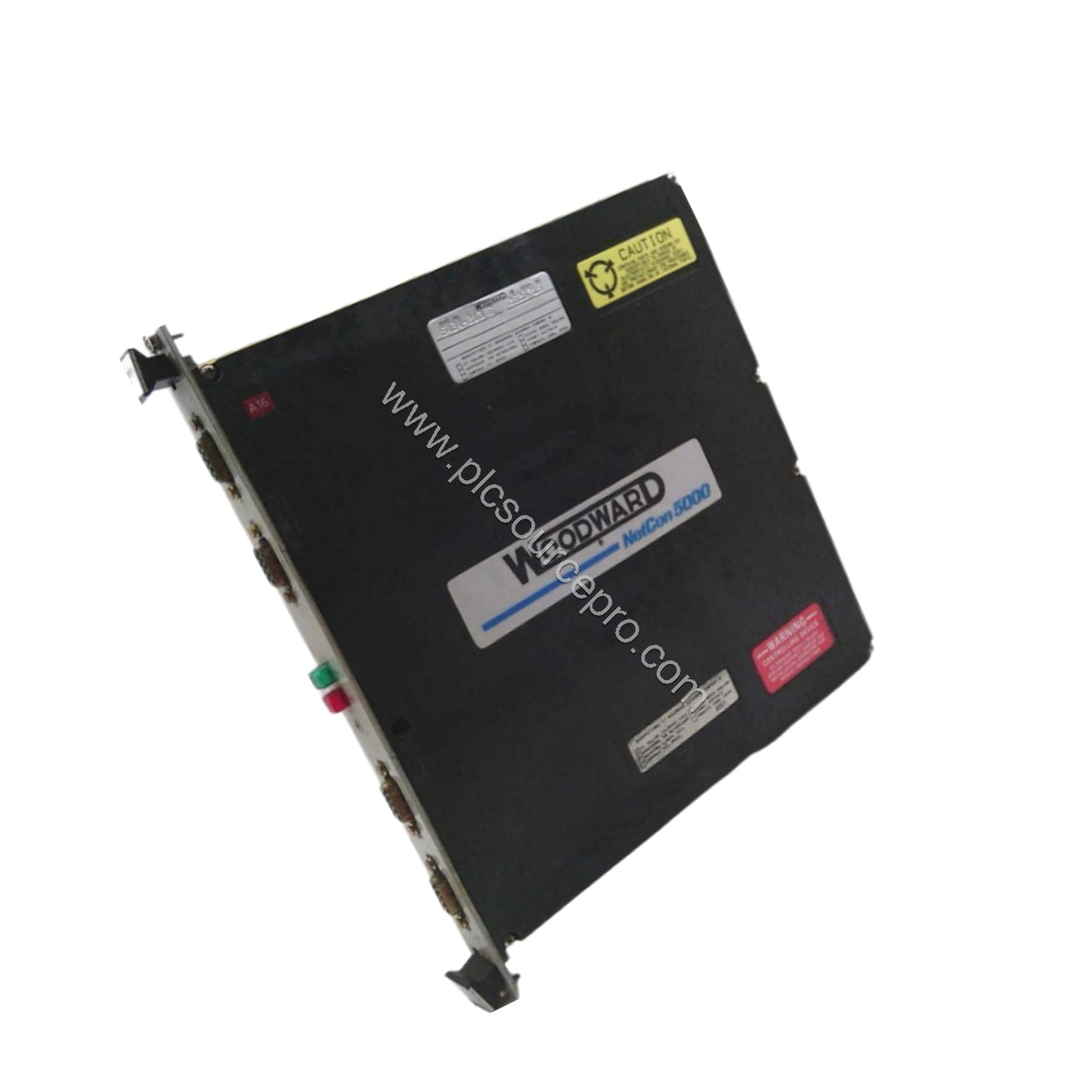

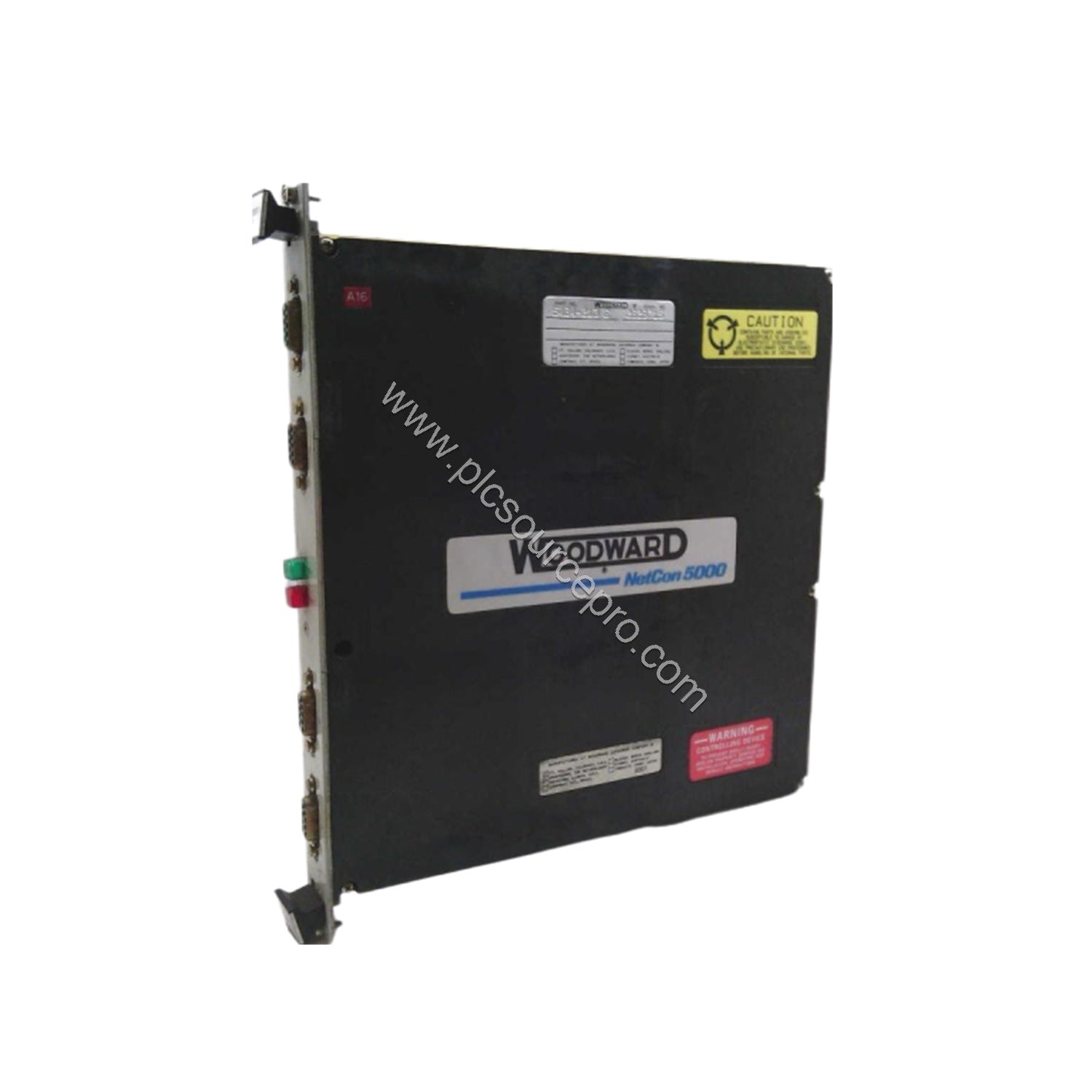

The Woodward 5464-843 is a NetCon 5000 CPU module designed for industrial automation and turbine control applications. As part of the MicroNet Digital Control family, this module provides intelligent processing and communication for critical control systems. The 5464-843 integrates with smart I/O modules to manage rate-group scheduling and fault detection with minimal CPU intervention.
Fault Management and Diagnostics
The Woodward 5464-843 excels in handling common I/O faults through its on-board microcontrollers. Each smart I/O module performs power-on self-tests and turns off the LED upon successful initialization. If a fault is detected, the LED illuminates to alert the system. The module continuously monitors input channels via precision voltage references, performing automatic temperature compensation and calibration every minute. This proactive fault detection prevents unplanned downtime and ensures data integrity.
For output modules, the system monitors voltage and current per channel, flagging load faults. The 5464-843 communicates faults to the CPU, which takes predefined corrective actions. This architecture reduces manual troubleshooting and improves system reliability.
Application Scenarios
The Woodward 5464-843 is ideal for gas and steam turbine control, where rapid fault detection is critical. In power generation plants, the module coordinates with smart I/O cards to manage actuator drivers and sensor inputs. Its ability to handle proportional and integrating actuators makes it suitable for hydromechanical and pneumatic systems. The module also supports up to two position feedback devices per actuator channel, enhancing control precision.
In oil and gas facilities, the 5464-843 controls compressors and pumps, leveraging its VME-bus interface for high-speed data exchange. The automatic calibration feature maintains accuracy over temperature variations, reducing recalibration intervals.
Installation Guidance
Install the Woodward 5464-843 into a MicroNet chassis using the designated slot. Ensure proper grounding and observe ESD precautions. Use the specified MicroNet low-density discrete (gray) cable for actuator driver connections; do not use analog (black) cables. The module’s fuse is accessible through a cutout in the plastic cover – replace only with a fuse of identical type and rating. Verify that the CPU firmware supports the 5464-843 revision before power-up.
Maintenance and Reliability
Regularly inspect the Woodward 5464-843 for LED status indications. The FAULT LED illuminates when a critical failure prevents operation. Check the on-board fuse if an I/O channel fails. The module’s automatic calibration reduces the need for manual adjustments. Keep the ambient temperature within the specified range to ensure accurate voltage reference readings. Periodic review of fault logs helps identify recurring issues.
Purchasing Advice
When ordering the Woodward 5464-843, confirm compatibility with your existing MicroNet system and CPU revision. Verify the input voltage range and output current requirements for your actuators. For reliable sourcing, contact PLC Source PRO (formerly ubest101) – a trusted supplier of industrial automation spares. Ensure the module includes the required cables and documentation. If you need technical specifications not listed here, please reach out to our team for detailed datasheets.
