Product Overview

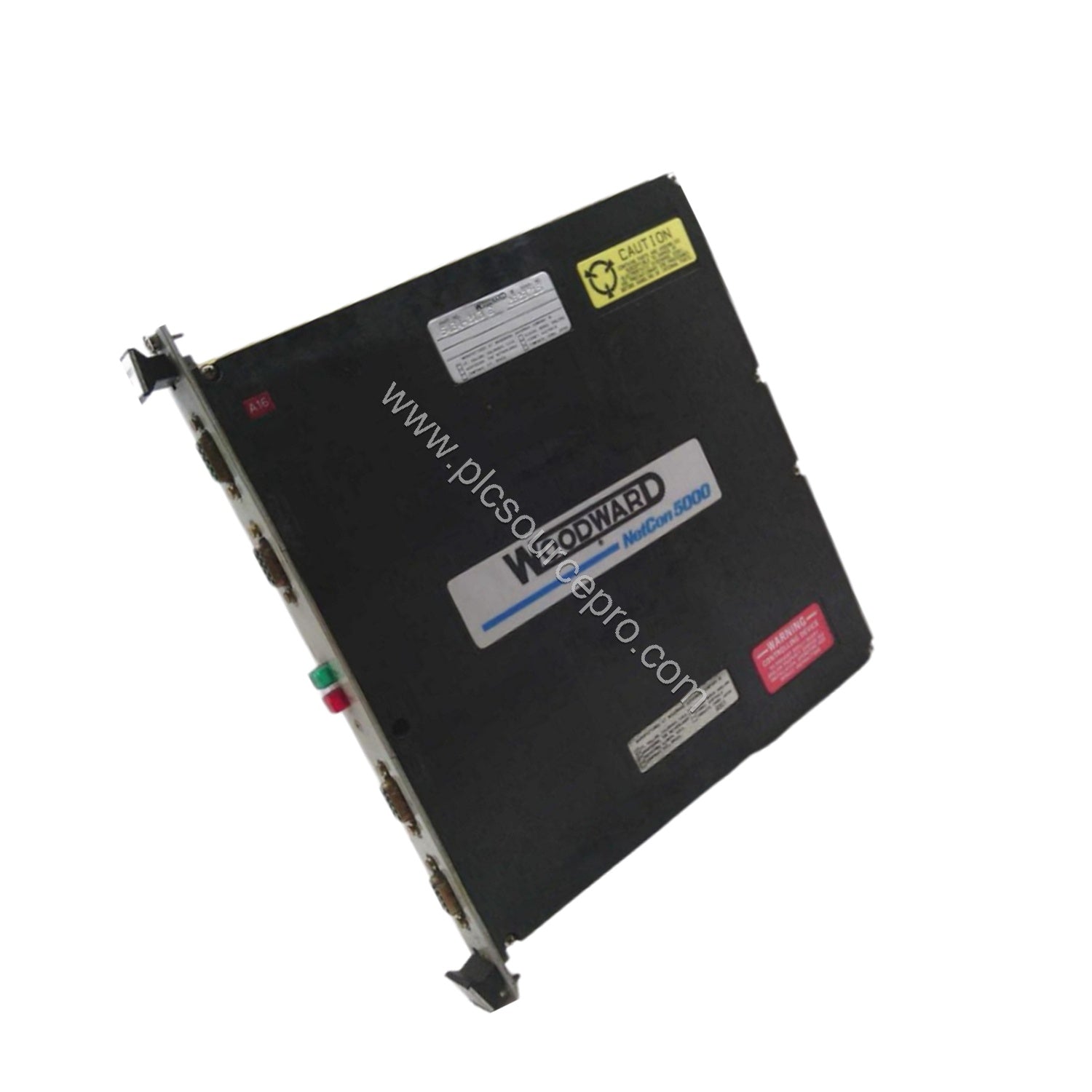

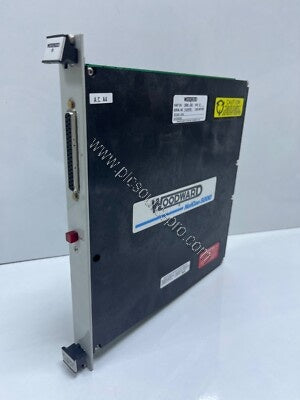

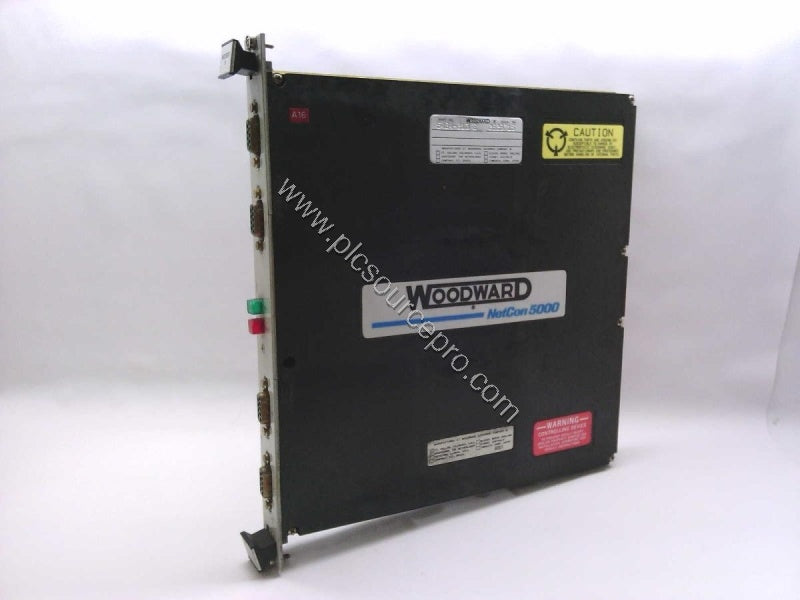

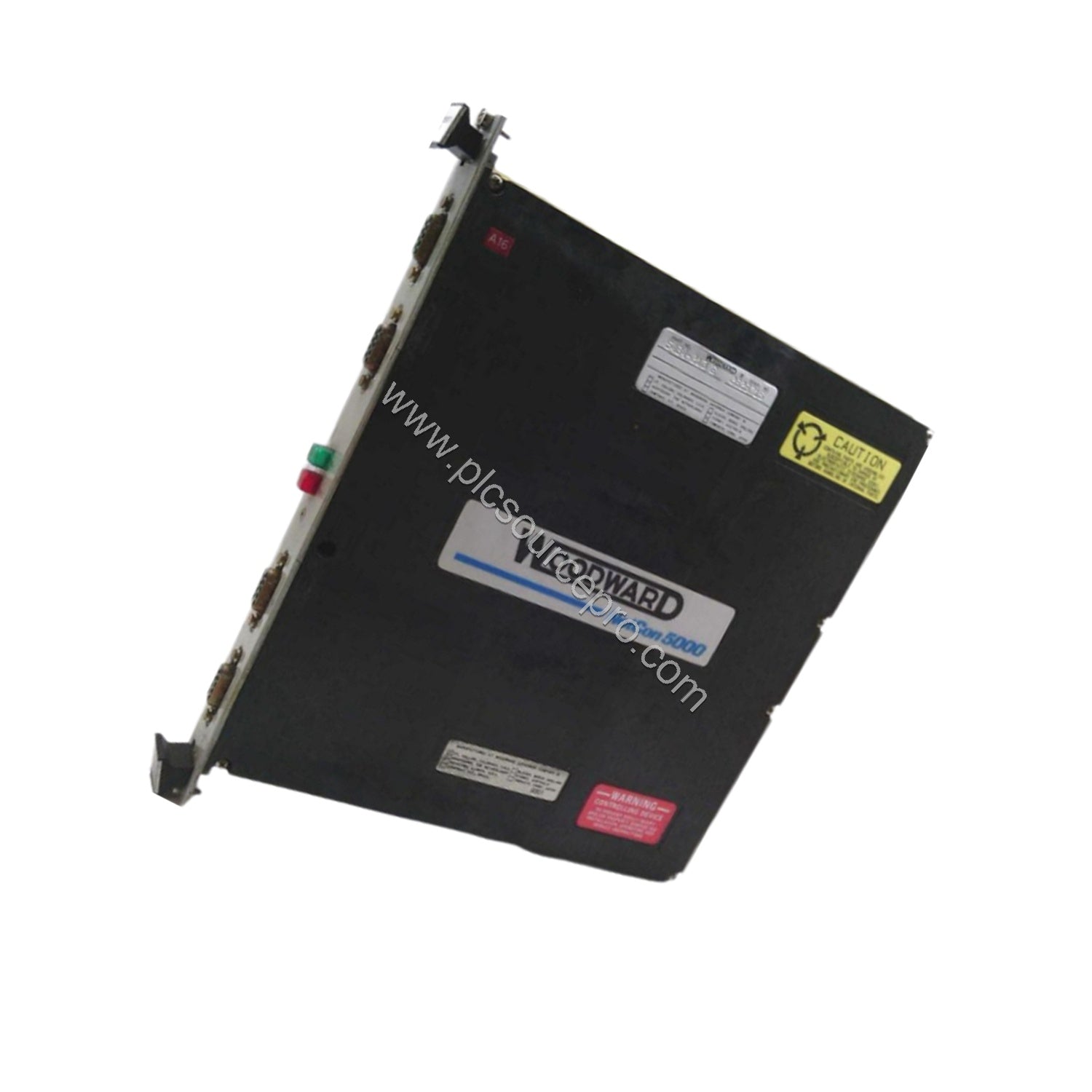

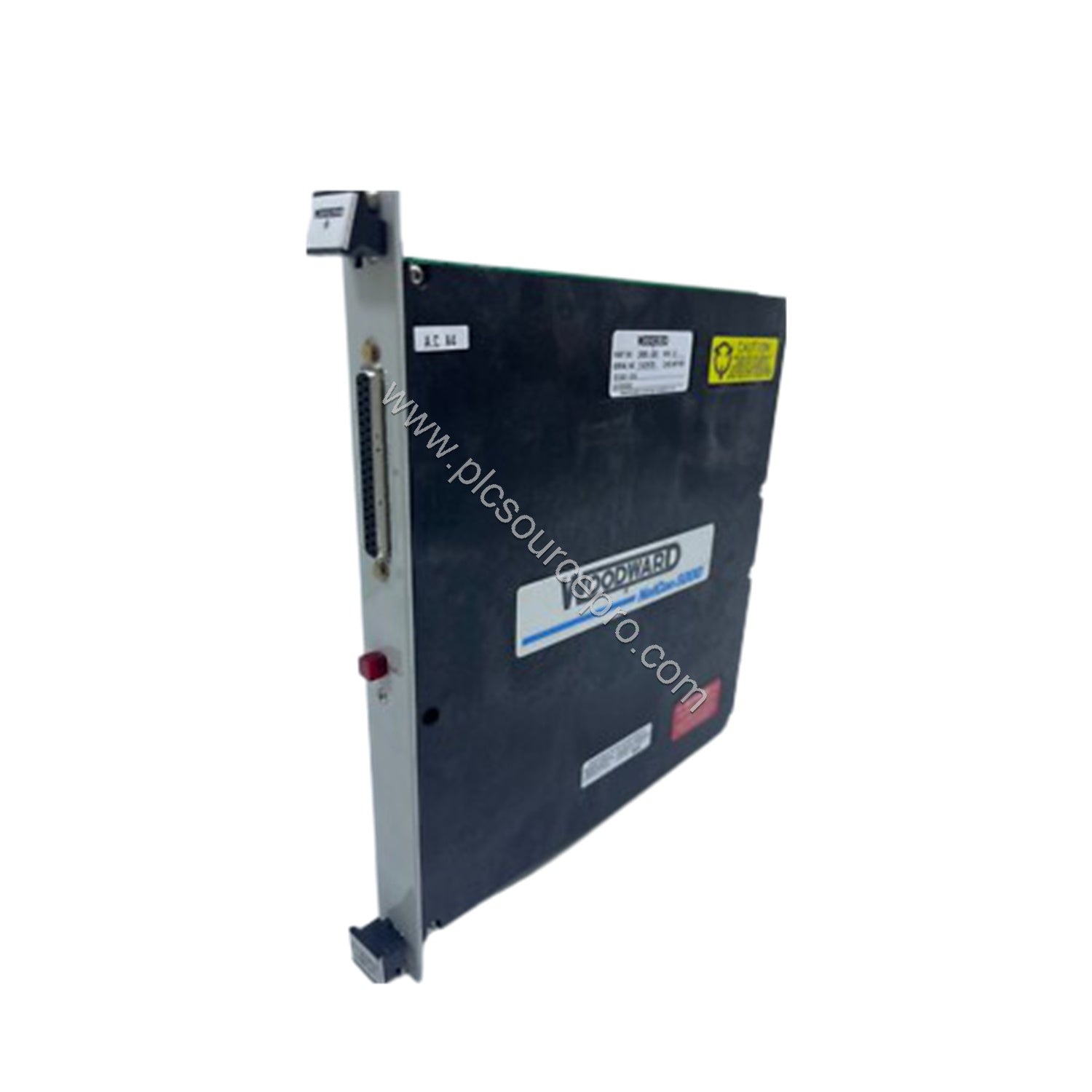

When your gas turbine control system demands precise analog output signals for reliable operation, the Woodward 5464-648 Analog 8-Channel Output Module delivers the performance you need. This module is designed to replace or upgrade older output modules in legacy systems, providing eight independent 4-20mA channels for controlling actuators, valves, and other field devices. The Woodward 5464-648 interfaces seamlessly with PLCs and DCS systems, offering a reliable upgrade path for aging control hardware.
Installation & Setup Guidance
Install the Woodward 5464-648 in a clean, dry environment within your control panel. Ensure proper grounding and electrical isolation to prevent signal interference. The module connects via standard terminal blocks; verify wiring polarity for each 4-20mA loop. After mounting, configure the output ranges using Woodward’s configuration software (not included). Always power down the system before installation.
Maintenance & Reliability
To maintain optimal performance of your Woodward 5464-648, perform regular visual inspections for signs of corrosion or damage. Check that all connections remain tight. The module’s solid-state design minimizes wear, but periodic calibration checks ensure long-term accuracy. Environmental considerations include operating temperature range (contact factory for details) and protection from moisture and dust. Regular upkeep extends the service life of the Woodward 5464-648 and reduces unplanned downtime.
Selection Guide & Purchasing Advice
Before purchasing the Woodward 5464-648, confirm that your control system requires 4-20mA analog outputs and that the module form factor fits your panel. For detailed specification sheets or to verify compatibility with your existing equipment, contact PLC Source PRO (ubest101) directly. As a trusted supplier of industrial automation spares, we can help you select the right replacement module for your gas turbine control system.
Troubleshooting & Common Issues
Common issues with analog output modules like the Woodward 5464-648 include output drift, no signal, or inaccurate readings. Start by checking loop power supply and wiring integrity. Use a multimeter to measure current at the module terminals. If a channel fails, consider a faulty output driver – the module may need replacement. For advanced diagnostics, consult Woodward’s technical documentation.
