Product Overview

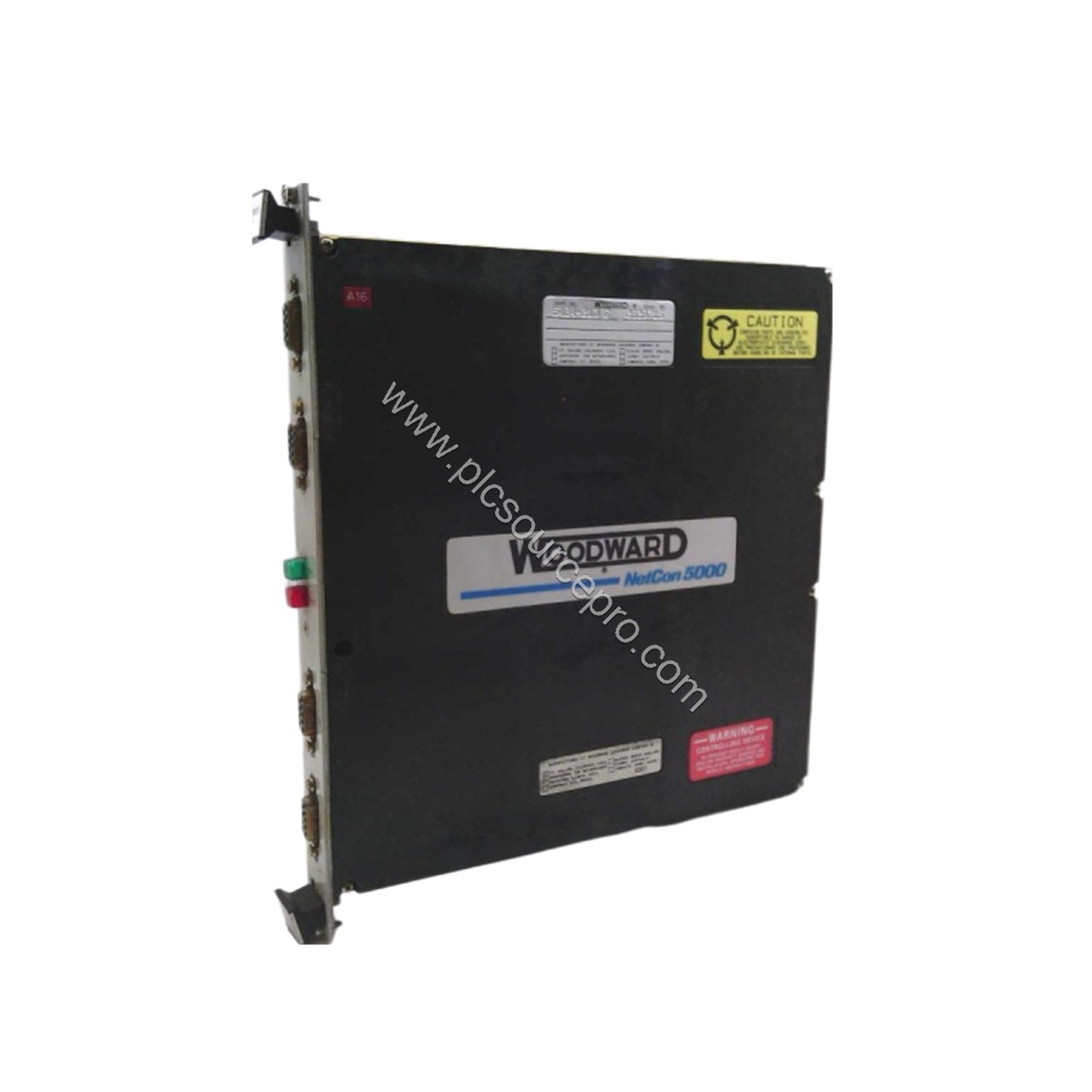

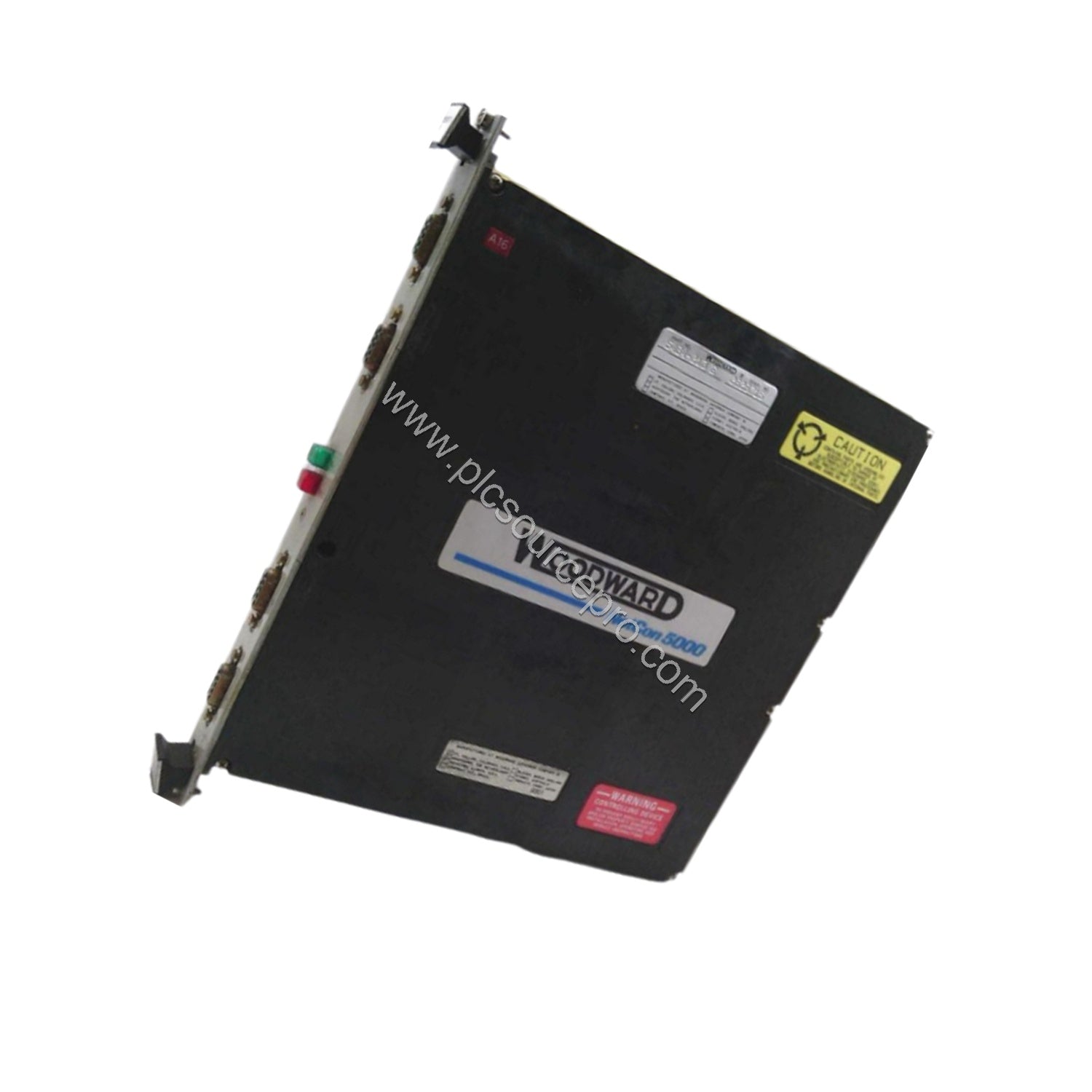

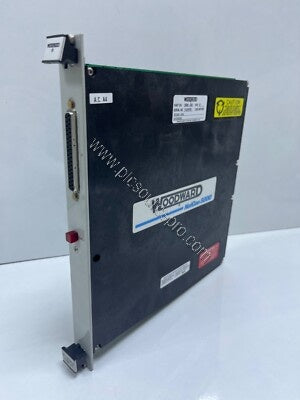

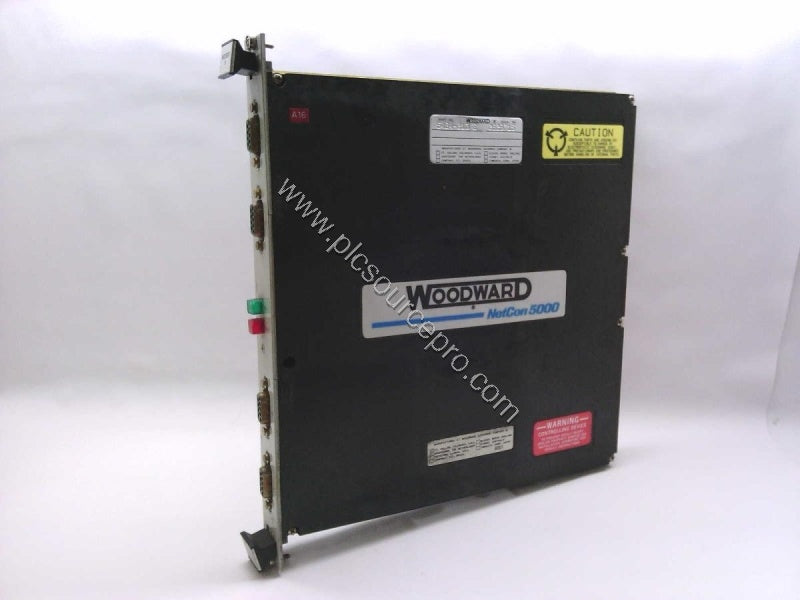

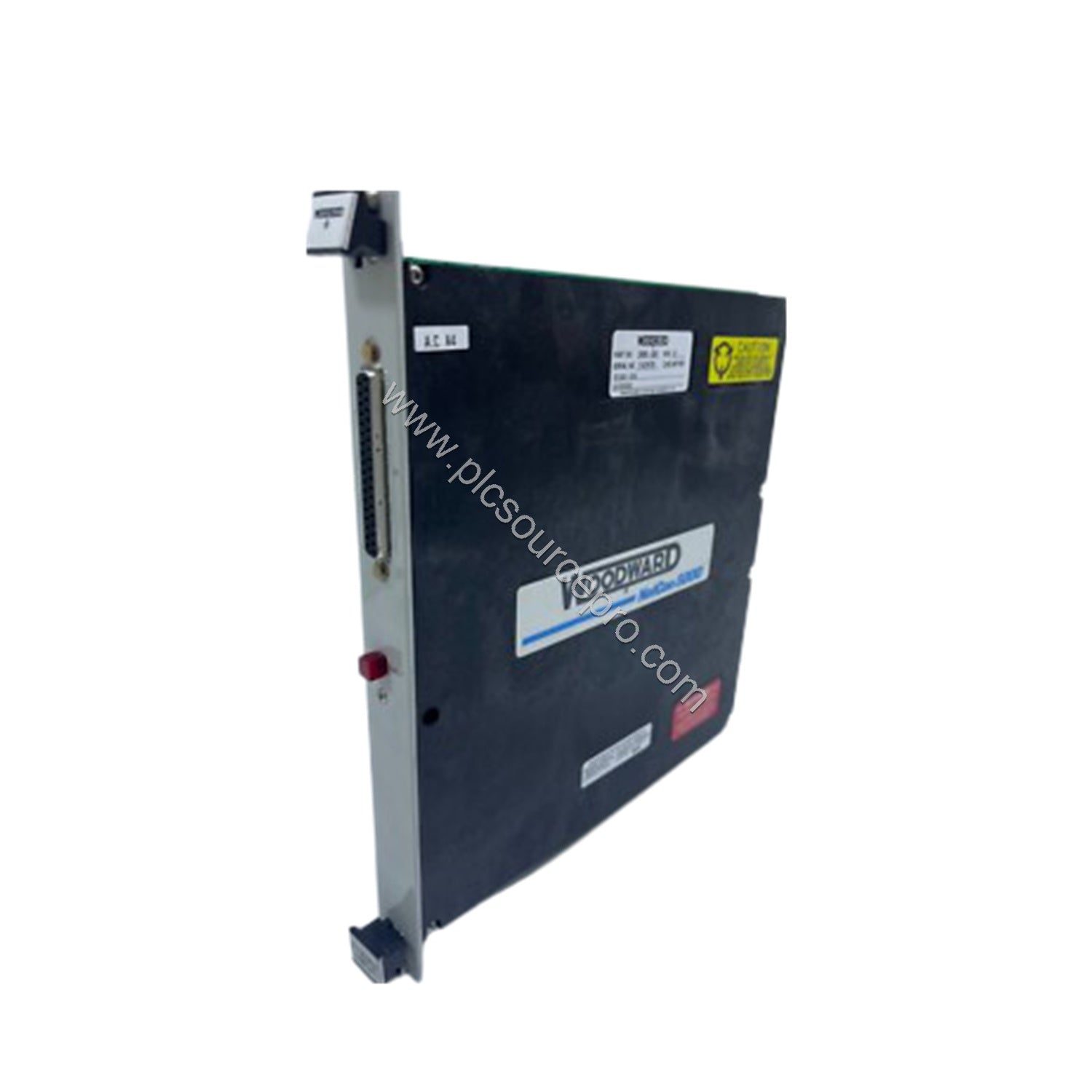

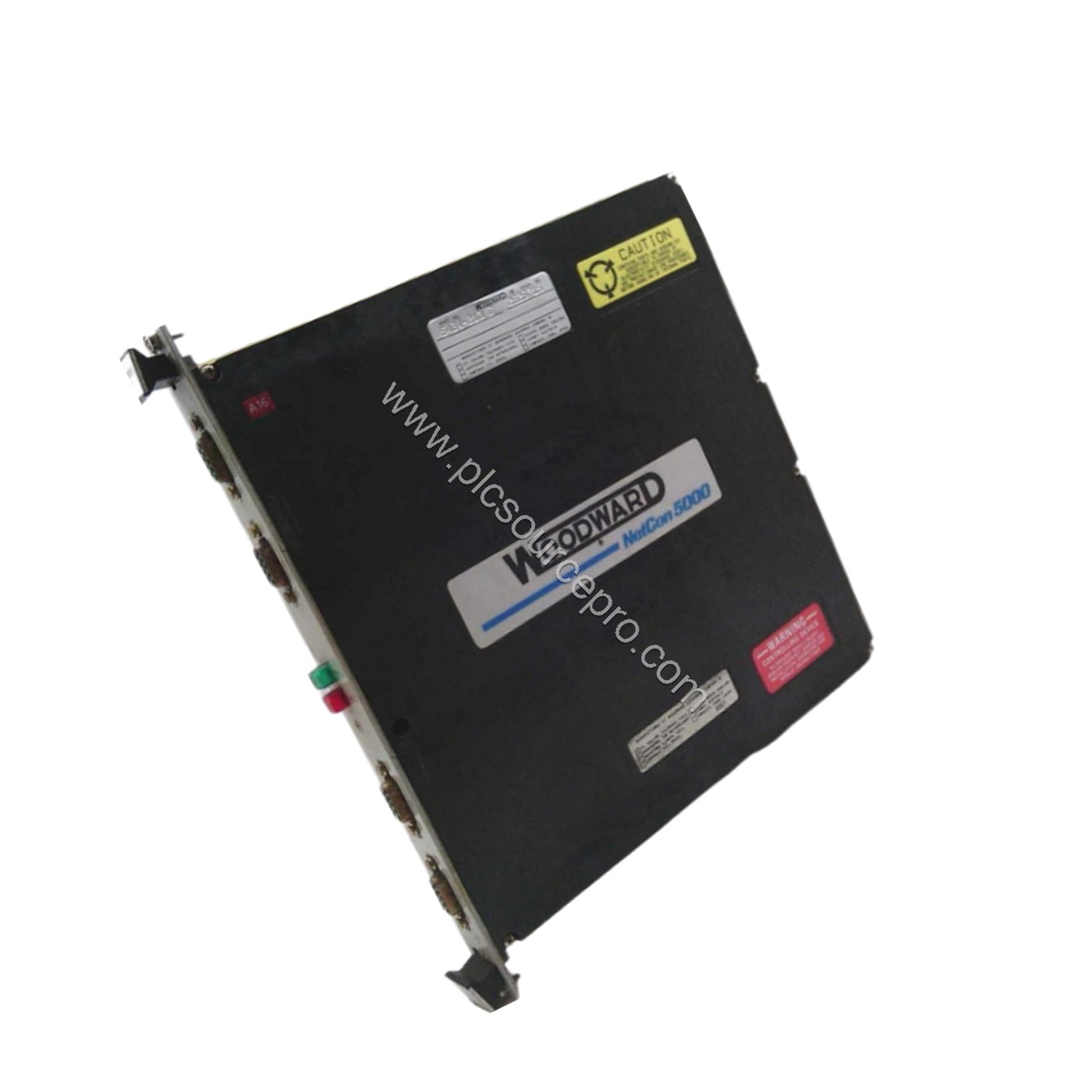

When multiple discrete input modules in a chassis show active Fault LEDs, the Woodward 5464-643 Discrete Input Module (48 channels) helps you isolate the root cause quickly. This optically isolated module uses 3 mA per channel to read field switches and relays, passing status to the CPU via the VME interface. Designed for MicroNet based control systems, the 5464-643 ensures reliable state detection even in noisy industrial environments.
Technical Specifications
| Parameter |
Value |
| Part Number |
5464-643 |
| Manufacturer |
Woodward |
| Product Type |
Discrete Input Module |
| Number of Channels |
48 |
| Input Type |
Optically isolated discrete input |
| Input Current |
3 mA per channel |
| Country of Manufacture |
United States (USA) |
The Woodward 5464-643 uses optical isolators per channel to protect MicroNet circuitry from field transients. Each channel draws only 3 mA, minimizing power consumption while maintaining robust signal integrity.
Industry Applications
In gas turbine and steam turbine control systems, the Woodward 5464-643 monitors limit switches, valve position feedback, and protective relays. For example, a power plant can use the 48-channel module to collect status from multiple safety interlocks, with each channel individually buffered and read by the controller. Similarly, in compressor skid controls, the 5464-643 handles discrete signals from pressure switches and manual pushbuttons, ensuring precise sequencing.
Installation & Setup
Mount the Woodward 5464-643 in a MicroNet chassis by sliding it along card guides until it mates with the motherboard. Secure the module with two screws (top and bottom of the front panel). Two front-panel handles, when toggled outward, disengage the connectors gently. Each 48-channel module connects to two 24 Vdc Discrete Input/Output FTMs (or Discrete Input FTMs with LEDs) via low-density cables. The FTM on connector J1 handles channels 1–24; J2 covers channels 25–48. Ensure all field wiring is de-energized before insertion.
Fault Troubleshooting
A common failure mode: if all 48-channel modules in a chassis show illuminated Fault LEDs during normal operation, the issue likely originates from the chassis CPU module. Replace or reseat the CPU first before suspecting individual discrete input modules. This systematic approach, supported by the 5464-643's per-channel opto-isolation, saves valuable troubleshooting time.
Selection Guide
Before ordering the Woodward 5464-643, verify your chassis model and required number of FTMs. The module requires two compatible FTMs (either 24 Vdc Discrete I/O or Discrete Input with LEDs) and two low-density cables. For reliable supply, purchase from PLC Source PRO. Contact us for cross-references or bulk pricing.
