When Power Grid Instability Threatens Production

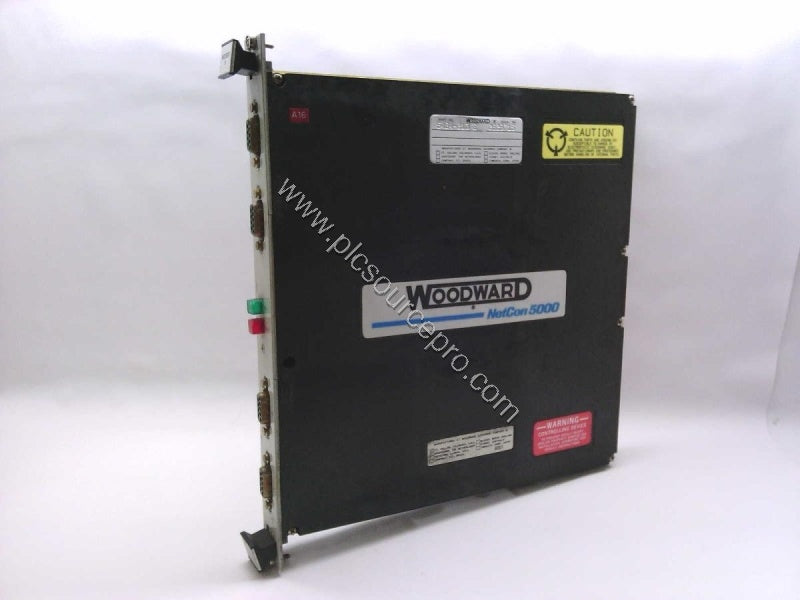

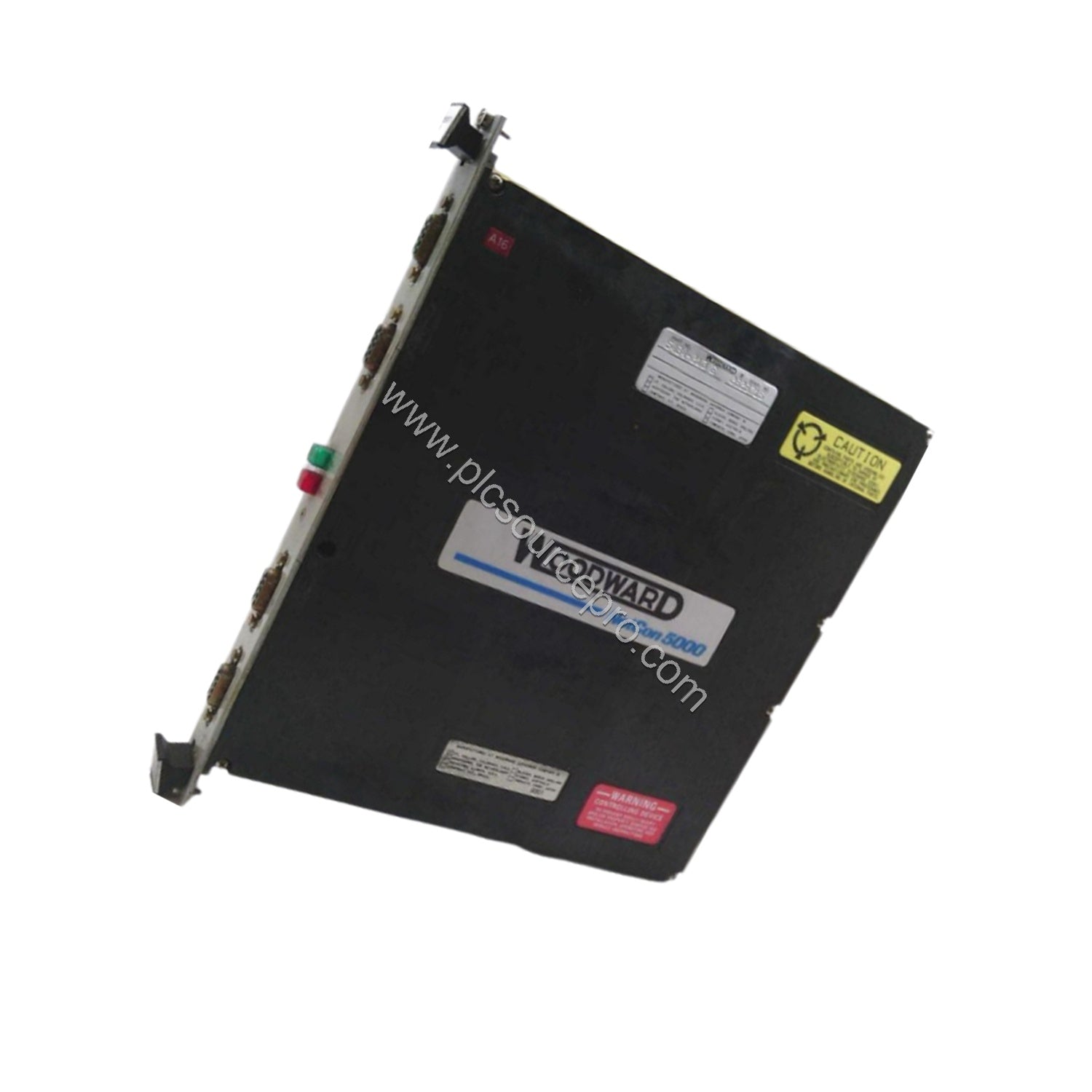

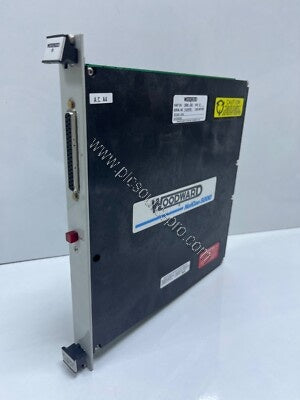

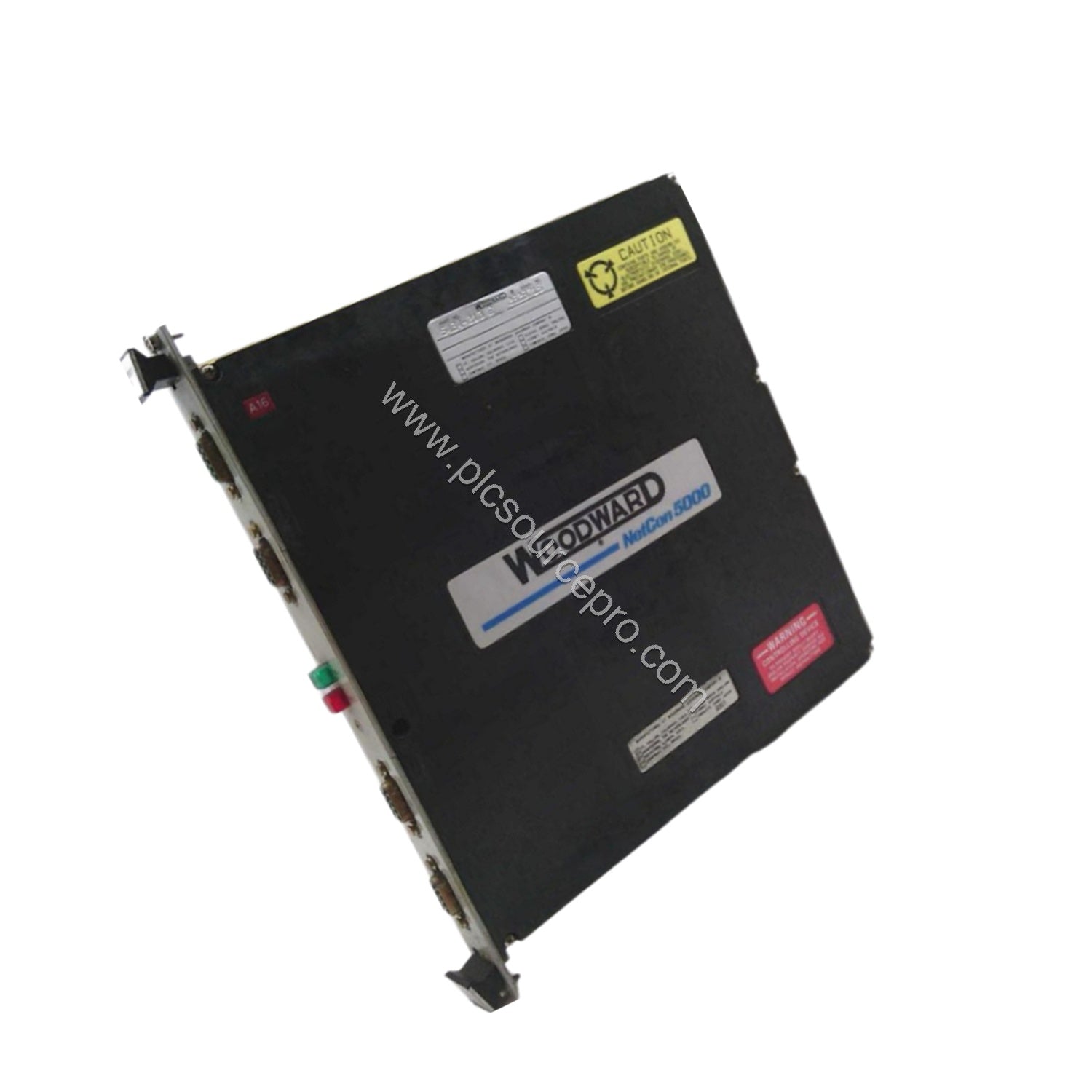

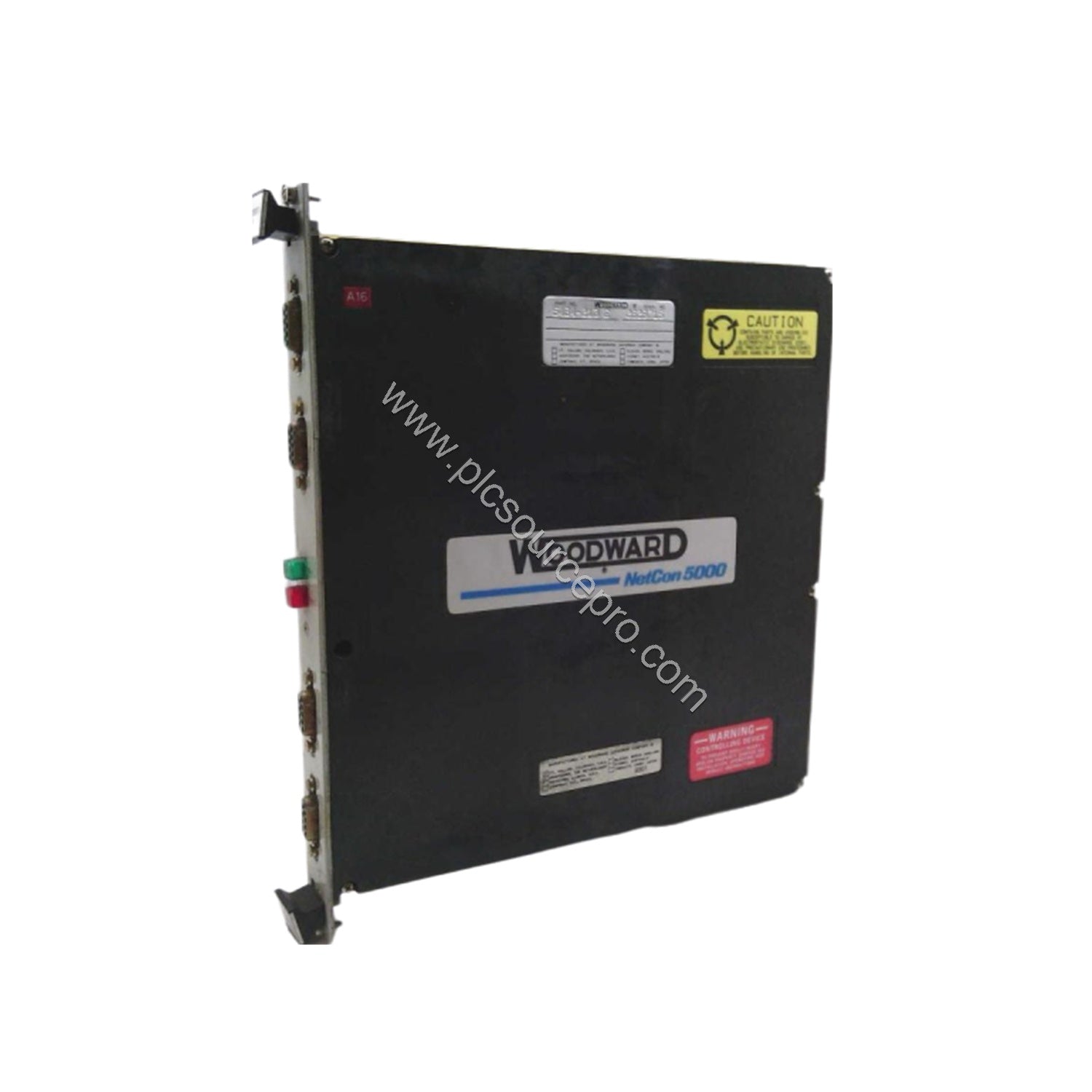

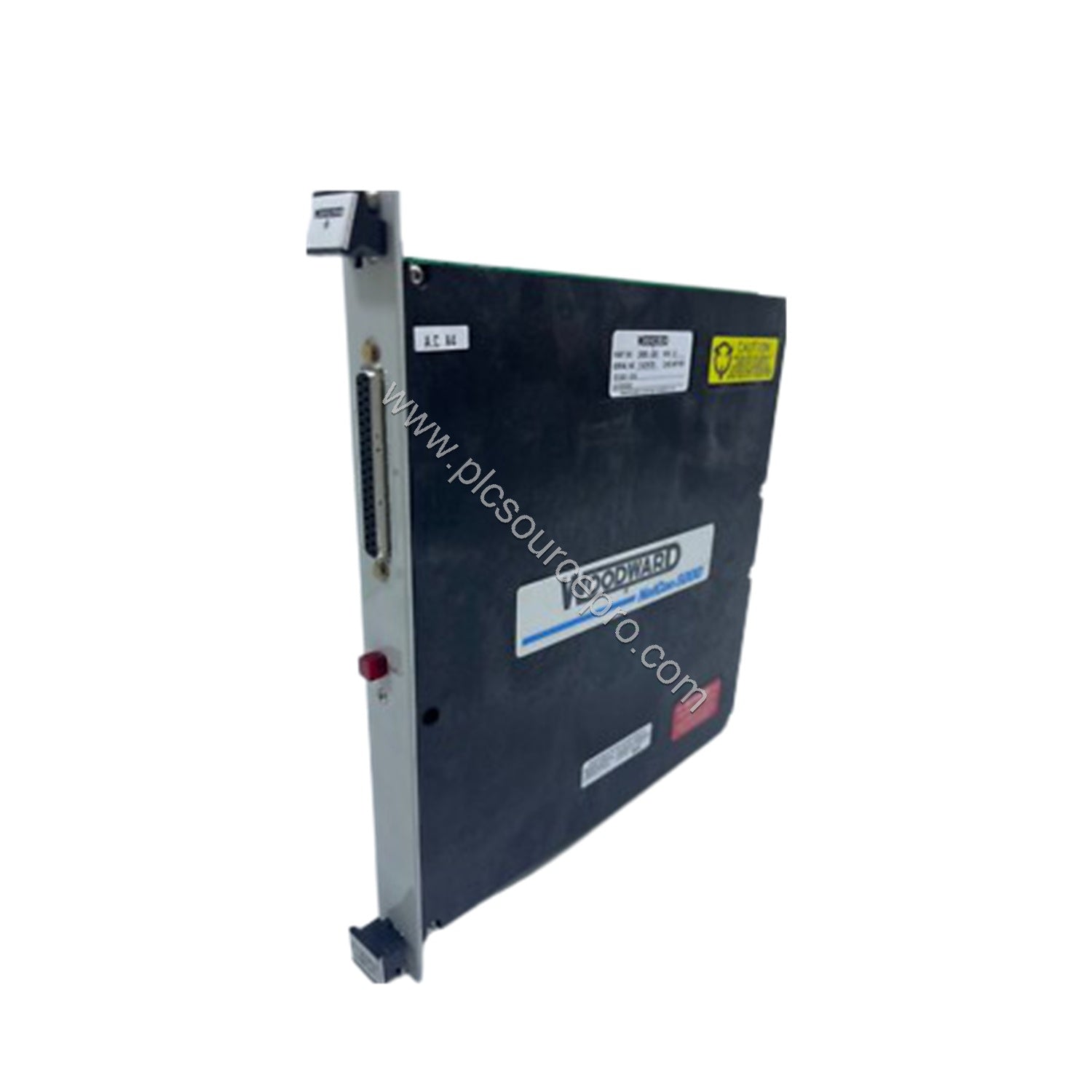

Voltage sags, frequency shifts, and transient overloads are common in industrial environments. The Woodward 5464-545 Industrial Automation Module directly addresses these failure points. With a wide input voltage range of 85V to 265V AC and a transmission frequency tolerance of 45Hz to 65Hz, this unit keeps critical machinery running without external voltage regulators. It delivers up to 15kW of peak power for heavy loads, while its 14-bit resolution enables precise control of torque, speed, and voltage. Integrated overvoltage, overcurrent, and diagnostic motor runtime protection detect early signs of failure, allowing maintenance teams to act before costly unplanned downtime occurs.
Technical Specifications
| Parameter |
Value |
| Input Voltage Range |
85 VAC – 265 VAC |
| Operating Frequency |
45 Hz – 65 Hz |
| Peak Power Output |
15 kW |
| Control Resolution |
14-bit |
| Operating Temperature |
-15°C to +70°C |
| Communication Ports |
RS-485, 1× Ethernet 10/100 Mbps, 1× USB 2.0 Type A/B |
Real-World Applications – Failure Prevention in Action
In factory automation, the Woodward 5464-545 controls robotic arms and conveyor systems. Its wide input voltage range prevents shutdowns during brownouts, while the 14-bit resolution ensures smooth motion profiles that reduce mechanical wear. In renewable energy installations (solar/wind farms), the module manages inverters and grid-tied controllers, synchronizing power delivery even when grid frequency varies. This stabilizes the system and prolongs inverter life. For substation power control, the 5464-545 regulates voltage and reactive power on transformers and capacitor banks, preventing overvoltage trips that can cascade into blackouts.
Installation & Setup Guidance
Mount the Woodward 5464-545 in a clean, dry enclosure with adequate ventilation (ambient -15°C to +70°C). Use robust wiring rated for up to 15 kW peak. For communication, connect RS-485 or Ethernet as needed; the USB 2.0 port supports local configuration. Ensure the AC supply is within 85–265 VAC and 45–65 Hz. The module automatically adjusts to these conditions, so no external voltage stabilizer is required. Perform a power-up diagnostic sequence to verify protection circuits are active.
Troubleshooting Common Issues
Symptom: Unit fails to power on – Verify input voltage is present and within range. Check for blown fuses or tripped breakers. The 5464-545’s input protection will activate only if thresholds are exceeded; otherwise, internal diagnostics can log the event.
Symptom: Communication loss – Confirm Ethernet cable termination and IP address settings. The RS-485 port may require proper biasing resistors for multi-drop networks.
Symptom: Overcurrent trip during heavy load – This unit delivers 15 kW peak; sustained draws above that level cause overcurrent protection to engage. Reduce load or add a soft-start circuit. The diagnostic logs help identify the source of the overload.
Symptom: Motor vibration or poor control – Check that the 14-bit resolution is correctly scaled for the motor parameters. Re-run field-oriented control autotuning. The module’s predictive torque control algorithm reduces mechanical resonance when properly configured.
Selection Guide & Purchasing Advice
Before ordering the Woodward 5464-545, verify your system voltage and frequency range match the module’s capabilities. Confirm that the peak power demand does not exceed 15 kW for more than a few seconds. For applications requiring remote monitoring, ensure your network supports Ethernet 10/100 or RS-485. For genuine parts and expert support, choose PLC Source PRO (visit ubest101.myshopify.com) – your trusted source for industrial automation spares.
