Product Introduction

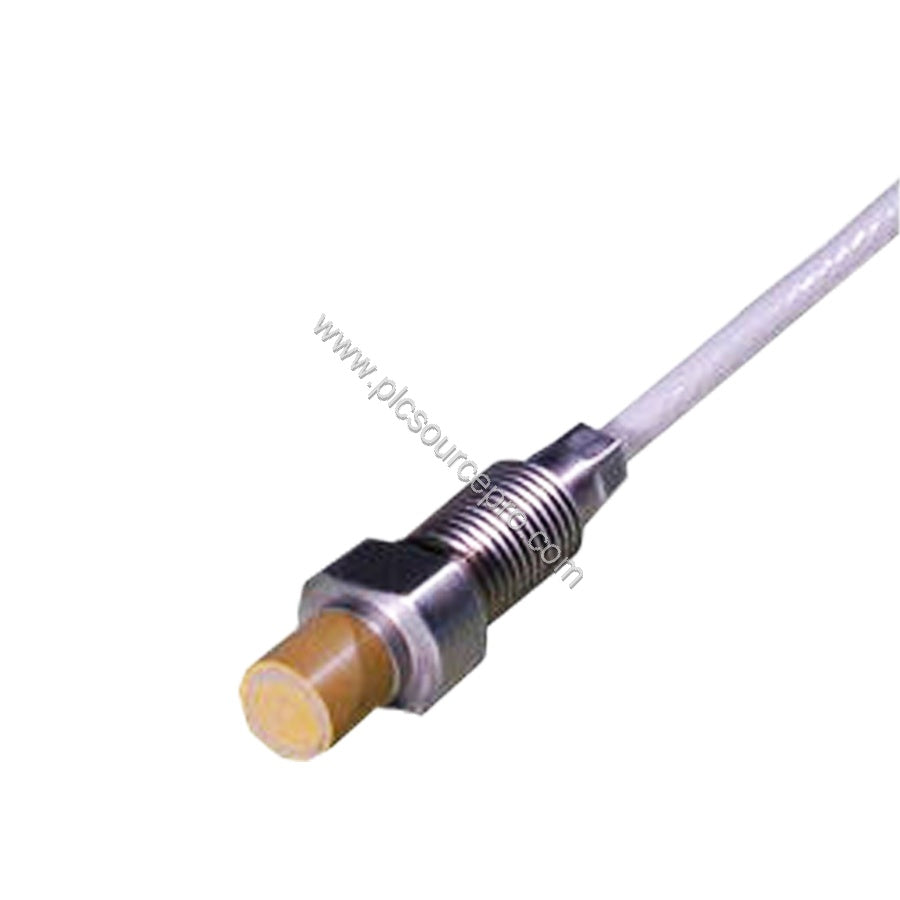

In machinery protection and condition monitoring applications, the Vibro Meter 913-402-000-013/A1-E095-F2-G093 delivers precise non-contact shaft vibration and position measurements. This eddy-current based proximity measuring system from Meggitt (Vibro-Meter) is designed for API 670 compliance and harsh industrial environments. With a temperature range of −40 to +180°C and IP68 rated transducer tip, it ensures reliable data under extreme conditions.
Technical Specifications
| Parameter |
Value |
Practical Significance |
| Extension Cable Length |
9.5 m ±950 mm |
Allows remote mounting of signal conditioner without signal degradation. |
| Flexible Hose Length |
9.3 m |
Provides mechanical protection for cable routing through tight spaces. |
| Transducer Operating Temperature |
−40 to +180°C (drift <5%) |
Stable measurement in high-temperature turbine and compressor applications. |
| Protection Rating (Transducer Head) |
IP68 |
Submersible and dust-tight for washdown environments. |
| Vibration Resistance |
5 g peak (10–500 Hz) |
Withstands typical machinery vibration without failure. |
| Shock Acceleration |
15 g peak (half sine, 11 ms) |
Survives start-up transients and abnormal events. |
| Integral Cable Type |
FEP covered 70 Ω coaxial, Ø3.6 mm |
Low noise and high temperature rating. |
| Weight |
0.22 kg |
Lightweight for easy handling and mounting. |
Applications & Use Cases
The Vibro Meter 913-402-000-013/A1-E095-F2-G093 excels in shaft relative vibration and gap/position measurement for critical rotating machinery. Use it with VM600Mk2/VM600 and VibroSmart® monitoring systems for real-time protection. Typical installations include steam turbines, centrifugal compressors, and large pumps where API 670 compliance is required. The temperature-compensated design ensures accuracy despite ambient changes.
Installation & Setup Guidance

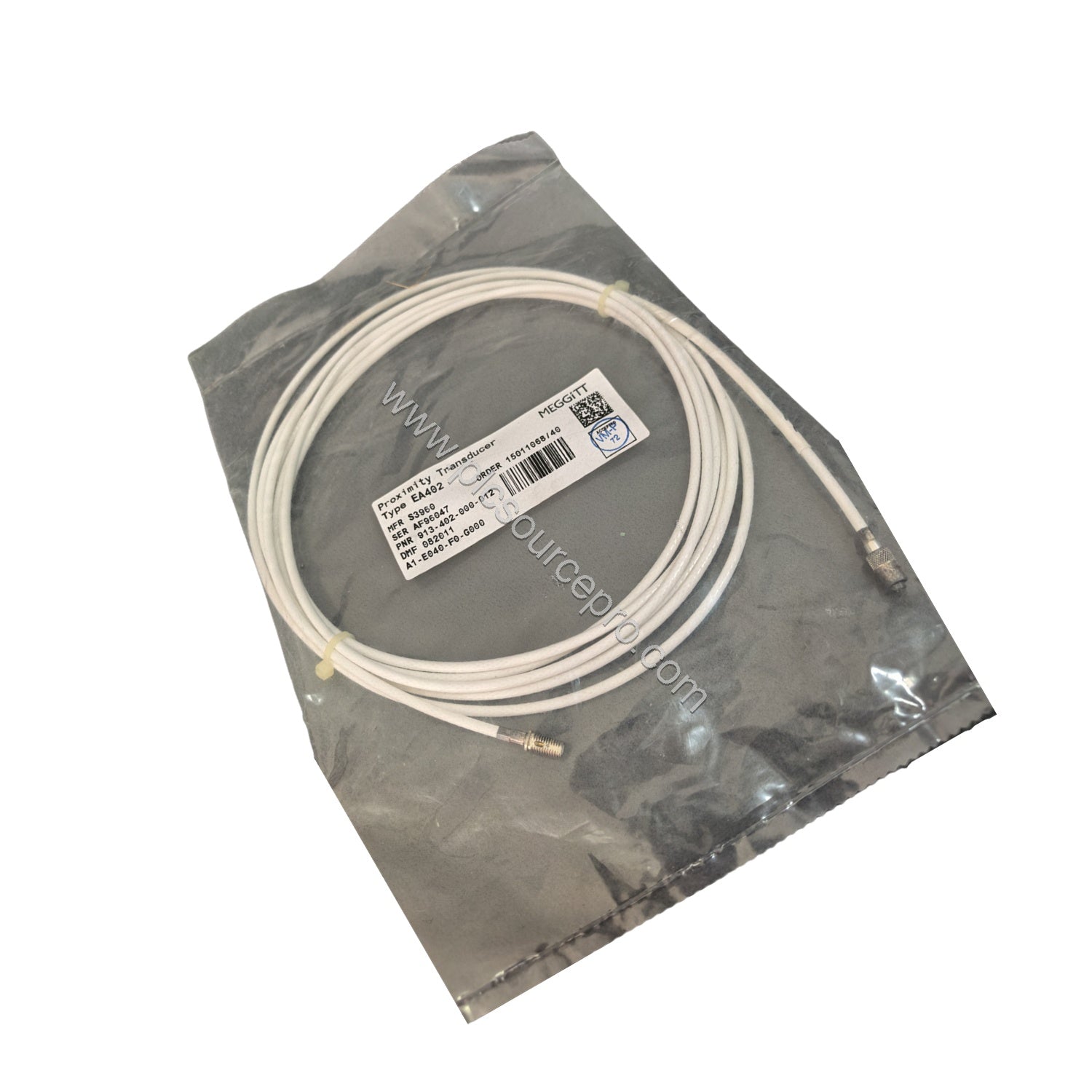

Mount the transducer using two M4 screws when not using a DIN-rail adaptor. For Ex zone installations, follow the rated cable temperature limits (−40 to +195°C). Connect the self-locking miniature coaxial connectors by hand until locked—do not over-torque. The flexible stainless steel hose with FEP sheath provides additional chemical resistance and mechanical protection for the cable. Verify extension cable length (E=095) and hose length (G=093) match your routing path.
Selection Guide & Purchasing Advice
Before ordering, confirm the environment code (A=1 for standard), extension cable length (9.5 m), and protection options (F=2: flexible hose with FEP sheath). This specific configuration includes a 9.3 m flexible hose. For reliable supply and expert support, contact ubest101. Always check compatibility with your signal conditioner—the 913-402-000-013/A1-E095-F2-G093 requires a high-frequency power source like the IQS900.
