Product Overview

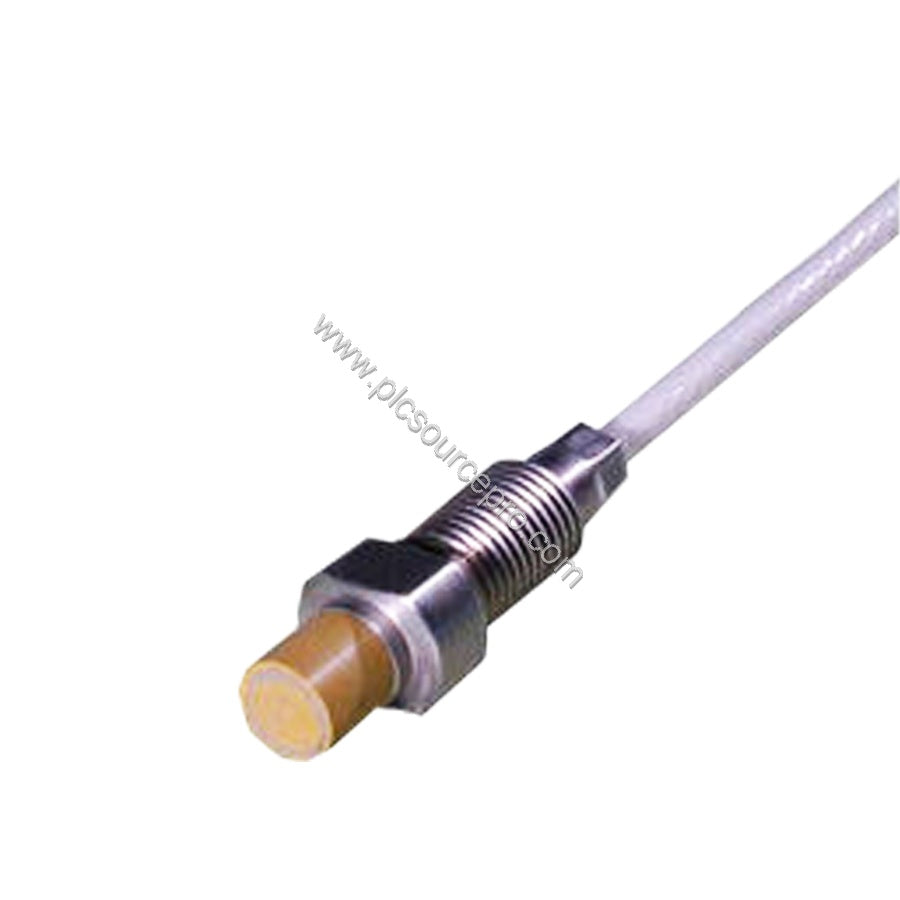

The Vibro Meter 913-402-000-013/A1-E095-F0-G000 is an industrial automation module designed for non-contact shaft relative vibration and position measurement. Based on the eddy-current principle, this proximity measuring system offers high reliability for machinery protection and condition monitoring. Its temperature-compensated design ensures stable performance across a wide range, reducing costly downtime and enhancing long-term ROI.
Technical Specifications
| Parameter |
Value |
| Transducer Input |
High-frequency power from IQS900 signal conditioner |
| Operating Temperature (Transducer) |
-40 to +180°C (drift <5%); short-term survival to +220°C (drift >5%) |
| Protection Rating |
IP68 (transducer head and integral cable) |
| Vibration (IEC 60068-2-26) |
5 g peak between 10-500 Hz |
| Shock (IEC 60068-2-27) |
15 g peak (half sine-wave, 11 ms) |
| Transducer Construction |
Wire coil Ø8 mm, Torlon tip, AISI 316L stainless steel body |

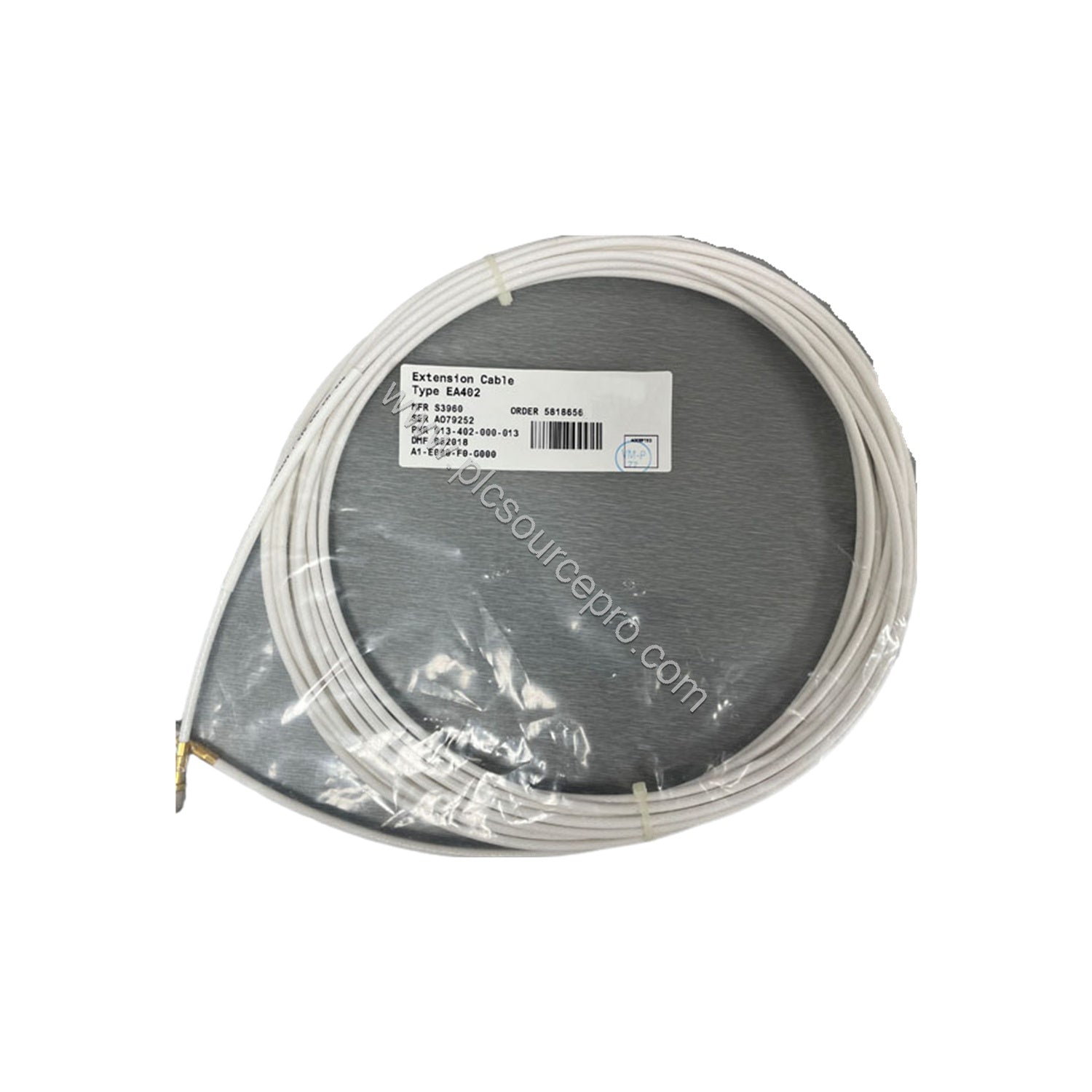

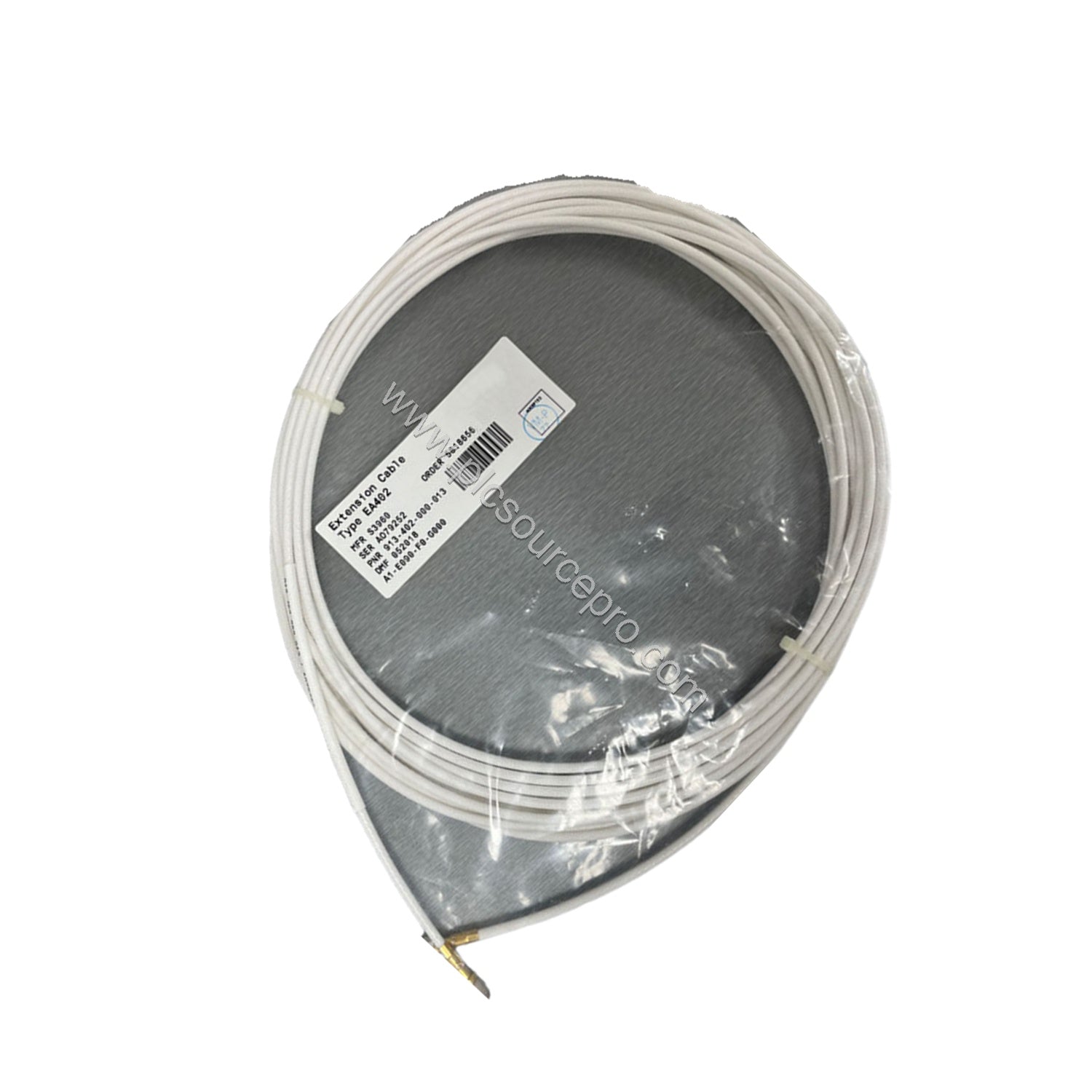

| Integral Cable |
FEP covered 70 Ω coaxial, Ø3.6 mm, 9.5 m ±950 mm |
| Connectors |
Self-locking miniature coaxial (hand-tighten until locked) |
| Weight |
200 g (0.44 lb) approx. |
| Mounting |
Two M4 screws (without DIN-rail adaptor) |
Industry Applications
The Vibro Meter 913-402-000-013/A1-E095-F0-G000 is used for shaft relative vibration and gap/position measurement in turbines, compressors, and pumps. It conforms to API 670 recommendations, making it suitable for critical machinery protection systems. Ideal for integration with VM600Mk2/VM600 and VibroSmart monitoring systems, this module helps extend equipment life and reduce unplanned downtime.
Installation & Setup
Mount the transducer using two M4 screws. Connect via self-locking coaxial connectors (hand-tighten until locked). Ensure proper gap positioning relative to the shaft for accurate non-contact measurement. The integral cable length of 9.5 m provides flexibility in routing.
Maintenance & Reliability
The rugged stainless steel construction and IP68 rating ensure long service life in harsh industrial environments. Temperature compensation minimizes drift, reducing the need for frequent recalibration. Regular inspection of cables and connectors is recommended, but the robust design lowers total cost of ownership.
Selection Guide
When ordering, verify the exact configuration code: 913-402-000-013/A1-E095-F0-G000. This specifies standard environment, 9.5 m cable, no optional protection or hose. For additional configurations or support, visit ubest101.myshopify.com. PLC Source PRO ensures genuine products and prompt delivery for your critical automation needs.
