Product Overview

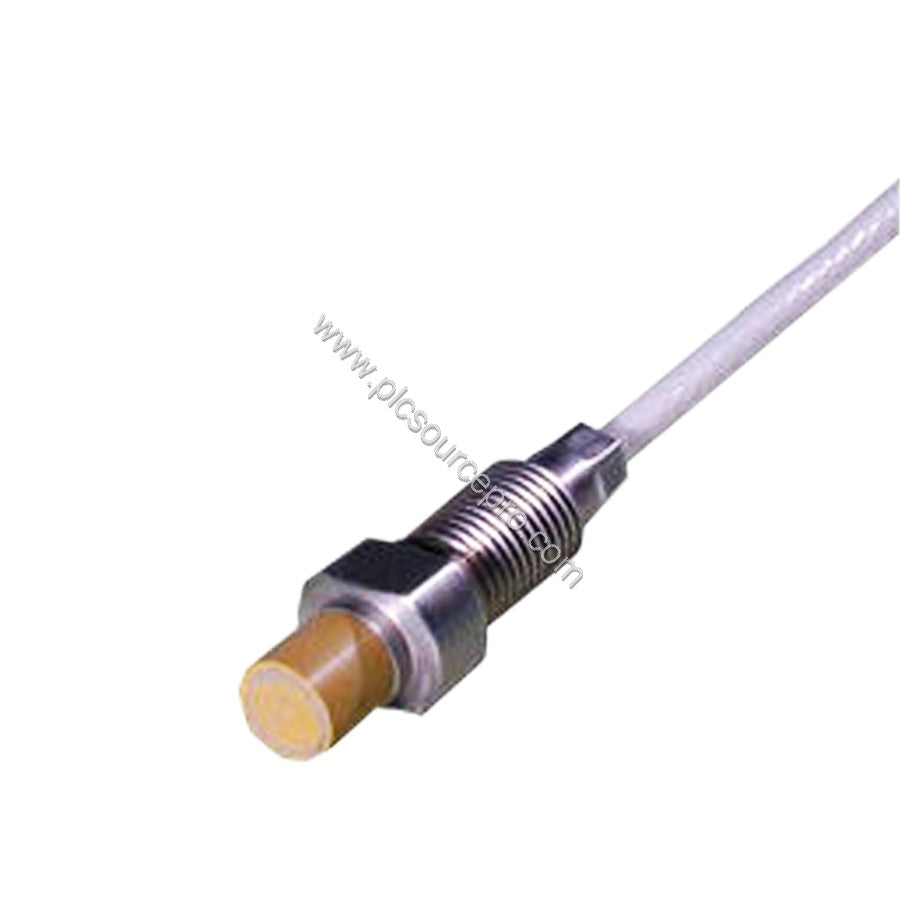

When upgrading your machinery protection system, the Vibro Meter 913-402-000-013/A1-E045-F2-G043 proximity measuring module offers enhanced performance in high-temperature environments. This non-contact eddy-current system provides reliable shaft vibration and position measurement, conforming to API 670 recommendations.
Technical Specifications Breakdown
| Parameter |
Value |
| Part Number |
913-402-000-013/A1-E045-F2-G043 |
| Brand |
Vibro Meter (Meggitt) |
| Product Type |
Proximity Measuring System |
| Transducer Temperature Range (Operating) |
−40 to +180°C with drift <5% |
| Transducer Temperature Range (Short-term Survival) |
+180 to +220°C with drift >5% |
| Transducer and Cable (Ex Zone) |
−40 to +195°C |
| Cable, Connector & Optional Protection |
−40 to +200°C |
| Protection Rating (IEC 60529) |
IP68 (transducer tip and integral cable) |
| Vibration (IEC 60068-2-26) |
5 g peak between 10 and 500 Hz |
| Shock (IEC 60068-2-27) |
15 g peak (half sine-wave, 11 ms) |
| Weight |
0.22 kg (200 g approx.) |
| Mounting (without DIN-rail adapter) |
Two M4 screws |
| Frequency Response |
DC to 20 kHz (−3 dB) |
| Measurement Range |
2 or 4 mm |
Industry Applications
The Vibro Meter 913-402-000-013/A1-E045-F2-G043 is designed for shaft relative vibration and gap/position measurement in critical machinery. It works seamlessly with VM600Mk2/VM600 and VibroSmart monitoring systems, making it ideal for API 670 applications in turbomachinery, compressors, and pumps.
Installation & Setup Guidance

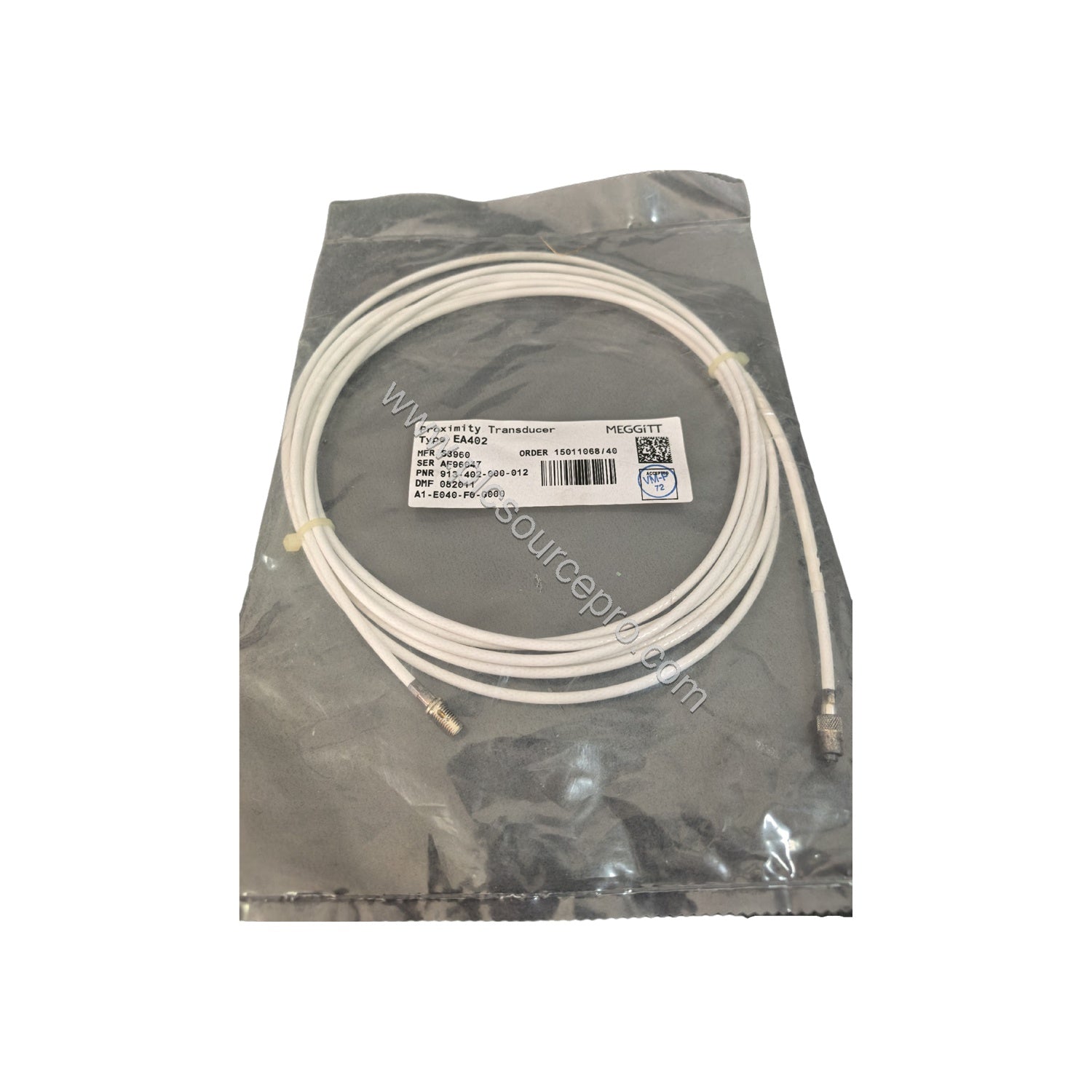

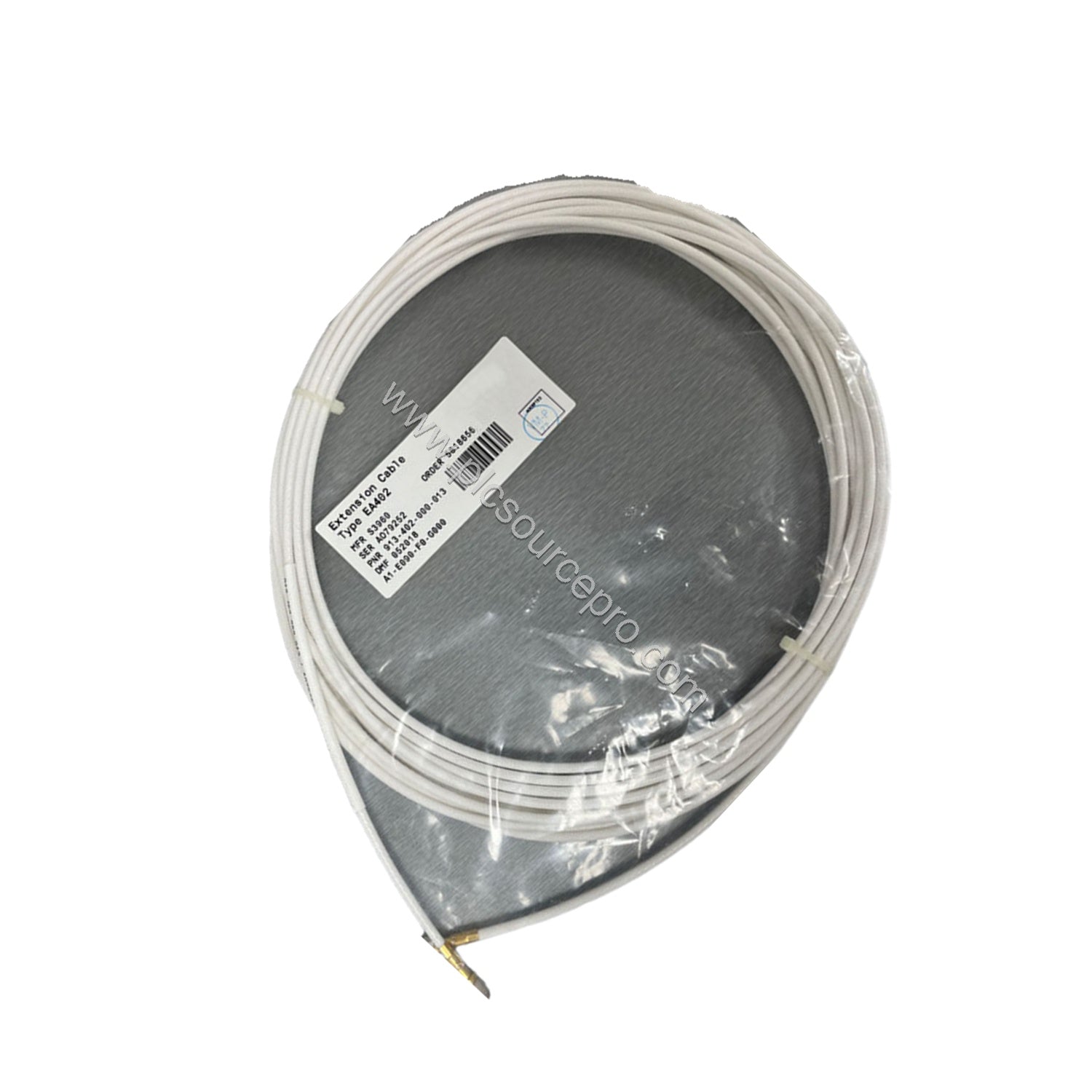

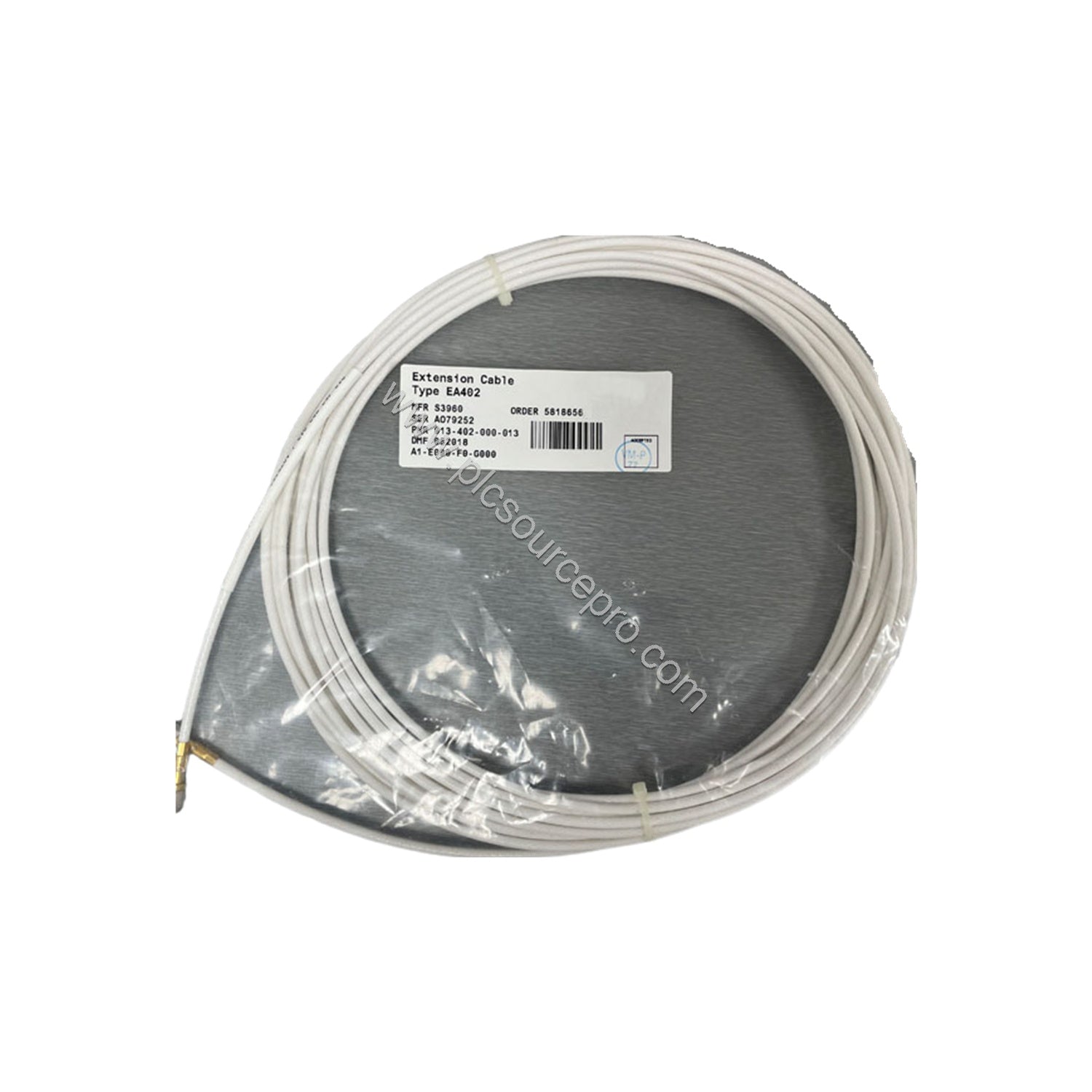

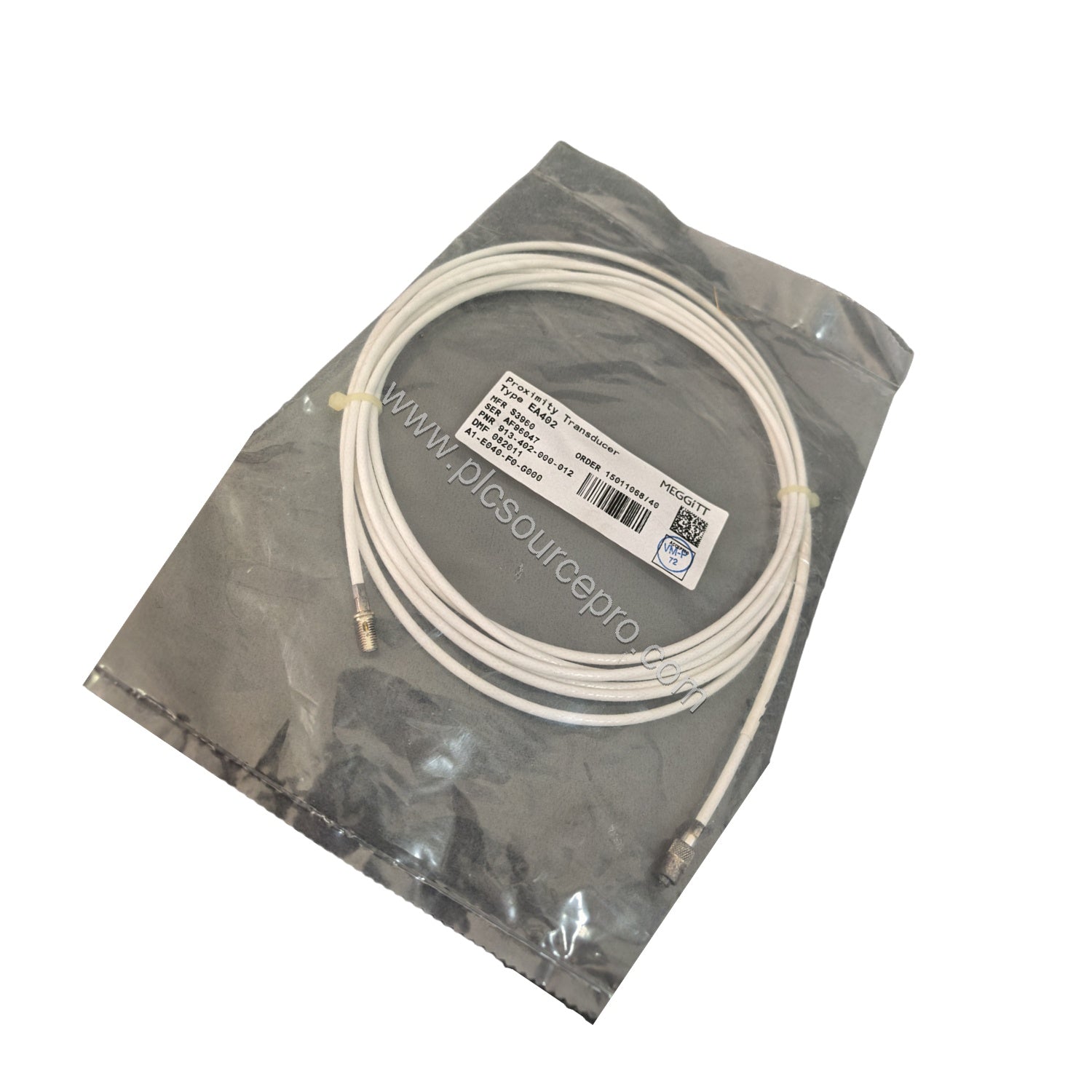

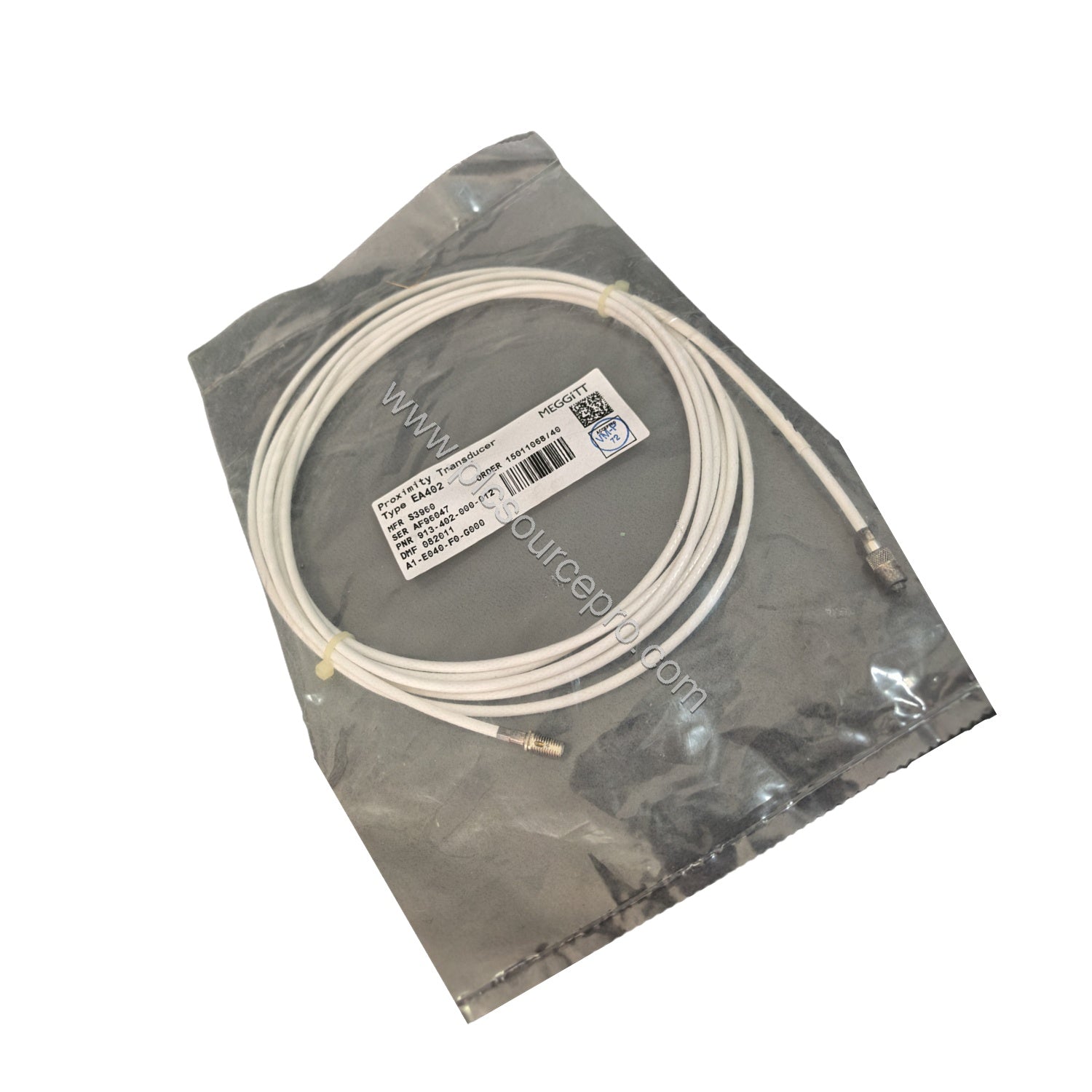

Mount the transducer using two M4 screws without a DIN-rail adapter. Connect using self-locking miniature coaxial connectors – hand-tighten until locked. The extension cable length is 4.5 m ±450 mm, with a flexible hose of 4.3 m for protection. Ensure the tip and integral cable maintain IP68 rating.
Selection Guide & Purchasing Advice
When upgrading, verify your signal conditioner compatibility – the Vibro Meter 913-402-000-013/A1-E045-F2-G043 requires a high-frequency power source from an IQS900 signal conditioner. Consider the optional FEP sheath for chemical resistance or flexible hose for mechanical protection. For reliable supply, PLC Source PRO (ubest101.myshopify.com) stocks this module with fast shipping.
