Product Overview
When machinery protection demands reliable gap and vibration measurement, the Vibro Meter 913-402-000-013/A1-E040-F0-G000 delivers precise non-contact eddy-current sensing for critical rotating equipment. This proximity measuring system, part of the renowned vibro-meter product line, is engineered for continuous operation in harsh industrial environments. With a rugged stainless steel construction and temperature-compensated design, it ensures stable performance across a wide range of operating conditions.
Technical Specifications
| Parameter |
Value |
| Transducer Input Requirements |
High-frequency power source from an IQS900 signal conditioner |
| Transducer Temperature (Operating) |
−40 to +180°C with drift <5% |
| Transducer Temperature (Short-term Survival) |
+180 to +220°C with drift >5% |
| Transducer & Cable Temperature (Ex Zone) |
−40 to +195°C |
| Cable, Connector & Optional Protection Temperature |
−40 to +200°C |
| Protection Rating (IEC 60529) |
IP68 (transducer tip and integral cable) |
| Vibration (IEC 60068-2-26) |
5 g peak between 10 and 500 Hz |
| Shock Acceleration (IEC 60068-2-27) |
15 g peak (half sine-wave, 11 ms duration) |

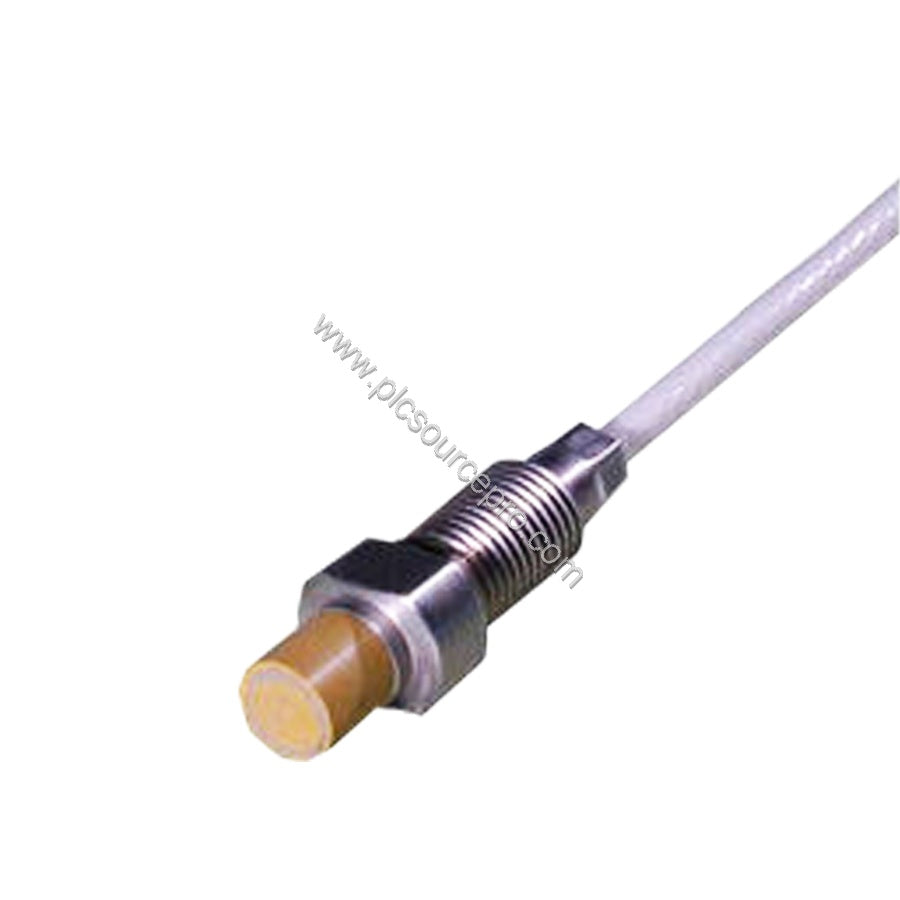

| Transducer Construction |
Wire coil Ø8 mm, Torlon tip, encapsulated in AISI 316L stainless steel |

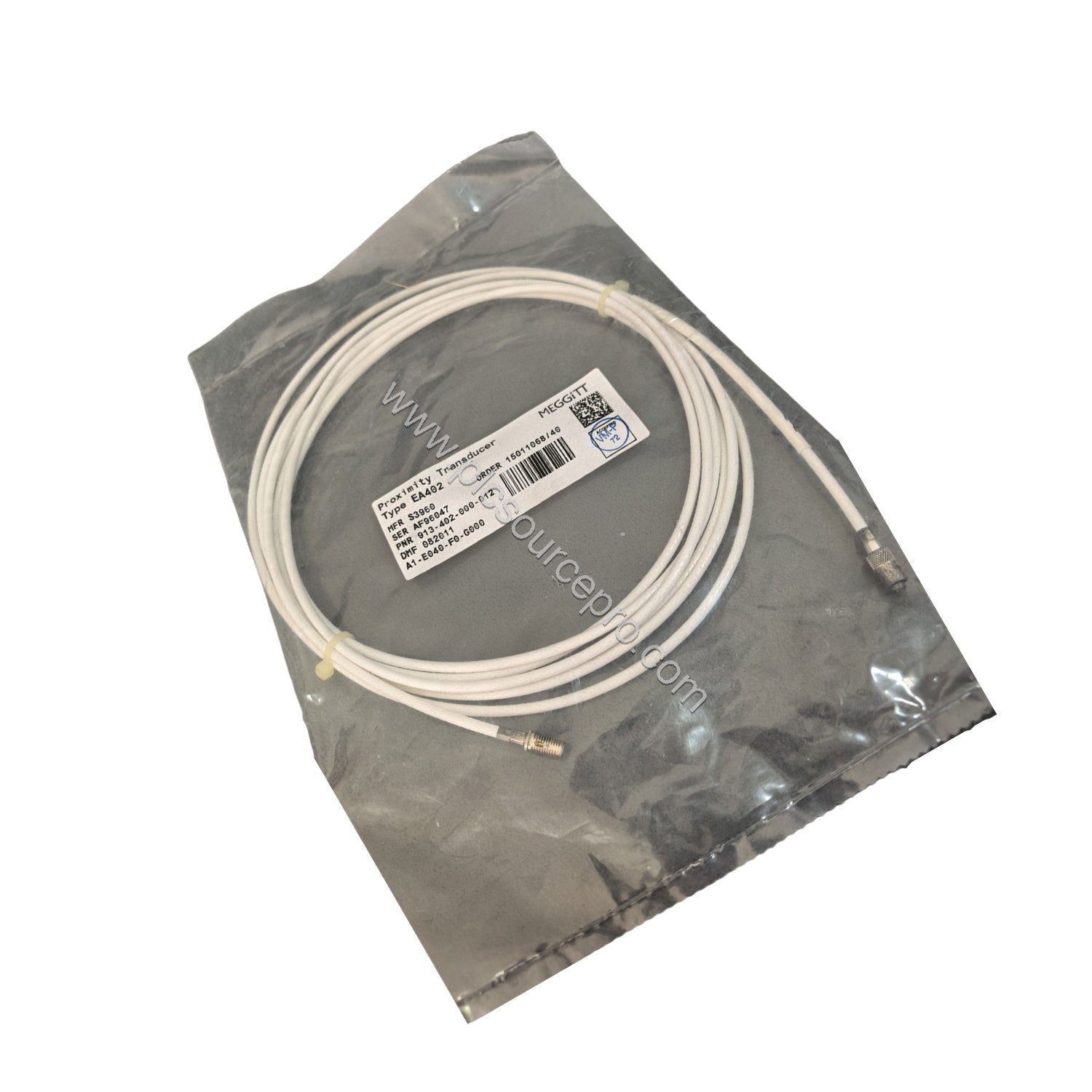

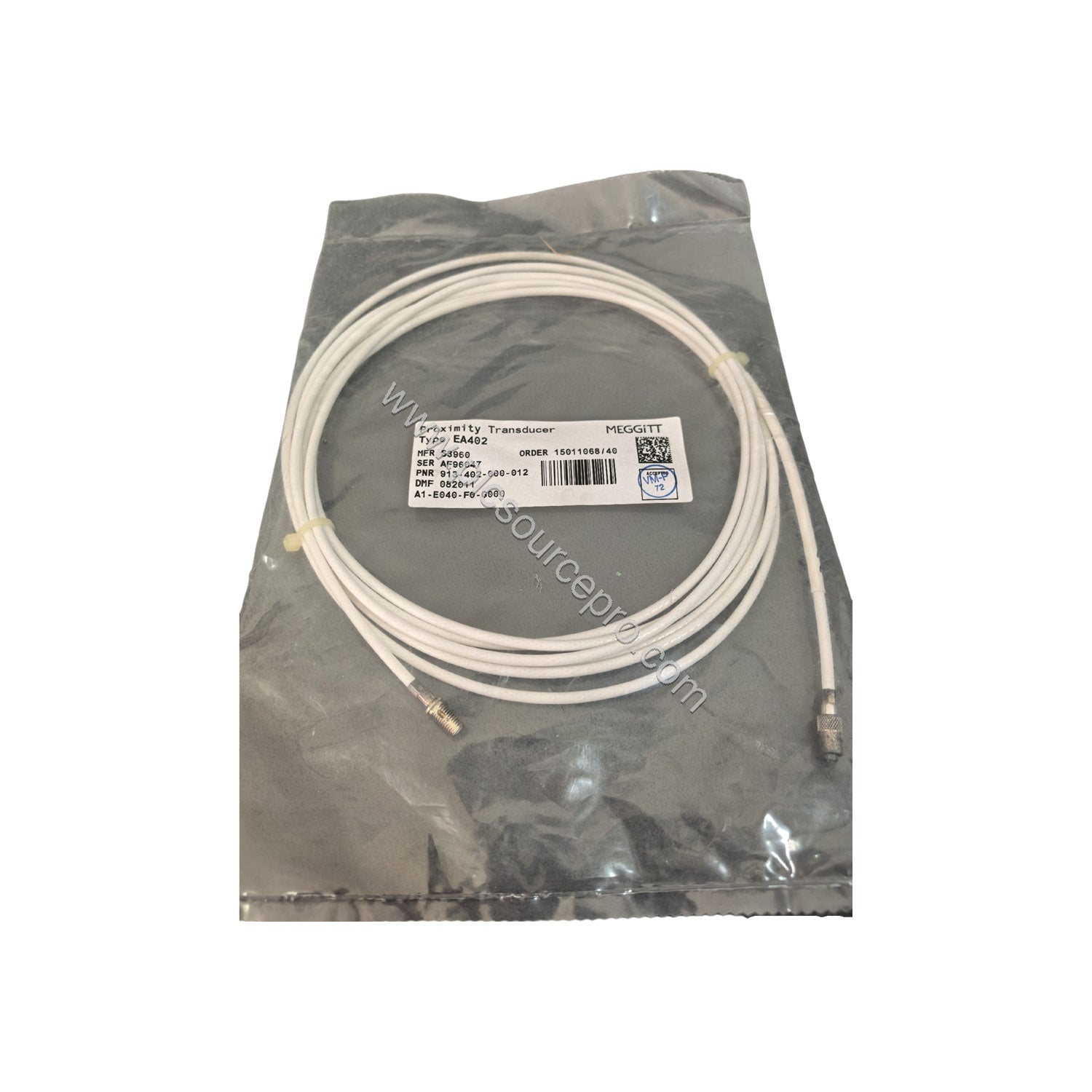

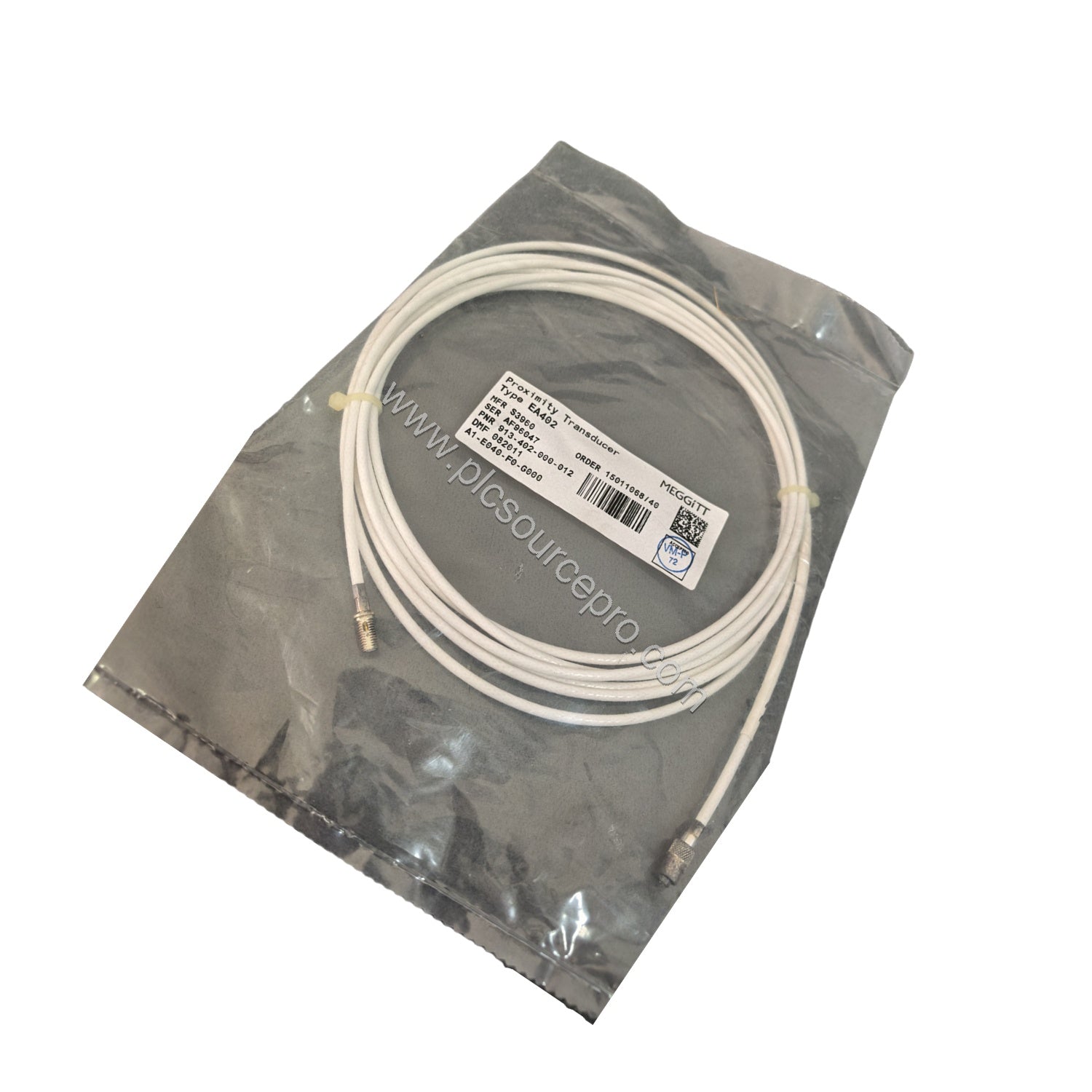

| Integral and Extension Cables |
FEP covered 70 Ω coaxial cable, Ø3.6 mm |
| Connectors |
Self-locking miniature coaxial connectors (hand-tighten) |
| Weight |
200 g (0.44 lb) approx. |
| Mounting (without DIN-rail adapter) |
Two M4 screws |

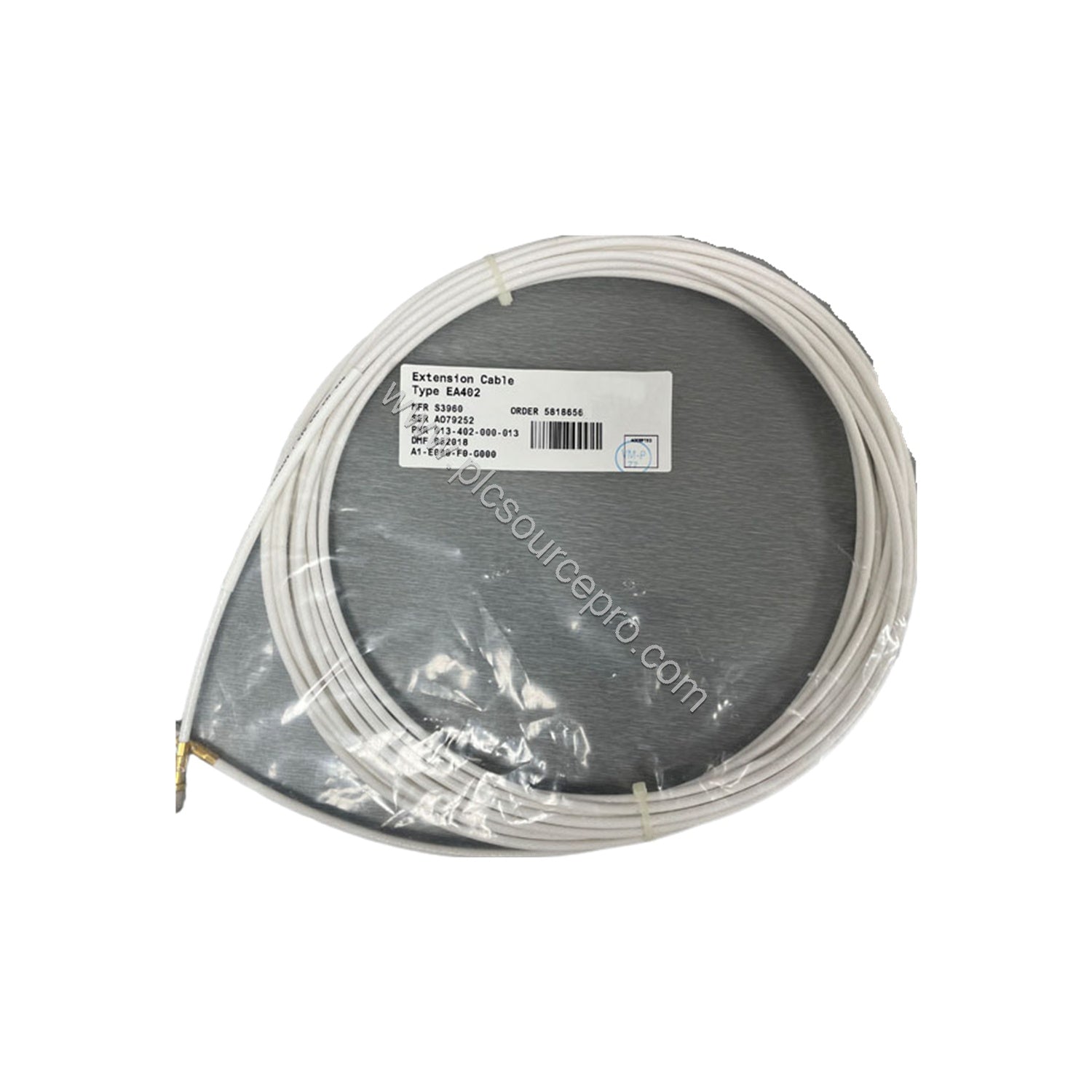

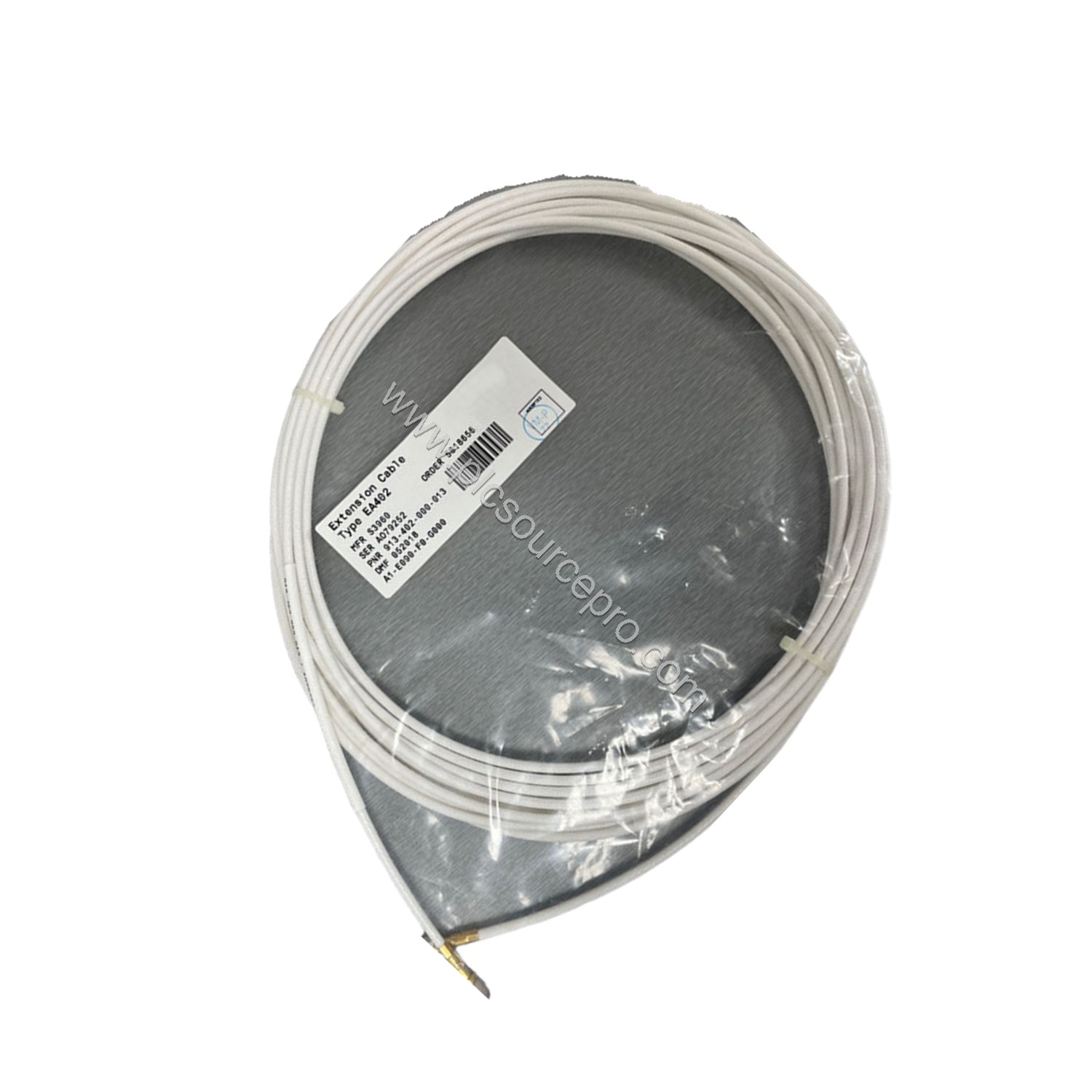

| Extension Cable Length (from model code) |
4.0 m ±400 mm |
Key Features and Benefits
- Non-contact measurement based on eddy-current principle
- Ex certified versions for hazardous areas (potentially explosive atmospheres)
- Conforms to API 670 recommendations
- Available in 1, 5 and 10 m system lengths
- Temperature-compensated design
- Voltage or current output with short-circuit protection
- Frequency response: DC to 20 kHz (−3 dB)
- Measurement range: 2 or 4 mm
- Operating temperature range: −40 to +180 °C
Applications
The Vibro Meter 913-402-000-013/A1-E040-F0-G000 is ideal for shaft relative vibration and gap/position measurement in machinery protection and condition monitoring systems. It suits use with VM600Mk2, VM600, and VibroSmart machinery monitoring systems. Common applications include API 670 compliant installations on turbines, compressors, and pumps.
Installation & Setup
Mount the transducer using two M4 screws (without a DIN-rail adapter). Ensure the extension cable is routed without sharp bends. When connecting the self-locking miniature coaxial connectors, hand-tighten until locked — do not use tools. The 4.0 m ±400 mm extension cable provides flexibility for sensor placement. For hazardous area installations, verify that the transducer and cable are within the −40 to +195°C range.
Troubleshooting & Common Issues
Common issues include signal drift due to extreme temperature. The temperature-compensated design of the Vibro Meter 913-402-000-013/A1-E040-F0-G000 minimizes drift up to 180°C. Ensure the IP68-rated tip is clean and free from debris to maintain accurate readings. If using optional protection (FEP sheath), verify chemical compatibility to avoid degradation. For applications exceeding the standard temperature range (short-term survival up to 220°C), monitor drift >5% and plan maintenance accordingly.
Selection Guide & Purchasing Advice
Before purchasing, confirm the extension cable length (E=040 indicates 4.0m) and optional protection (F=0 means no cable/connector protection). Ensure your system supports the high-frequency power source from an IQS900 signal conditioner. For reliable sourcing, trust PLC Source PRO — your supplier for genuine industrial automation spares. Visit ubest101.myshopify.com for more details or to place an order.
