Product Overview
When your rotating machinery requires precise clearance monitoring in harsh environments, the Vibro Meter 913-402-000-012/A2-E095-F0-G000 delivers reliable proximity measurement. This industrial automation module from Meggitt is designed for demanding applications, offering exceptional temperature tolerance and robust construction. The 913-402-000-012/A2-E095-F0-G000 provides consistent performance even under extreme conditions, reducing unplanned downtime and lowering total cost of ownership.
Key Technical Specifications
The Vibro Meter 913-402-000-012/A2-E095-F0-G000 excels with the following proven parameters:
-
Temperature Range (Transducer): -40 to +180°C with drift less than 5% during operation; short-term survival up to +220°C with greater drift
-
Ex Rating: Environment code A=2 indicates Explosive Ex i suitability
-
Extension Cable Length: 9.5 m ±950 mm (code E=095)
-
Protection Rating: IP68 for transducer head (IEC 60529)
-
Vibration Resistance: 5 g peak, 10–500 Hz (IEC 60068-2-26)
-
Shock Resistance: 15 g peak, 11 ms half-sine (IEC 60068-2-27)
-
Weight: 0.22 kg
-

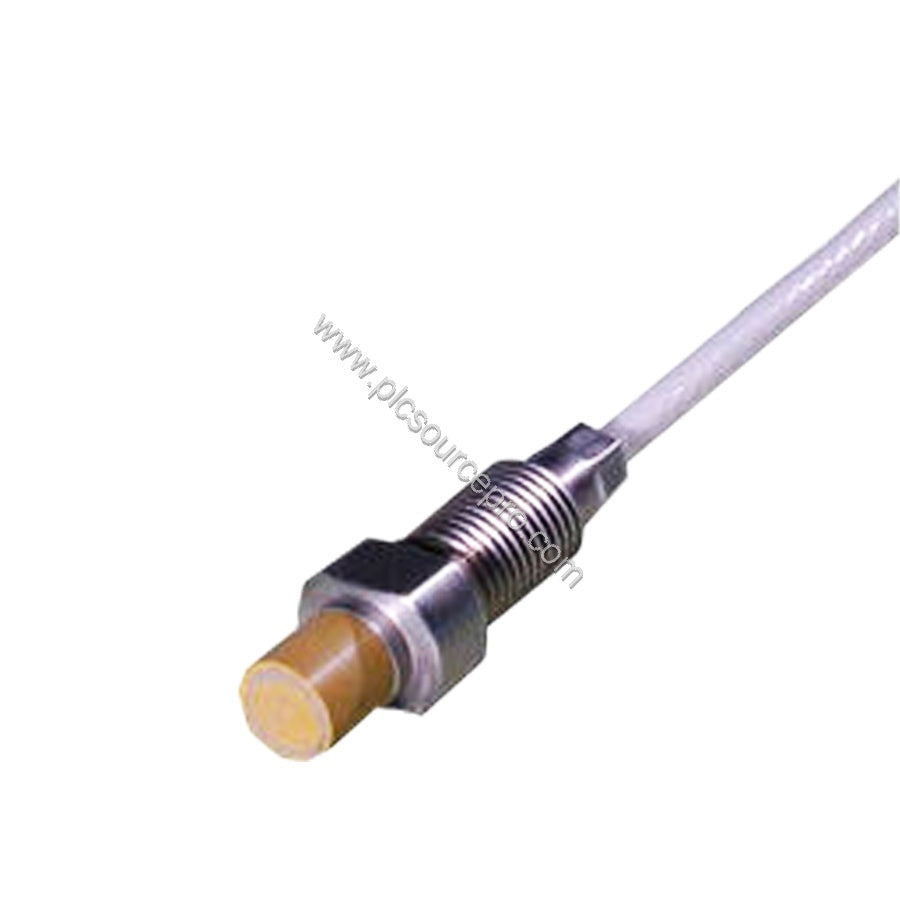

Construction: Ø8 mm wire coil with Torlon tip in AISI 316L stainless steel body
-
Cable: FEP-covered 70 Ω coaxial cable, Ø3.6 mm
-
Connectors: Self-locking miniature coaxial (hand-tighten to lock)
Industrial Applications
Thanks to its rugged design, the Vibro Meter 913-402-000-012/A2-E095-F0-G000 is ideal for turbine shaft vibration monitoring, compressor clearance measurement, and pump bearing position sensing in oil and gas, power generation, and chemical processing. The ability to operate in Ex zones and withstand aggressive chemicals (with the optional FEP sheath) makes it a cost-effective choice for long-term asset protection.
Installation Guidelines
Mount the transducer securely against the target surface, ensuring the integral cable is not subjected to sharp bends. When attaching the self-locking miniature coaxial connectors, apply hand-tightening only until you feel the lock engage—do not use tools. For Ex i environments, verify that the cable length (9.5 m ±950 mm) meets your installation requirements. The optional stainless steel hose provides additional mechanical protection but is not leak-tight.
Maintenance and Long-Term Reliability
The encapsulated construction of the Vibro Meter 913-402-000-012/A2-E095-F0-G000 minimizes maintenance needs. No routine calibration is required under normal use. The IP68 rating protects against dust and water ingress, while the high-temperature epoxy glue ensures stable operation over many years. This translates to lower life-cycle costs and fewer replacement intervals compared to less robust sensors.
Selection and Purchasing Advice
Before ordering, confirm your environment classification (e.g., Ex i zone) and the required extension cable length. The 913-402-000-012/A2-E095-F0-G000 includes a 9.5 m cable—verify that this suits your layout. Optional protection tubes and FEP sheaths are available separately. For expert guidance and competitive pricing, contact PLC Source PRO (formerly ubest101).
