Product Introduction

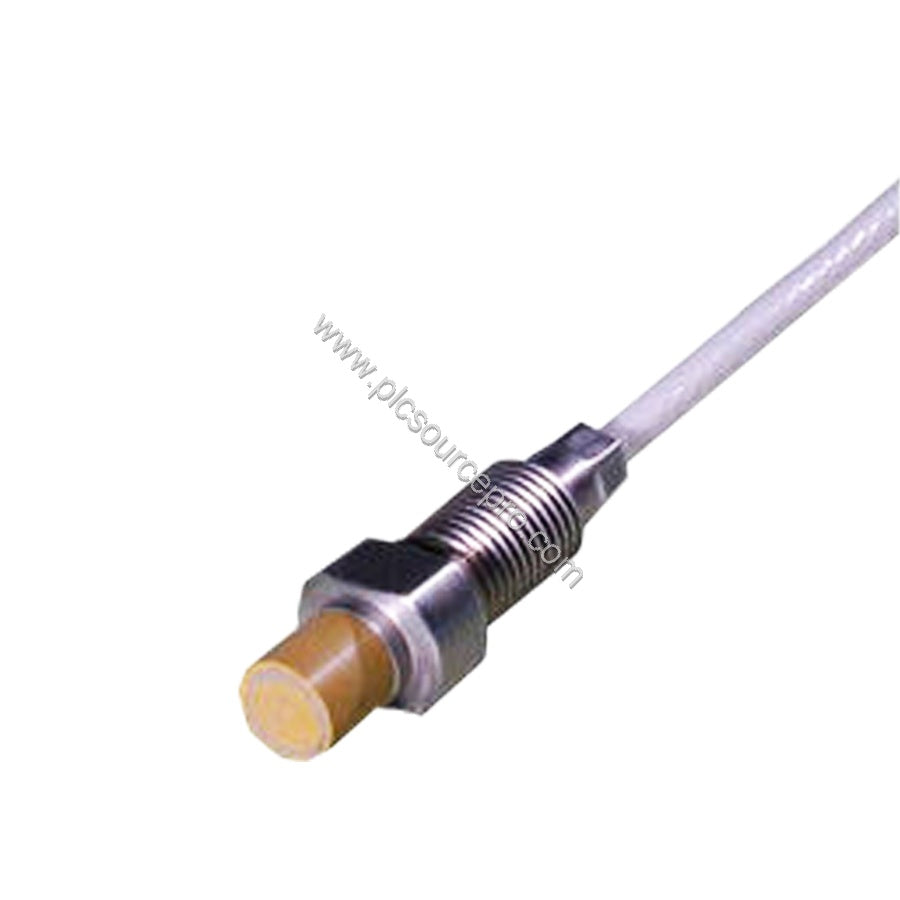

When high-temperature, explosive environments demand precise shaft displacement measurement, the Vibro Meter 913-402-000-012/A2-E090-F0-G000 provides a proven solution. This proximity measuring system from Meggitt (Vibro-Meter) is designed for continuous monitoring in harsh industrial settings. The system includes a transducer with a 9.0 m extension cable, explosion-proof Ex i rating, and rugged stainless steel construction.
Technical Specifications
The Vibro Meter 913-402-000-012/A2-E090-F0-G000 offers the following key parameters:
| Parameter |
Value |
| Weight |
0.22 kg |
| Transducer temperature (operating) |
−40 to +180°C, drift <5% |
| Transducer temperature (short-term survival) |
+180 to +220°C, drift >5% |
| Transducer and cable temperature (Ex Zone) |
−40 to +195°C |
| Cable and connector temperature |
−40 to +200°C |
| Protection rating (IEC 60529) |
IP68 (head and integral cable) |
| Vibration (IEC 60068-2-26) |
5 g peak, 10 to 500 Hz |
| Shock (IEC 60068-2-27) |
15 g peak, 11 ms |
| Transducer construction |
Wire coil Ø8 mm, Torlon tip, AISI 316L body |
| Integral/extension cable |
FEP covered 70 Ω coaxial, Ø3.6 mm |
| Connectors |
Self-locking miniature coaxial (hand-tighten) |
| Extension cable length |
9.0 m ±900 mm |
These specifications ensure the Vibro Meter 913-402-000-012/A2-E090-F0-G000 performs reliably even in the most demanding conditions.
Industry Applications
The Vibro Meter 913-402-000-012/A2-E090-F0-G000 excels in turbine monitoring, compressor protection, and pump shaft displacement measurement. Its Ex i rating makes it ideal for chemical plants, oil refineries, and gas processing facilities where explosive atmospheres exist. The extended temperature range allows operation in steam turbines and high-temperature machinery.
Installation & Setup Guidance
Mount the transducer head securely using the supplied stainless steel body. Ensure the integral cable follows a smooth path without kinks. Hand-tighten each self-locking coaxial connector until locked – do not use tools. Verify the IQS900 signal conditioner provides the required high-frequency power source. For Ex Zone installations, follow all local safety regulations.
Maintenance & Reliability
Inspect the cable and connectors periodically for damage. The IP68 rating protects against dust and water immersion, but the optional FEP sheath or stainless steel hose can be added for extra chemical or mechanical protection. Replacement interval depends on operating temperature; at the upper limits, plan for replacement after prolonged exposure. The robust construction minimises drift below 5% over the full operating range.
Buying Guide & Selection Advice
Before ordering, confirm your vibrating machine’s shaft diameter and clearance. The 9.0 m extension cable suits most installations; for different lengths, choose the corresponding variant. Verify that the IQS900 signal conditioner is compatible. For additional protection, select either the stainless steel hose (not leak-tight) or the FEP sheath (chemical resistant). Vibro Meter 913-402-000-012/A2-E090-F0-G000 is available from PLC Source PRO (formerly ubest101) – contact us for quick delivery and OEM quality.
