Product Introduction
When harsh industrial conditions threaten the reliability of vibration monitoring, the Vibro Meter 913-402-000-012/A2-E045-F0-G00 provides a robust solution. This proximity measuring system, manufactured by Meggitt, is designed for continuous operation in explosive atmospheres and extreme temperatures. The 913-402-000-012/A2-E045-F0-G00 features an Ex i environment rating, ensuring intrinsic safety in hazardous zones. Its construction resists common failure modes such as thermal drift, chemical attack, and mechanical shock, making it a dependable choice for critical asset protection.
Technical Specifications Breakdown
The Vibro Meter 913-402-000-012/A2-E045-F0-G00 excels in environments where other sensors fail. Below are key performance parameters derived from the manufacturer's data.
| Parameter |
Value |
| Environment (A) |
2 = Explosive Ex i |

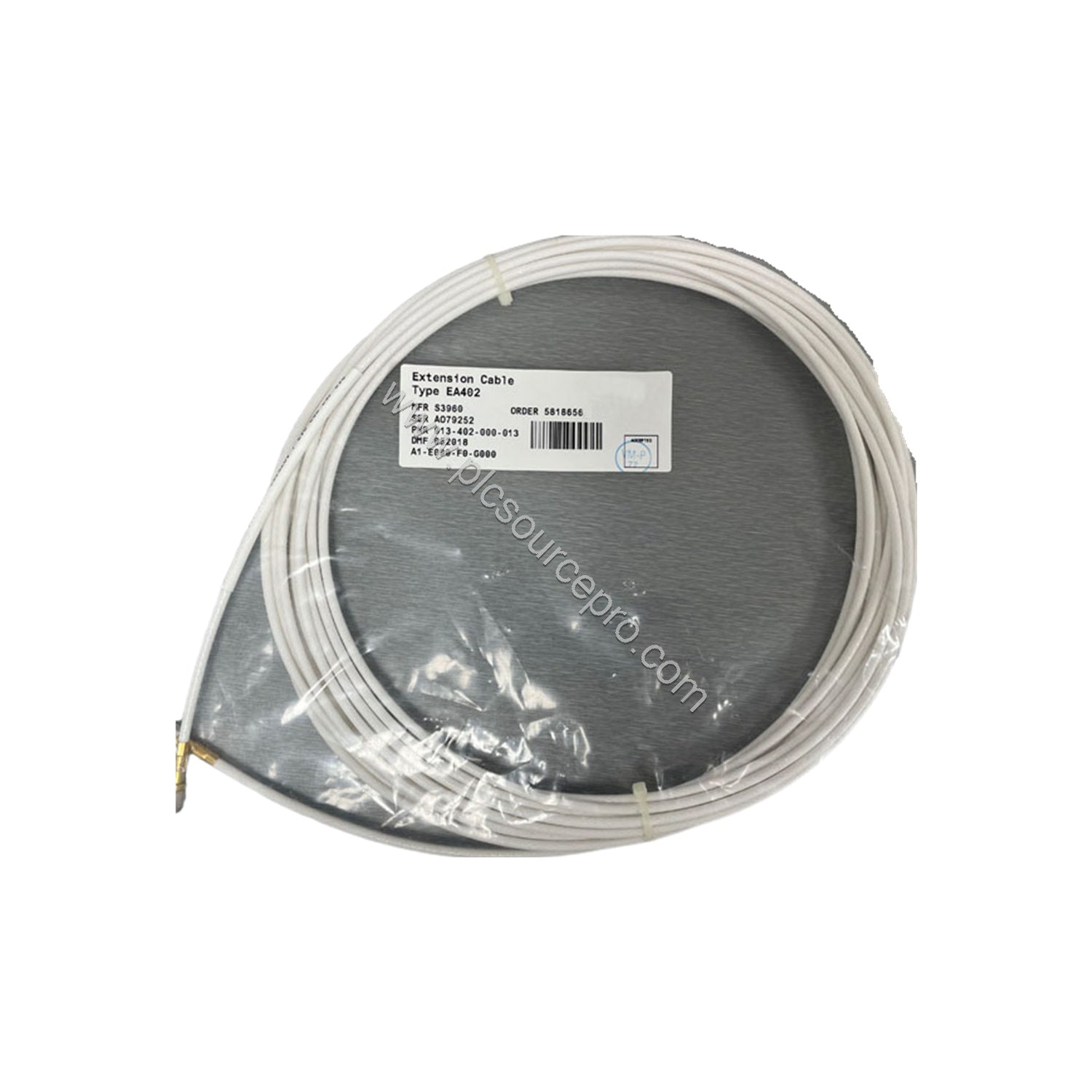

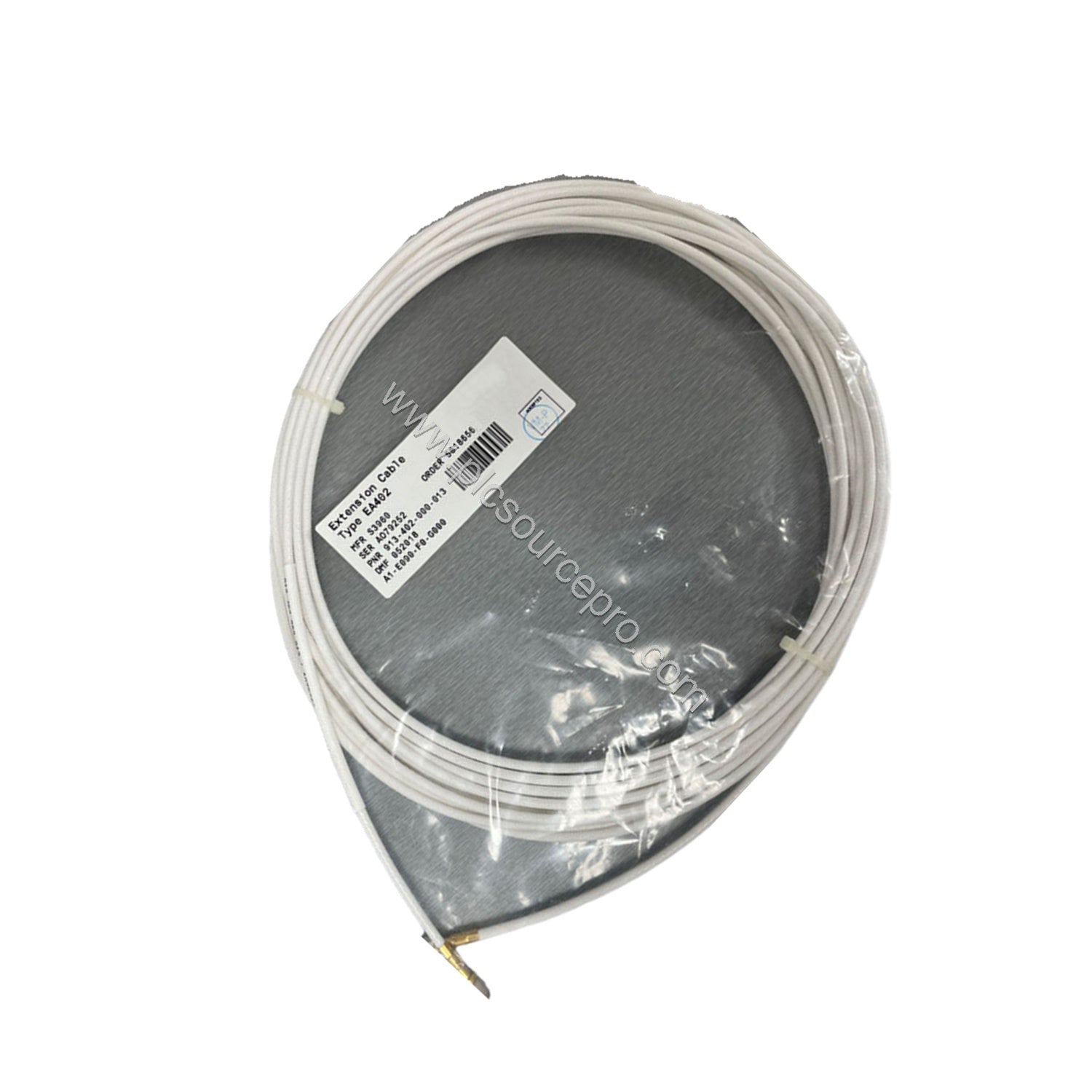

| Extension cable length (E) |
045 = 4.5 m ± 450 mm |
| Weight |
0.22 kg |
| Transducer temperature range (operating) |
−40 to +180°C with drift <5% |
| Transducer temperature range (short-term survival) |
+180 to +220°C with drift >5% |
| Transducer and cable temperature (Ex Zone) |
−40 to +195°C |
| Cable, connector, optional protection temperature |
−40 to +200°C |
| Protection rating (IEC 60529) |
IP68 (transducer tip and integral cable) |
| Vibration (IEC 60068-2-26) |
5 g peak between 10 and 500 Hz |
| Shock acceleration (IEC 60068-2-27) |
15 g peak (half sine-wave, 11 ms duration) |
| Transducer construction |

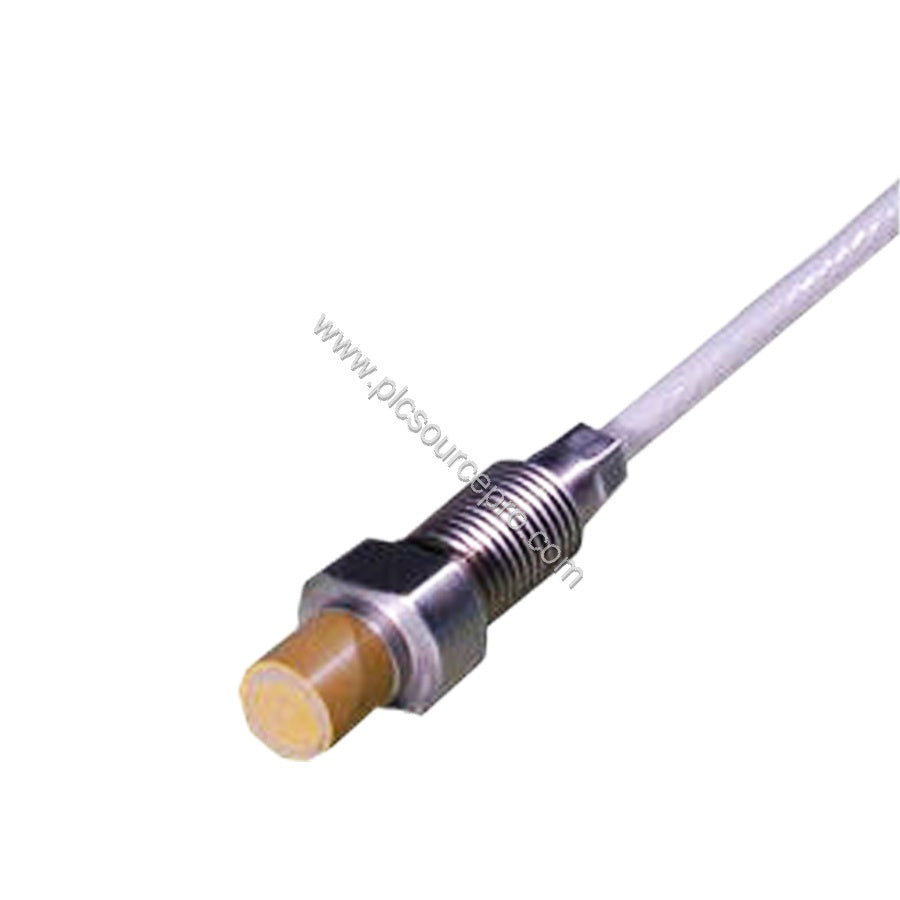

Wire coil Ø8 mm, Torlon tip, stainless steel body AISI 316L |
| Integral and extension cables |

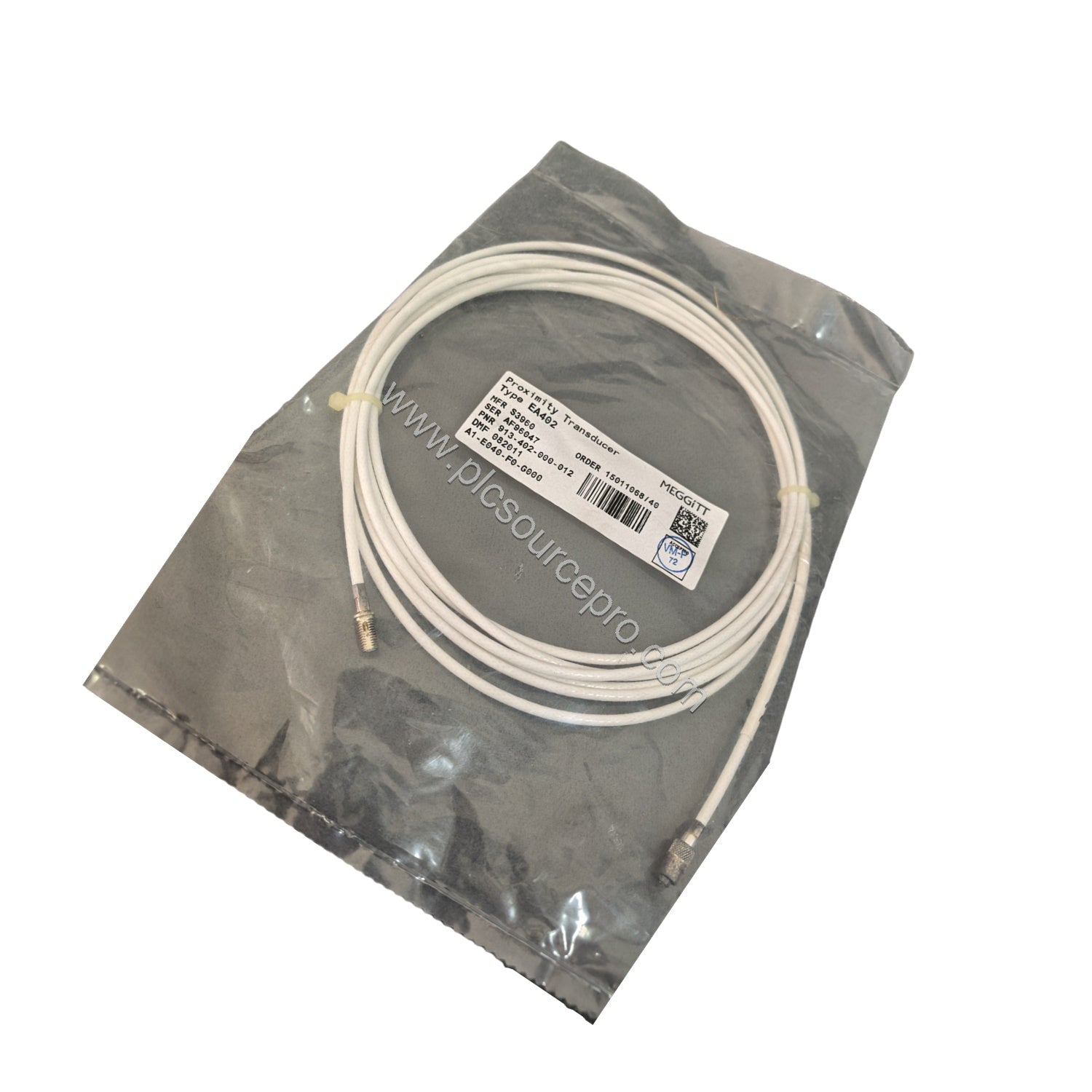

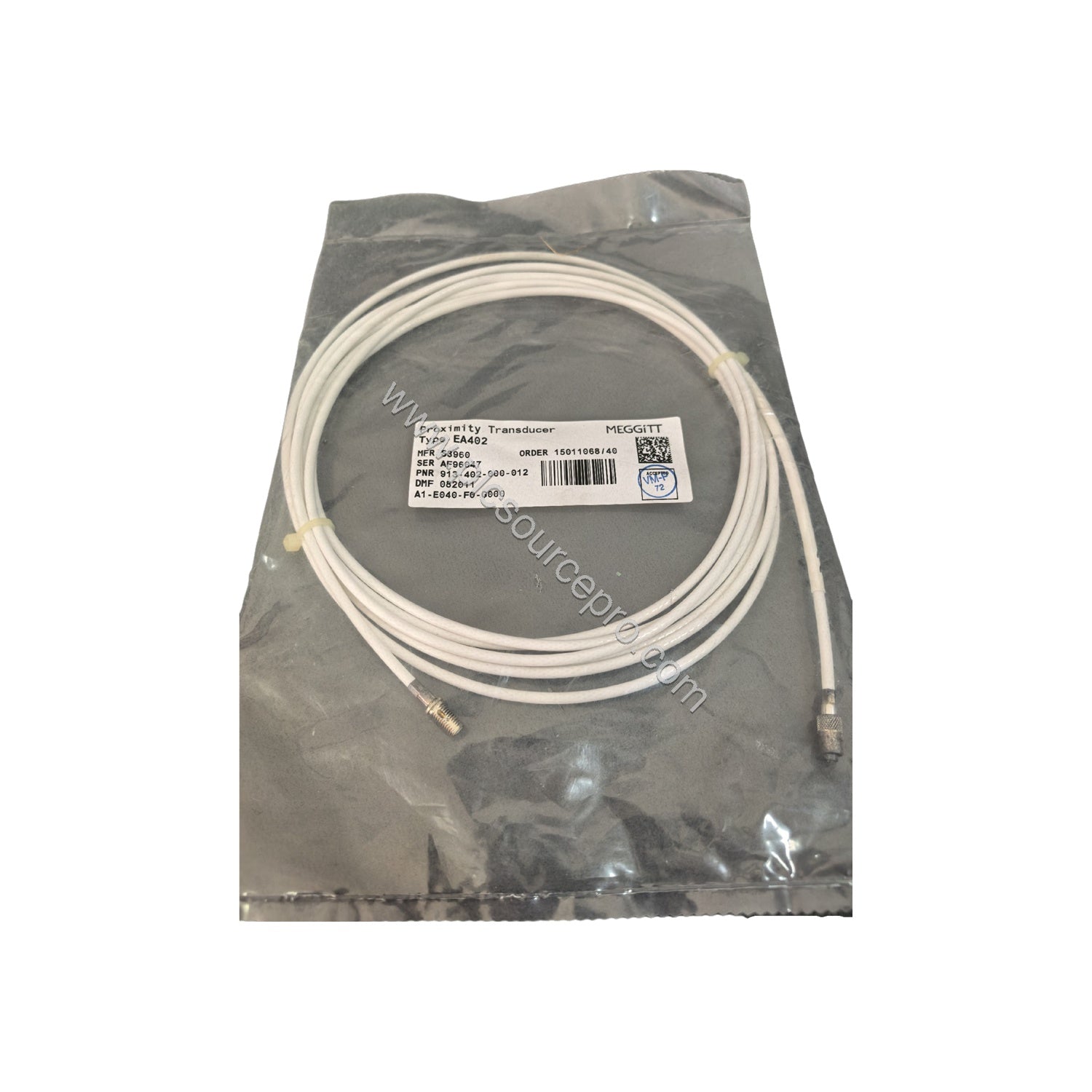

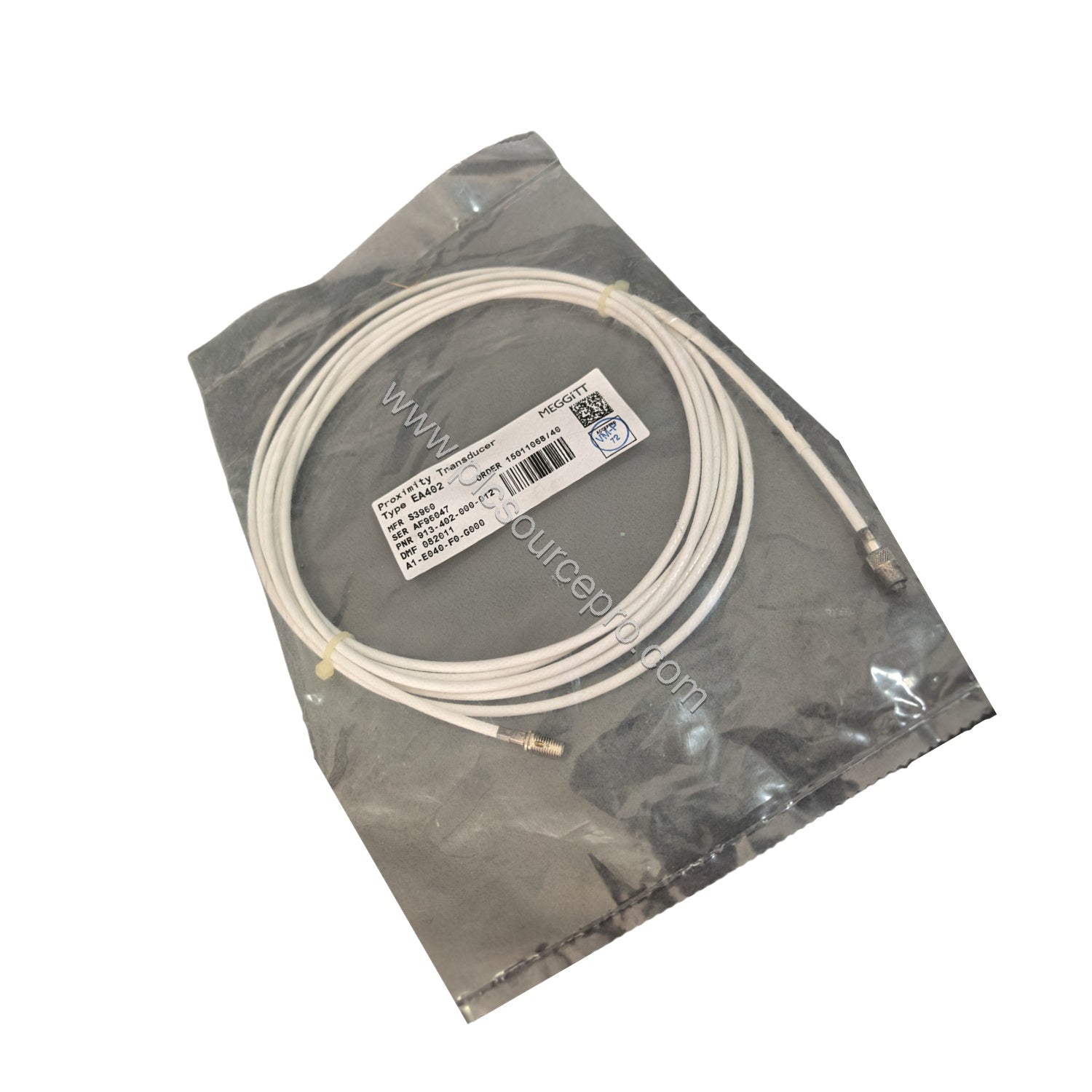

FEP covered 70 Ω coaxial cable, Ø3.6 mm |
| Connectors |
Self-locking miniature coaxial connectors |
The wide operating temperature range and high shock resistance directly address failure modes caused by thermal cycling and mechanical impacts. The FEP-sheathed cable provides chemical resistance, preventing degradation in corrosive environments.
Industry Applications
The Vibro Meter 913-402-000-012/A2-E045-F0-G00 is suited for continuous vibration monitoring on turbomachinery, pumps, and compressors in oil & gas, petrochemical, and power generation facilities. Its Ex i rating allows safe installation in Zone 0/1 explosive gas environments. For example, in a gas turbine train, this proximity probe measures shaft displacement even when exposed to high-frequency power from an IQS900 signal conditioner, ensuring early detection of bearing wear or imbalance.
Maintenance & Reliability
To maximize the service life of your Vibro Meter 913-402-000-012/A2-E045-F0-G00, implement regular inspections of the integral cable for cuts or abrasion. The IP68 rating allows submersion, but in practice ensure the self-locking connectors remain hand-tightened. Although the transducer can survive short-term temperature spikes above 180°C, prolonged exposure will accelerate drift. Environmental factors such as aggressive chemicals are mitigated by the FEP sheath option. By following these checks, you reduce unplanned downtime and extend replacement intervals.
Selection Guide & Purchasing Advice
Before ordering, verify that your signal conditioner is compatible with the high-frequency power source requirement (IQS900 series). The extension cable length is fixed at 4.5 m ± 450 mm, so measure your installation distance. If additional mechanical protection is needed, consider the optional flexible stainless steel hose (specify option F=0 in this variant). For reliable supply of genuine Vibro Meter 913-402-000-012/A2-E045-F0-G00 modules, contact ubest101 for competitive pricing and fast delivery from stock.
