Product Overview

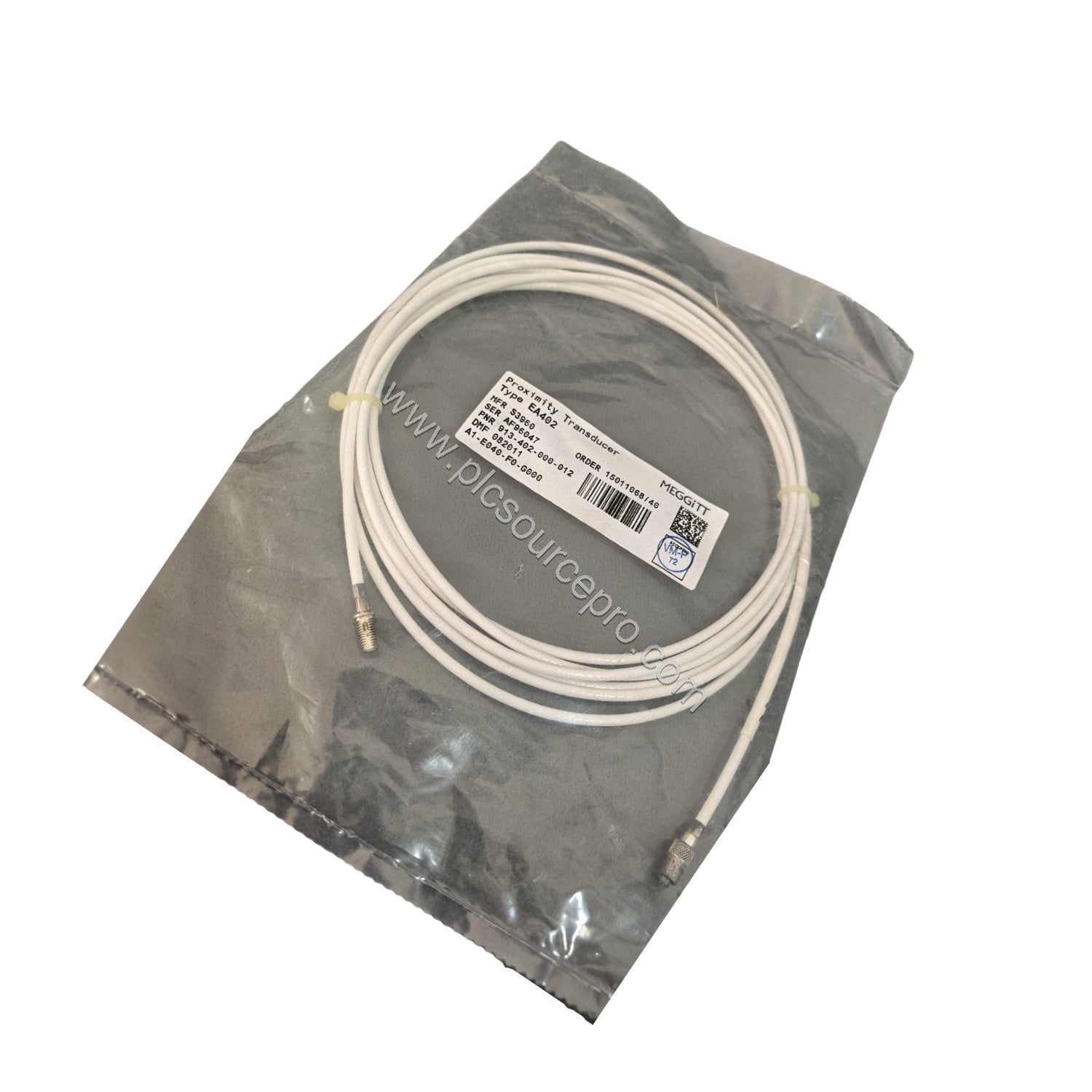

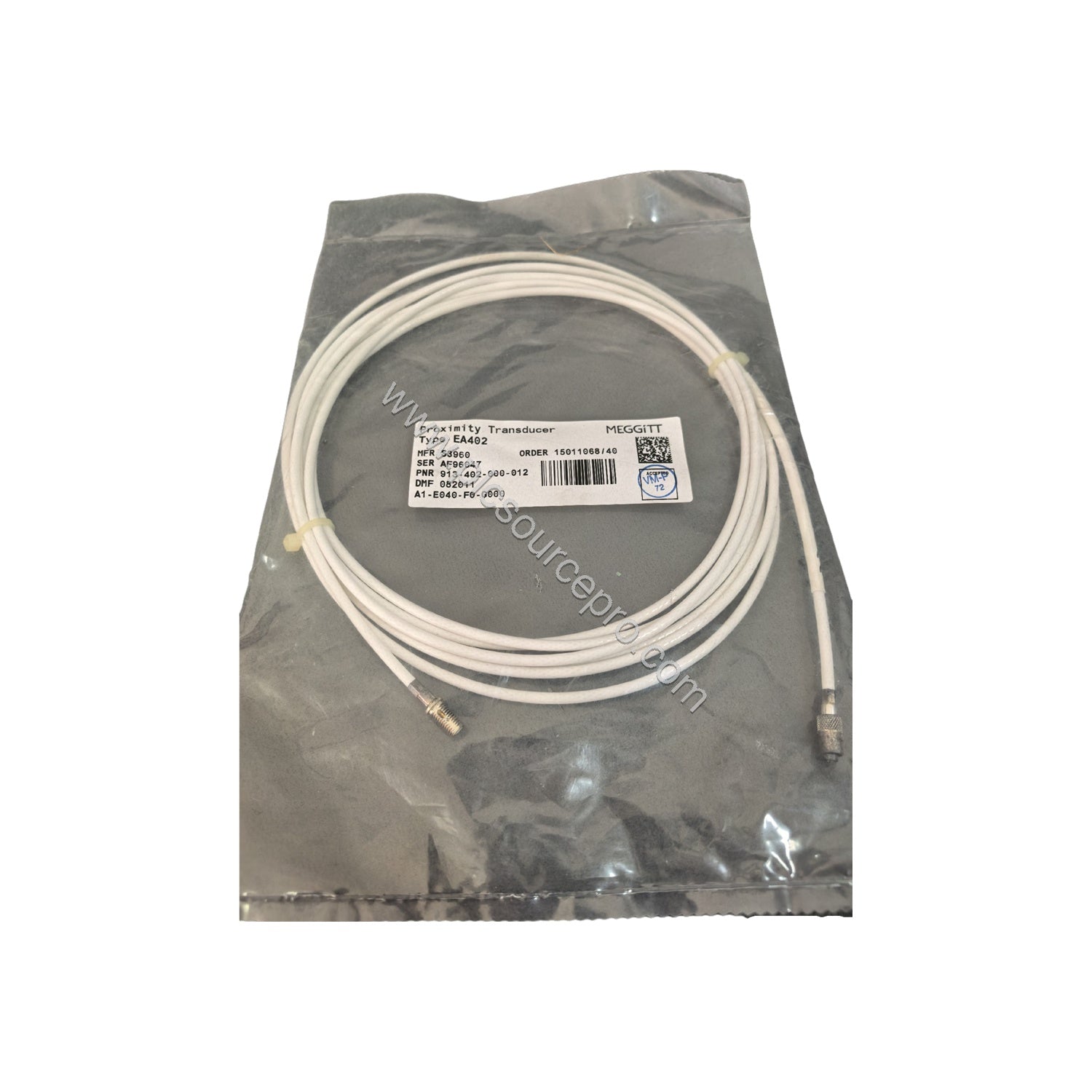

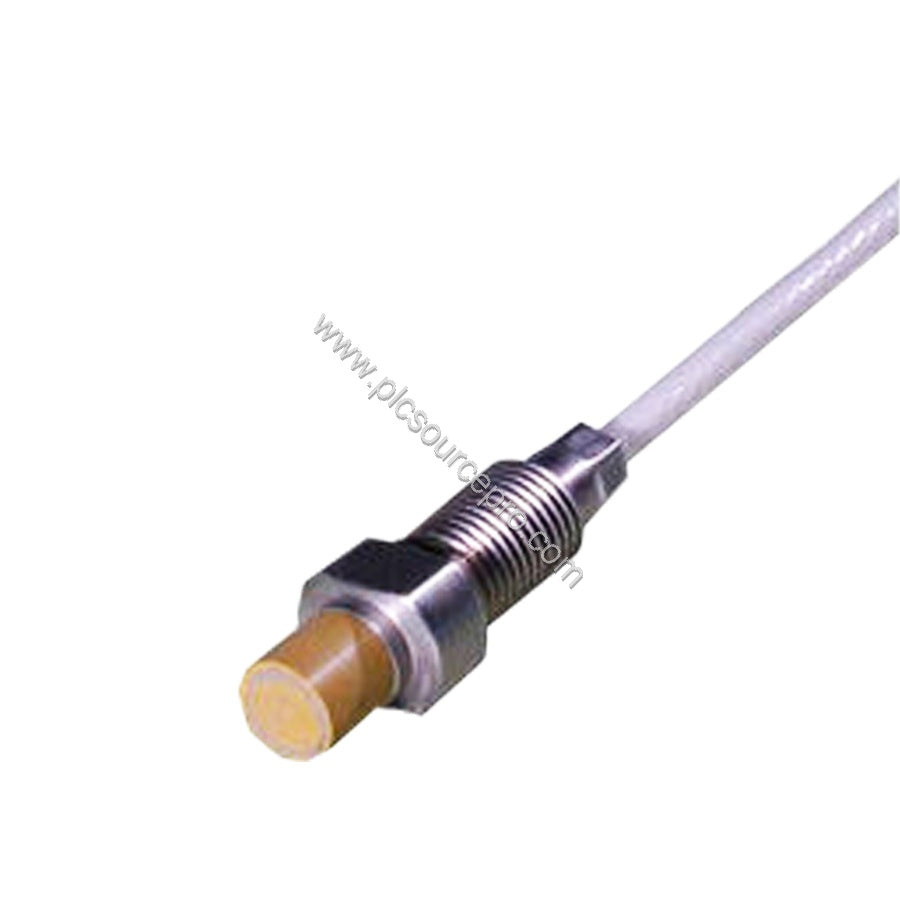

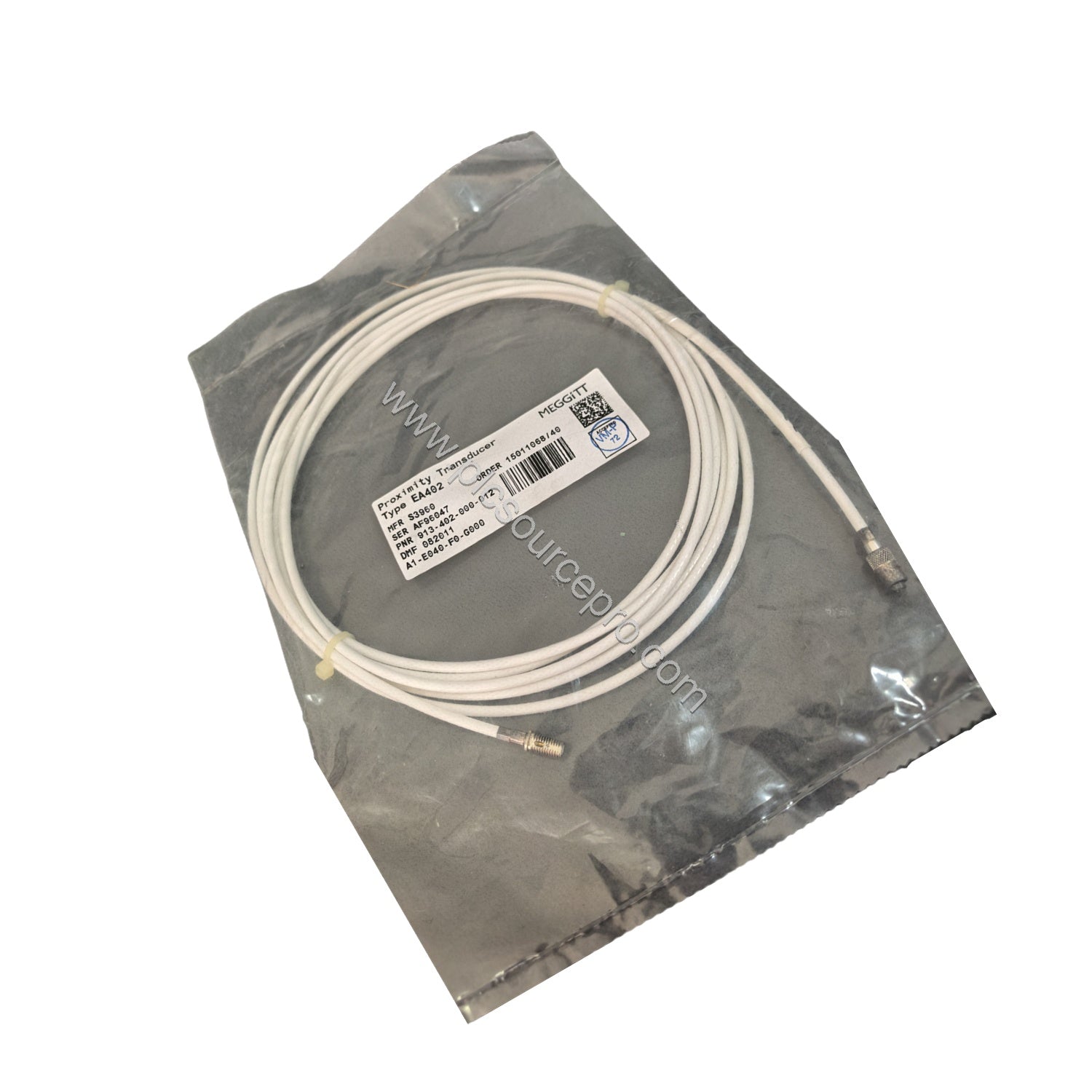

The Vibro Meter 913-402-000-012/A1-E090-F1-G088 proximity measuring system is a non-contact eddy-current sensor designed for shaft vibration and position monitoring. Built to withstand extreme conditions, this configuration includes a 9.0 m extension cable and an 8.8 m flexible hose, making it ideal for installations requiring long reach and robust protection.
Technical Specifications
Built for reliability in hazardous and high-temperature environments, the Vibro Meter 913-402-000-012/A1-E090-F1-G088 delivers consistent performance across demanding industrial applications.
| Parameter |
Value |
| Environment version |
Standard (A1) |
| Extension cable length |
9.0 m ±900 mm |
| Optional protection |
Flexible hose, none connector (F1) |
| Flexible hose length |
8.8 m |
| Weight |
0.22 kg |
| Transducer input |
High-frequency power from IQS900 signal conditioner |
| Temperature range (transducer) |
−40 to +180°C (operating, drift <5%); +180 to +220°C (short-term survival) |
| Temperature range (transducer + cable in Ex zone) |
−40 to +195°C |
| Cable & connector temperature |
−40 to +200°C |
| Protection rating |
IP68 (transducer tip and integral cable) |
| Vibration resistance |
5 g peak, 10–500 Hz (IEC 60068-2-26) |
| Shock resistance |
15 g peak, half sine, 11 ms (IEC 60068-2-27) |
| Transducer construction |
Wire coil Ø8 mm, Torlon tip, stainless steel AISI 316L body |
| Cable type |
FEP covered 70 Ω coaxial, Ø3.6 mm |
| Connectors |
Self-locking miniature coaxial (hand tighten only) |
| Mounting |
Two M4 screws (without DIN-rail adaptor) |
| Frequency response |
DC to 20 kHz (−3 dB) |
| Measurement range |
2 or 4 mm |
Applications
The Vibro Meter 913-402-000-012/A1-E090-F1-G088 excels in machinery protection and condition monitoring for turbines, compressors, pumps, and fans. It conforms to API 670 and is particularly suited for use with VM600Mk2/VM600 and VibroSmart systems. The high-temperature capability (−40 to +180°C) and Ex certification make it a top choice for gas and steam turbines in power generation and oil & gas facilities.
Installation and Mounting
Mount the transducer using two M4 screws (DIN-rail adaptor not included). Connect the extension cable via the self-locking miniature coaxial connectors — hand-tighten only until locked. For Ex zones, ensure the transducer and cable are used within −40 to +195°C. The flexible stainless steel hose (8.8 m) provides additional mechanical protection without leak-tight sealing, while the optional FEP sheath offers chemical resistance.
Durability and Environmental Resistance
Engineered for failure prevention in extreme conditions, the Vibro Meter 913-402-000-012/A1-E090-F1-G088 withstands vibration up to 5 g peak (10–500 Hz) and shock up to 15 g. The IP68-rated transducer tip resists moisture ingress, and the temperature-compensated design ensures drift <5% from −40 to +180°C. For short-term survival up to +220°C, drift may exceed 5% but operation remains possible. This robust construction minimizes false readings and extends service life in harsh industrial environments.
Purchasing Guidance
Before ordering, verify the required extension cable length and flexible hose options. This specific configuration (E090: 9.0 m, G88: 8.8 m) is ready for installations needing extended reach and hose protection. For custom configurations or additional accessories, contact PLC Source PRO (store site: ubest101.myshopify.com) for expert guidance. We stock a full range of Vibro Meter proximity systems and components to support your machinery monitoring needs.
