Product Overview

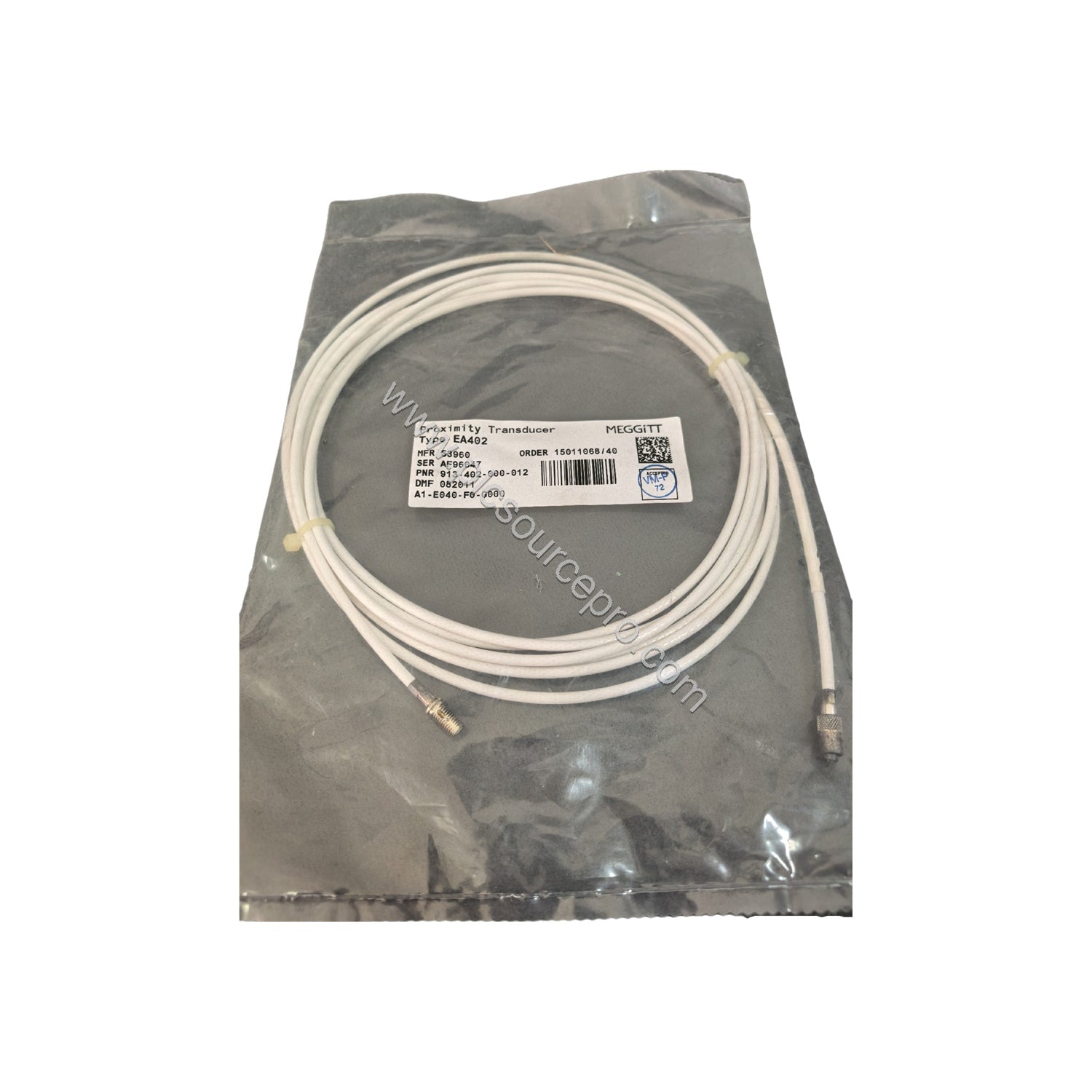

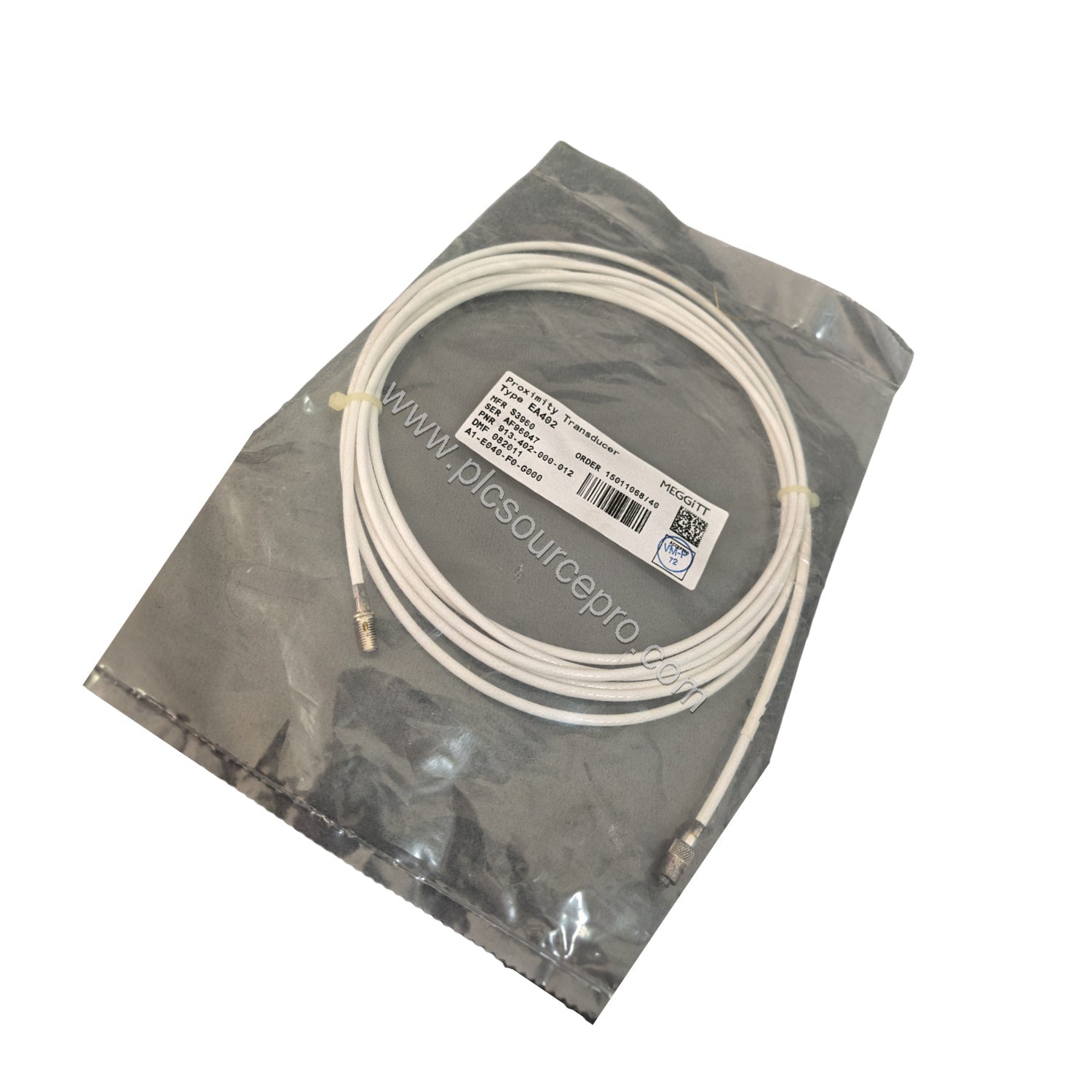

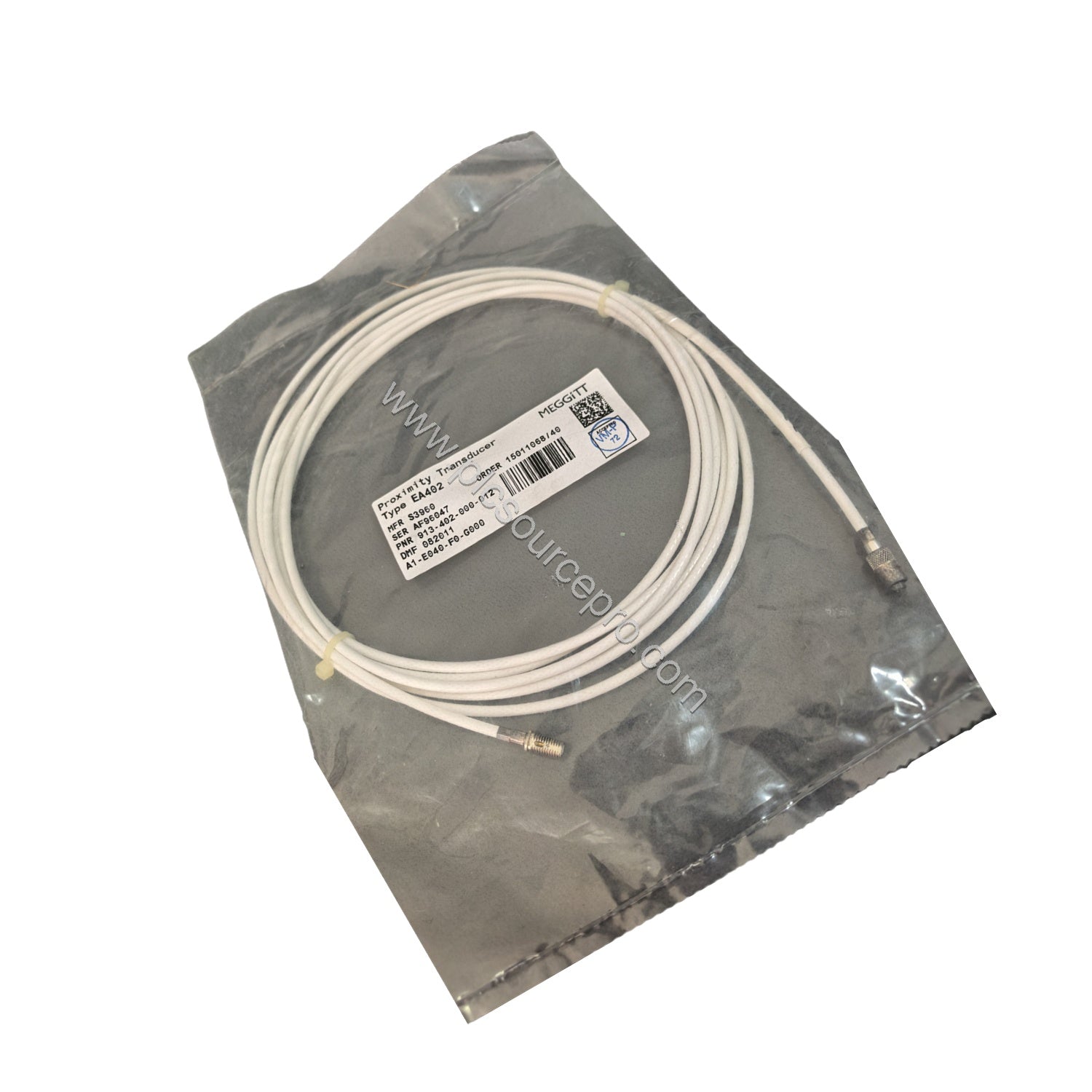

The Vibro Meter 913-402-000-012/A1- E040-F1-G038 is a precision proximity measuring system engineered for continuous non-contact measurement of shaft vibration and position. As part of the renowned vibro-meter product line from Meggitt, this transducer system is built to meet API 670 standards and is ideal for upgrading older eddy-current probe installations. The 913-402-000-012/A1- E040-F1-G038 comes with a 4.0 m extension cable (E040) and a 3.8 m flexible hose (G038), configured for standard environmental conditions (A1). Whether you are replacing a failed sensor or expanding your monitoring network, this module delivers reliable performance in demanding industrial environments.
Technical Specifications Breakdown
The 913-402-000-012/A1- E040-F1-G038 is designed with robust specifications that ensure accurate data under harsh conditions. Key parameters include:
-
Temperature Range: The transducer operates from -40°C to +180°C with less than 5% drift. For short-term survival up to +220°C, drift may exceed 5%.
-
Protection Rating: The transducer tip and integral cable are rated IP68, providing excellent resistance to dust and water ingress.
-
Vibration & Shock: Withstands vibration up to 5 g peak (10-500 Hz) and shock acceleration of 15 g peak (half sine-wave, 11 ms) according to IEC 60068-2-26 and 60068-2-27 standards.
-

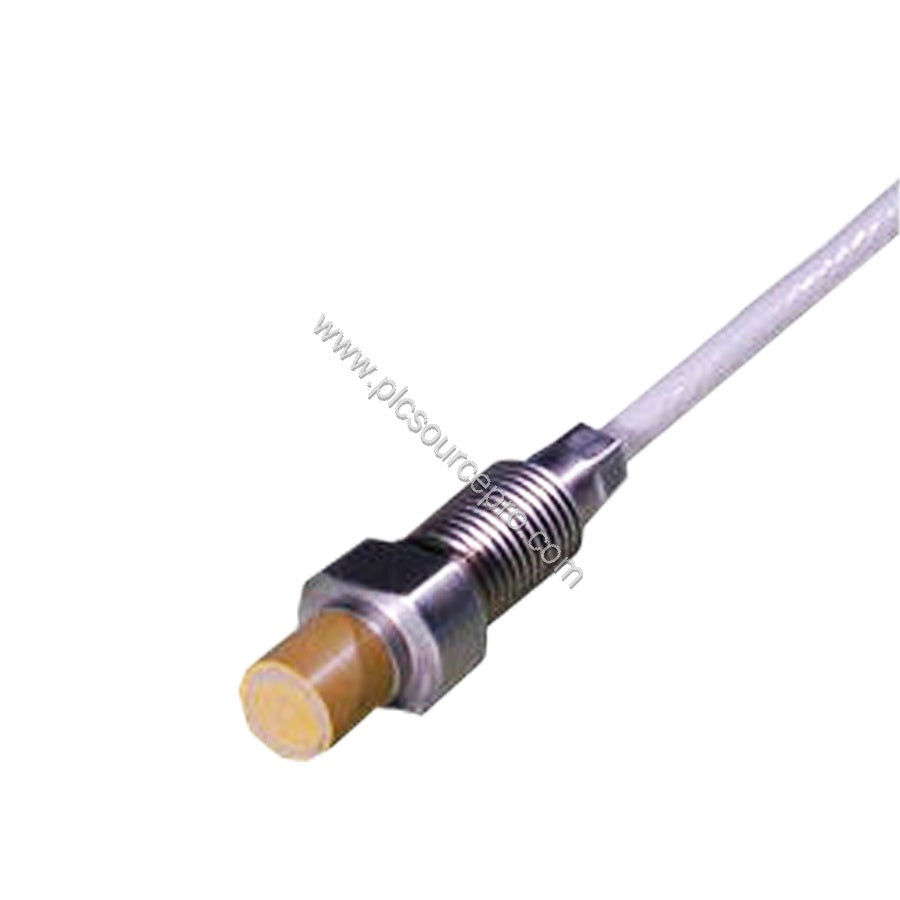

Construction: The 8 mm wire coil with Torlon tip is encapsulated in a stainless steel body (AISI 316L) using high-temperature epoxy glue. Cables are FEP covered 70 Ω coaxial, 3.6 mm in diameter.
-
Weight: Approximately 200 g (0.44 lb), with a total system weight of 0.22 kg including the flexible hose.
These specifications make the 913-402-000-012/A1- E040-F1-G038 a reliable choice for high-temperature and hazardous area applications.
Industry Applications
This proximity measuring system is specifically designed for shaft relative vibration and gap/position measurement chains used in machinery protection and condition monitoring. Typical applications include:
-
API 670 Compressors and Turbines: The Vibro Meter 913-402-000-012/A1- E040-F1-G038 conforms to API 670 recommendations, making it an ideal upgrade for existing monitoring loops in compressors, steam turbines, and gas turbines.
-
Hazardous Area Installations: With Ex certified versions available, this transducer can be installed in potentially explosive atmospheres, up to 195°C when used in an Ex Zone.
-
Integration with VM600Mk2/VM600 Systems: The system works seamlessly with Meggitt’s VibroSmart and VM600 machinery monitoring systems, providing a direct path for upgrading older installations.
Compatibility & Integration
The 913-402-000-012/A1- E040-F1-G038 requires a high-frequency power source from an IQS900 signal conditioner. It uses self-locking miniature coaxial connectors (hand-tighten only) and is compatible with standard 1, 5, and 10 m system configurations. For replacement applications, ensure your existing signal conditioner supports the same impedance (70 Ω) and connector type. The system mounts using two M4 screws without a DIN-rail adaptor, simplifying installation in existing panels.
Selection Guide & Purchasing Advice
When selecting the 913-402-000-012/A1- E040-F1-G038 for your upgrade, verify the following: extension cable length (E040 = 4.0 m ±400 mm), flexible hose length (G038 = 3.8 m), and optional protection (F1 = flexible hose with no connector). The standard version (A1) is suitable for most environments. For more demanding chemical resistance, consider the FEP sheath option. At PLC Source PRO (visit ubest101.myshopify.com), you can order this exact part number with confidence. Our inventory includes both new and professionally refurbished industrial automation modules, ensuring you receive a product that meets original specifications.
