Product Introduction
With a temperature range of -40 to +180°C and drift less than 5%, the Vibro Meter 913-402-000-012/A1-E040-F0-G000 delivers reliable proximity measurement for industrial machinery protection. This non-contact system uses the eddy-current principle to measure shaft relative vibration and gap/position, ensuring accurate data for condition monitoring and machine protection applications. Part of the Vibro-Meter product line, this module conforms to API 670 recommendations.
Technical Specifications Breakdown
The Vibro Meter 913-402-000-012/A1-E040-F0-G000 features a high-frequency power source from an IQS900 signal conditioner. Key specifications include:
| Parameter |
Value |

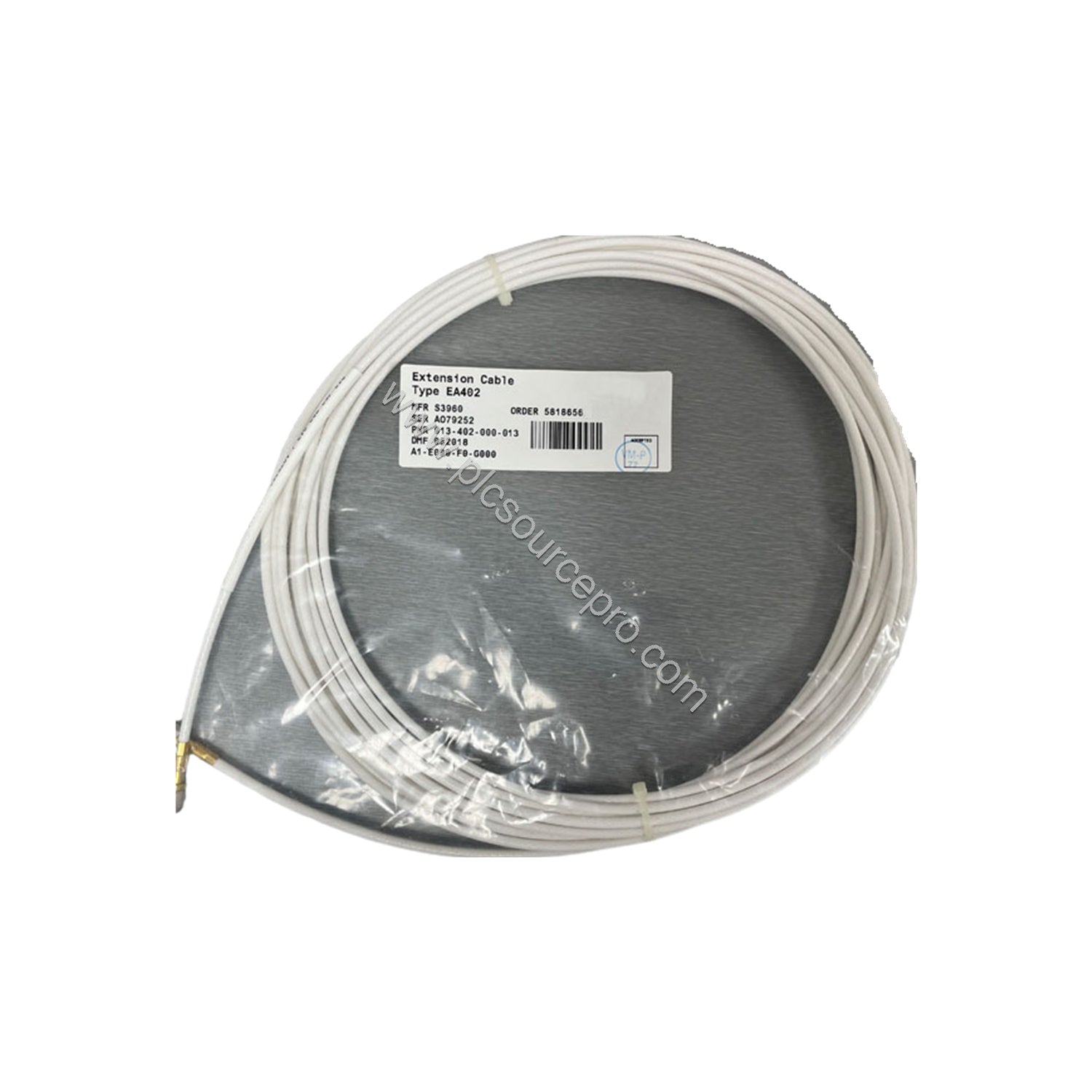

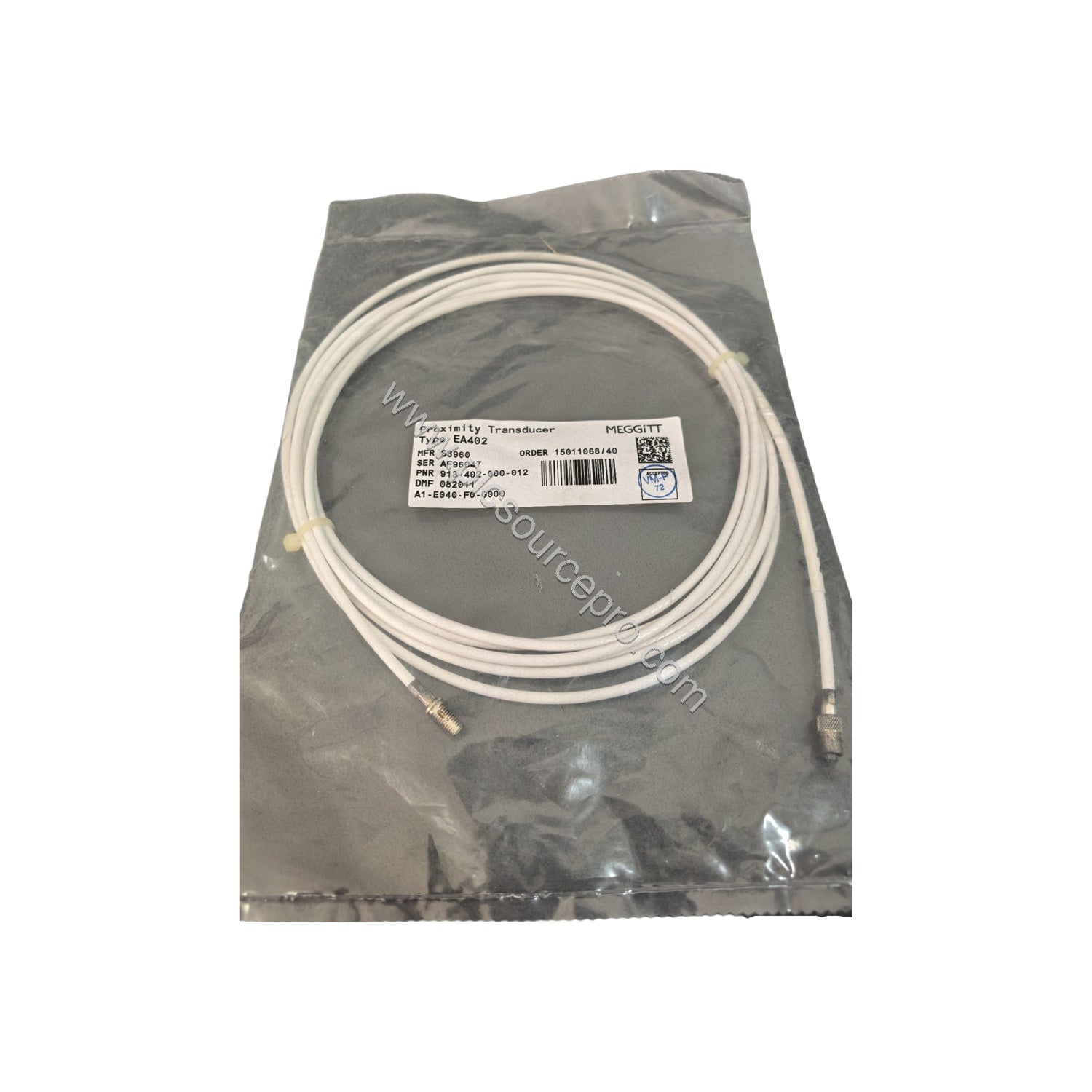

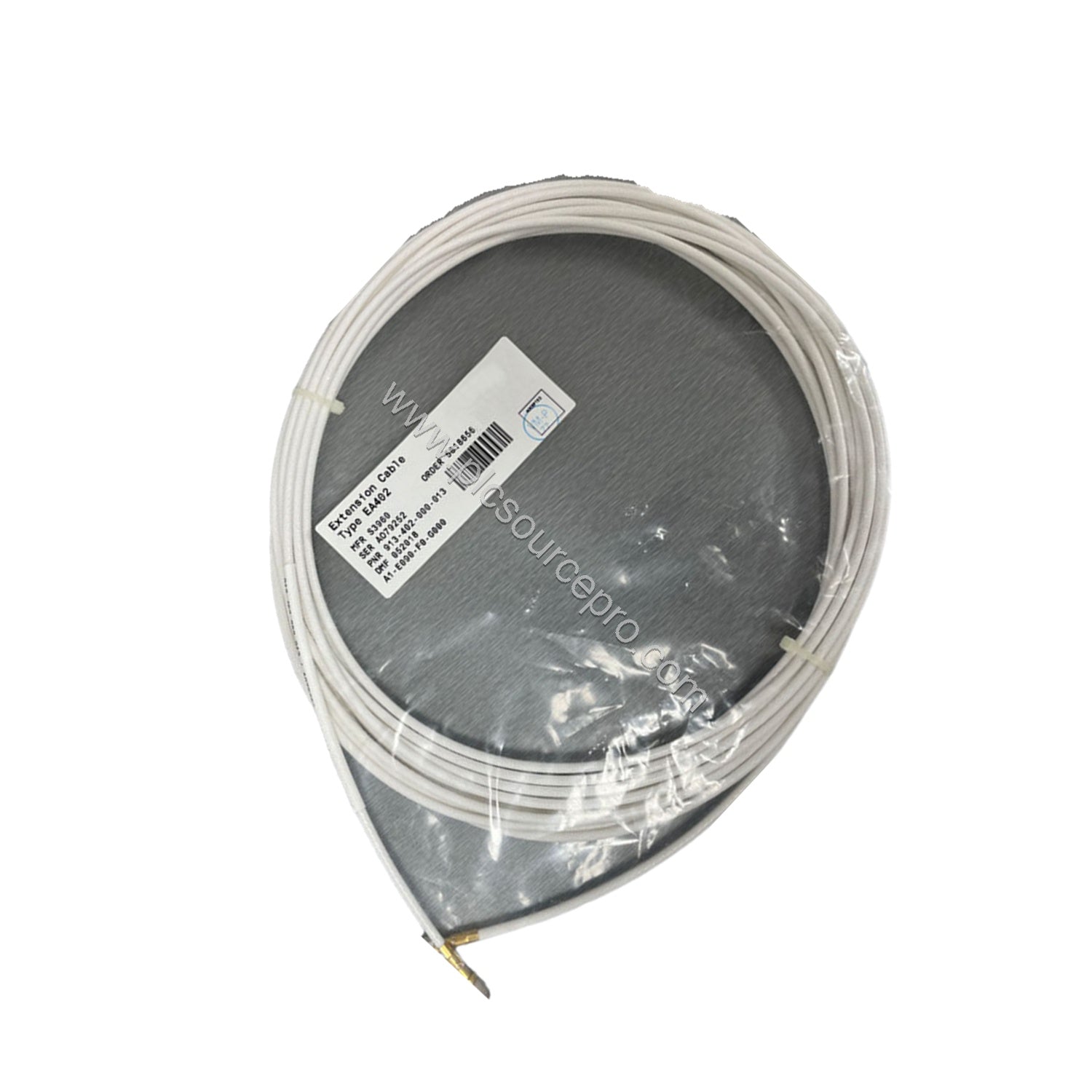

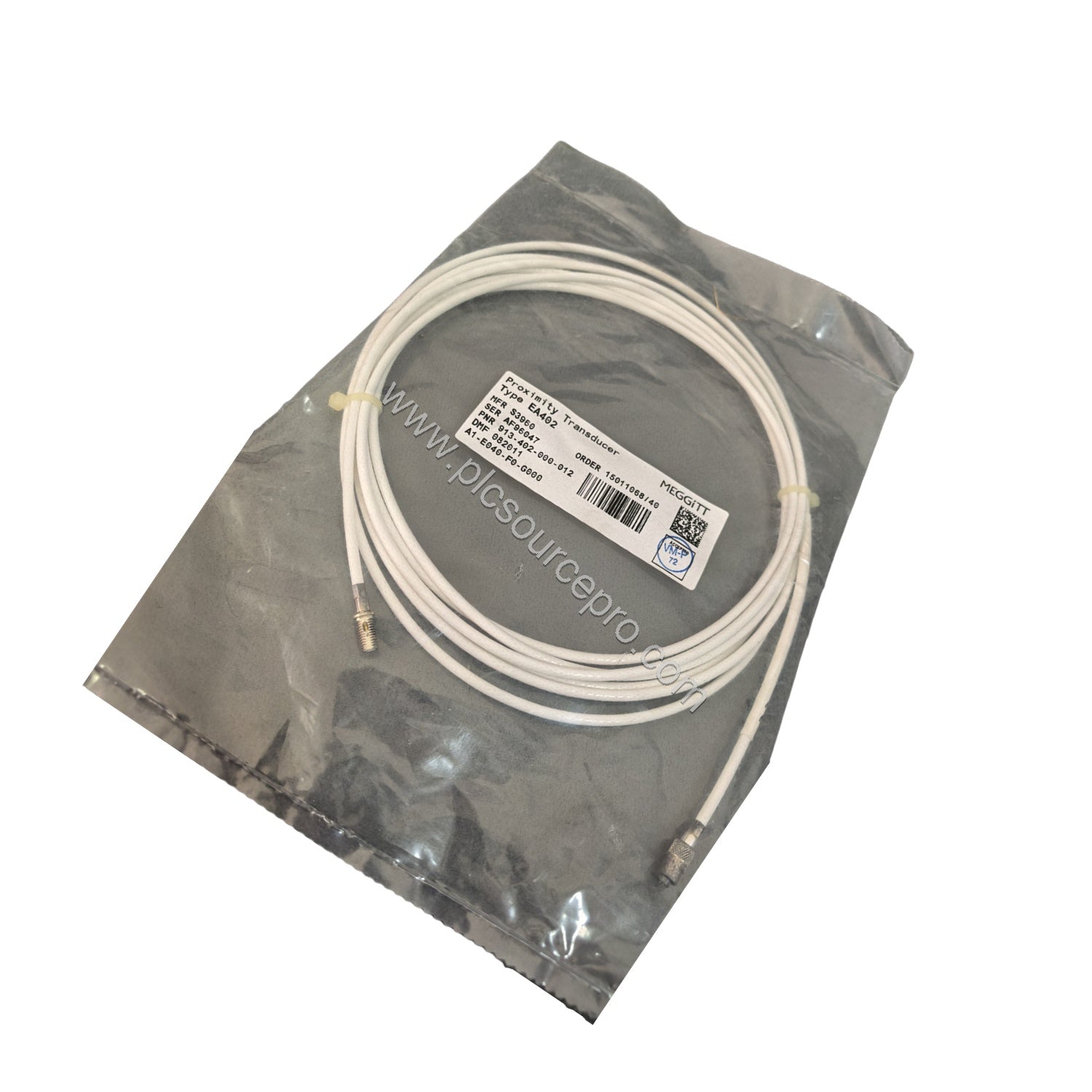

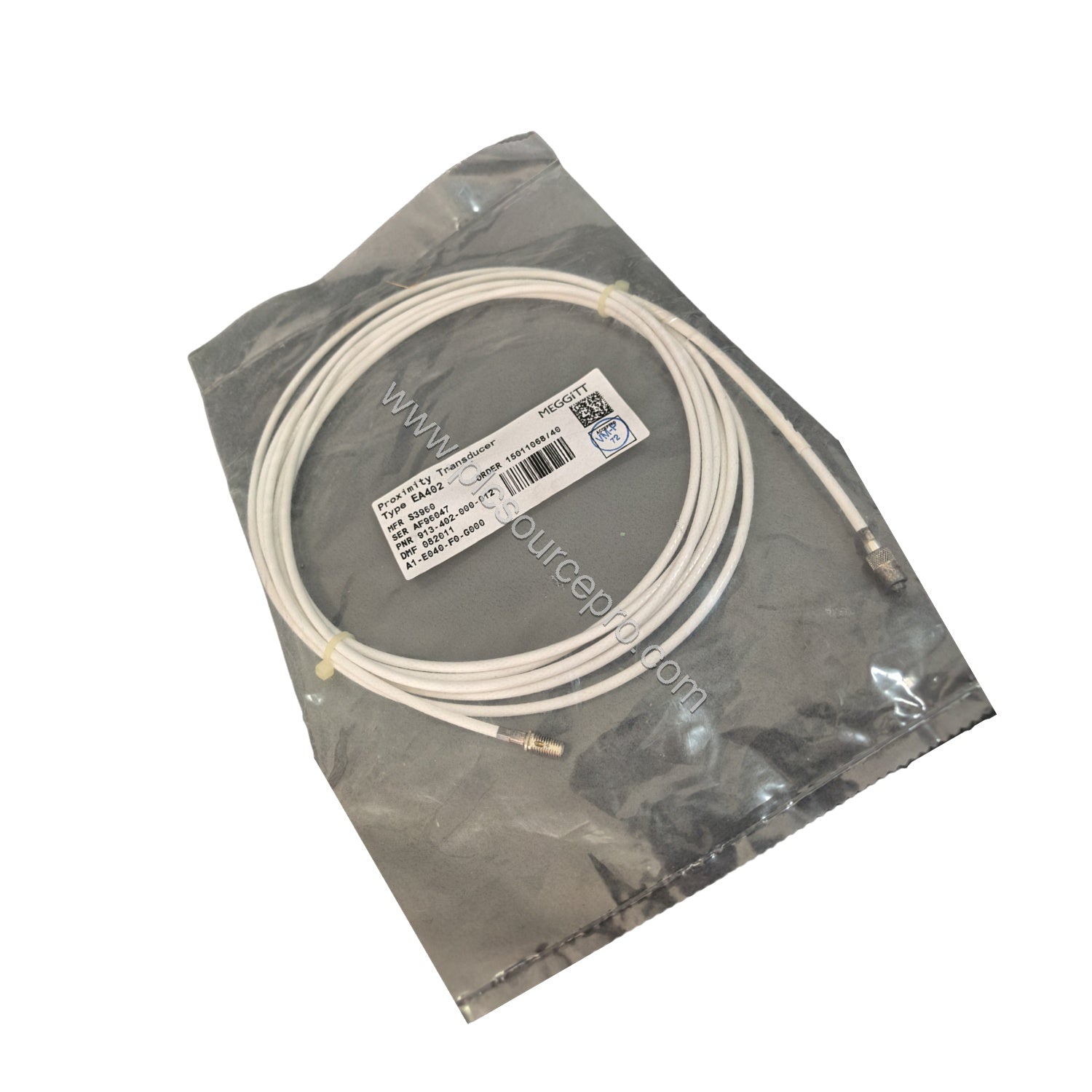

| Extension cable length |
4.0 m ±400 mm |
| Transducer operating temperature |
-40 to +180°C (drift <5%) |
| Short-term survival temperature |
+180 to +220°C (drift >5%) |
| Transducer and cable temp (Ex Zone) |
-40 to +195°C |
| Protection rating (IEC 60529) |
IP68 (transducer head) |
| Vibration (IEC 60068-2-26) |
5 g peak, 10 to 500 Hz |
| Shock (IEC 60068-2-27) |
15 g peak, half sine-wave, 11 ms |
| Measurement range |
2 or 4 mm |
| Frequency response |
DC to 20 kHz (-3 dB) |
| Weight |
200 g (0.44 lb) approx. |

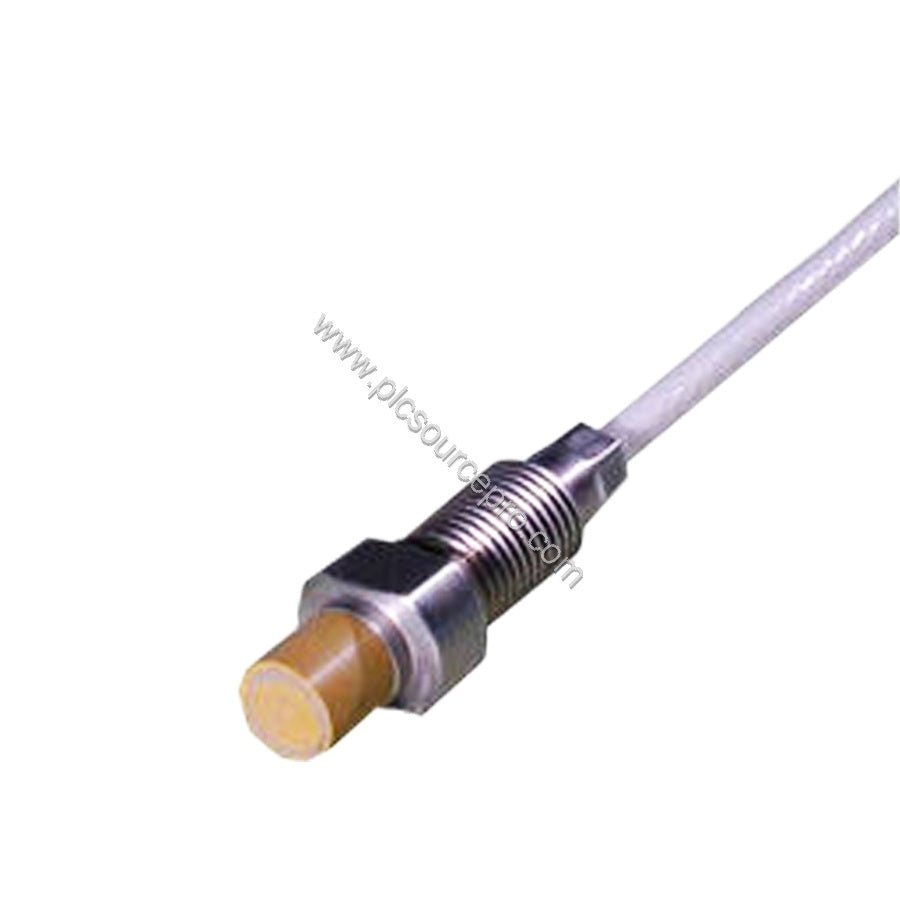

The transducer construction features a wire coil Ø8 mm with Torlon tip encapsulated in stainless steel (AISI 316L) body. Integral and extension cables are FEP covered 70 Ω coaxial cable, Ø3.6 mm, with self-locking miniature coaxial connectors.
Industry Applications
Typical applications for the Vibro Meter 913-402-000-012/A1-E040-F0-G000 include shaft relative vibration and gap/position measurement chains for machinery protection and condition monitoring. It is ideal for use with VM600Mk2/VM600 and VibroSmart machinery monitoring systems. In API 670 applications, this proximity system ensures reliable performance even in high-temperature environments where many transducers suffer from drift—the temperature-compensated design maintains accuracy up to +180°C with less than 5% drift.
Installation & Setup Guidance
Mount the transducer using two M4 screws (without DIN-rail mounting adaptor). For cable connections, use the self-locking miniature coaxial connectors and hand-tighten until locked. Ensure the extension cable length (4.0 m ±400 mm) meets system requirements. Optional protection like FEP sheath or stainless steel hose is set to none for this variant, but can be added if additional mechanical or chemical protection is needed.
Selection Guide & Purchasing Advice
When selecting the Vibro Meter 913-402-000-012/A1-E040-F0-G000, verify the part number matches your application requirements, particularly the extension cable length and optional protection. This module is a genuine replacement for Meggitt Vibro-Meter systems. For reliable sourcing, contact PLC Source PRO (ubest101) to ensure genuine, certified parts with fast delivery.
