Product Introduction

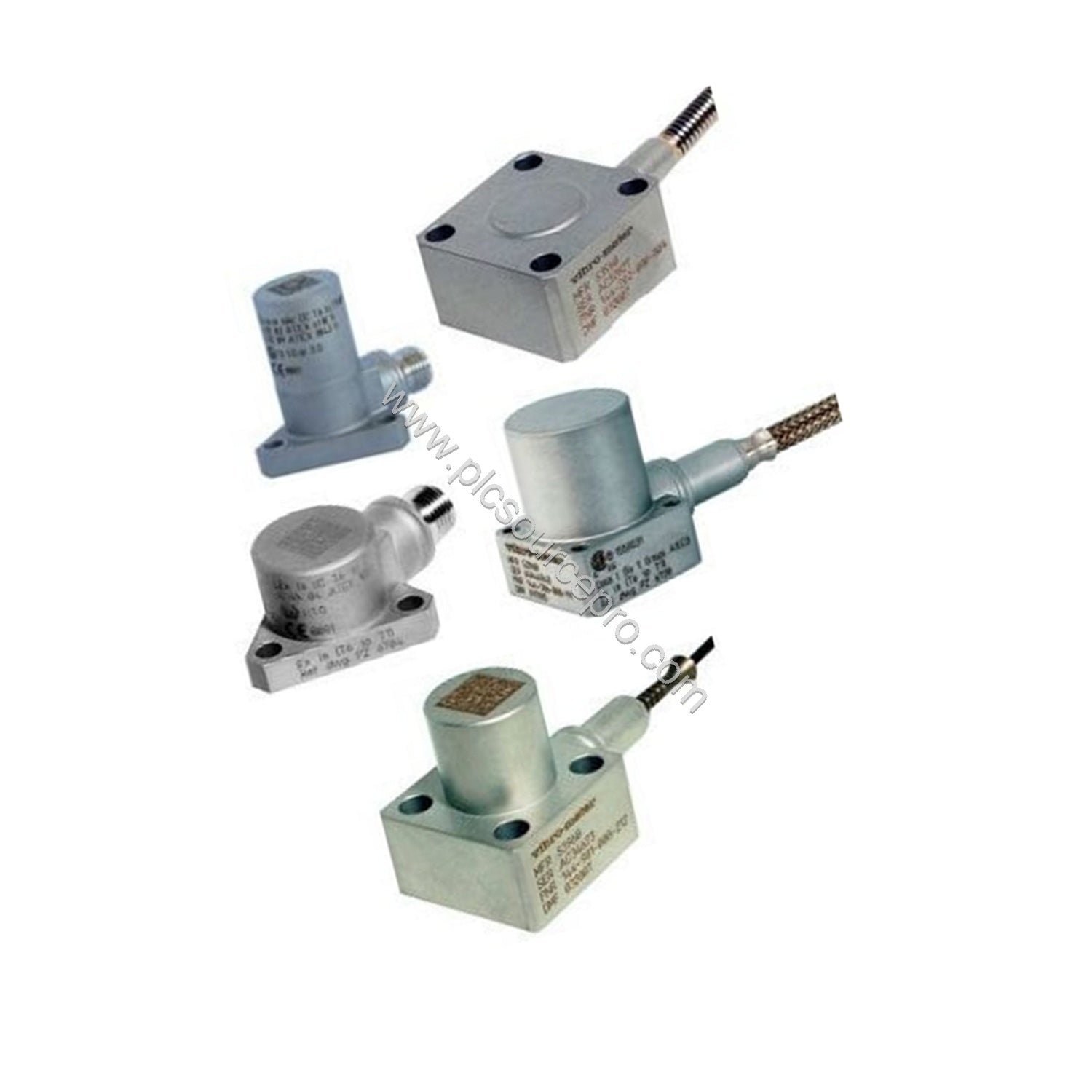

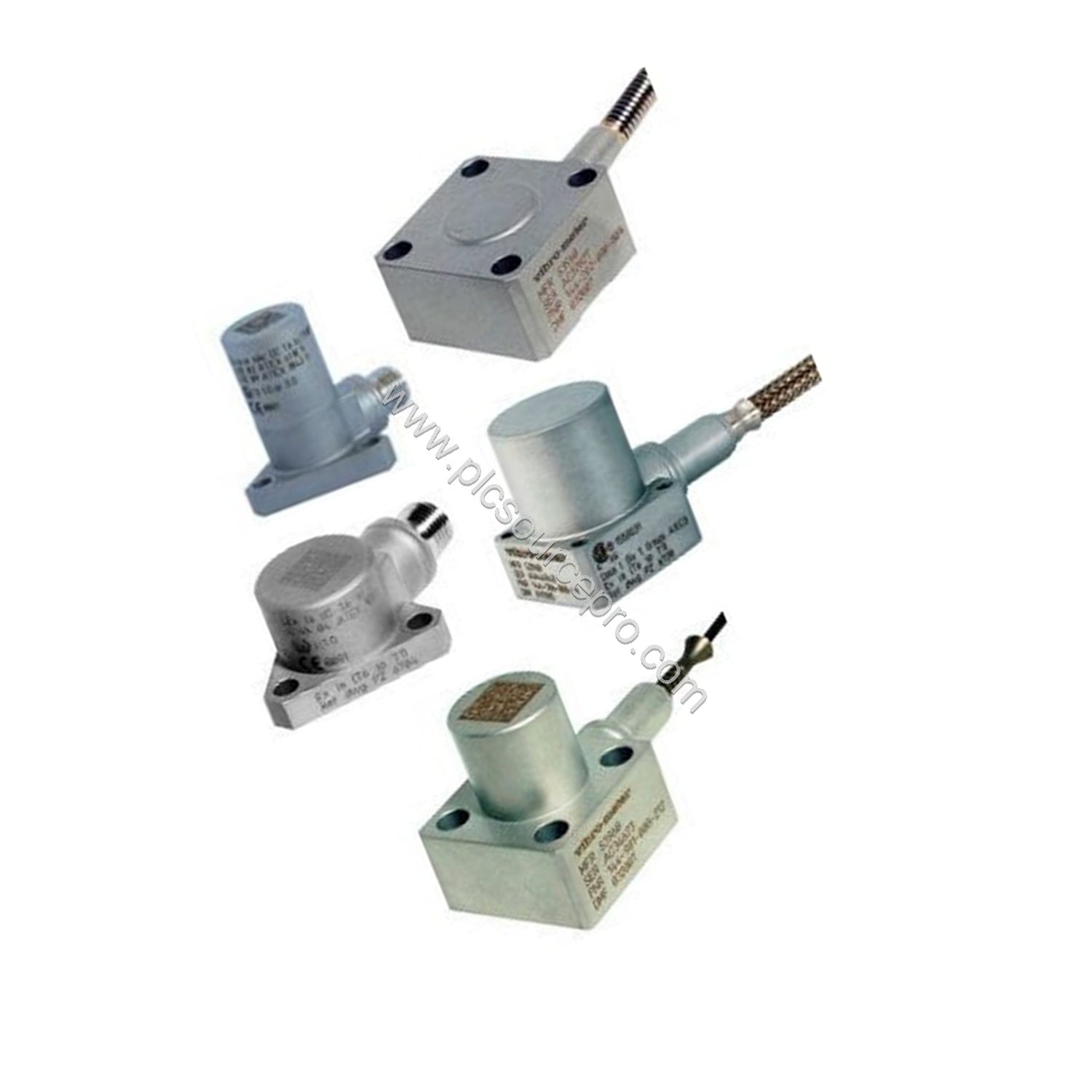

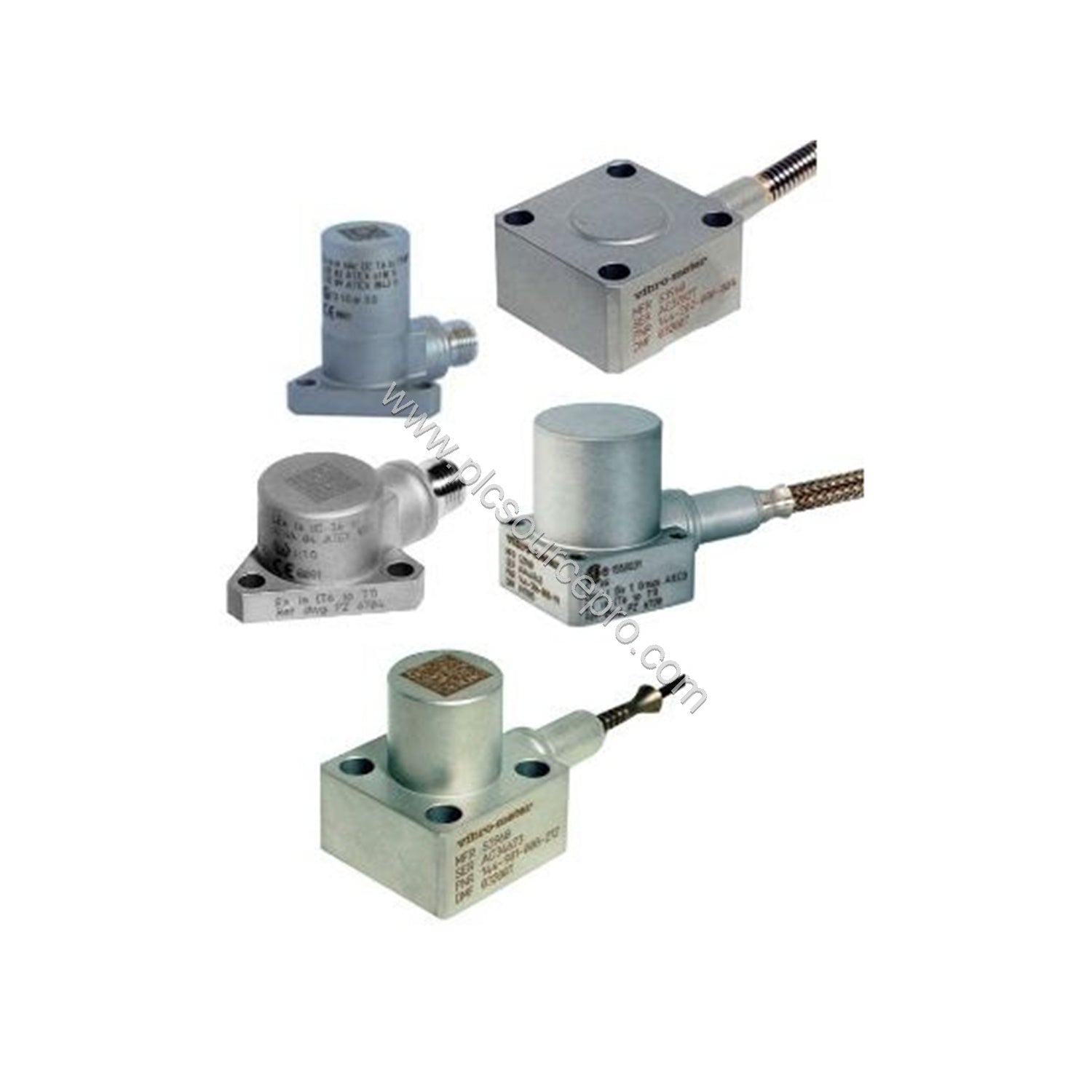

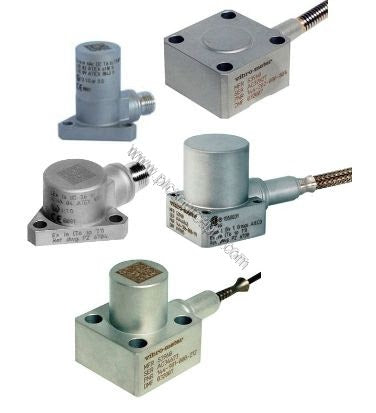

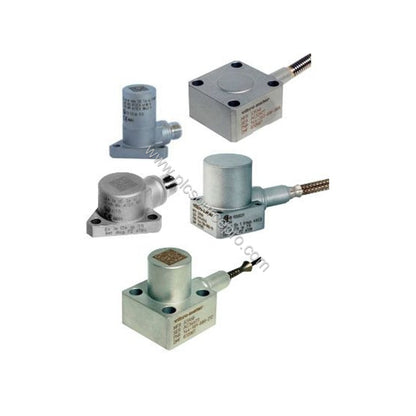

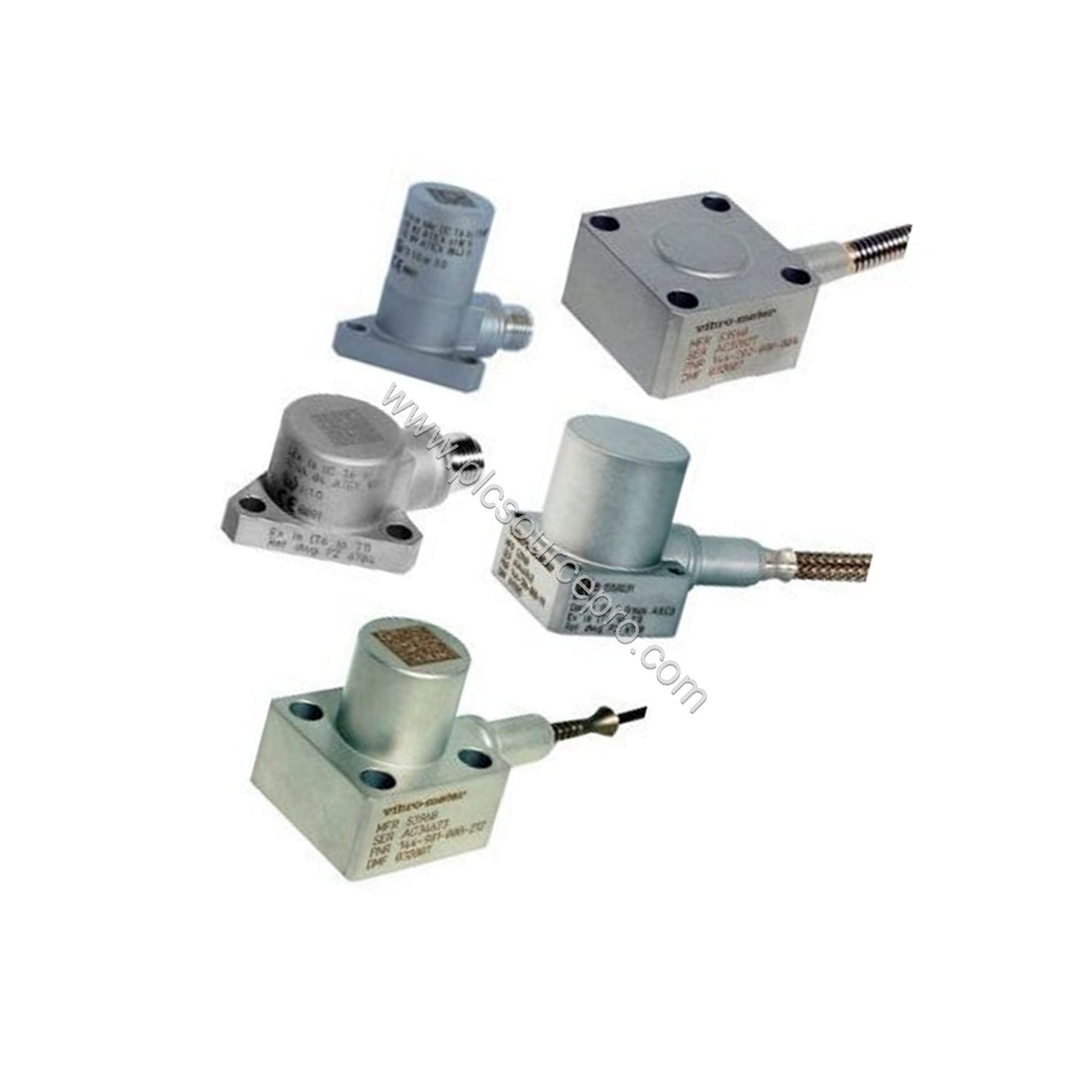

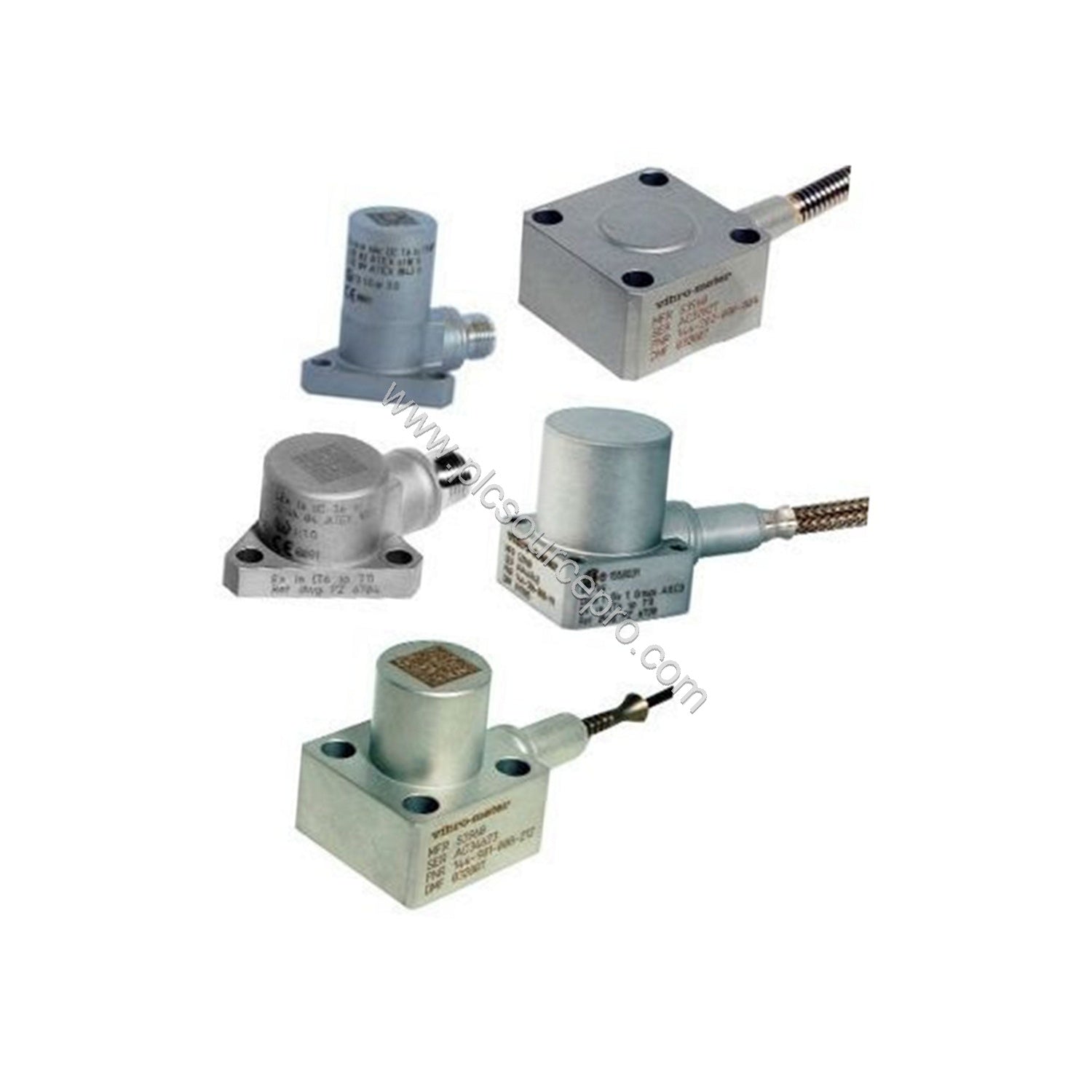

In harsh industrial environments, reliable vibration monitoring is critical to prevent equipment failure. The Vibro Meter 444-311-000-023 CE311 piezoelectric accelerometer delivers robust performance with integrated electronics for long-distance signal transmission. This sensor is part of Meggitt's vibro-meter product line and is designed for machinery protection and monitoring in hazardous areas.
Technical Specifications Breakdown
The following table lists key parameters for the Vibro Meter 444-311-000-023:
| Parameter |
Value |
| Sensitivity |
50 µA/g ±5% |
| Frequency Response |
2 to 8000 Hz (-3 dB at 2 Hz, <±5% 6-5000 Hz, <±10% 5000-8000 Hz) |
| Temperature Range (Continuous) |
−40 to 125°C (−40 to 257°F) |
| Input Power Supply |
15 to 28 VDC with bias current 5.5 to 7.5 mA |
| Dynamic Measurement Range |
0.004 to 40 gpeak |
| Overload Capacity |
Up to 100 gpeak (spikes) |
| Linearity |
±1% over dynamic range |
| Transverse Sensitivity |
<3% at 15 Hz, 5 g |
| Resonant Frequency (Mounted) |
20 kHz typ. |
| Shock Acceleration |
500 gpeak (half-sine wave, 1 ms) |
| Weight (Sensor) |
245 g (0.54 lb) approx. |
| Cable Weight |
135 g/m (0.091 lb/ft) approx. |
| Mounting Torque |
15 Nm (11.1 lb-ft) |
Installation & Setup Guidance
Mount the 444-311-000-023 accelerometer using four M6 × 35 Allen bolts (DIN 912, ISO 4762) with M6 spring-steel washers (DIN 7980). Apply a mounting torque of 15 Nm. The sensor includes an integral cable with flying leads for connection. Ensure the mounting surface is clean and flat to achieve optimal frequency response.
Maintenance & Reliability
The hermetically welded design of the Vibro Meter 444-311-000-023 provides excellent protection against cooling fluids, lubricants, water, steam, and contaminants. This construction minimizes maintenance needs and ensures long-term reliability. Dynamic calibration is performed at the factory and no subsequent calibration is necessary, reducing total cost of ownership.
Selection Guide & Purchasing Advice
When ordering, specify part number 444-311-000-023 for the standard version with 6 m integral cable. The sensor is available with different cable lengths; verify your application requirements. For reliable supply and technical support, procure this industrial automation module from PLC Source PRO (ubest101). Ensure your monitoring system includes a galvanic separation unit if required.
