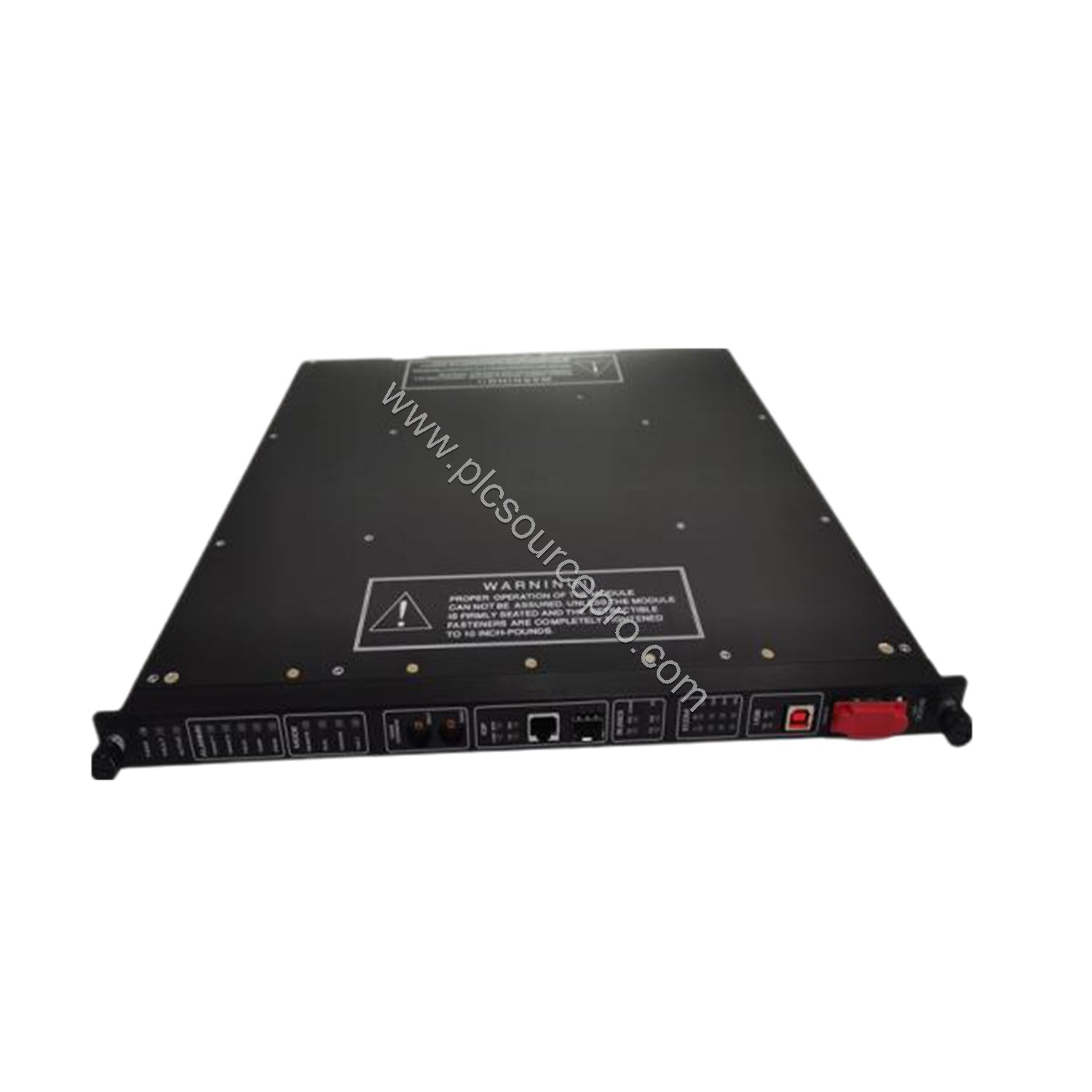

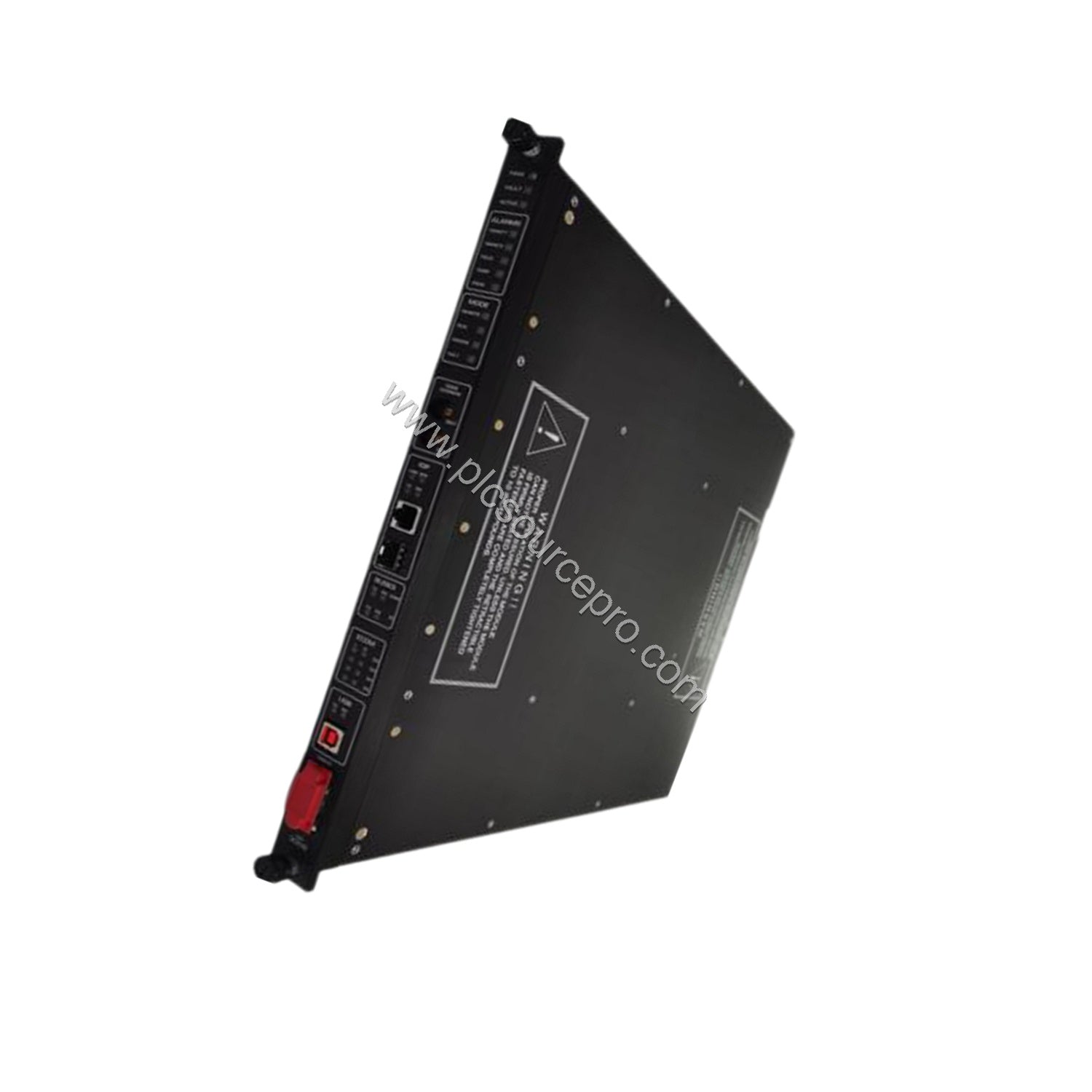

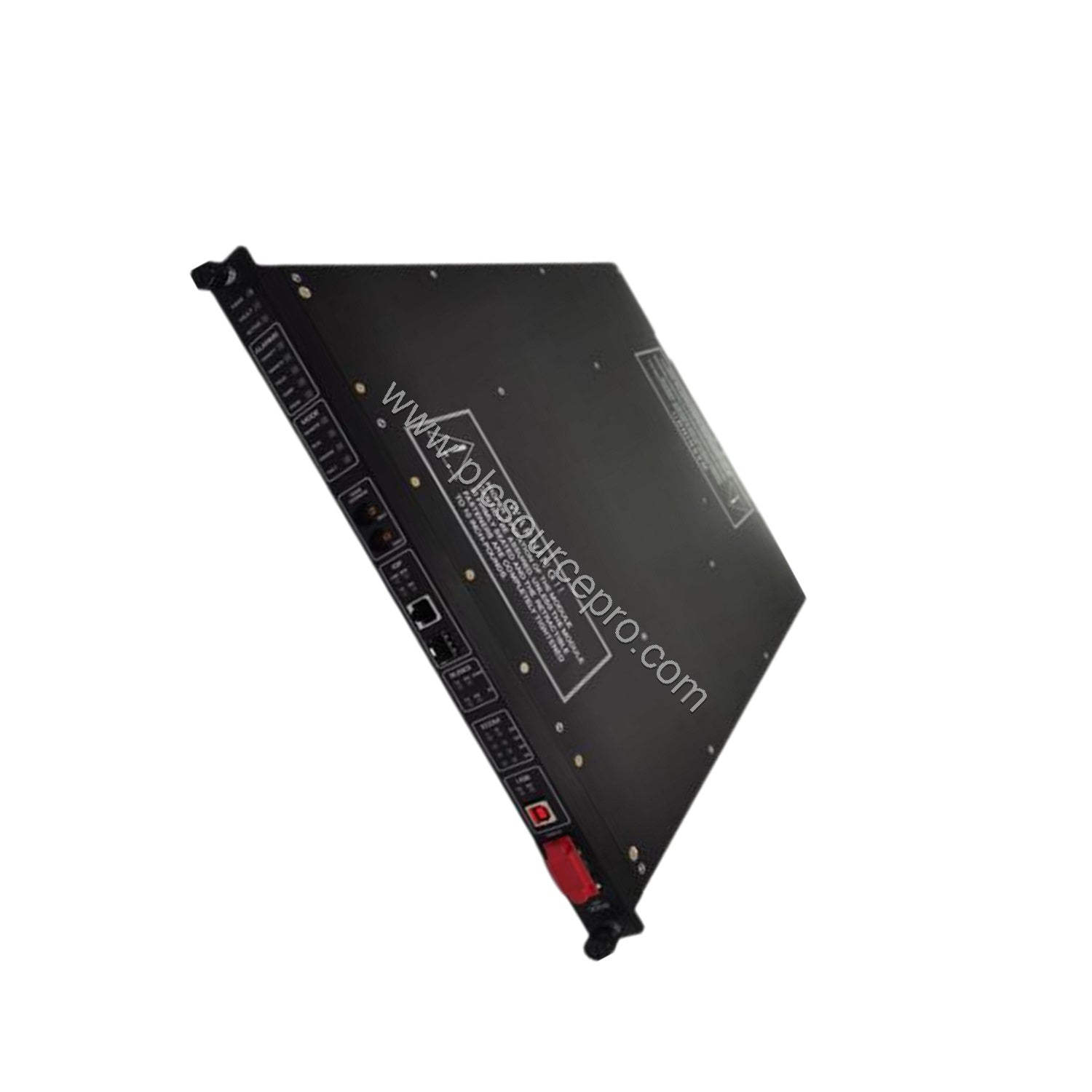

Product Overview – Triconex 4351A Communication Module
When your Tricon control system requires seamless communication across multiple networks, the Triconex 4351A Industrial Automation Module delivers robust performance. This Communication Module (TCM) is engineered for Tricon v10.0 and later systems, enabling connectivity with TriStation, other Tricon or Trident controllers, Modbus master and slave devices, and external hosts over Ethernet. Designed as a direct replacement for earlier modules, the 4351A supports online replacement without system shutdown, minimizing downtime during critical operations.
Technical Specifications
The Triconex 4351A offers precise industrial communication capabilities. Key specifications from the manufacturer include:
-
Serial Ports: 4, RS-232/RS-485 with DB-9 connectors
-
Network Ports (4351A): 2 copper Ethernet 10/100BaseT, RJ-45 connectors
-
Port Isolation: 500 VDC
-
Protocols Supported: TriStation, Modbus, TCP/IP, ICMP, SNTP, TSAA, Trimble GPS, Peer-to-Peer, Peer-to-Peer Time Synchronization, Jet Direct
-
Modbus Functions: 01–08, 15, 16 (Read Coil Status, Read Input Status, Read Holding Registers, Read Input Registers, Modify Coil Status, Modify Register Content, Read Exception Status, Loopback Diagnostic Test, Force Multiple Coils, Preset Multiple Registers)
-
Communication Speed: Copper Ethernet: 10/100 Mbps; Serial ports: up to 115.2 Kbps per port
-
Status Indicators: PASS, FAULT, ACTIVE, FIRM; LINK, TX, RX per port
These specifications ensure reliable data exchange in demanding industrial environments.
Industry Applications
In sectors such as oil and gas, power generation, and chemical processing, the Triconex 4351A serves as the communication backbone for safety and control systems. It enables Modbus communication with field devices, supports TriStation for programming, and connects to peer Tricon controllers for redundant operations. For example, a refinery upgrading from older serial-only modules can replace them with the 4351A to gain faster Ethernet connectivity and expanded protocol support, improving overall plant efficiency.
Compatibility & Integration
The 4351A is fully compatible with Tricon v10.0 and later systems. It integrates seamlessly with TriStation software, Modbus master/slave networks, and TCP/IP-based hosts. Each TCM supports an aggregate data rate of 460.8 Kbps across four serial ports. A single Tricon system can host up to four TCMs in two logical slots, but different TCM models cannot be mixed in one slot. Network ports support TCP/IP, Modbus TCP/IP Slave/Master, TSAA, TriStation, SNTP, and Jet Direct protocols. NET 1 also handles Peer-to-Peer and Peer-to-Peer Time Synchronization.
Troubleshooting & Common Issues
During upgrade projects, one common issue is alias misconfiguration. The 4351A uses five-digit aliases to map Modbus addresses to Tricon variable names. Ensure that aliases are assigned in TriStation before commissioning. Another consideration: the TCM does not support hot-spare, but it can be replaced while the controller is online. If communication errors occur, verify that the correct firmware version is installed and that network cables (RJ-45 copper for 4351A) are securely connected. The clear status indicators (PASS, FAULT, ACTIVE, FIRM) help diagnose link and data transmission issues.
Selection Guide & Purchasing Advice
When selecting the Triconex 4351A, confirm your system’s compatibility (Tricon v10.0+) and network type (copper Ethernet for 4351A, fiber for 4352A). Verify that port requirements (4 serial, 2 Ethernet) align with your layout. For dependable supply and technical support, choose PLC Source PRO (available at ubest101.myshopify.com). We stock authentic modules to ensure seamless integration into your control network.
