Product Introduction

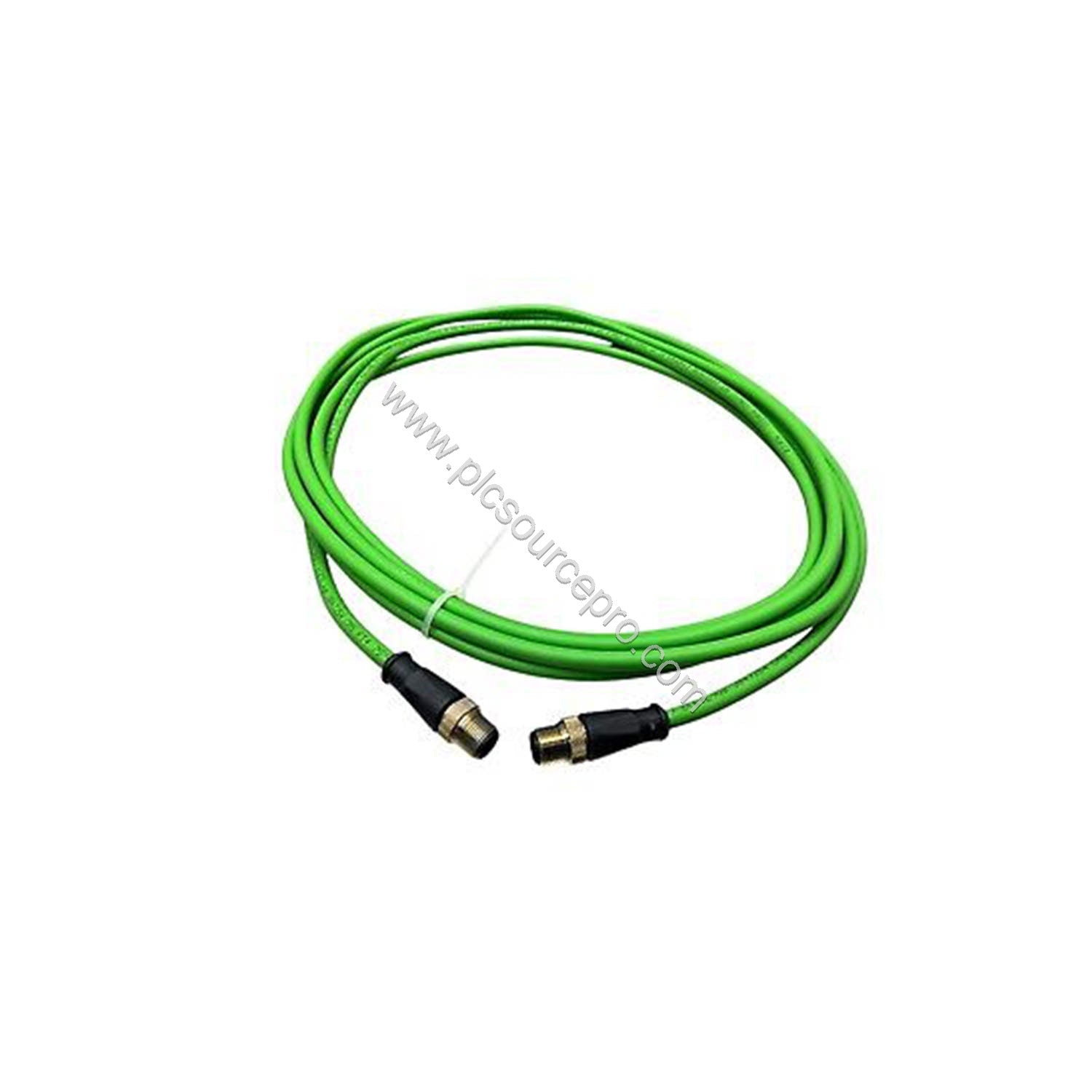

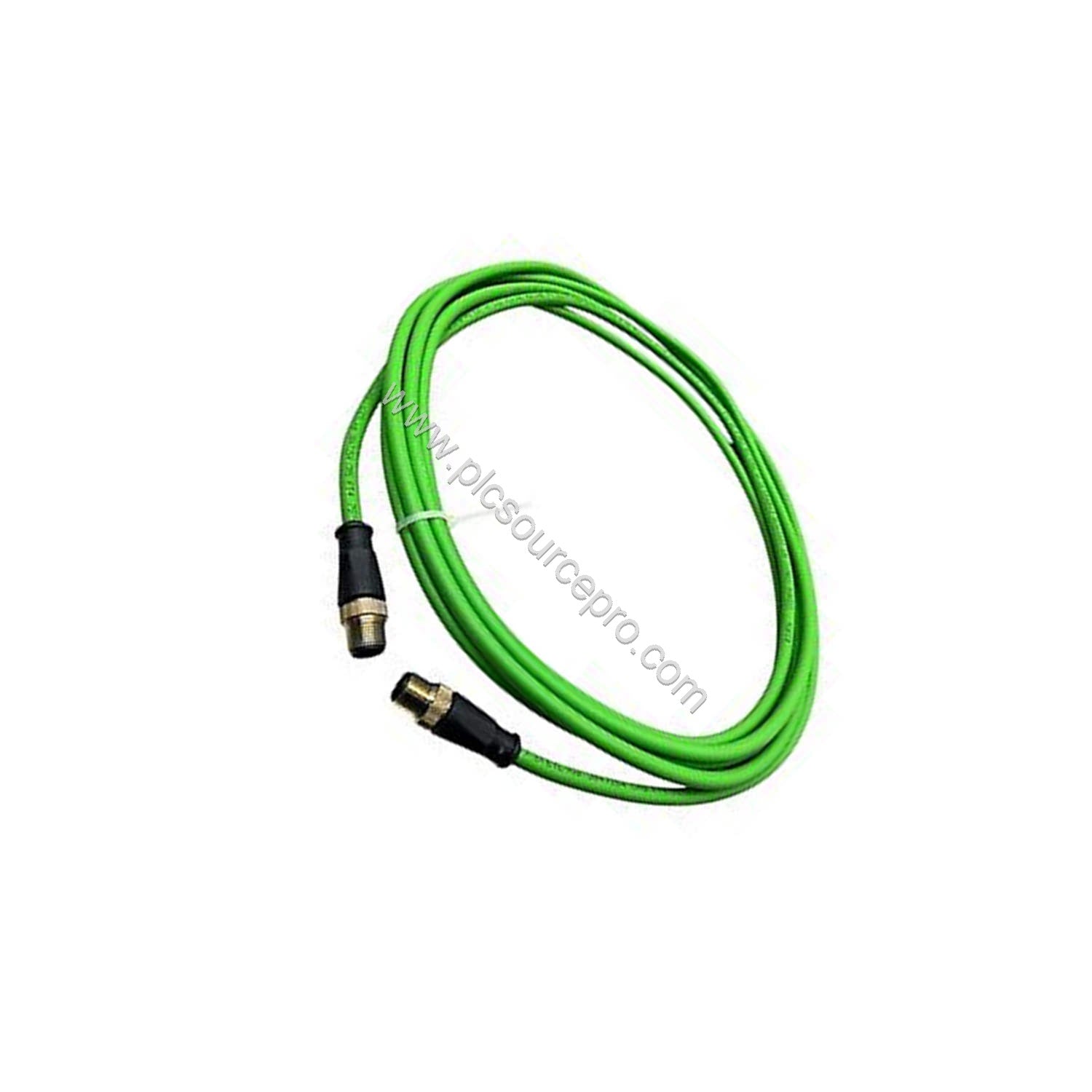

When you need a reliable, pre-assembled connection for Industrial Ethernet in harsh environments, the Siemens 6XV1870-8AH50 delivers robust performance. Part of the Siemens Industrial Ethernet family, the 6XV1870-8AH50 is a flexible, pre-assembled connecting cable designed for IP65/67 protected stations. It features two 4-pole M12 connectors (D-coded, 180° cable outlet) and a 5.0 m trailing cable suitable for drag chain applications.
Technical Specifications
| Parameter |
Value |
| Cable designation |
2YY (ST) CY 2x2x0,75/1,5-100 LI GN |
| Wire length |
5 m |
| Attenuation at 10 MHz (max) |
0.063 dB/m |
| Attenuation at 100 MHz (max) |
0.213 dB/m |
| Impedance (1 MHz … 100 MHz) |
100 Ω |
| Operating voltage (RMS) |
80 V |
| Bending radius – single bend (min) |
32.5 mm |
| Bending radius – multiple bends (min) |
49 mm |
| Bending radius – continuous (min) |
100 mm |
| Number of bending cycles (at 100 mm, 4 m/s, 4 m/s²) |
3,000,000 |
| Tensile load (max) |
150 N |
| Weight per length |
68 kg/km |
| Ambient temperature (operation/storage/transport) |
-25 … +75 °C |
| Ambient temperature (installation) |
-10 … +60 °C |
| Protection class IP |
IP65, IP67 |
| UL/ETL listing (300 V Rating) |
c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES |
| UL/ETL style (600 V Rating) |
cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| Structured cabling standard |
Cat5e |
Industry Applications
The Siemens 6XV1870-8AH50 is designed for connecting Industrial Ethernet stations such as SIMATIC ET200 and SCALANCE XP-200 in IP65/67 degree of protection environments. Its robust construction and drag chain suitability (3 million bending cycles) make it an ideal upgrade from older, less flexible cabling solutions. This cable reduces downtime and maintenance costs in automation cells, conveyor systems, and other moving machinery applications.
Installation & Setup Guidance

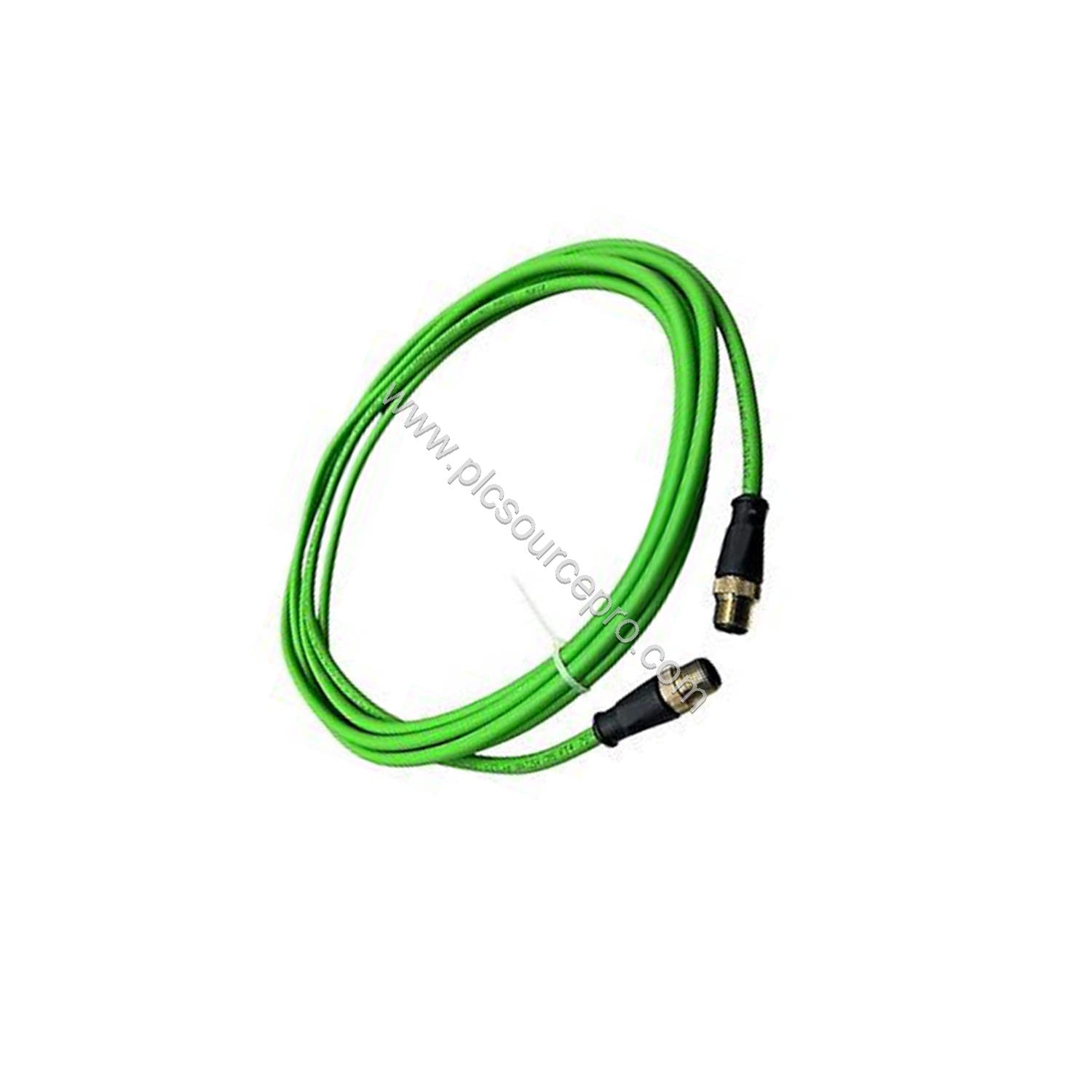

The pre-assembled Siemens 6XV1870-8AH50 simplifies installation – simply connect the M12 D-coded connectors to compatible devices and tighten the screw interlock. Route the cable with care: respect the minimum bending radii (32.5 mm for single bend, 49 mm for multiple bends) to avoid damaging the internal conductors. For continuous flexing applications, maintain a bending radius of at least 100 mm. Operate within the ambient temperature range of -25 to +75 °C during use and -10 to +60 °C during installation. The cable’s flame-resistant jacket (UL 1685) and UV resistance ensure long life even in demanding conditions.
Compatibility & Integration
The Siemens 6XV1870-8AH50 integrates seamlessly with SIMATIC ET200, SCALANCE XP-200, and any Industrial Ethernet device requiring M12 D-coded connectors. It meets Cat5e structured cabling standards, supporting 100 MHz data transmission with characteristic impedance of 100 Ω and low near-end crosstalk (0.5 dB/m). This cable is also RoHS, CE, and EAC approved. For a reliable replacement or upgrade, verify that your system uses 4-conductor, shielded M12 D-coded connections – the 6XV1870-8AH50 is the perfect fit.
Need help selecting the right cable? Contact ubest101 for expert advice on the Siemens 6XV1870-8AH50 and other industrial automation solutions.
