Product Overview: The Siemens 6XV1850-0BN30 ITP Standard Cable

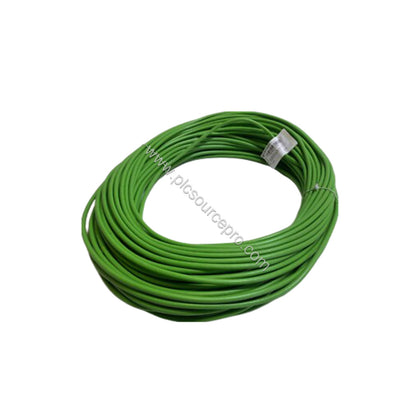

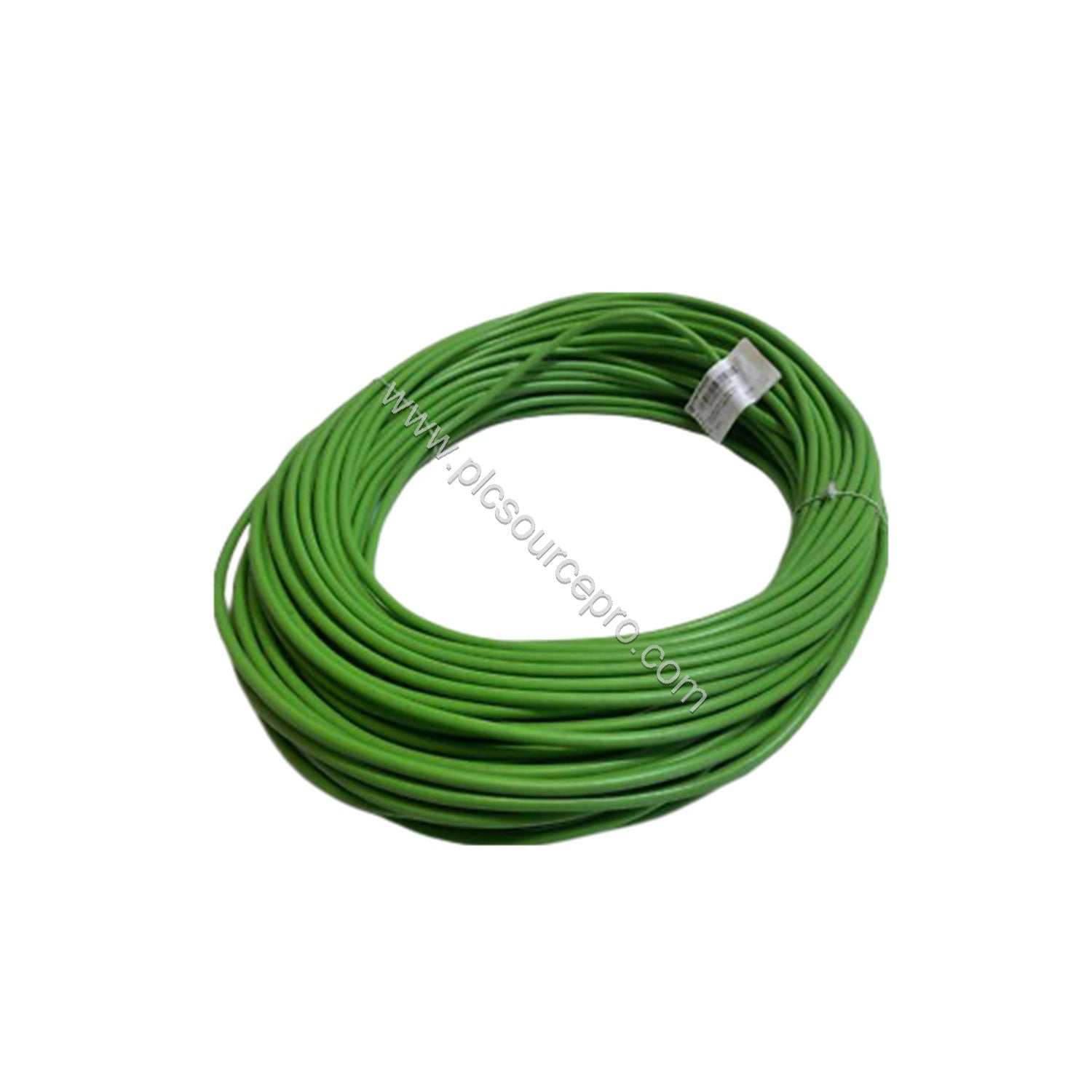

The Siemens 6XV1850-0BN30 is an industrial twisted pair cable designed for constructing Industrial Twisted Pair (ITP) networks. This preassembled cable comes with one 9-pole and one 15-pole D-sub connector, making it a ready-to-use solution for connecting terminals with ITP interfaces to active ITP network components. With a length of 30 meters, it offers flexibility in industrial automation setups and is an ideal replacement or upgrade for older ITP installations.
Technical Specifications Breakdown
The Siemens 6XV1850-0BN30 delivers robust electrical performance. Key parameters include:
-
Cable designation: J-02YSCY 2x2x0,64/1,5 PIMF F GN
-
Cable length: 30 m
-
Attenuation at 100 MHz: ≤ 0.18 dB/m
-
Impedance: 100 Ω (1 MHz to 300 MHz)
-
Loop resistance per length (max): 124 mΩ/m
-
Insulation resistance coefficient: 5000 GΩ·m
-
Operating voltage (RMS): 165 V (max 225 V)
-
Number of cores: 4
-

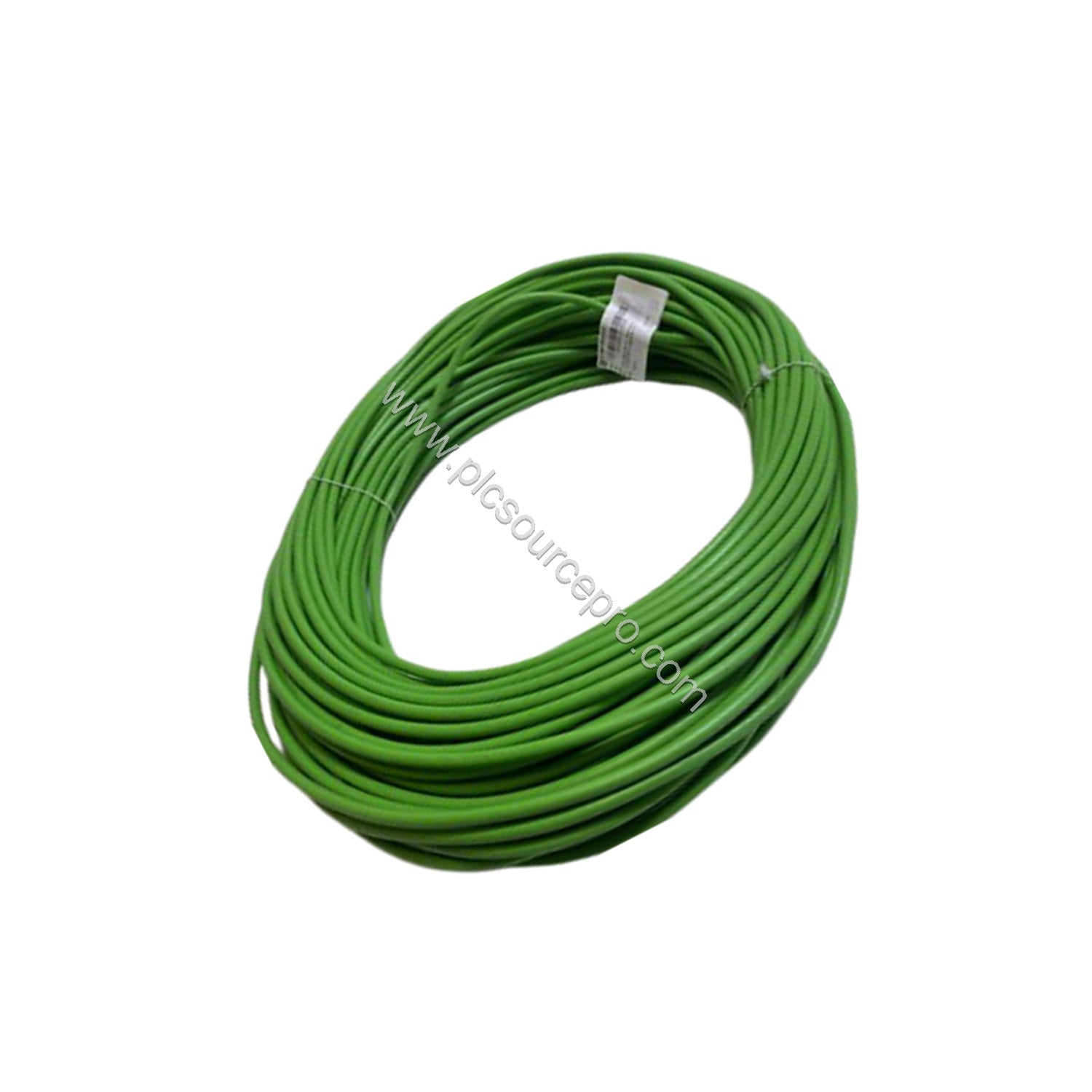

Shield design: Overlapped aluminum-clad foil with overall braided shield
-
Outer diameter: 6 mm (thickness) x 9.2 mm (width)
-
Bending radius (single bend min): 30 mm
-
Tensile load (max): 80 N
-
Weight per length: 96 kg/km
-
Ambient temperature range: -40 °C to +70 °C (operation, storage, transport, installation)
-
Burning behavior: Flame resistant per IEC 60332-1
-
Chemical resistance: Oil resistant per IEC 60811-2-1 (4 h / 70°C), conditional grease resistance
-
Protection class: IP20
-
Halogen-free: No; Silicon-free: Yes
Real-World Applications
Upgrading legacy ITP networks: The Siemens 6XV1850-0BN30 is an ideal direct replacement for older ITP cables in existing industrial Ethernet installations. Its preassembled 9-pole and 15-pole connectors simplify swap-outs, reducing downtime.
Connecting HMI and PLC terminals: Use this cable to link operator panels or controllers with ITP interfaces to active network components. The 30 m length accommodates typical distances on factory floors.
Installation Guidance
When installing the Siemens 6XV1850-0BN30, observe the minimum bending radius: 30 mm for single bends and 45 mm for multiple bends. Avoid exceeding the maximum tensile load of 80 N during pulling. The cable is suitable for fixed installation within the -40 °C to +70 °C ambient range. The IP20 protection class requires installation in a dry indoor environment or within a protected enclosure.
Reliability and Environmental Considerations
The Siemens 6XV1850-0BN30 is designed for harsh industrial environments. It withstands mineral oil exposure for 4 hours at 70 °C (per IEC 60811-2-1) and offers conditional grease resistance. Its flame-resistant jacket (IEC 60332-1) adds safety. The robust shield—aluminum-clad foil plus braided copper—ensures excellent EMI protection. However, it is not halogen-free, so consider this if low-smoke zero-halogen requirements apply.
Selection Guide and Purchasing Advice
Before purchasing the Siemens 6XV1850-0BN30, verify your ITP network requirements. This cable is preassembled with specific connectors (1x 9-pin and 1x 15-pin D-sub) and has a fixed 30 m length. Ensure the connectors match your devices and that the length suits your pathway. For reliable sourcing, consider ubest101 as a trusted supplier of genuine Siemens components. The Siemens 6XV1850-0BN30 delivers proven performance for upgrading or maintaining industrial automation networks.
