Product Overview

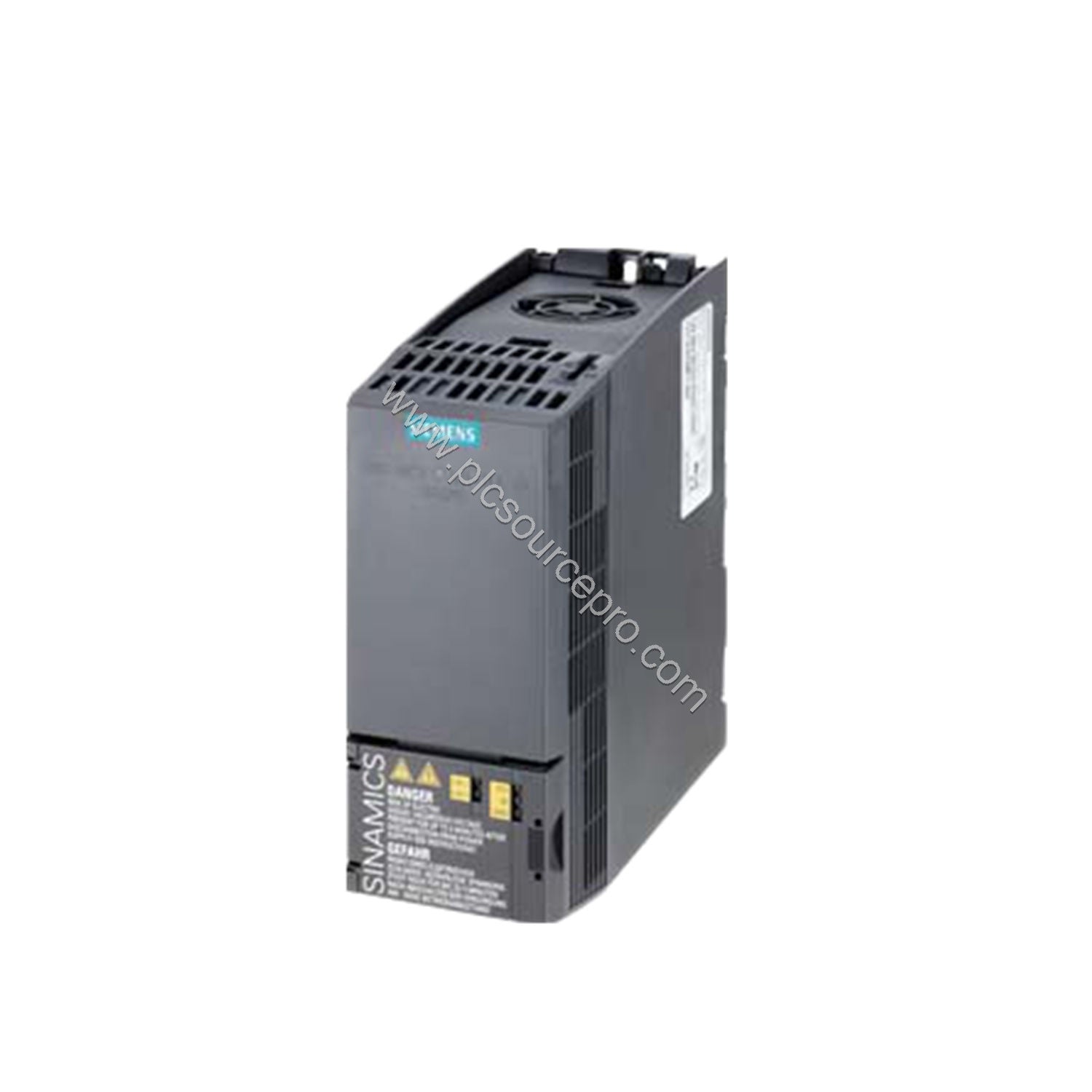

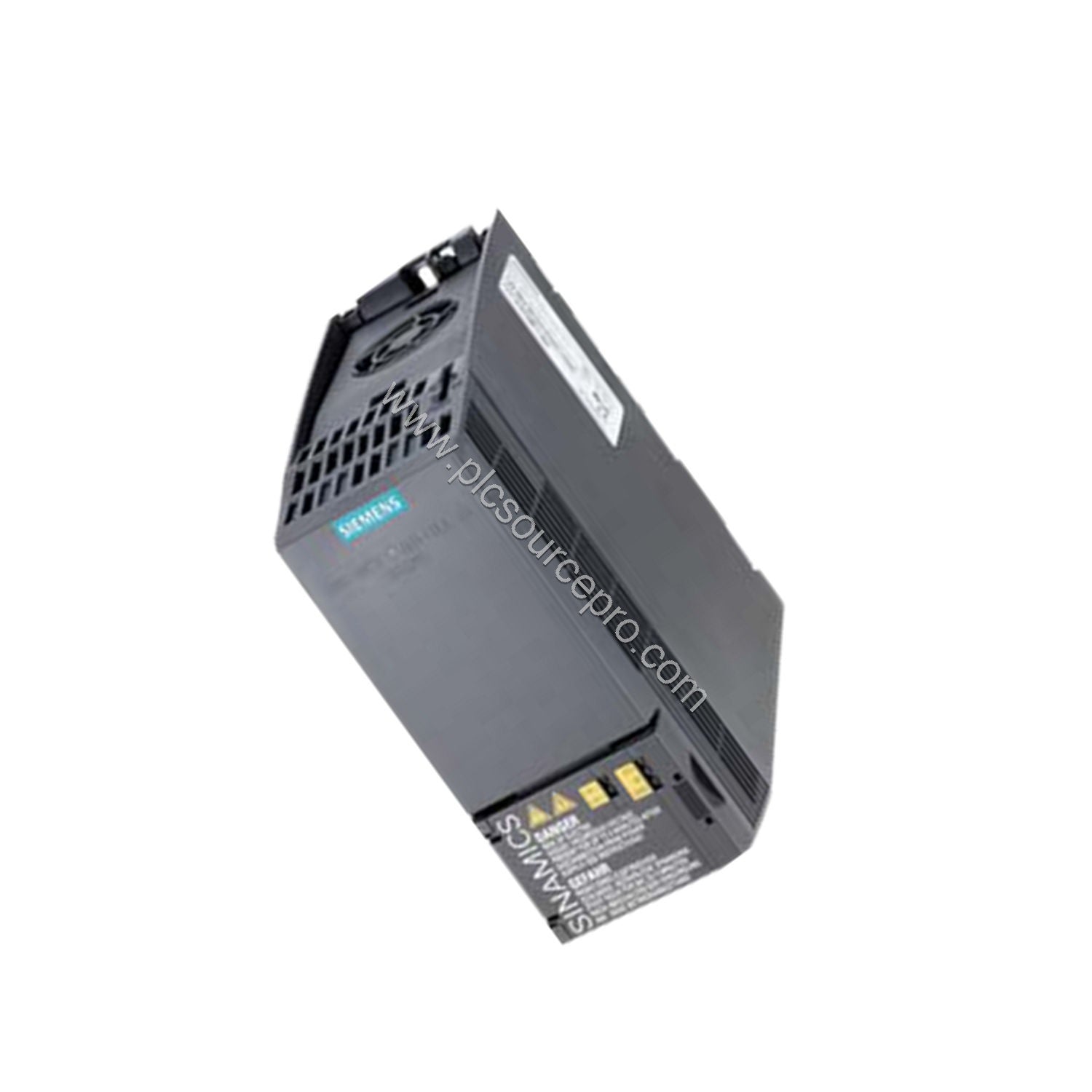

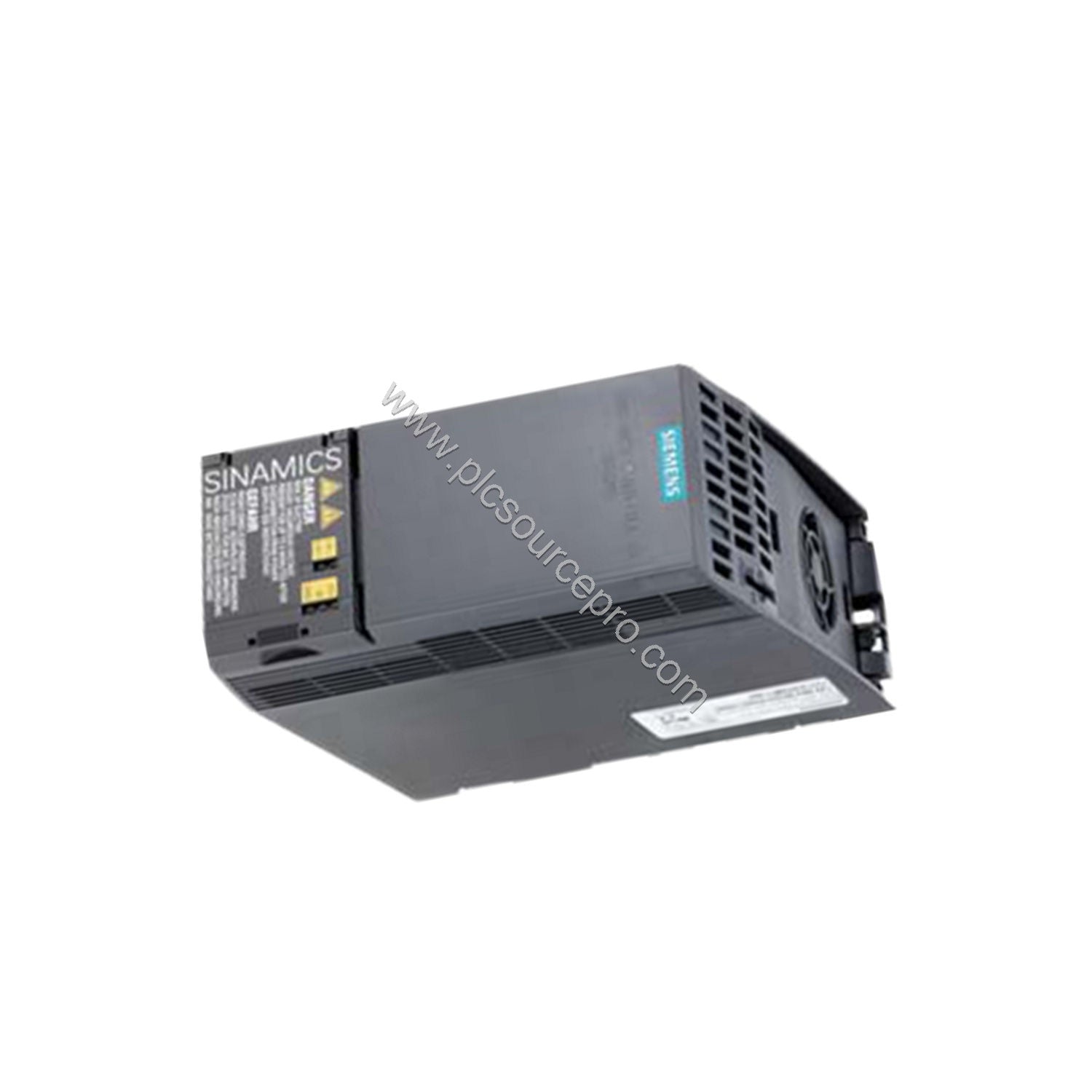

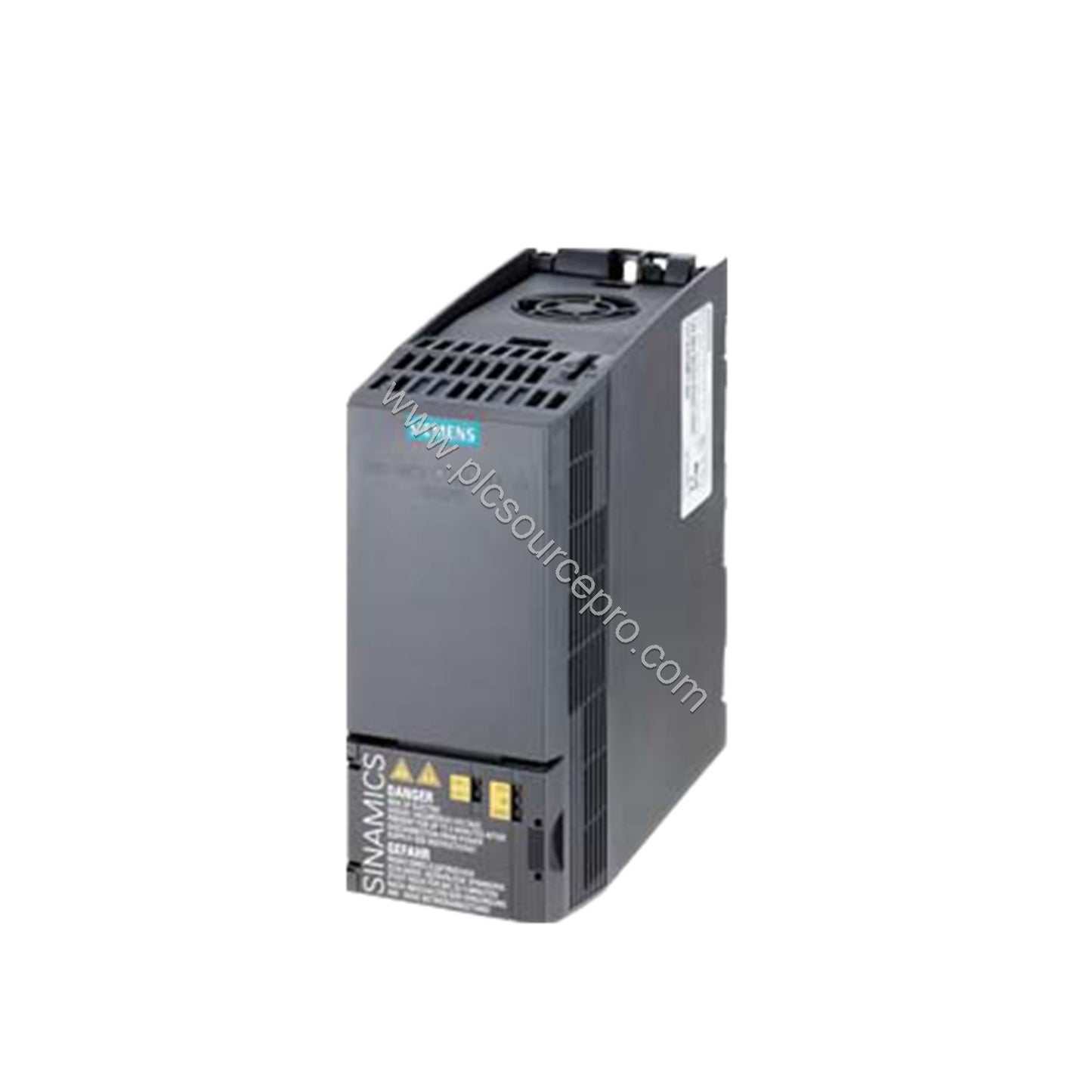

With a rated power of 1.10 kW (low overload) and 0.75 kW (high overload), the Siemens 6SL3210-1KE13-2UF2 Frame size FSAA drive delivers reliable performance for compact automation tasks. This versatile drive supports both V/f and sensorless vector control, making it suitable for a wide range of motor applications. Its integrated PROFINET and EtherNet/IP communication simplifies integration into modern control networks.
Key Technical Specifications
| Parameter |
Value |
| Input Voltage |
380-480 V AC ±10%, 3-phase |
| Line Frequency |
47-63 Hz |
| Rated Output Power (LO) |
1.10 kW / 1.50 hp |
| Rated Output Power (HO) |
0.75 kW / 1.00 hp |
| Output Current (LO) |
3.10 A |
| Output Current (HO) |
2.20 A |
| Max. Output Current |
4.40 A |
| Pulse Frequency |
4 kHz |
| Output Frequency (V/f) |
0-550 Hz |
| Efficiency η |
0.97 |
| Power Loss |
48.1 W |
| Overload Capacity (LO) |
150% for 3 s, then 110% for 57 s |
| Overload Capacity (HO) |
200% for 3 s, then 150% for 57 s |
| Communication |
PROFINET, EtherNet/IP |
| Degree of Protection |
IP20 / UL open type |
| Net Weight |
1.40 kg (3.09 lb) |
Industry Applications
The Siemens 6SL3210-1KE13-2UF2 Frame size FSAA drive excels in applications requiring precise speed and torque control. Common uses include conveyor systems, pumps, fans, and small packaging machines. With its high efficiency (η=0.97) and low power loss (48.1 W), this drive contributes to reduced energy costs over time. The ability to handle both low overload (150%) and high overload (200%) cycles makes it robust for start/stop processes and sudden load changes.
Installation and Setup Guidance
Install the Siemens 6SL3210-1KE13-2UF2 in a clean, dry environment within an IP20 enclosure. The drive requires 0.005 m³/s of cooling air from its integrated fan. Use plug-in screw terminals for line, motor, and DC link connections. Ensure proper conductor cross-sections: 1.00-2.50 mm² for power wiring. The maximum shielded motor cable length is 150 m. Maintain ambient temperatures between -10°C and 40°C during operation.
Compatible Systems and Communication
This Siemens 6SL3210-1KE13-2UF2 drive integrates seamlessly with PROFINET and EtherNet/IP networks, allowing direct connection to PLCs from Siemens, Rockwell, and other major brands. It supports standard digital I/O (6 inputs, 2 outputs) and analog I/O for flexible control. The drive also includes a PTC/KTY motor temperature sensor input for thermal protection.
Selection and Purchasing Advice
Before purchasing the Siemens 6SL3210-1KE13-2UF2, verify your motor’s rated power and voltage match the drive’s output capabilities. Consider whether low overload or high overload duty cycles fit your application. For reliable supply, choose UBEST Automation (visit ubest101). We ensure genuine Siemens parts and fast delivery for your industrial automation needs.
