Product Overview

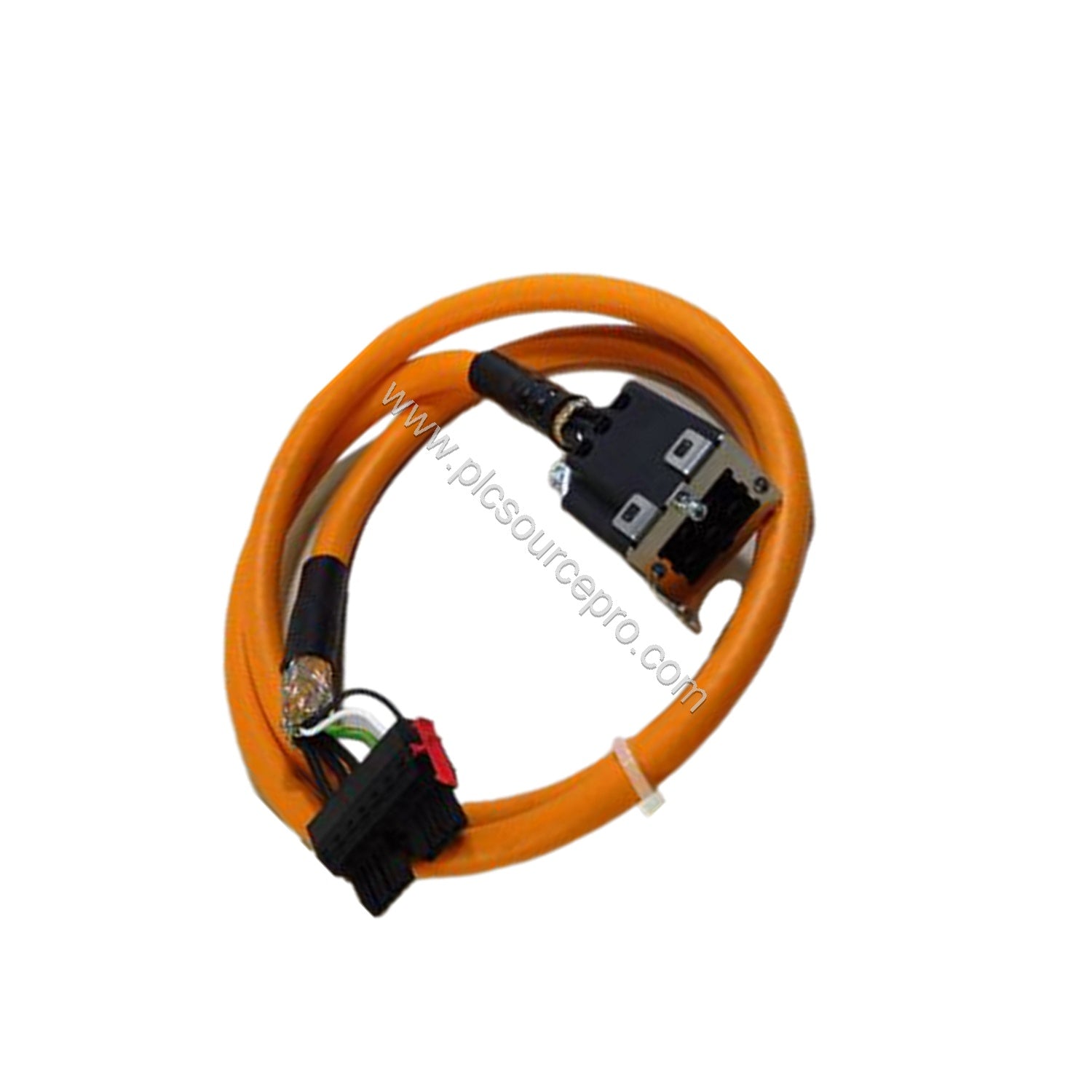

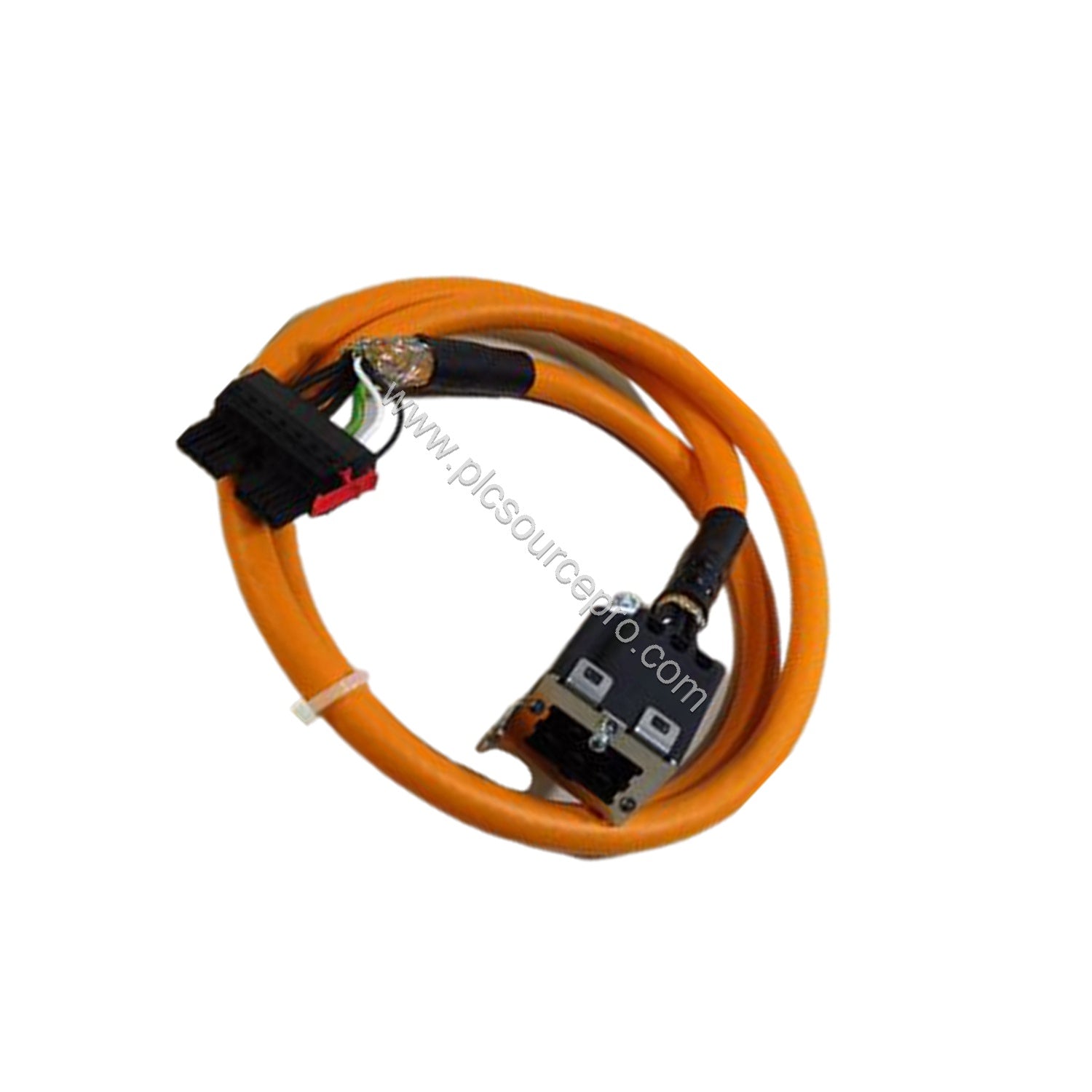

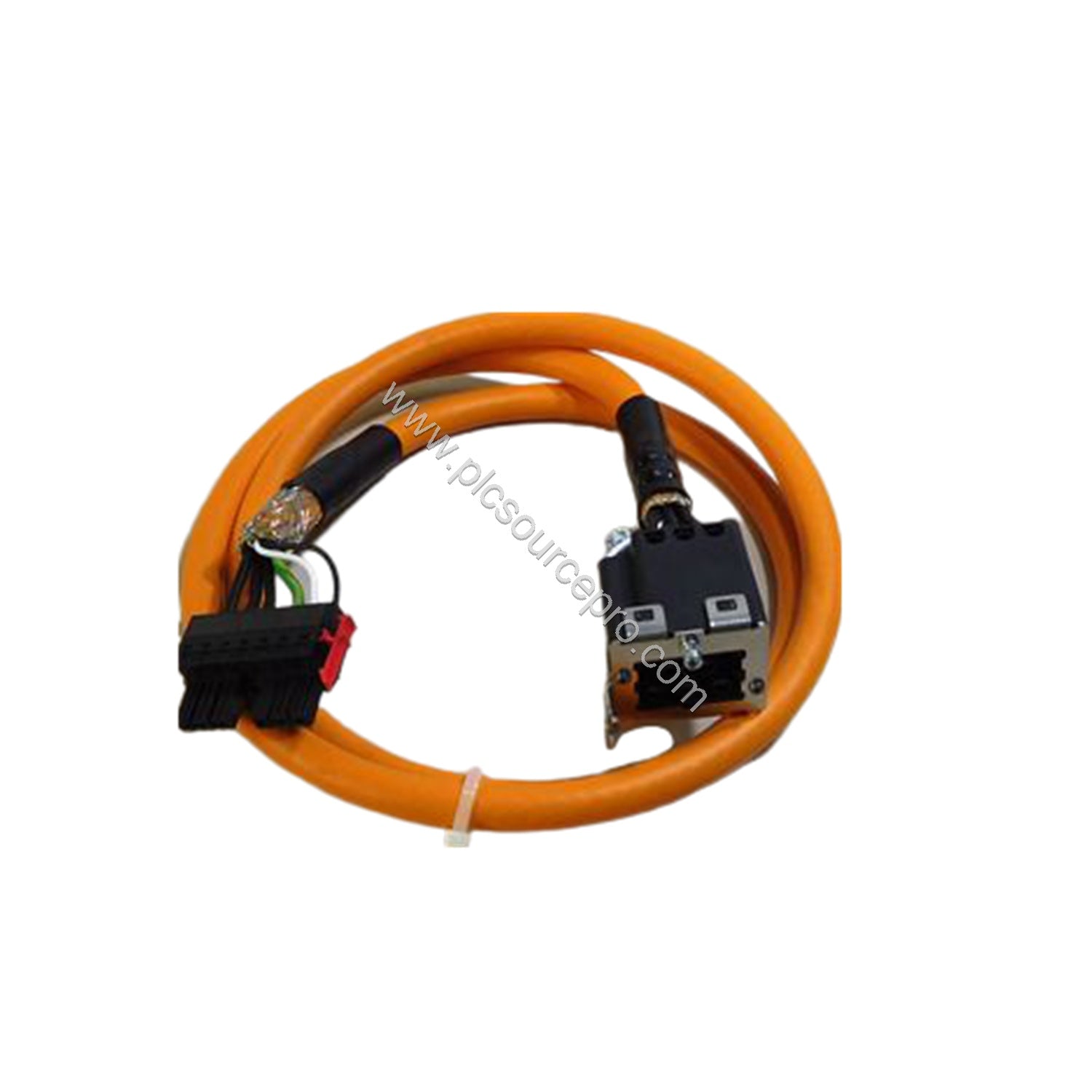

The Siemens 6SL3162-2ME01-0AC0 is a dedicated adapter cable designed for motor connection within the SINAMICS S120 drive system. This cable, rated for 2.5mm² conductors, supports motor modules rated from 3A to 18A, ensuring a secure and efficient power supply to your motors. As part of the Siemens SINAMICS family, the 6SL3162-2ME01-0AC0 offers the robust quality and reliability expected in demanding industrial environments.
When motor connection issues arise—such as intermittent faults or poor signal integrity—the Siemens 6SL3162-2ME01-0AC0 provides a reliable interface that minimizes these risks. Its precision-engineered connectors and proper cable cross-section reduce voltage drop and prevent overheating, common failure points in motor cabling.
Technical Specifications
Note: Detailed technical specifications for this item are not provided in the product database. Please contact UBEST Automation for complete datasheets and parameter information. The known specifications from the product description include:
-
Cable Type: SINAMICS S120 C/D Type Adapter Cable for Motor Connection
-
Conductor Cross-Section: 2.5 mm²
-
Supported Motor Modules: 3A to 18A
-
Compliance: RoHS conformant since 08/02/17
Industry Applications
The Siemens 6SL3162-2ME01-0AC0 is ideally suited for use in manufacturing lines, conveyor systems, and machine tools where SINAMICS S120 drives power servo and main spindle motors. In a typical packaging machine, for example, the cable connects a 10A motor module to the motor, handling continuous stop-start cycles without degradation. Its 2.5mm² cross-section ensures adequate current capacity while maintaining flexibility for installation in tight control cabinets.
Another application is in robotic welding cells, where the Siemens 6SL3162-2ME01-0AC0 links the drive to the robot arm motors, reducing electrical noise and ensuring precise motion control. The cable's design helps maintain signal integrity over long distances, critical for synchronized multi-axis movements.
Installation & Setup
For optimal performance, install the Siemens 6SL3162-2ME01-0AC0 by first ensuring the drive system is de-energized. Connect the cable’s motor-side connector firmly to the motor junction box, and the drive-side connector to the matching port on the SINAMICS S120 Motor Module. Verify that the cable is not stressed or bent beyond its minimum bend radius. Use appropriate cable ties to secure the cable along its path, avoiding proximity to high-voltage lines or heat sources. Always torque the connector screws to the specifications (refer to the drive manual) for a vibration-resistant connection.
Maintenance & Reliability
The Siemens 6SL3162-2ME01-0AC0 requires minimal maintenance, but periodic inspection is recommended. Check for signs of wear, such as cracked insulation or corrosion on the connectors, especially in humid or chemically aggressive environments. Replacing the cable proactively every 5–7 years can prevent unexpected downtime. By choosing a genuine Siemens cable like the 6SL3162-2ME01-0AC0, you reduce the risk of intermittent faults that can cause costly production stoppages.
Selection Guide
Before purchasing the Siemens 6SL3162-2ME01-0AC0, verify that your SINAMICS S120 Motor Module is within the 3–18A range and that the cable length meets your installation requirements. This cable is a direct replacement for OEM connections, ensuring compatibility without modifications. For other motor modules or alternative cable cross-sections, consult with UBEST Automation’s product specialists to find the correct adapter. When ordering, use the exact part number 6SL3162-2ME01-0AC0 to ensure you receive the genuine Siemens component.
