Product Introduction

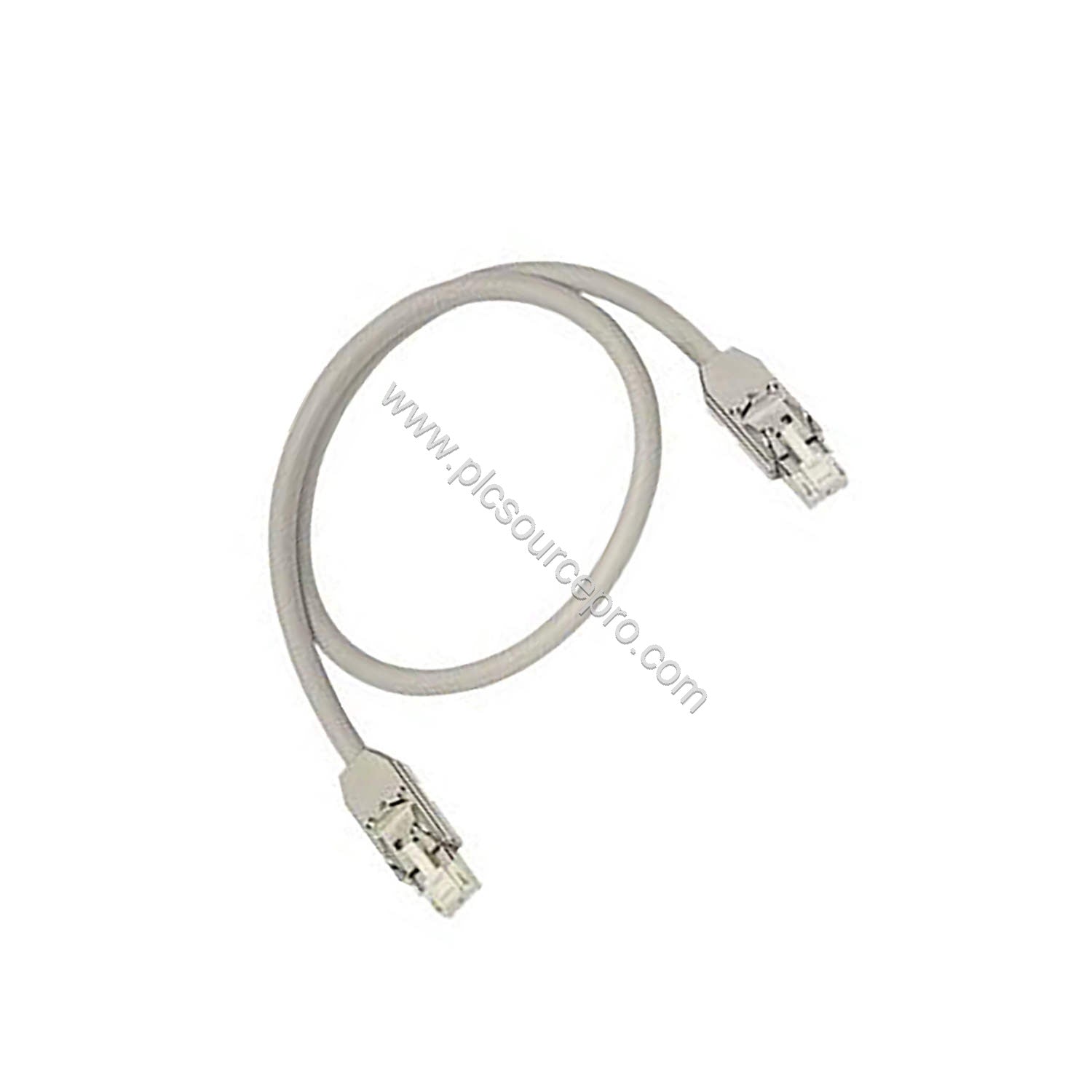

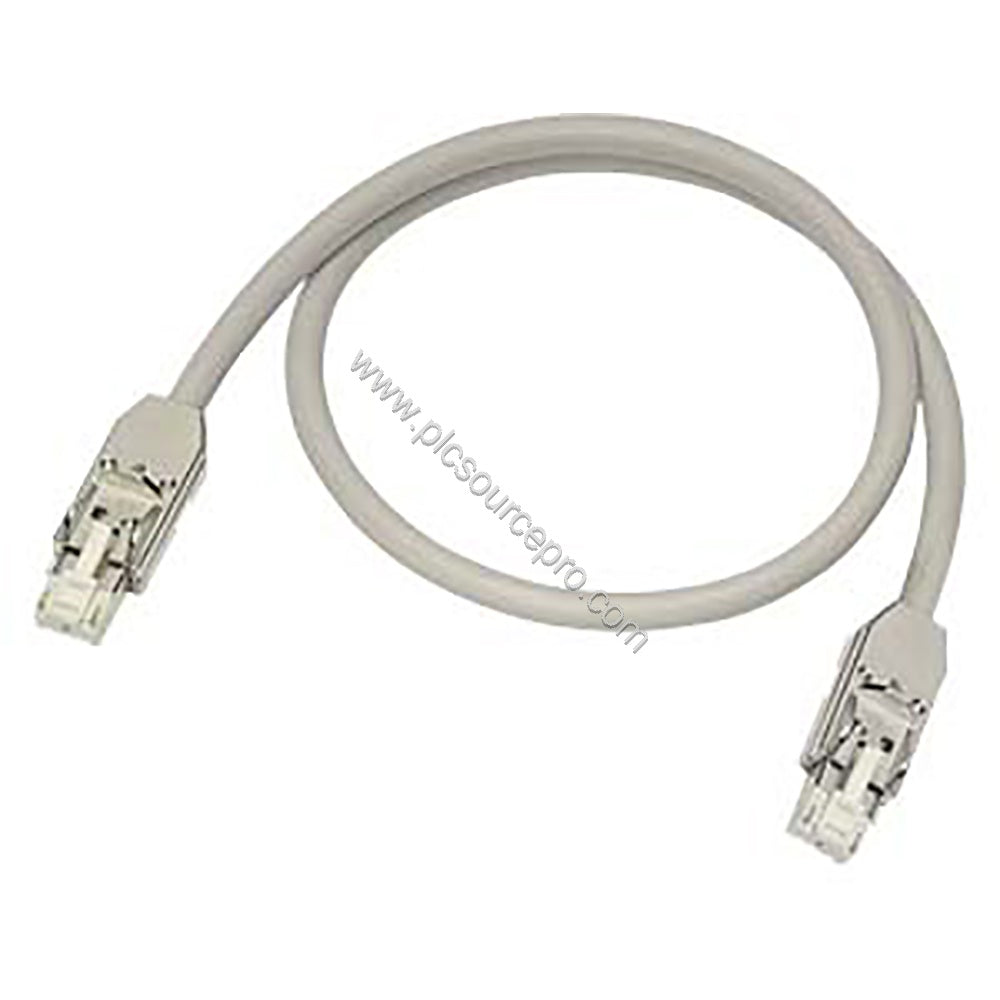

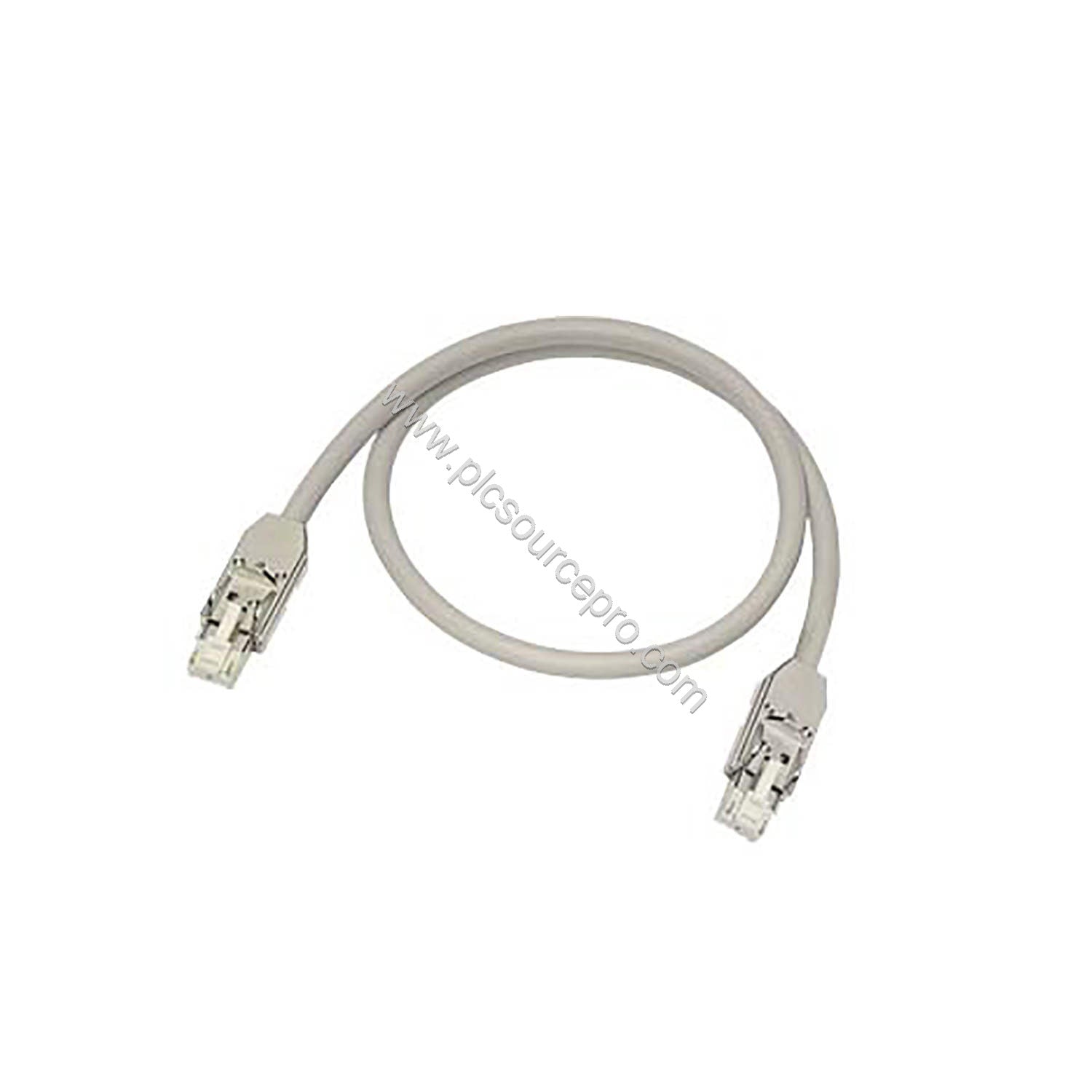

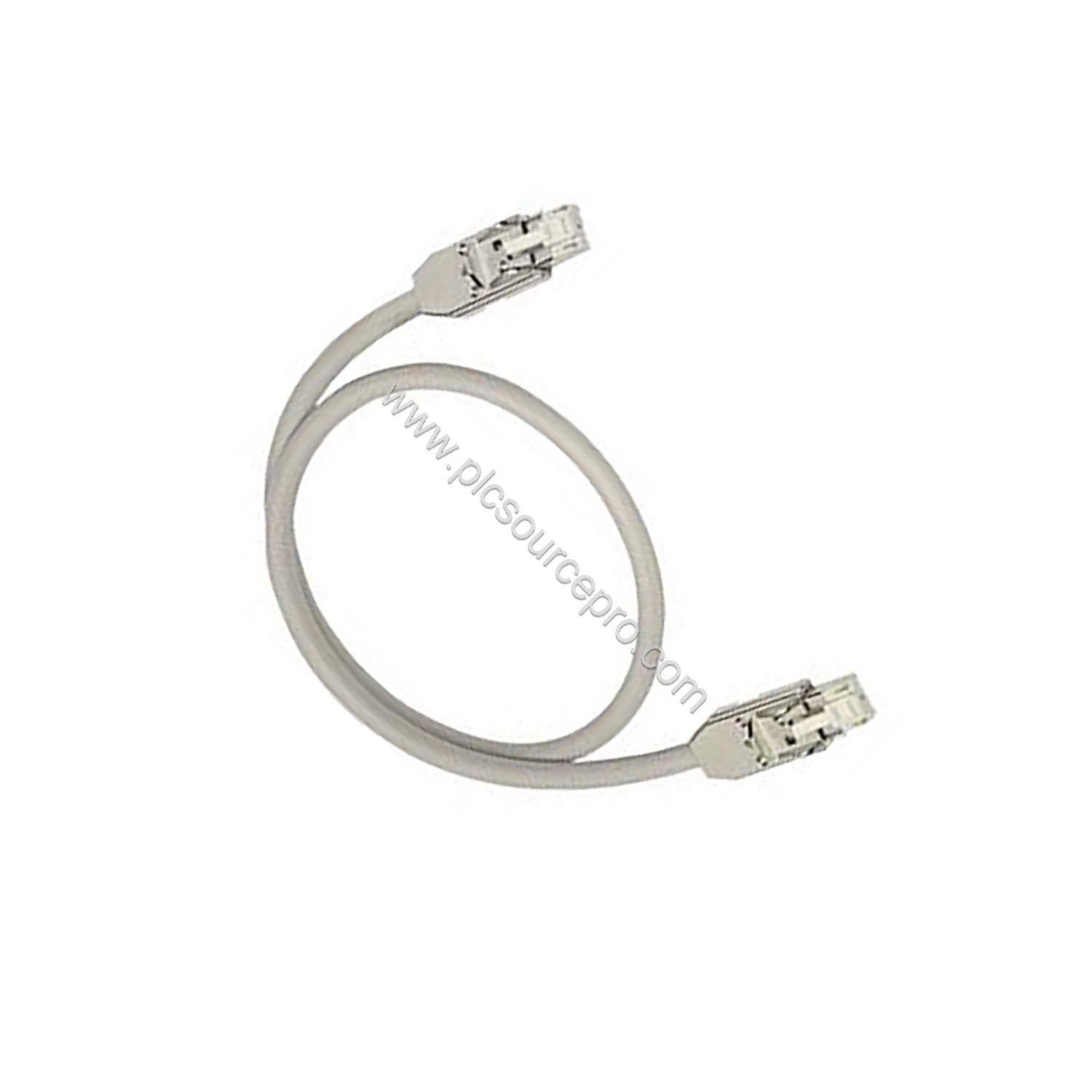

When upgrading your SINAMICS S120 system to the latest Drive-CLiQ communication standard, the Siemens 6SL3060-4AJ20-0AA0 signal cable provides a direct and reliable connection. This cable, part of the Drive-CLiQ series, replaces older point-to-point wiring with a single, shielded RJ45 link. With a length of 2.8 meters and IP20/IP20 protection, it ensures clean data transfer between drive components.
Siemens 6SL3060-4AJ20-0AA0 Key Specifications
| Attribute |
Value |
| Manufacturer |
Siemens |
| Part Number |
6SL3060-4AJ20-0AA0 |
| Product Type |
DRIVE-CLiQ Cable (RJ45 to RJ45) |
| Cable Length |
2.8 m |
| Connector Type (End 1) |
RJ45 |
| Connector Type (End 2) |
RJ45 |
| Connector Angle (End 1) |
Straight |
| Connector Angle (End 2) |
Straight |
| Protection Rating |
IP20 / IP20 |
| Series |
Drive-CLiq |
| UPC |
662643066944 |
These specifications are derived from the product catalog. For more detailed technical data, please contact our sales team at UBEST Automation.
Industry Applications
The Siemens 6SL3060-4AJ20-0AA0 cable is engineered for SINAMICS S120 drive systems, where precise motor control and real-time data exchange are critical. Typical applications include conveyor systems in automotive plants, packaging lines, and material handling equipment. By upgrading to Drive-CLiQ, users achieve deterministic communication with fewer wiring errors compared to traditional parallel cabling.
Installation & Setup Guidance
To install the Siemens 6SL3060-4AJ20-0AA0, ensure both ends are plugged securely into compatible Drive-CLiQ sockets. Avoid sharp bends (minimum bend radius 10x cable diameter) and route the cable away from high-voltage power lines to prevent electromagnetic interference. The straight RJ45 connectors fit into standard IP20 modules without additional tools. Always verify that the cable length (2.8 m) matches the distance between devices to avoid signal degradation.
Compatible Systems
This cable is fully compatible with SINAMICS S120 Control Units, Line Modules, and Motor Modules equipped with Drive-CLiQ interfaces. It also works with other Siemens components that support the Drive-CLiQ protocol, such as SIMOTION and SINUMERIK controllers. The 6SL3060-4AJ20-0AA0 adheres to the same pinout and signaling as all Siemens Drive-CLiQ cables, ensuring plug-and-play integration.
Selection Guide & Purchasing Advice
When ordering the Siemens 6SL3060-4AJ20-0AA0, verify that your application requires a straight-to-straight RJ45 cable of 2.8 m length. If your layout demands a right-angle connector or a different length, consider other variants in the Drive-CLiQ range. For genuine Siemens parts and expert support, choose UBEST Automation—your trusted industrial automation supplier. We stock this and many other Siemens spares for fast delivery.
