Product Introduction

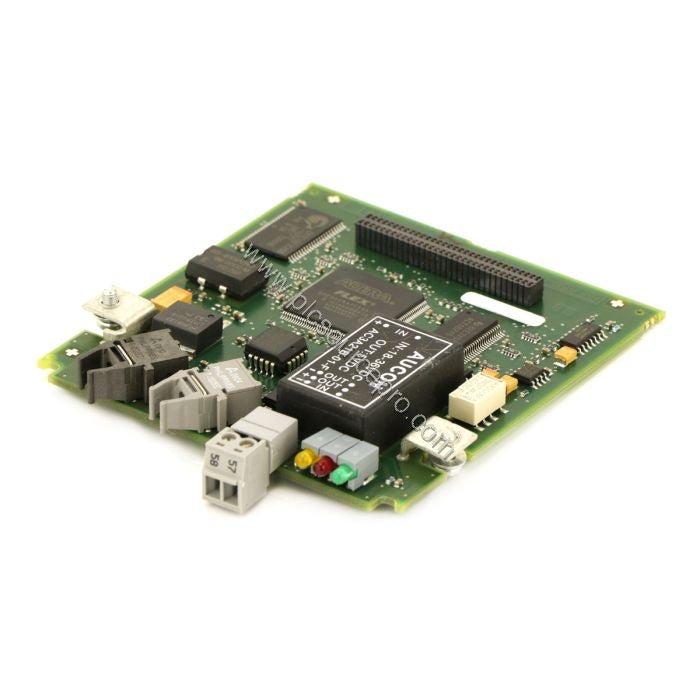

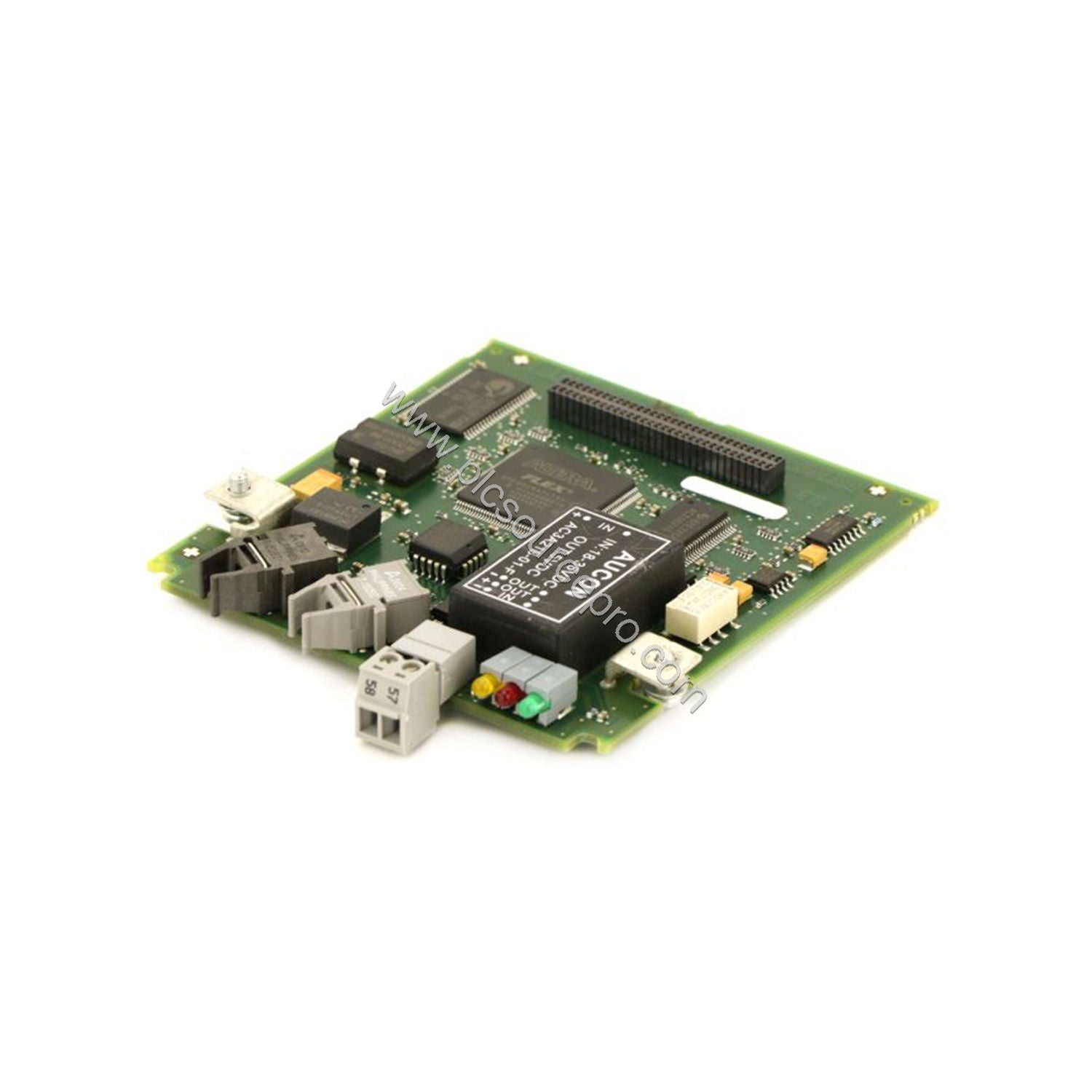

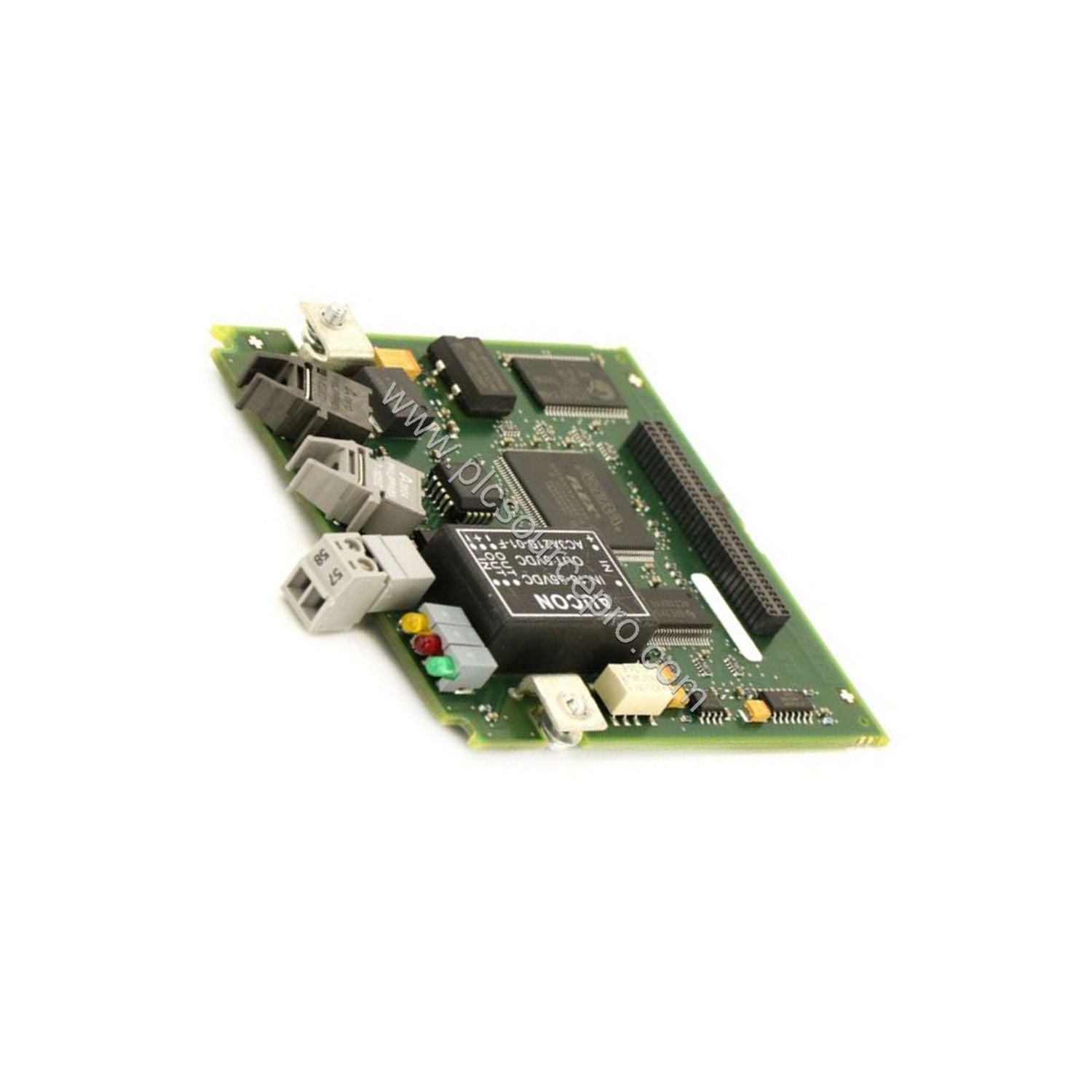

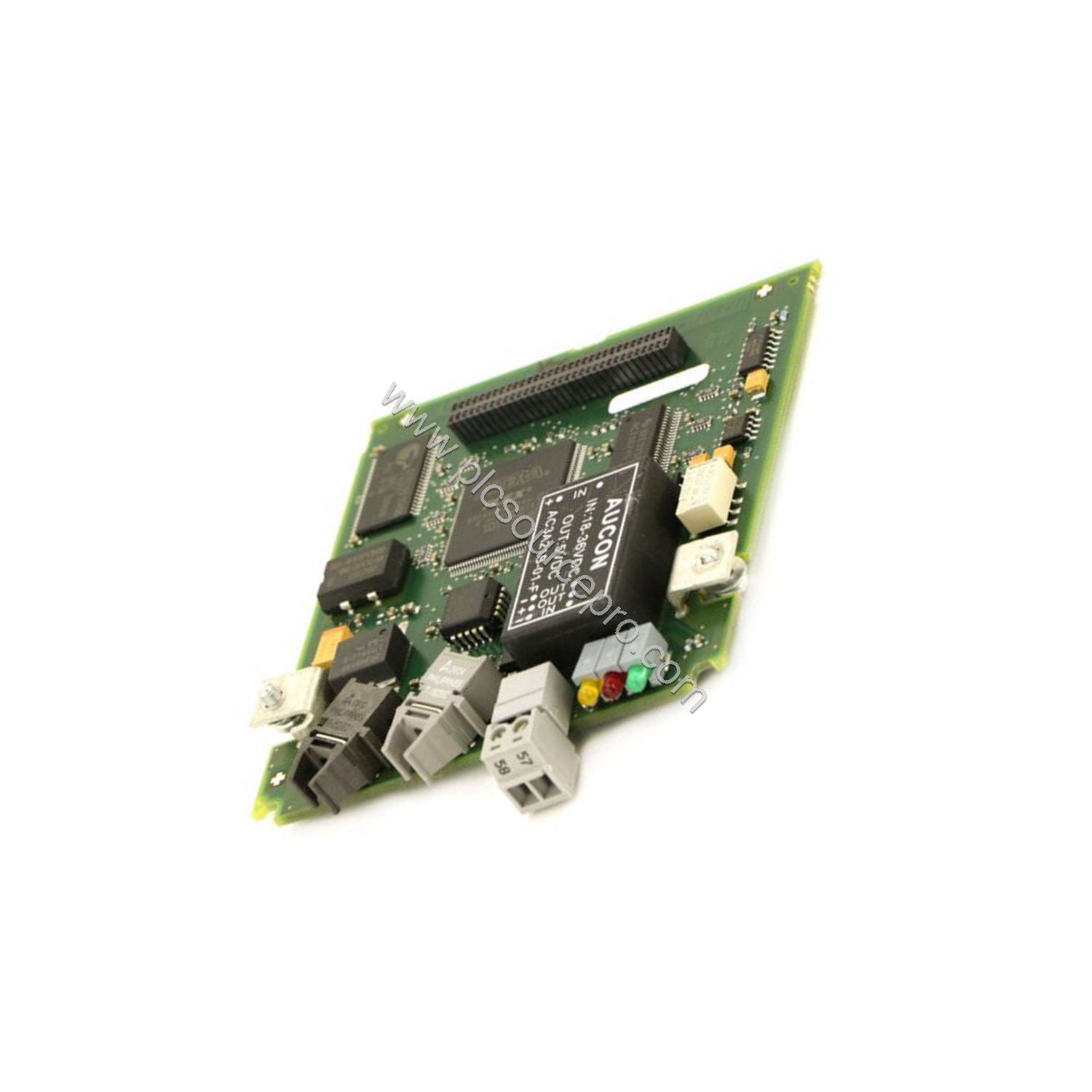

The Siemens 6SE7090-0XX84-0FF5 is a genuine spare part for the Simovert Master Drives series. Designed as a replacement board, this Industrial Automation Module ensures reliable operation in drive systems where original Siemens components are essential for performance and longevity. The 6SE7090-0XX84-0FF5 supports critical applications requiring a compact, robust control element with proven mechanical and environmental specifications.
Technical Specifications
Below are the key technical parameters for the Siemens 6SE7090-0XX84-0FF5, based on the manufacturer's data. All values are verified and should be used as a reference for installation and system design.
| Parameter |
Value |
| Dimensions (length x width) |
90 mm x 83 mm |
| Pollution degree |
2 acc. to IEC 664-1 (DIN VDE 0110/T1) – moisture condensation not permissible during operation |
| Mechanical strength (stationary, deflection) |
0.15 mm in 10-58 Hz; 3.5 mm in 5-9 Hz (transport) |
| Mechanical strength (stationary, acceleration) |
19.6 m/s² in >58-500 Hz; 9.8 m/s² in >9-500 Hz (transport) |
| Climate class |
3K3 to DIN IEC 721-3-3 (in operation) |
| Type of cooling |
Natural-air cooling |
| Operating temperature |
0°C to +70°C (32°F to 158°F) |
| Storage temperature |
-25°C to +70°C (-13°F to 158°F) |
| Transport temperature |
-25°C to +70°C (-13°F to 158°F) |
Industry Applications
The Siemens 6SE7090-0XX84-0FF5 is primarily used as a spare part within Simovert Master Drives installations. Typical applications include:
- Replacement of failed control boards in conveyor drive systems
- Upgrade of older drive cabinets in manufacturing lines
- Restoration of variable-speed drive functionality for pumps and fans
Given its pollution degree 2 rating and natural-air cooling, the 6SE7090-0XX84-0FF5 is suited for clean industrial environments with controlled humidity. When upgrading, ensure the existing drive cabinet provides adequate airflow and protection from condensation.
Installation & Setup Guidance
Before installing the Siemens 6SE7090-0XX84-0FF5, verify that the mounting area is clean and free of moisture. The board dimensions (90 mm x 83 mm) require a compatible slot or mounting bracket. Use original Siemens fasteners and ensure proper grounding. During setup, avoid touching sensitive components – handle the board by its edges. Operate only within the specified temperature range (0°C to +70°C) and ensure natural air cooling is unobstructed. For retrofits, confirm that the existing backplane and connectors match the 6SE7090-0XX84-0FF5 pinout.
Maintenance & Reliability
Routine inspections of the Siemens 6SE7090-0XX84-0FF5 should focus on dust accumulation and ambient temperature. Because it relies on natural-air cooling, keep ventilation grills clear. Check for signs of condensation, especially in environments near the 0°C lower limit. The vibration limits (19.6 m/s² stationary, 9.8 m/s² transport) indicate robust construction, but avoid repeated shock loads. Under normal conditions, the module offers long service life; replacing it as a spare part restores original drive performance and reduces unplanned downtime.
Selection Guide & Purchasing Advice
When selecting the Siemens 6SE7090-0XX84-0FF5, verify compatibility with your specific Simovert Master Drives model. Cross-reference the drive type and software version. If you need assistance, contact PLC Source PRO at ubest101 – our team can confirm fitment and provide datasheets. Always source genuine Siemens spares to avoid premature failure. The 6SE7090-0XX84-0FF5 is an exact replacement, so no modifications to existing wiring are required.
