Product Introduction

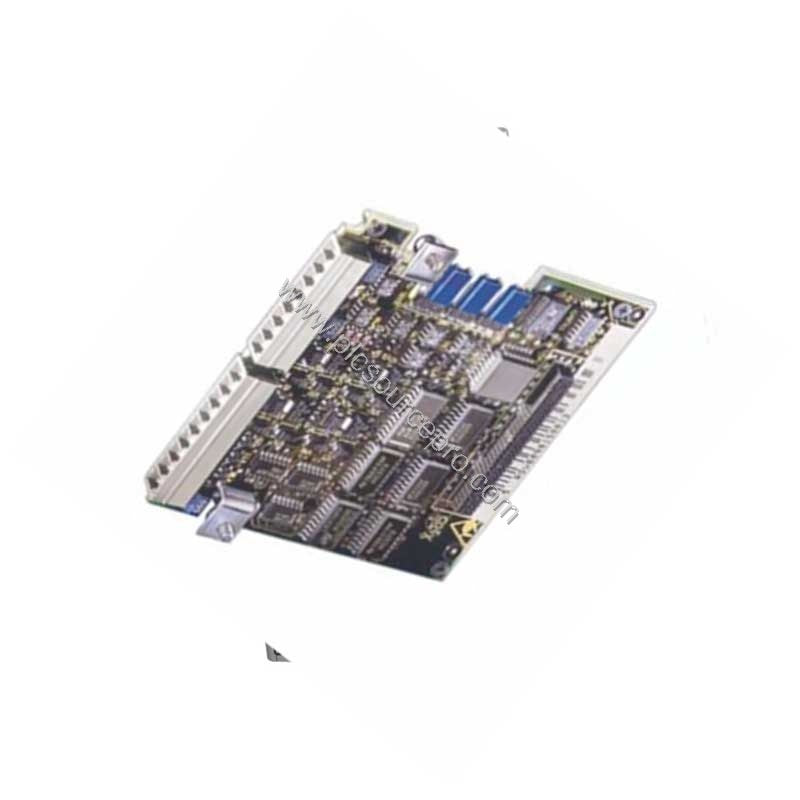

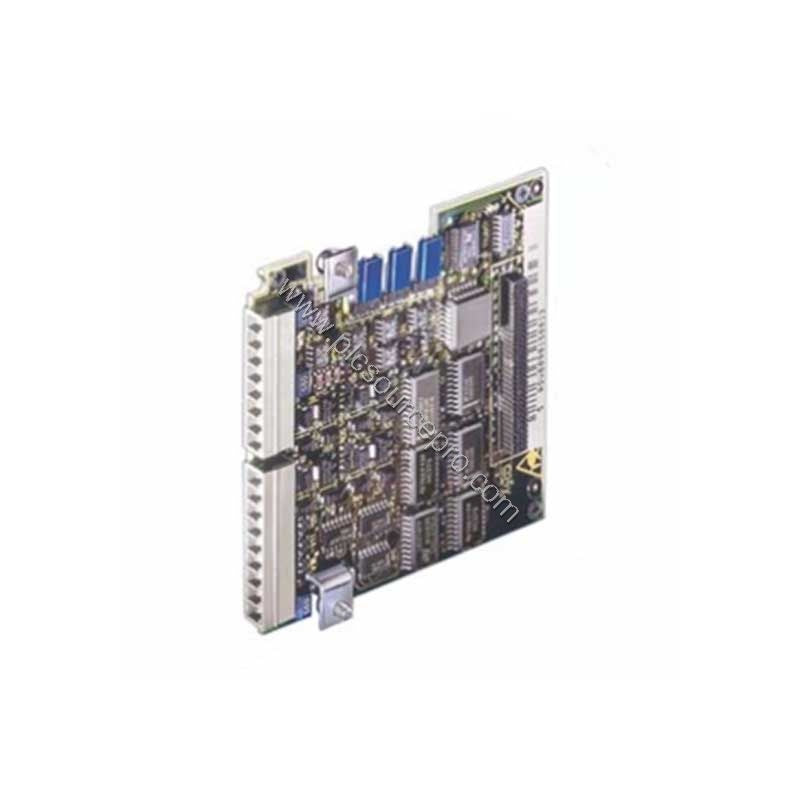

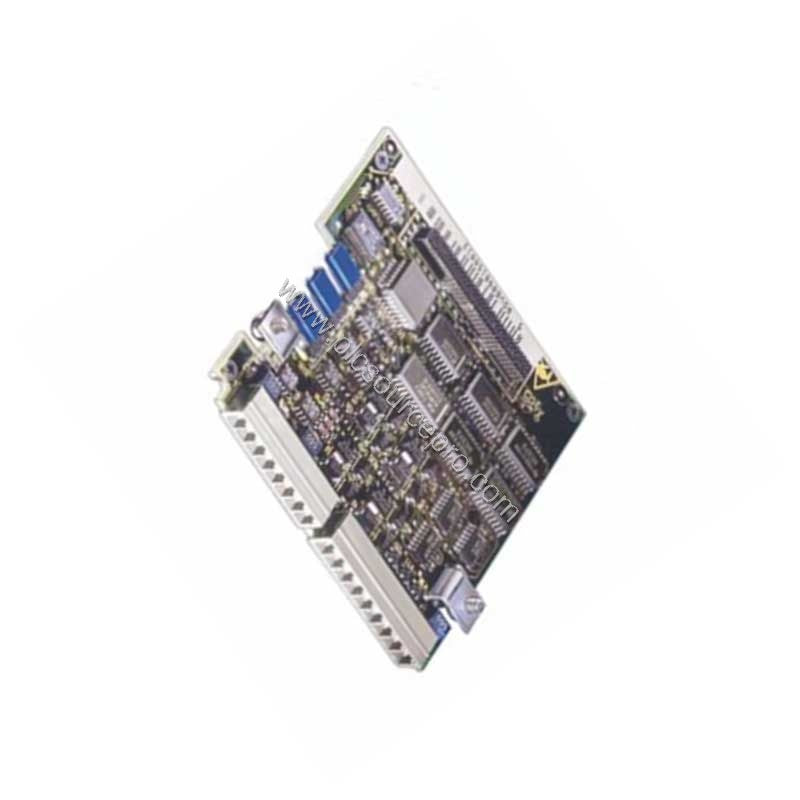

The Siemens 6SE7033-7EG84-1JF1 is an Inverter Control module designed as a direct replacement or upgrade for existing drive systems. This module, part of the Siemens IGD4 series, supports three-phase AC input from 380-460V at 50/60 Hz and DC input from 510-620V DC, with a continuous current rating of 370A. When your current inverter control unit fails or requires an upgrade, the Siemens 6SE7033-7EG84-1JF1 provides a drop-in solution that restores system performance with minimal downtime.
Technical Specifications
The following specifications are directly from the product datasheet for the Siemens 6SE7033-7EG84-1JF1 Inverter Control module:
| Parameter |
Value |
| Phase Configuration |
3-PH |
| AC Input Voltage |
380-460 V |
| AC Input Frequency |
50/60 Hz |
| DC Input Voltage |
510-620 V DC |
| Rated Current |
370 A |
These parameters ensure the Siemens 6SE7033-7EG84-1JF1 handles demanding industrial loads with stable power conversion and robust current delivery.
Industry Applications
The Siemens 6SE7033-7EG84-1JF1 is ideal for upgrading inverter sections in large variable frequency drives used in conveyors, pumps, and compressors. For example, replacing an older IGD3 module with this Siemens 6SE7033-7EG84-1JF1 unit restores full 370A capacity, reducing unplanned stoppages. Its wide input range also makes it suitable for systems operating on mixed AC/DC power supplies, common in heavy manufacturing and process industries.
Installation & Setup Guidance
Before installing the Siemens 6SE7033-7EG84-1JF1, ensure the drive is de-energized and all capacitors are discharged. This module mounts directly onto the existing IGD4 bus bar assembly without needing additional adapters. Verify that the AC supply matches the 380-460V range and that the DC link bus operates within 510-620V. Tighten all power terminals to the manufacturer’s recommended torque and confirm proper grounding for noise immunity.
Maintenance & Reliability
The Siemens 6SE7033-7EG84-1JF1 requires periodic inspection of cooling fan and bus capacitor health. With its 370A rating, the module runs cooler under nominal load, extending service life. Check for dust accumulation on heatsinks every six months in harsh environments. Replacing an aging control module with the Siemens 6SE7033-7EG84-1JF1 reduces the risk of inverter faults and unplanned maintenance costs.
Selection Guide & Purchasing Advice
When selecting the Siemens 6SE7033-7EG84-1JF1, confirm your drive platform accepts IGD4 series modules. This module replaces part numbers ending in -1JF1 and is compatible with Siemens Master Drives. For pricing and availability, contact UBEST Automation at ubest101.myshopify.com – a trusted supplier of industrial automation spares. Always verify the exact model number 6SE7033-7EG84-1JF1 before ordering to ensure a proper fit.
