Product Introduction

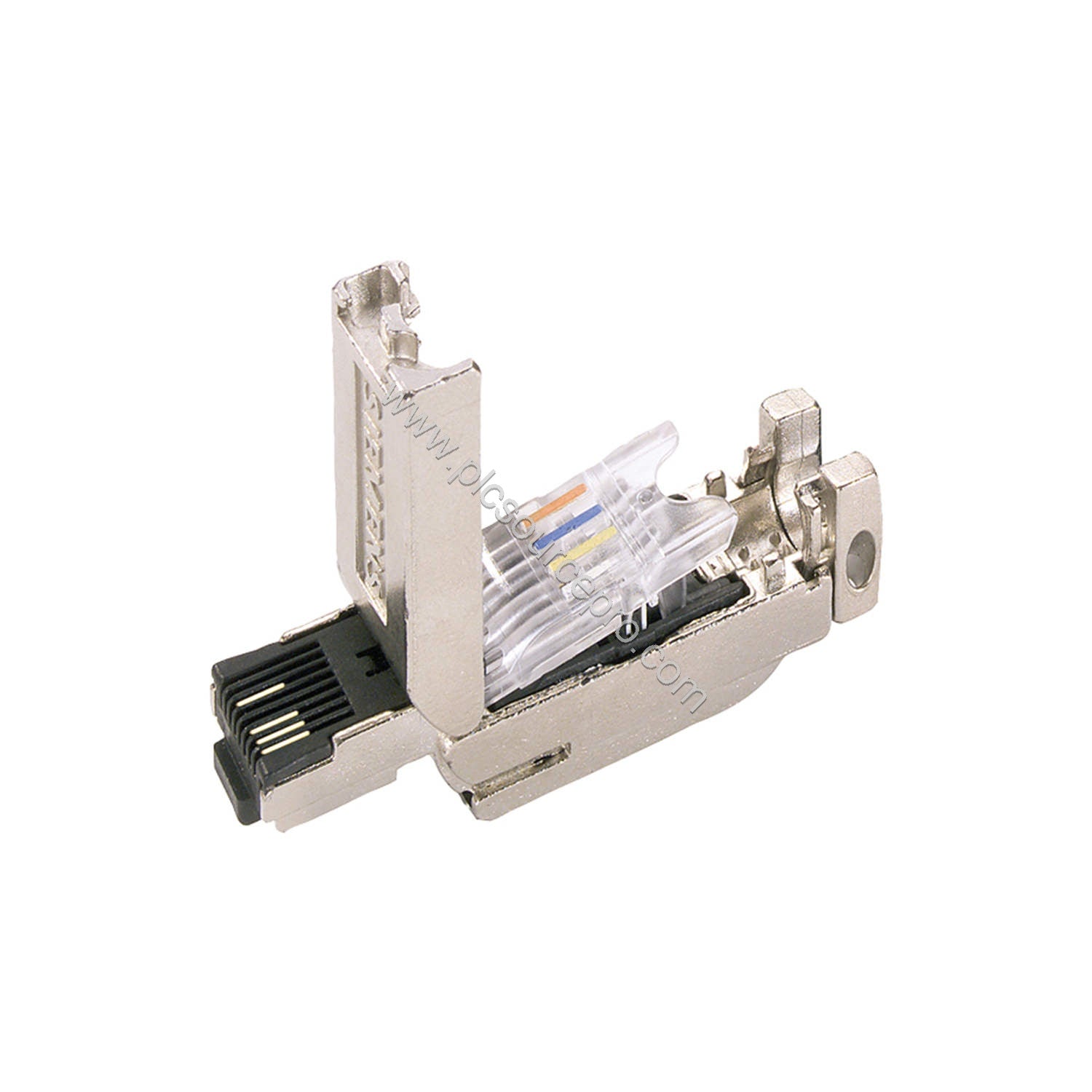

When harsh industrial environments cause Ethernet connections to fail due to vibration, moisture, or repeated plugging, the Siemens 6GK1901-1BB10-2AB0 Industrial Automation Module delivers a durable solution. This IE FC RJ45 Plug 180 (2x2) is designed to withstand extreme conditions while maintaining reliable data transmission. Part of the Siemens FastConnect system, the 6GK1901-1BB10-2AB0 features a rugged metal enclosure, integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22, and an RJ45 connector for network components. With a wide operating temperature range of -40 to +85 °C and IP20 protection, it resists common failure modes such as corrosion, loose connections, and signal degradation.
Technical Specifications
Based on the manufacturer's specifications, the Siemens 6GK1901-1BB10-2AB0 offers:
| Parameter |
Value |
| Transfer Rate |
10 Mbit/s, 100 Mbit/s |
| Number of Electrical Connections (TP Cable) |
4 |
| Number of Electrical Connections (Network/Terminal) |
1 |
| Material of Enclosure |
Metal |
| Number of Reuses |
10 |
| Cable Outlet Type |
180° cable outlet |
| Width |
13.7 mm |
| Height |
16 mm |
| Depth |
55 mm |
| Net Weight |
35 g |
| Connectable Cable Cross-Section |
6.5 ... 6.5 mm |
| Connectable Conductor Cross-Section |
0.33 mm² |
| Ambient Temperature (Operation, Storage, Transport) |
-40 ... +85 °C |
| Relative Humidity (max, at 25 °C) |
95% |
| Protection Class IP |
IP20 |
| PoE Capability |
Yes |
| PoE+ Capability |
Yes |
| Silicon-Free |
Yes |
| Strain Relief |
Yes |
| RoHS Conformity |
Yes |
| UL Approval |
Yes |
| cULus Approval |
Yes |
| Standard for Structured Cabling |
Cat5 |
Industry Applications
The Siemens 6GK1901-1BB10-2AB0 excels in automated production lines, conveying systems, and machine tools where frequent plugging and unplugging occurs. Its metal enclosure withstands oil and coolant exposure, while the FastConnect system enables quick field termination of IE FC TP cables 2x2. In warehouse automation, the 180° cable outlet reduces strain on connections, minimizing downtime caused by intermittent faults. For renewable energy installations such as solar or wind farms, the wide temperature range ensures reliable operation in outdoor cabinets.
Installation & Setup Guidance
To avoid common failure modes, follow these best practices when installing the 6GK1901-1BB10-2AB0:
- Use only IE FC TP cables 2x2 with AWG22 conductors for optimal cut-and-clamp contact performance.
- Ensure the cable is fully stripped and inserted until the conductor contacts the clamp. Verify the latch engages securely.
- Orient the cable outlet at 180° relative to the connector body to maintain bend radius and prevent cable kinking.
- Torque the locking mechanism (if present) to the manufacturer's specification—do not overtighten.
- Test continuity and signal integrity after installation using a network certifier.
Maintenance & Reliability
The rugged design of the Siemens 6GK1901-1BB10-2AB0 reduces maintenance needs. However, periodic inspections can extend service life. Check for signs of corrosion on metal contacts, especially in humid environments. Confirm the strain relief is intact and that the cable jacket is not cracked. With up to 10 reuses, replace the connector when the latch becomes loose or contacts show wear. The metal enclosure and IP20 rating provide basic dust and splash protection, but in wet areas, use additional enclosures.
Selection Guide & Purchasing Advice
Before purchasing, verify that your application requires a 180° cable outlet and 2x2 pair configuration. The 6GK1901-1BB10-2AB0 is ideal for replacing damaged RJ45 connectors in industrial networks or expanding FastConnect systems. Each pack contains 10 units, suitable for multiple terminations. For bulk orders or compatibility questions, contact PLC Source PRO (formerly ubest101) – your trusted industrial automation supplier. We stock genuine Siemens parts ready to ship.
