Upgrade Your Connectivity with the Siemens 6GK1571-0BA00-0AA0

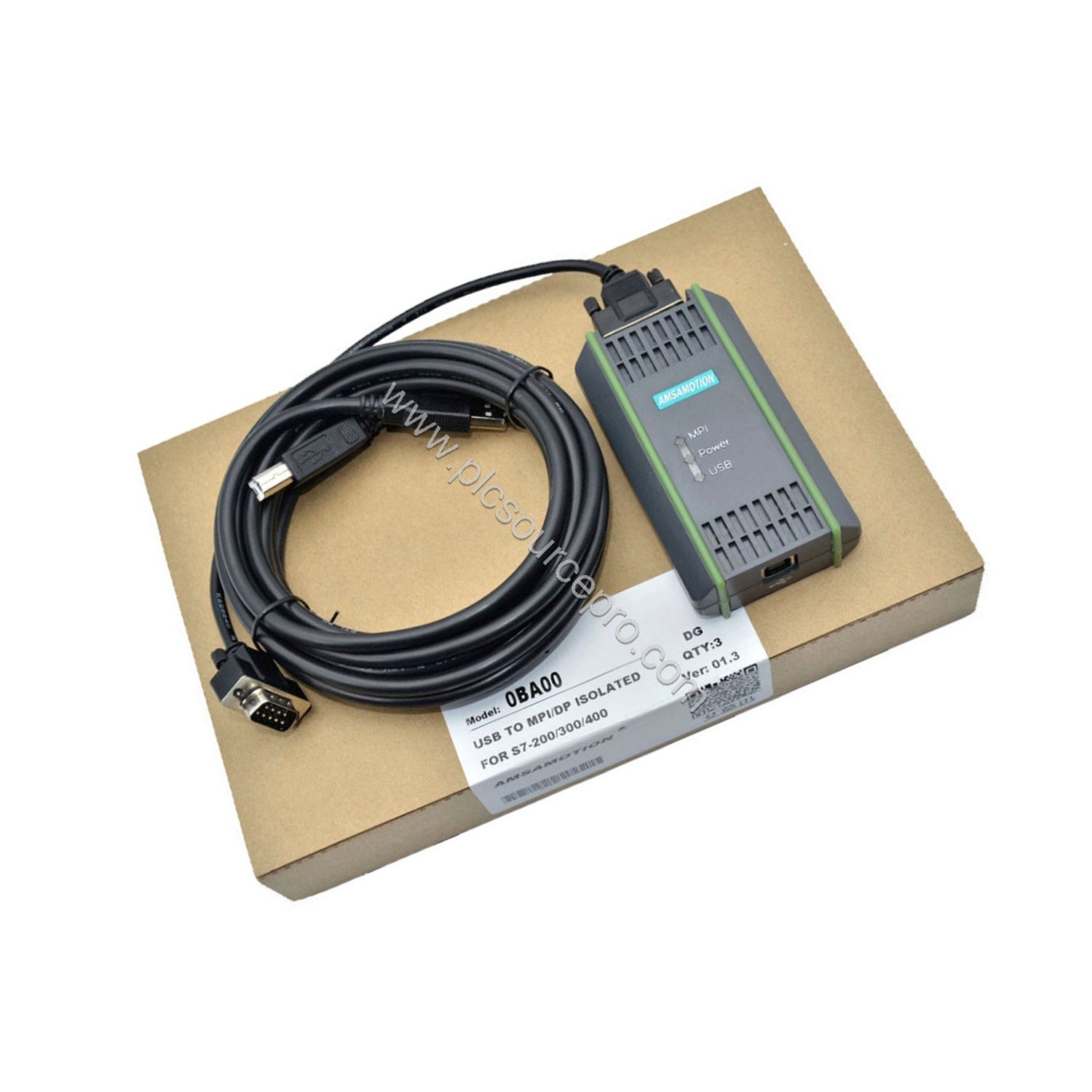

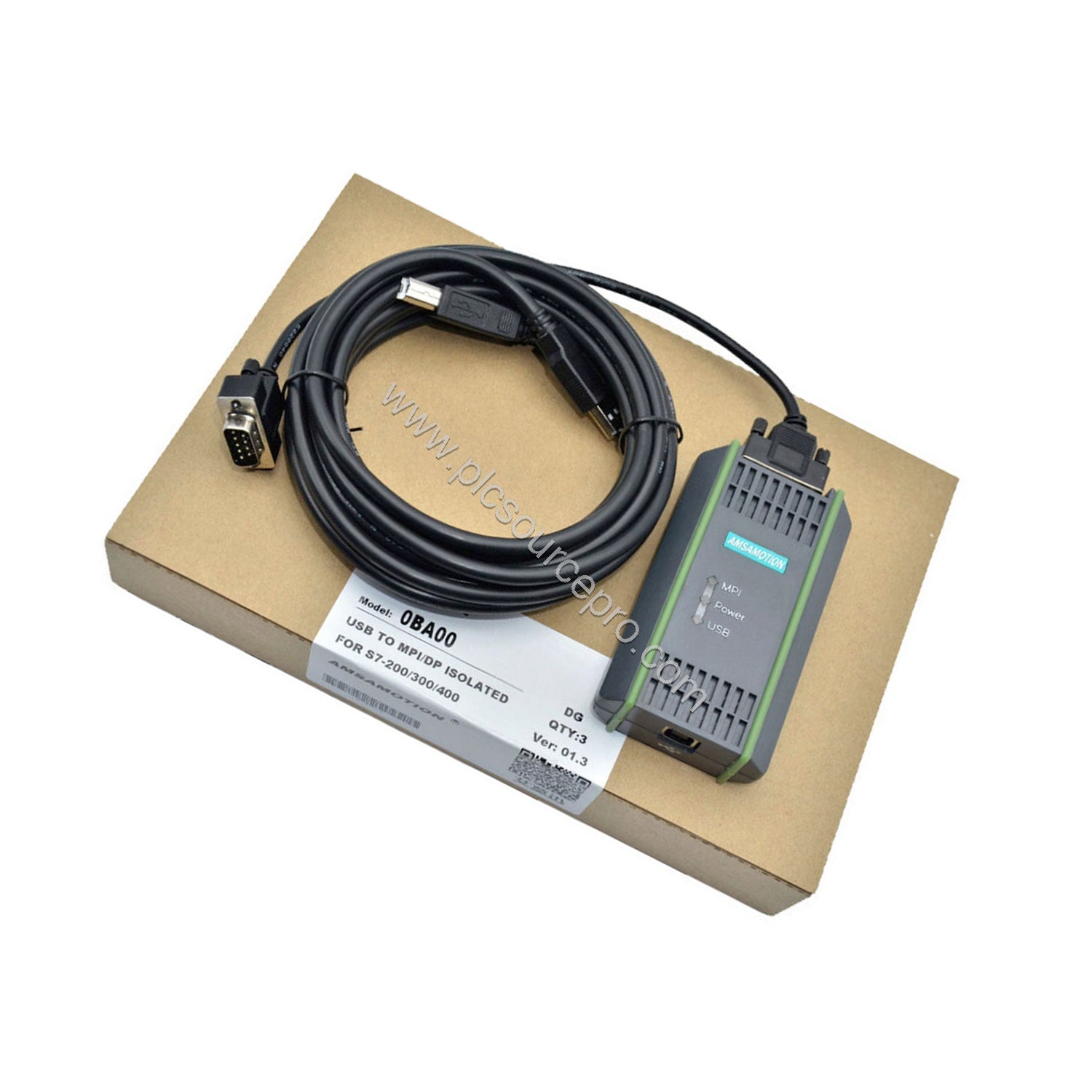

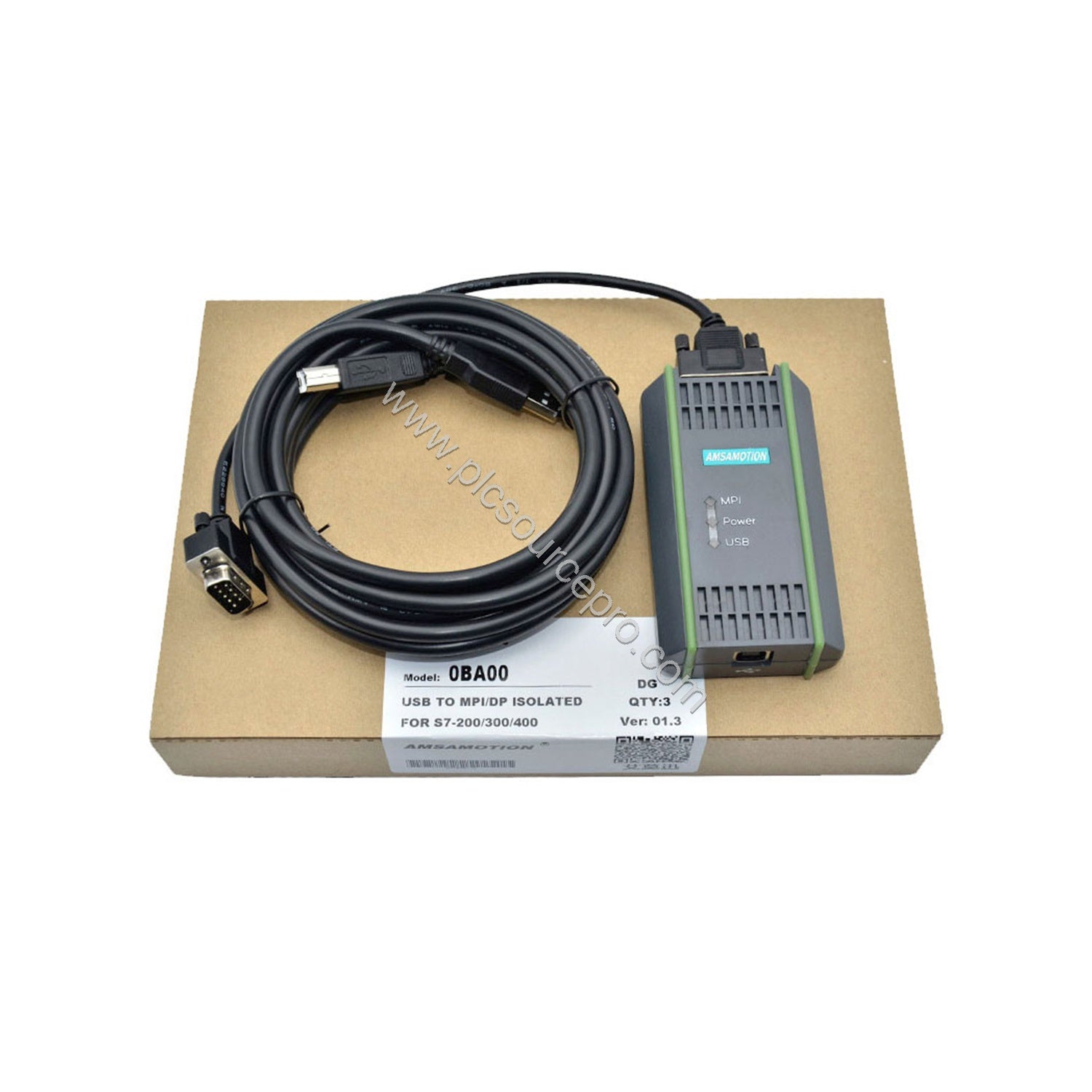

The Siemens 6GK1571-0BA00-0AA0 Industrial Automation Module is a PC adapter USB A2 designed to replace older serial adapters. It provides a reliable USB V2.0 interface for connecting a PG/PC or notebook to SIMATIC S7 systems via PROFIBUS or MPI. With included USB cable (5 m) and MPI cable (0.3 m), this adapter supports Windows XP, Vista, and Windows 7 (32/64-bit) and higher, making it an ideal upgrade for legacy programming stations.
Key Technical Specifications
| Parameter |
Value |
| Transfer Rate (PROFIBUS) |
9.6 kbit/s … 12 Mbit/s |
| Supply Voltage |
5 V DC from USB (no external supply needed) |
| Current Consumption |
0.2 A |
| Power Loss |
1 W |
| Operating Temperature |
0 to 60 °C |
| Protection Class |
IP20 |
| Dimensions (W x H x D) |
58 x 26 x 105 mm |
| Weight |
0.365 kg |
These specs ensure reliable performance in industrial environments. The USB-powered design eliminates extra wiring, while the RS-485 interface guarantees robust PROFIBUS communication up to 12 Mbit/s.
Real-World Applications
-
Factory Automation: Use the Siemens 6GK1571-0BA00-0AA0 for programming and diagnostics of SIMATIC S7-300/400 PLCs on the factory floor. The wide temperature range (0–60 °C) suits harsh conditions.
-
Maintenance & Troubleshooting: Connect a laptop to a PROFIBUS network for on-site fault analysis. The port diagnostics function helps identify communication issues quickly.
-
System Upgrades: Replace older PC adapter USB A1 models with the USB A2 for faster data transfer and broader OS compatibility.
Installation and Setup
To install the Siemens 6GK1571-0BA00-0AA0, connect the USB cable to an available USB 2.0 port on your PC. The adapter is self-powered via USB; no external power supply is required. Use the included MPI cable to link to the SIMATIC S7 MPI/PROFIBUS interface. Install the appropriate driver (available from Siemens) for your operating system. The adapter supports Windows XP, Vista, and Windows 7 (32/64-bit) and higher. Ensure your PC meets the minimum requirements.
Compatibility and Integration
The Siemens 6GK1571-0BA00-0AA0 integrates seamlessly with SIMATIC S7 PLCs via PROFIBUS or MPI networks. It is compatible with standard PROFIBUS interfaces and supports USB 2.0. The adapter works with programming tools like STEP 7. For system expansion, note that mounting on a 35 mm DIN rail is not supported.
Selection Guide
Before purchasing the Siemens 6GK1571-0BA00-0AA0, verify your PC has a USB 2.0 port and that your operating system is supported (Windows XP/Vista/7 32/64-bit and higher). Ensure the PROFIBUS network speed does not exceed 12 Mbit/s. For quantity or bulk orders, contact a reliable supplier like ubest101 to ensure genuine Siemens products and timely delivery.
