Product Introduction

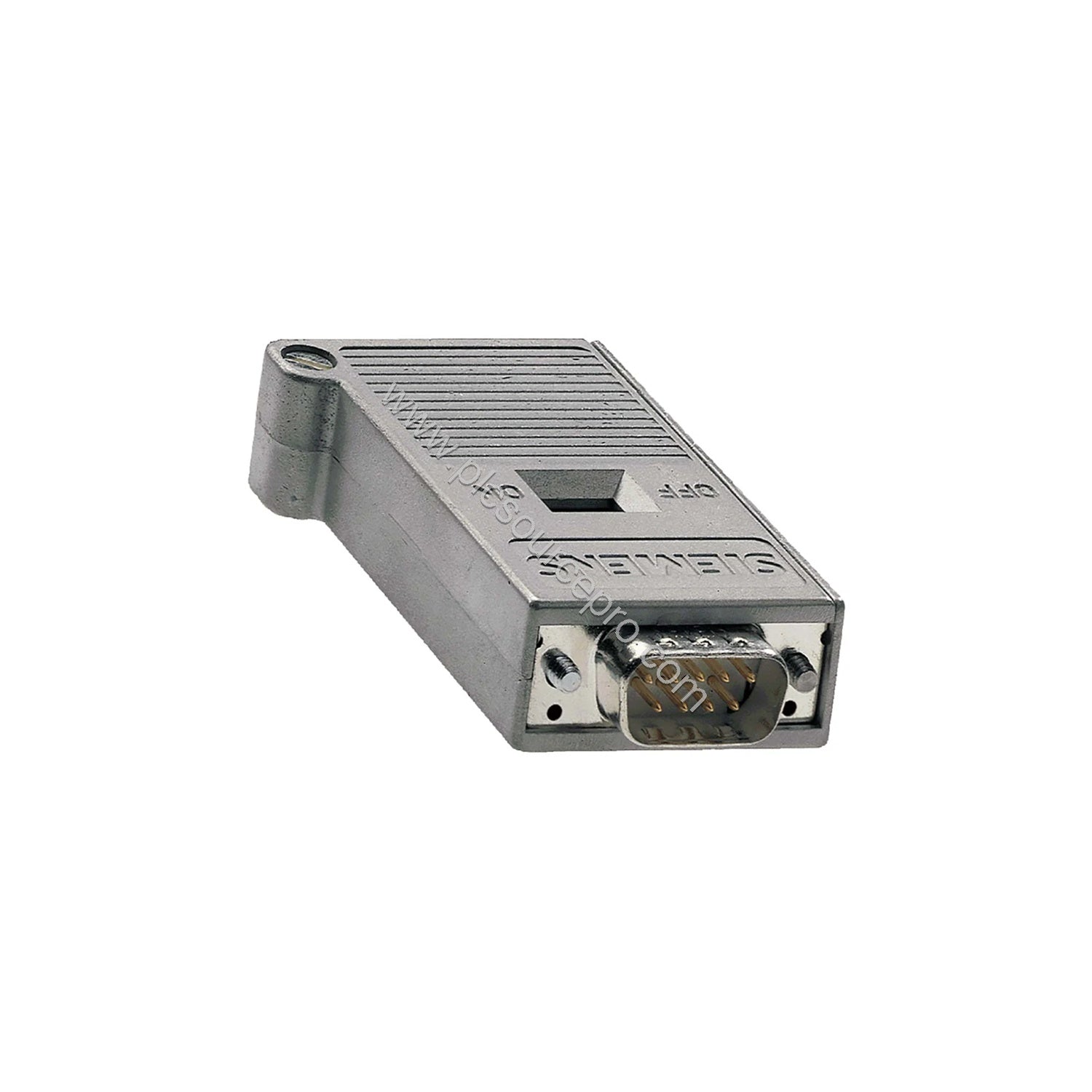

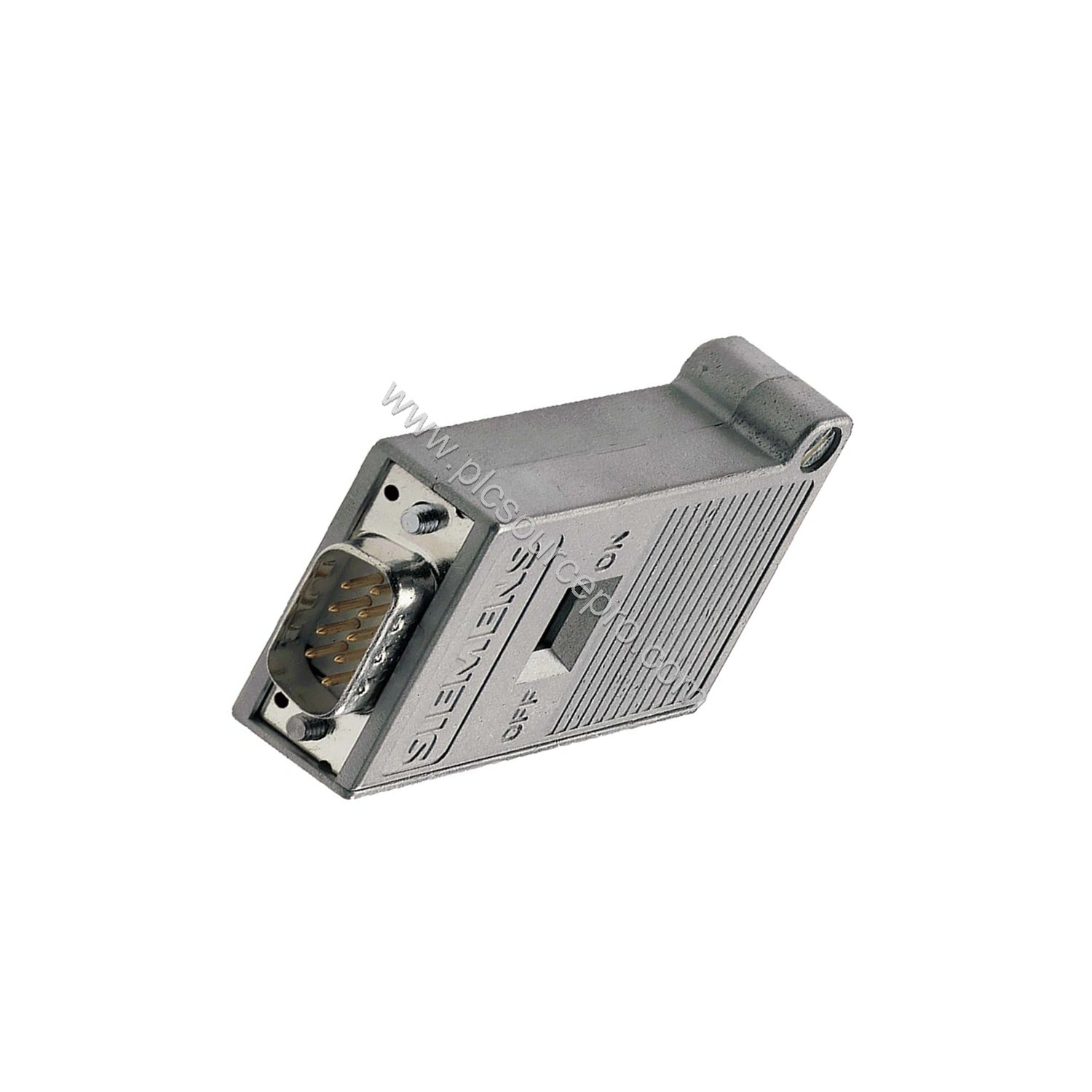

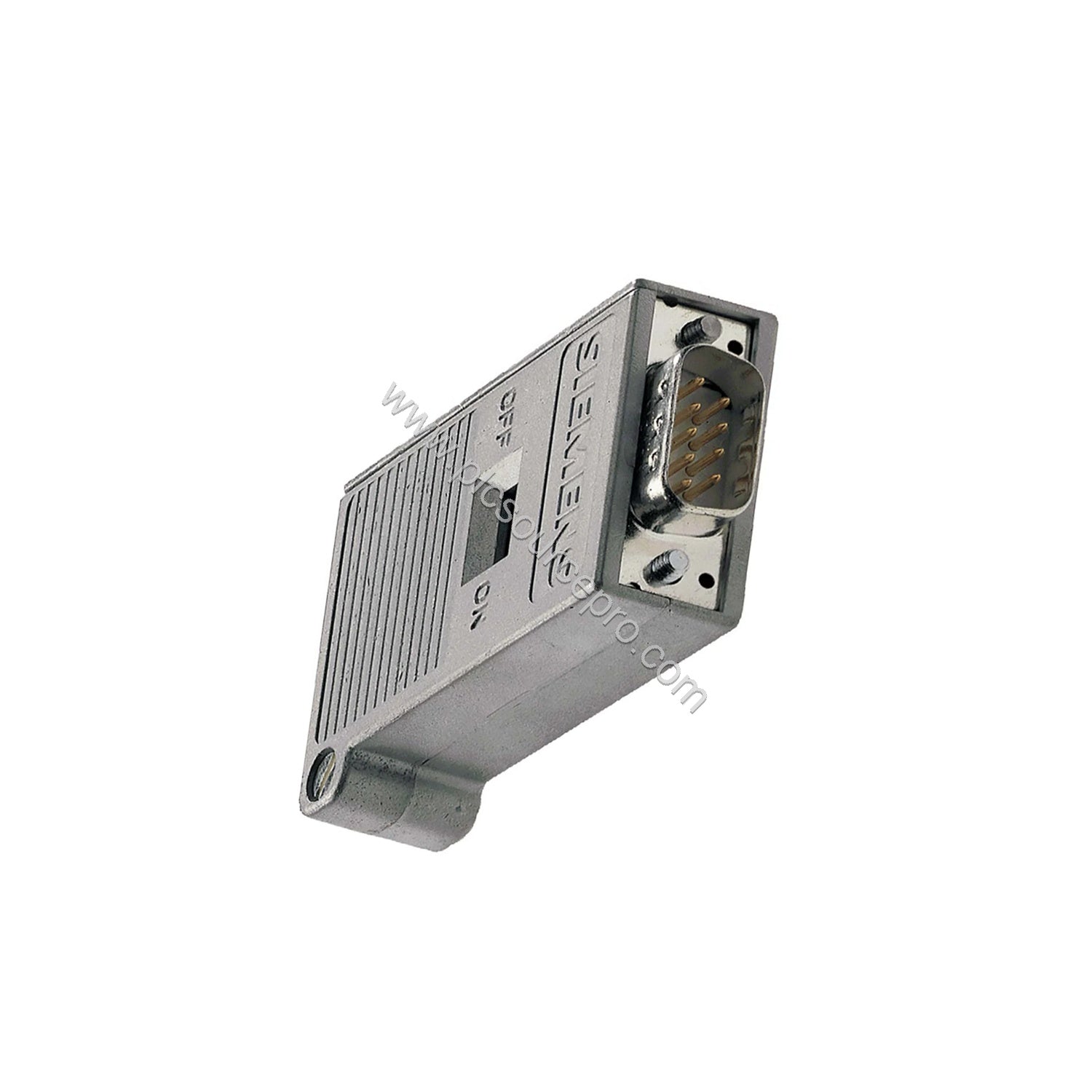

When signal interference and connection failures threaten your PROFIBUS network, the Siemens 6GK1500-0EA02 Industrial Automation Module offers a robust solution. This PROFIBUS bus connector with axial cable outlet is specifically designed for Industry PCs, SIMATIC OPs, and OLMs. Its metal enclosure and integrated terminating resistor with isolating function ensure reliable data transmission up to 12 Mbit/s. The 6GK1500-0EA02 is tailored for environments demanding high immunity to electromagnetic interference.
Technical Specifications
| Parameter |
Value |
| Transmission Rate |
9.6 kbit/s to 12 Mbit/s (PROFIBUS) |
| Number of Electrical Connections (PROFIBUS cables) |
2 |
| Number of Electrical Connections (devices) |
1 |
| Connection Type (PROFIBUS cables) |
Terminal block |
| Connection Type (devices) |
SUB-D plug (9-pin) |
| FastConnect |
No |
| Terminating Resistor |
Integrated, switchable via slide switch |
| Separation Function |
Separates disconnected bus when resistor connected |
| Housing Material |
Metal |
| Lock Design |
Fixing screw |
| Cable Outlet |
180° |
| Width |
15 mm |
| Height |
57 mm |
| Depth |
39 mm |
| Net Weight |
100 g |
| Ambient Temperature (Operation) |
0 to 60 °C |
| Ambient Temperature (Storage/Transport) |
-25 to +80 °C |
| Relative Humidity (25 °C, operation) |
Max 75% (non-condensing) |
| Degree of Protection |
IP20 |
| Silicone-free |
Yes |
| RoHS-compliant |
Yes |
| UL Approval |
No |
| cULus Approval |
No |
| Rail Applications (EN 50155) |
No |
Installation and Setup
To install the Siemens 6GK1500-0EA02, first ensure the PROFIBUS cable is prepared according to standard guidelines. Connect the cable to the terminal block on the connector. Use the SUB-D plug to attach to the PROFIBUS device. The terminating resistor can be enabled via the slide switch when the connector is at the end of the bus segment. The fixing screw lock provides a secure mechanical connection. No special tools are required for the 180° cable outlet.
Maintenance and Reliability
Regular inspection of the Siemens 6GK1500-0EA02 connector involves checking for physical damage and ensuring screw terminals are tight. The metal enclosure provides durability and EMI shielding. Since the connector is silicone-free, it is suitable for applications where outgassing is a concern. The integrated terminating resistor with separation function reduces the risk of bus failures. Routine checks of the slide switch position ensure correct bus termination.
Compatibility and Integration
The Siemens 6GK1500-0EA02 is designed for PROFIBUS networks with transmission rates from 9.6 kbit/s to 12 Mbit/s. It connects PROFIBUS devices such as Industry PCs, SIMATIC OPs, and OLMs. The SUB-D plug interface is standard for PROFIBUS nodes. Ensure your devices support the required transmission rate and connector type. The metal housing aids in grounding and noise reduction.
Selection and Purchasing Advice
When selecting the Siemens 6GK1500-0EA02, verify that your PROFIBUS cable gauge fits the terminal block. The 180° cable outlet suits installations where space is limited horizontally. For end-of-bus segments, enable the terminating resistor. As a reliable supplier, PLC Source PRO (ubest101.myshopify.com) stocks this connector and can assist with any technical questions. Ensure you have the correct number of connectors for your bus topology.
