Product Overview

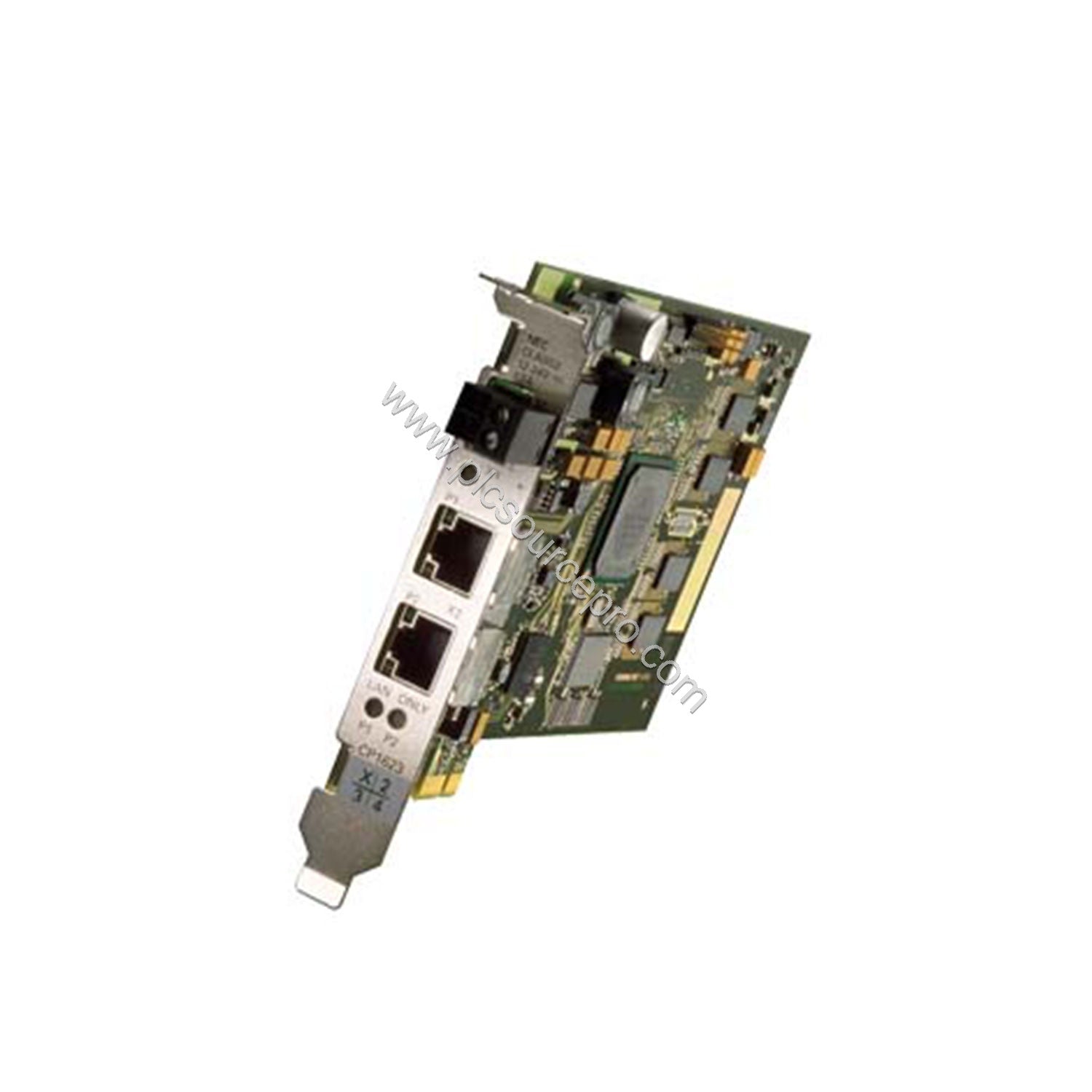

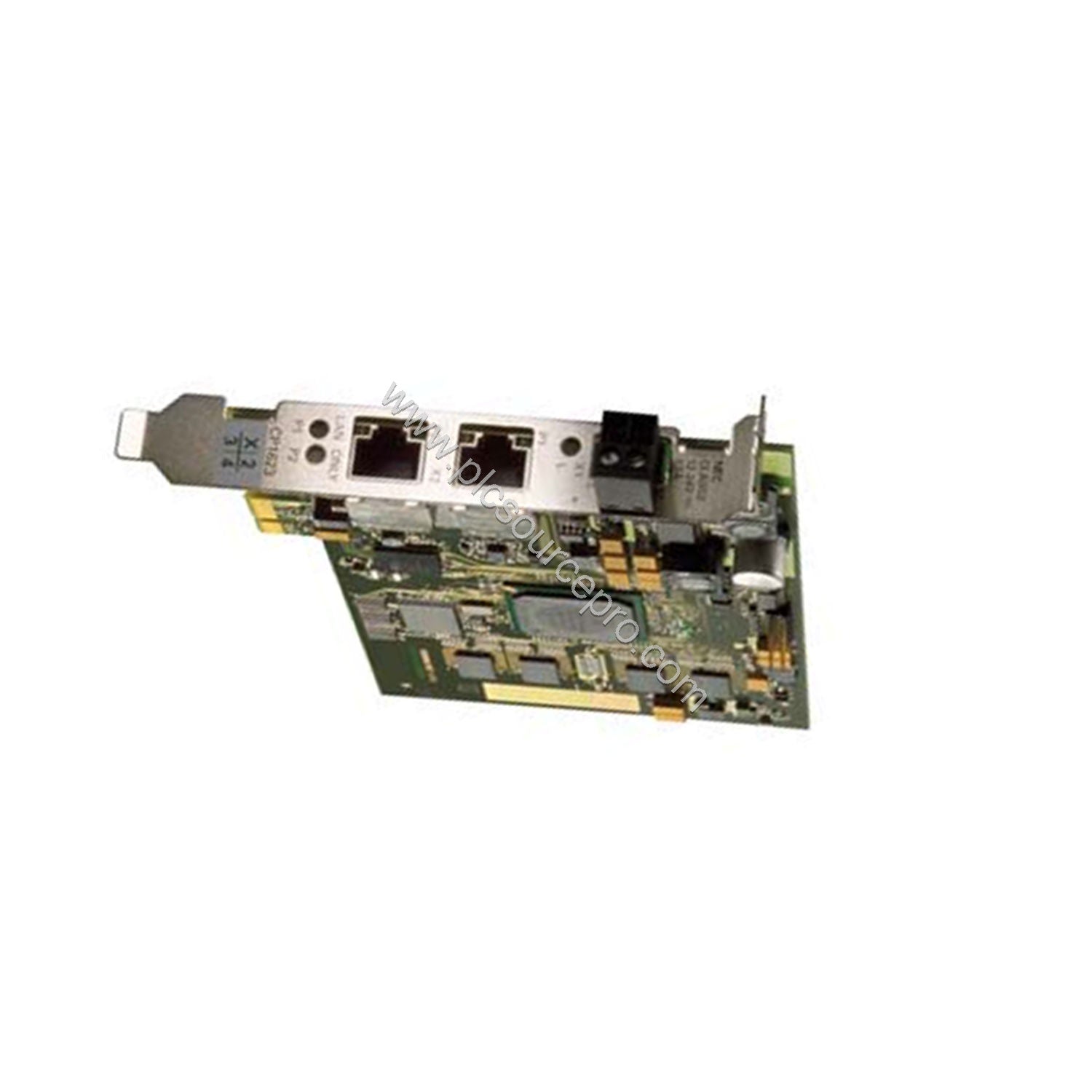

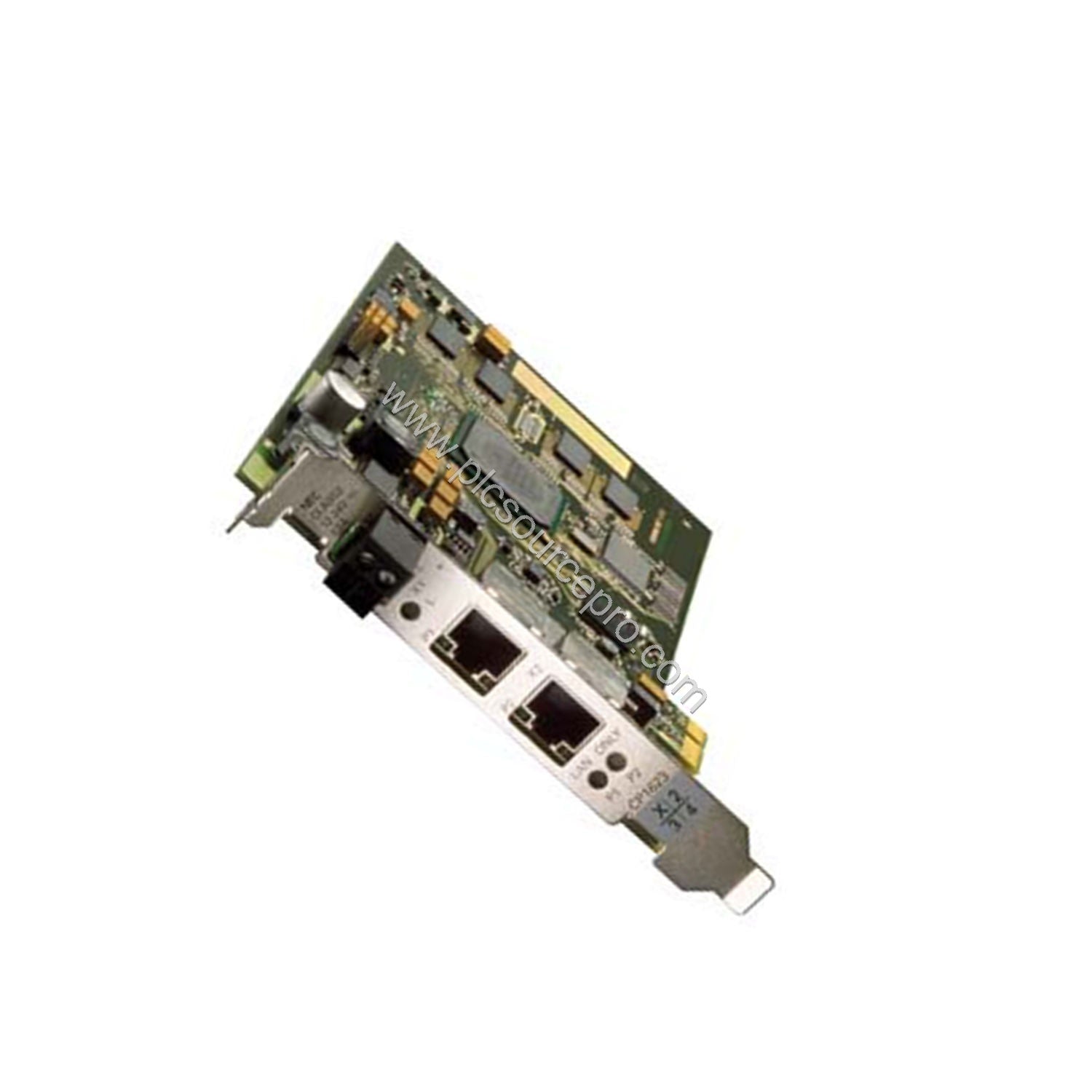

The Siemens 6GK1162-3AA00 CP 1623 is a high-performance Communications Processor designed for Industrial Ethernet networks. This PCI Express X1 card (3.3 V/12 V) enables seamless connection at 10/100/1000 Mbit/s and integrates a 2-port RJ45 switch. It supports HARDNET-IE S7 and S7-REDCONNECT operating systems, making it an ideal upgrade for existing SIMATIC NET installations requiring enhanced redundancy and throughput.
Technical Specifications
The Siemens 6GK1162-3AA00 offers a robust set of technical parameters for demanding industrial environments. Key specs include:
| Parameter |
Value |
| Transfer Rate |
10/100/1000 Mbit/s |
| Electrical Connections (Industrial Ethernet) |
2 x RJ45 |
| Power Supply Voltage (Backplane Bus) |
3.3 V (9% tolerance), 12 V (8% tolerance) |
| External Supply Voltage |
24 V (33% tolerance), 10.5...32 V |
| Max Current (3.3 V bus) |
0.85 A |
| Max Current (12 V bus) |
0.4 A |
| Power Loss (Switch Mode Max) |
7.2 W |
| Ambient Temperature (Operation) |
5...55 °C |
| Protection Class |
IP00 |
| Module Format |
PCI Express x1 (half length) |
| Dimensions (W x H x D) |
18 mm x 111 mm x 167 mm |
| Net Weight |
124 g |
| Max Open SEND/RECEIVE Connections |
120 |
| Max S7/PG Connections |
120 |
Industry Applications
The Siemens 6GK1162-3AA00 excels in high-speed industrial communication scenarios. Typical applications include:
-
Automotive Assembly Lines – Redundant S7 communication for real-time control using HARDNET-IE S7-REDCONNECT.
-
Energy Management Systems – Multi-protocol connectivity via PROFINET CBA (up to 10000 connections) to integrate multiple remote partners.
-
Process Automation – Reliable data exchange with SIMATIC S7 H systems, leveraging 2-port switch for network resilience.
Compatibility & Integration
This module is designed for seamless integration with SIMATIC NET software as of CD V7.0 HF1. It supports S7 communication, open SEND/RECEIVE, PROFINET CBA, and offers MIB support for SNMP v1 and DCP. The Siemens 6GK1162-3AA00 is compatible with up to 4 plug-in cards per PC station and can handle 207 configurable connections. Redundancy is enabled via HARDNET-IE S7-REDCONNECT for critical applications requiring high availability.
Installation & Setup
The Siemens 6GK1162-3AA00 is a half-length PCI Express x1 card. Install in a free x1 or larger slot. Connect the 2-pole terminal block for external 24 V power if required. Attach RJ45 cables to the two Ethernet ports. Ensure the operating environment is within 5–55 °C and relative humidity below 95% (non-condensing). No special tooling required – the card is recognized by SIMATIC NET software after driver installation from the included CD.
Selection Guide
When purchasing the Siemens 6GK1162-3AA00, verify that your PC has a PCI Express slot and that the operating system supports SIMATIC NET V7.0 HF1 or later. For applications requiring redundancy, confirm that HARDNET-IE S7-REDCONNECT is used. PLC Source PRO offers this module with fast shipping and full warranty. For bulk inquiries, contact us at ubest101.myshopify.com.
