Product Introduction

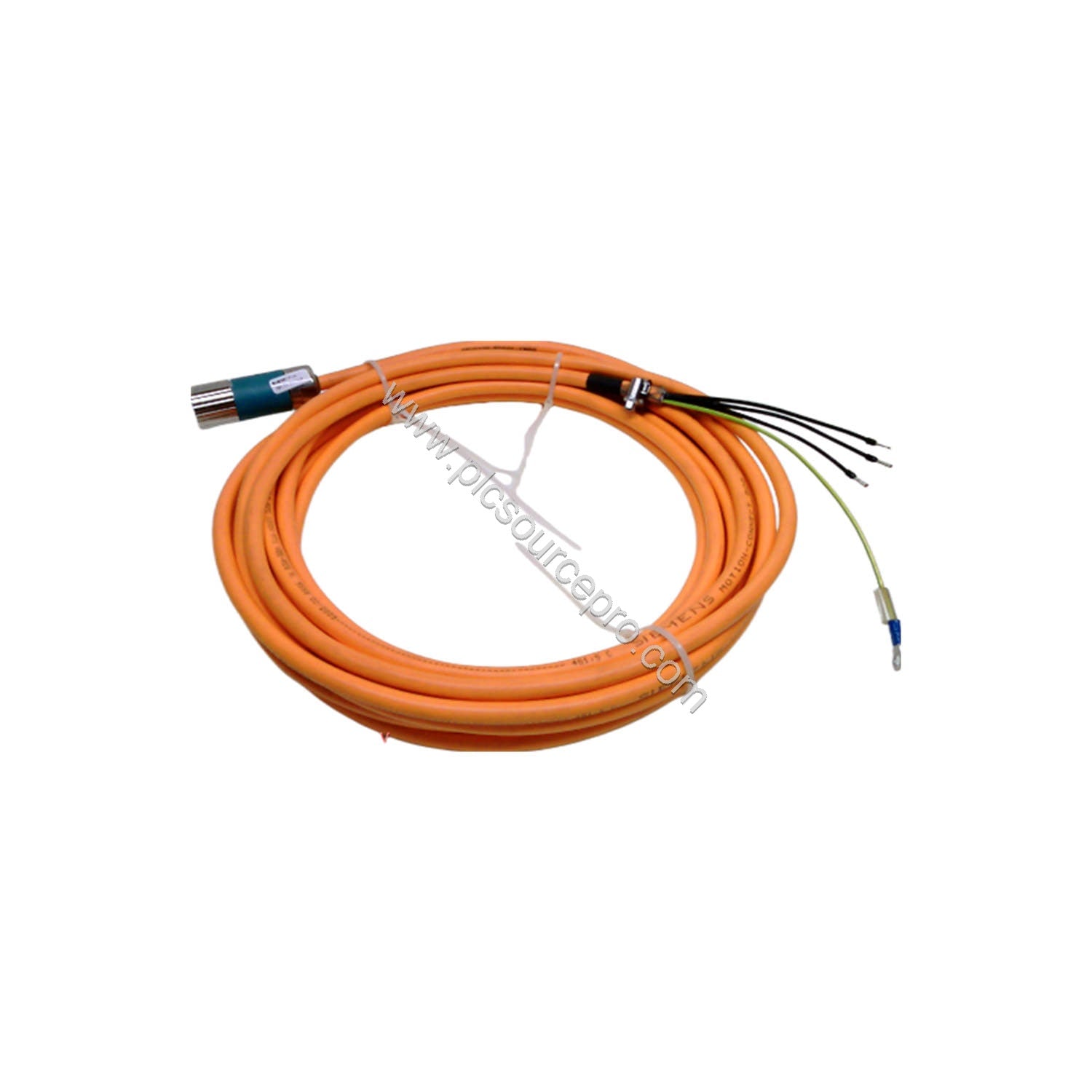

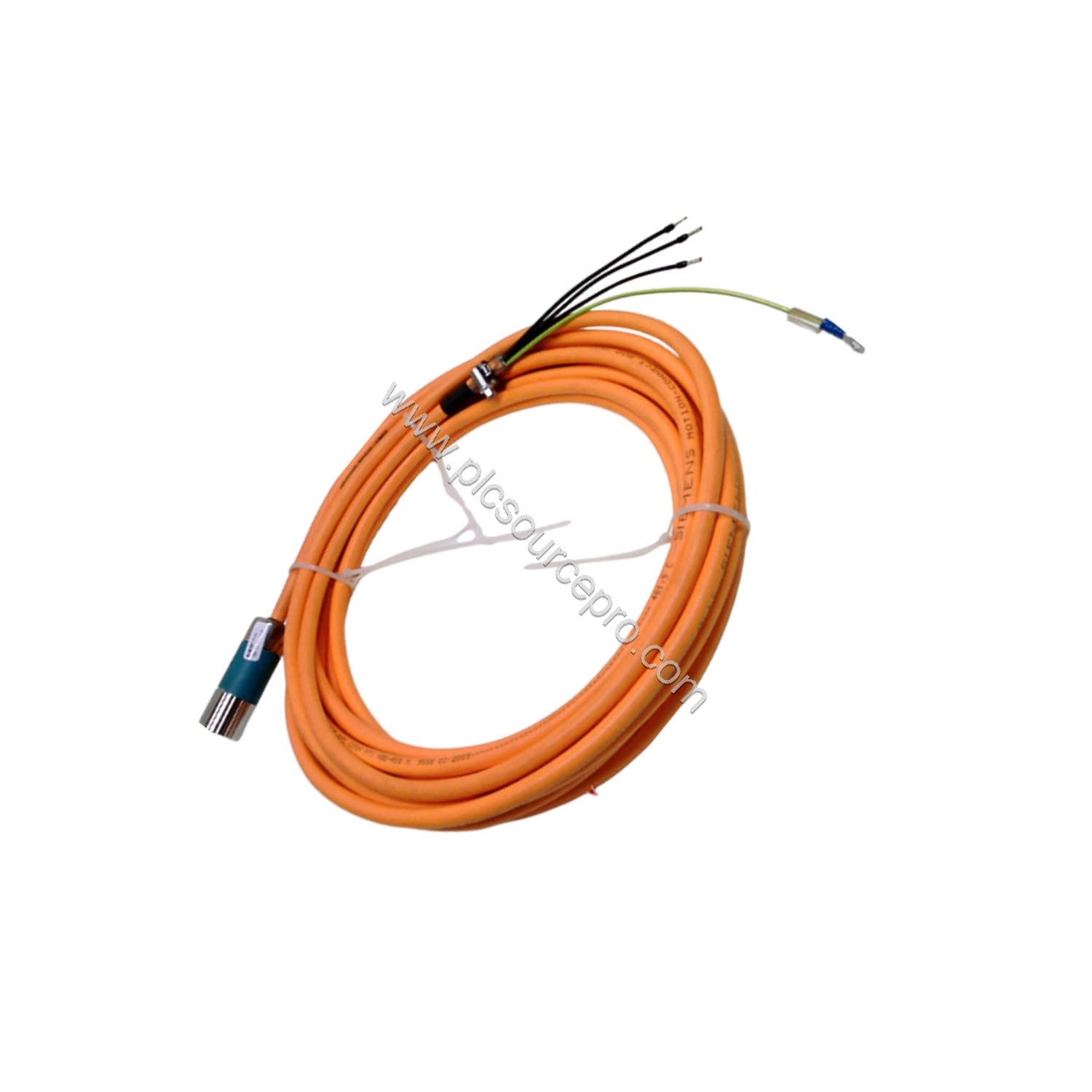

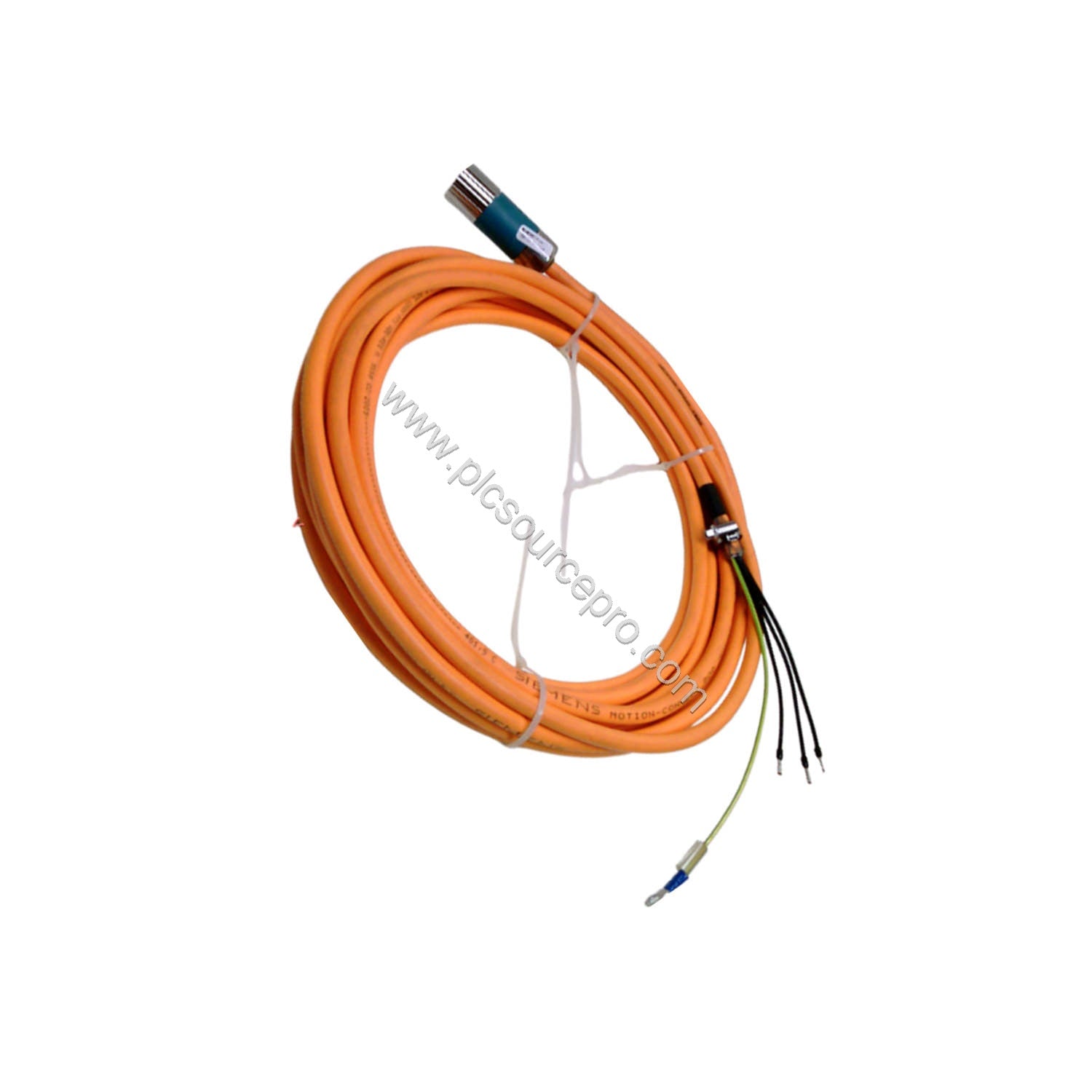

The Siemens 6FX8002-5CA01-1BA0 is a pre-assembled power cable designed for demanding industrial automation environments. This cable assembly features four 1.5 mm² conductors with a full-thread connector size 1, rated for 1000 V nominal voltage, and includes UL/CSA and DESINA approvals. As part of the MOTION-CONNECT 800PLUS series, it offers reliable power transmission for motion control systems.
Technical Specifications Breakdown
| Parameter |
Value |
| Conductor Size |
4 x 1.5 mm² |
| Connector Type |
Full-thread, Size 1 |
| Number of Poles |
5 |
| Cable Type |
Trailing (MOTION-CONNECT 800PLUS) |
| Maximum Outer Diameter |
9.5 mm |
| Nominal Voltage |
1000 V |
| Length |
10 meters |
| Certifications |
UL/CSA, DESINA |
Industry Applications
The Siemens 6FX8002-5CA01-1BA0 power cable is ideal for use in CNC machines, robotic arms, and automated production lines where reliable power delivery and flexibility are essential. Its trailing cable design withstands continuous flexing, reducing downtime in high-cycle applications. UL/CSA certification ensures compliance with North American safety standards, making it a trusted choice for global installations.
Installation & Setup Guidance
When installing the Siemens 6FX8002-5CA01-1BA0, ensure the cable is routed away from sharp edges and extreme heat sources. Secure the full-thread connector firmly to the drive or motor. Use cable ties to support the cable along its path, avoiding tight bends that could stress the conductors. Verify that the nominal voltage rating matches your system before connection.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6FX8002-5CA01-1BA0, confirm the required length and connector specifications for your application. This cable is designed for Siemens MOTION-CONNECT 800PLUS systems but is compatible with other equipment using size 1 full-thread connectors. For reliable sourcing, PLC Source PRO (formerly ubest101) stocks genuine Siemens cables to ensure quality and traceability.
