Product Overview

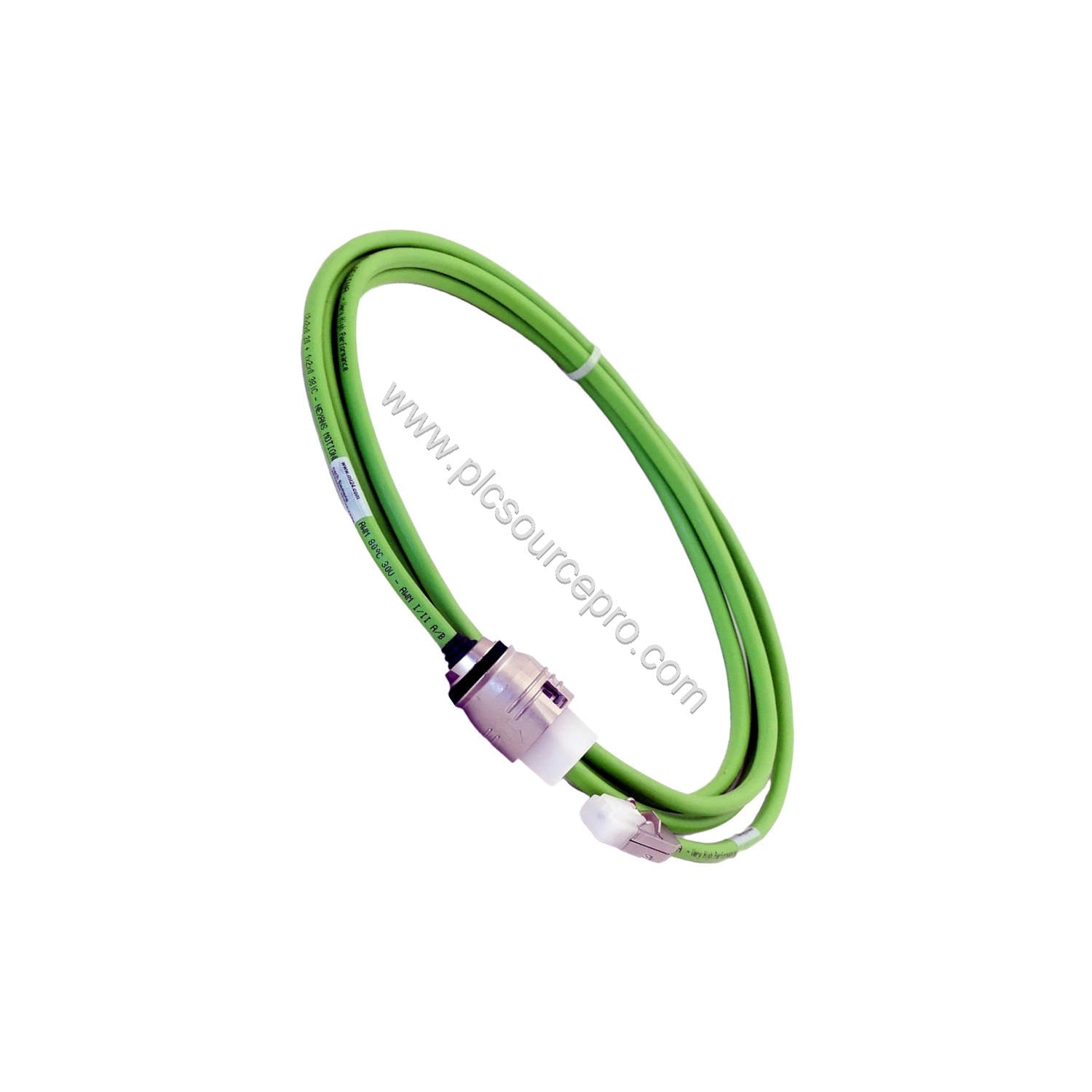

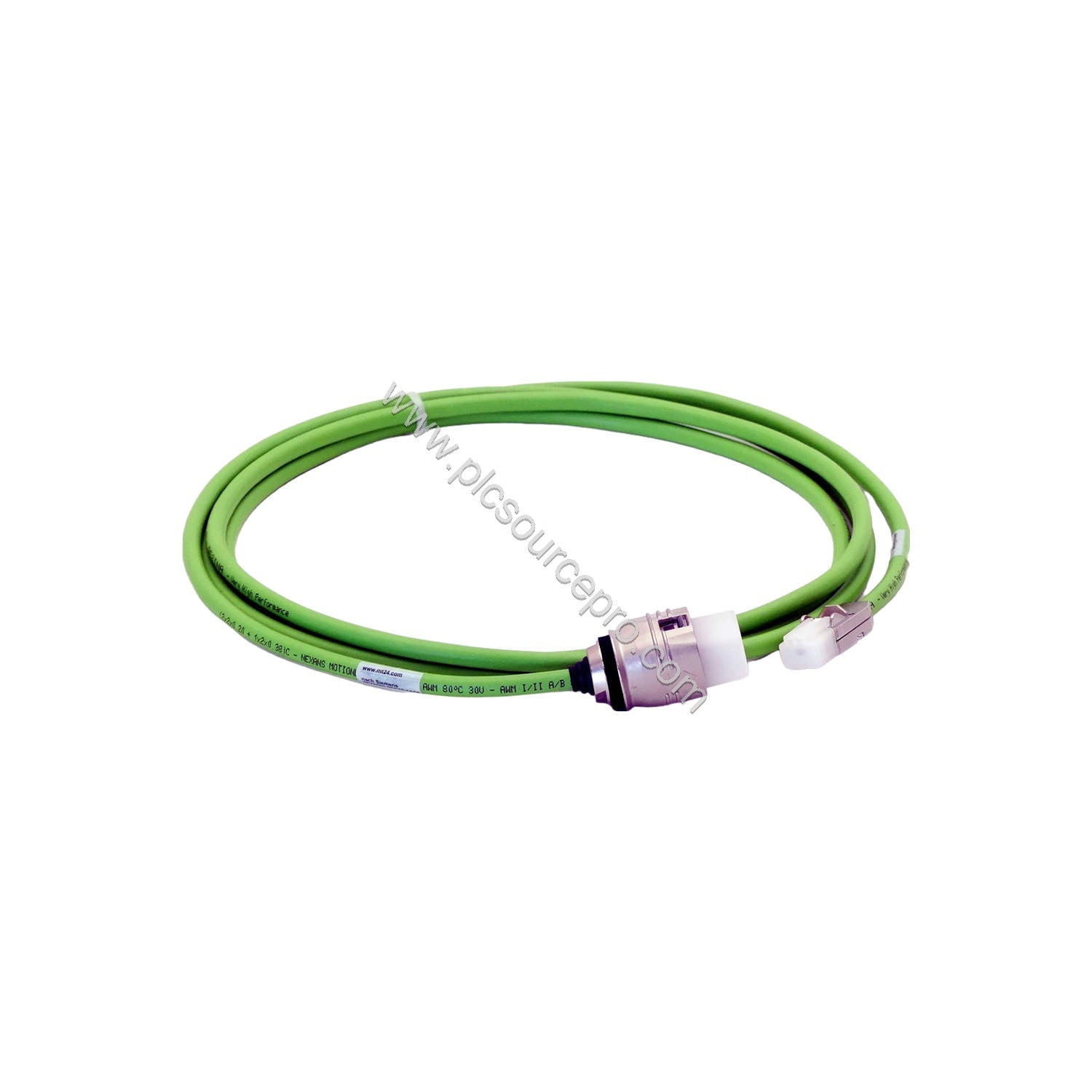

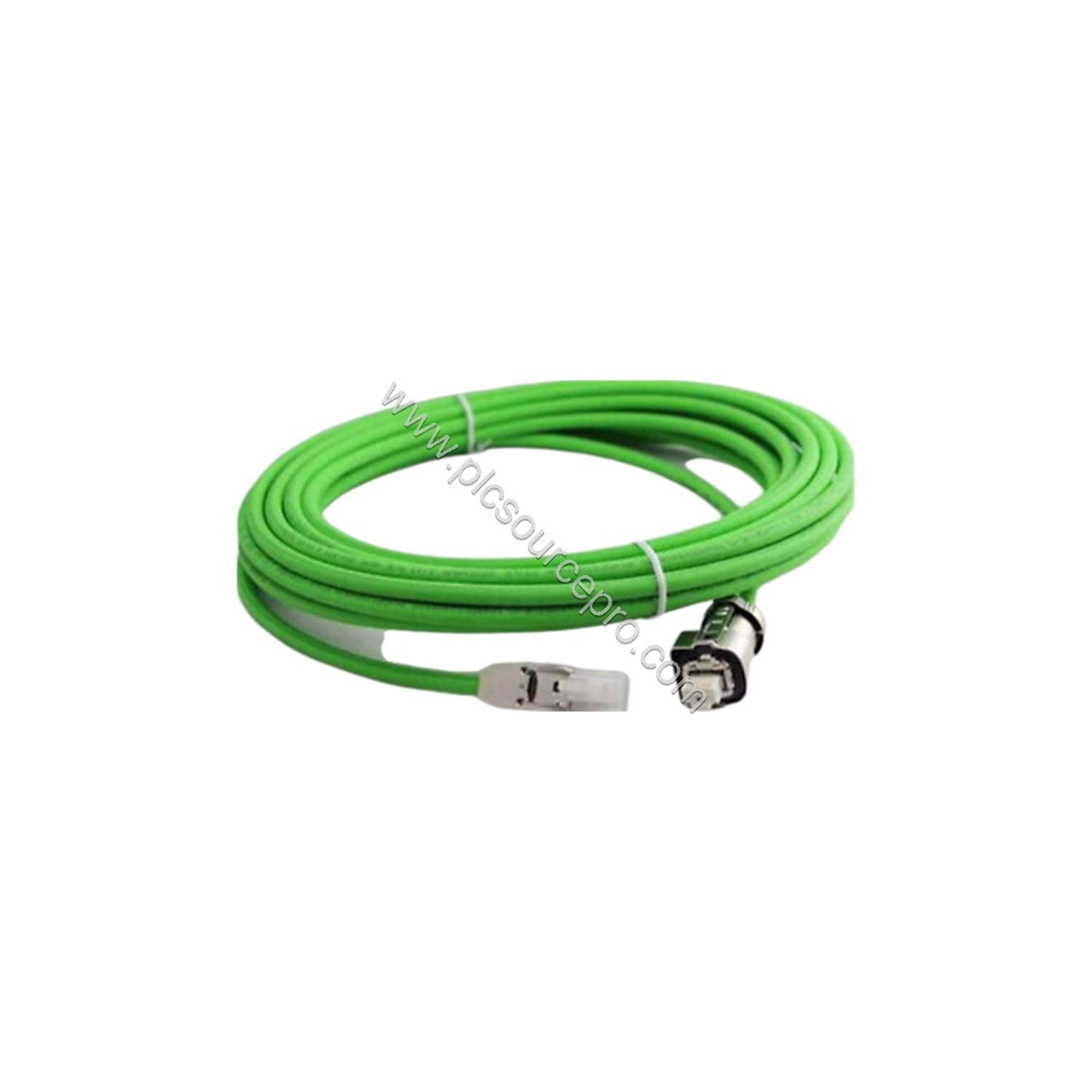

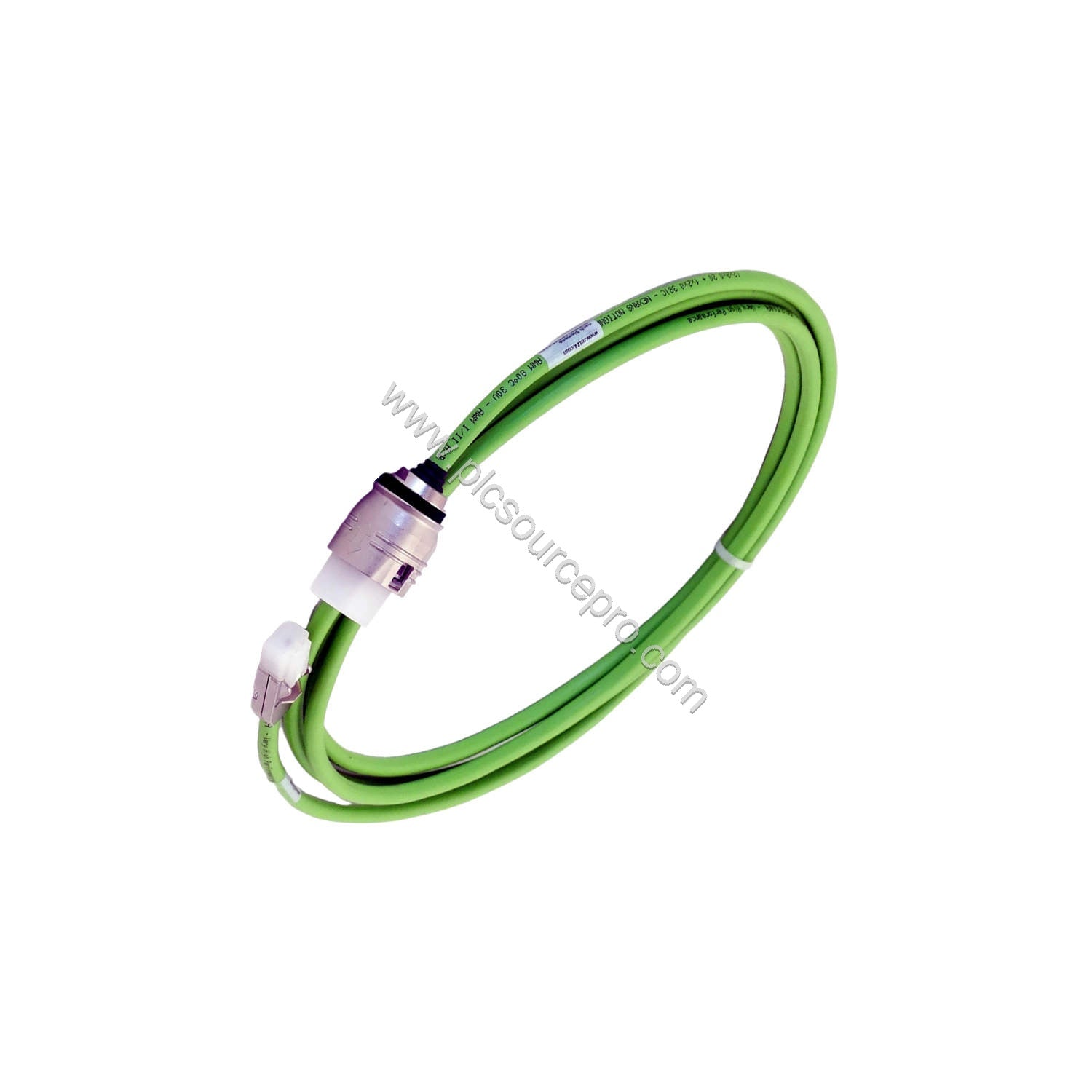

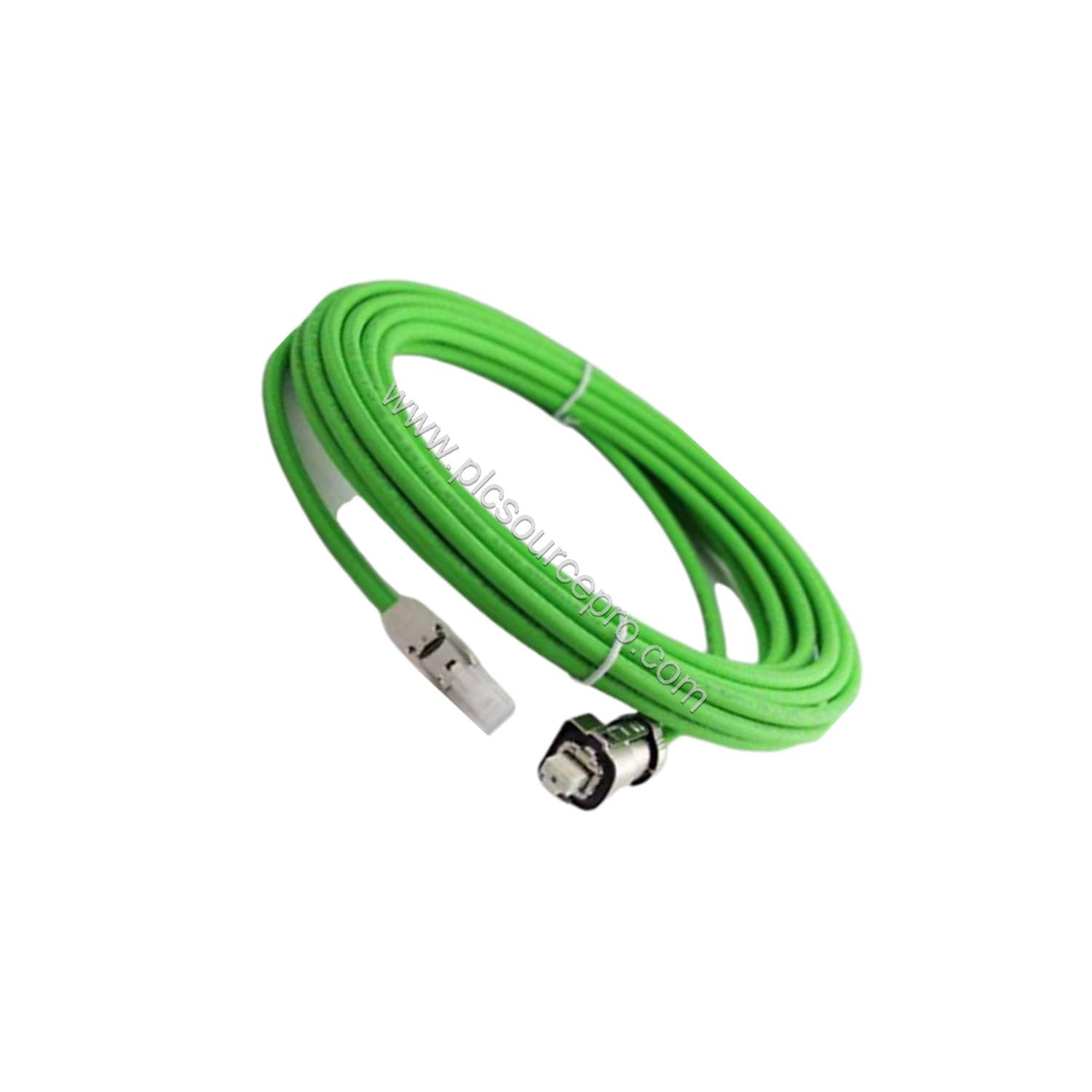

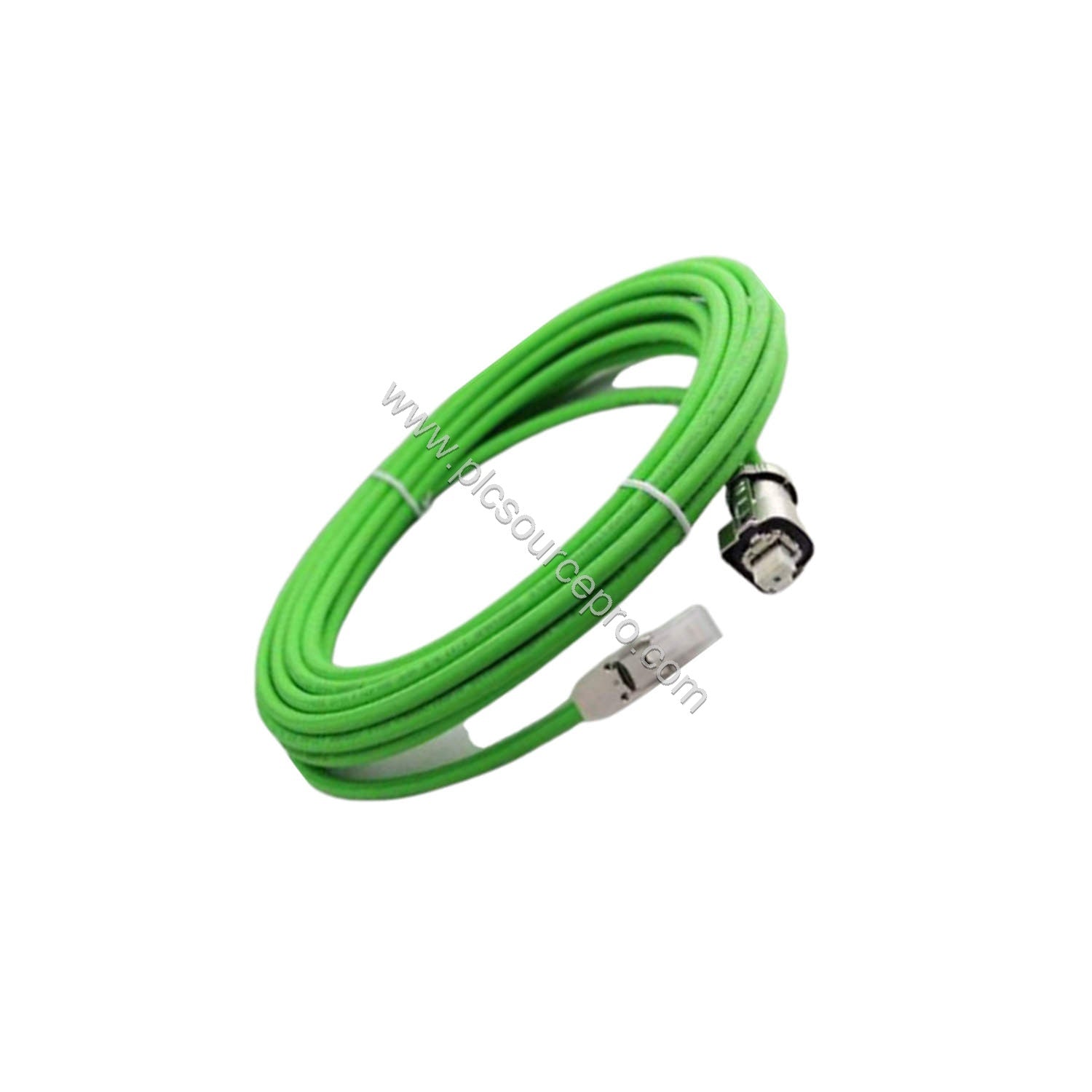

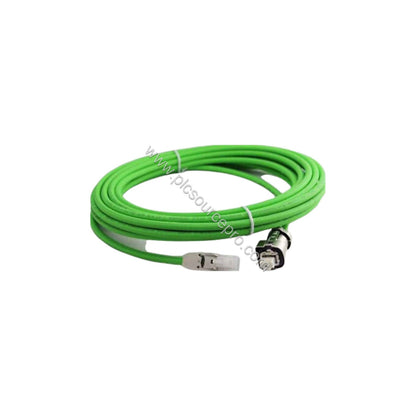

The Siemens 6FX8002-2DC10-1BE0 is a pre-assembled DRIVE-CLiQ signal cable designed for industrial automation. This cable integrates a 24 V plug and an RJ45 connector, offering IP20 protection on the module side and IP67 on the motor side. As part of the MOTION-CONNECT 800PLUS series, it ensures reliable data and power transmission for critical motion control applications.
Technical Specifications
-
Cable Type: Pre-assembled DRIVE-CLiQ signal cable with 24 V plug and RJ45 connector
-
Protection Ratings: IP20 (module side), IP67 (motor side)
-
Maximum Length: 75 meters
-
Cable Diameter: Dmax = 7.1 mm
-
Weight: 2.163 lb (approximately 0.98 kg)
-
UPC: 662643414202
This cable is intended for use with SINAMICS S120 Motor Modules and SINUMERIK 840D sl controls. The Siemens 6FX8002-2DC10-1BE0 meets the rigorous demands of factory automation, reducing installation time through its pre-assembled design.
Industry Applications
Common applications include high-precision CNC machining centers, packaging machinery, and robotic cells where Siemens drives and controllers operate. The robust IP67 motor-side connector withstands harsh environments, while the IP20 module-side connector ensures easy integration into control cabinets. This cable supports high-speed DRIVE-CLiQ communication, enabling real-time feedback and synchronized motion.
Installation Guidance
The pre-assembled nature of the Siemens 6FX8002-2DC10-1BE0 simplifies installation. Ensure the RJ45 connector locks securely into the drive module and the 24 V plug mates correctly. On the motor side, verify the IP67 connector is fully tightened to maintain environmental sealing. Avoid bending the cable beyond its minimum bend radius (refer to motor cable specifications) to prevent signal degradation.
Selection and Purchasing Advice
When ordering, confirm the required cable length (up to 75 m) and ensure compatibility with your SINAMICS S120 or SINUMERIK 840D sl system. The Siemens 6FX8002-2DC10-1BE0 is a factory-assembled solution that eliminates field termination errors. For reliable supply and competitive pricing, consider purchasing from PLC Source PRO (formerly ubest101). Our inventory ensures fast delivery of authentic Siemens components.
