Product Introduction

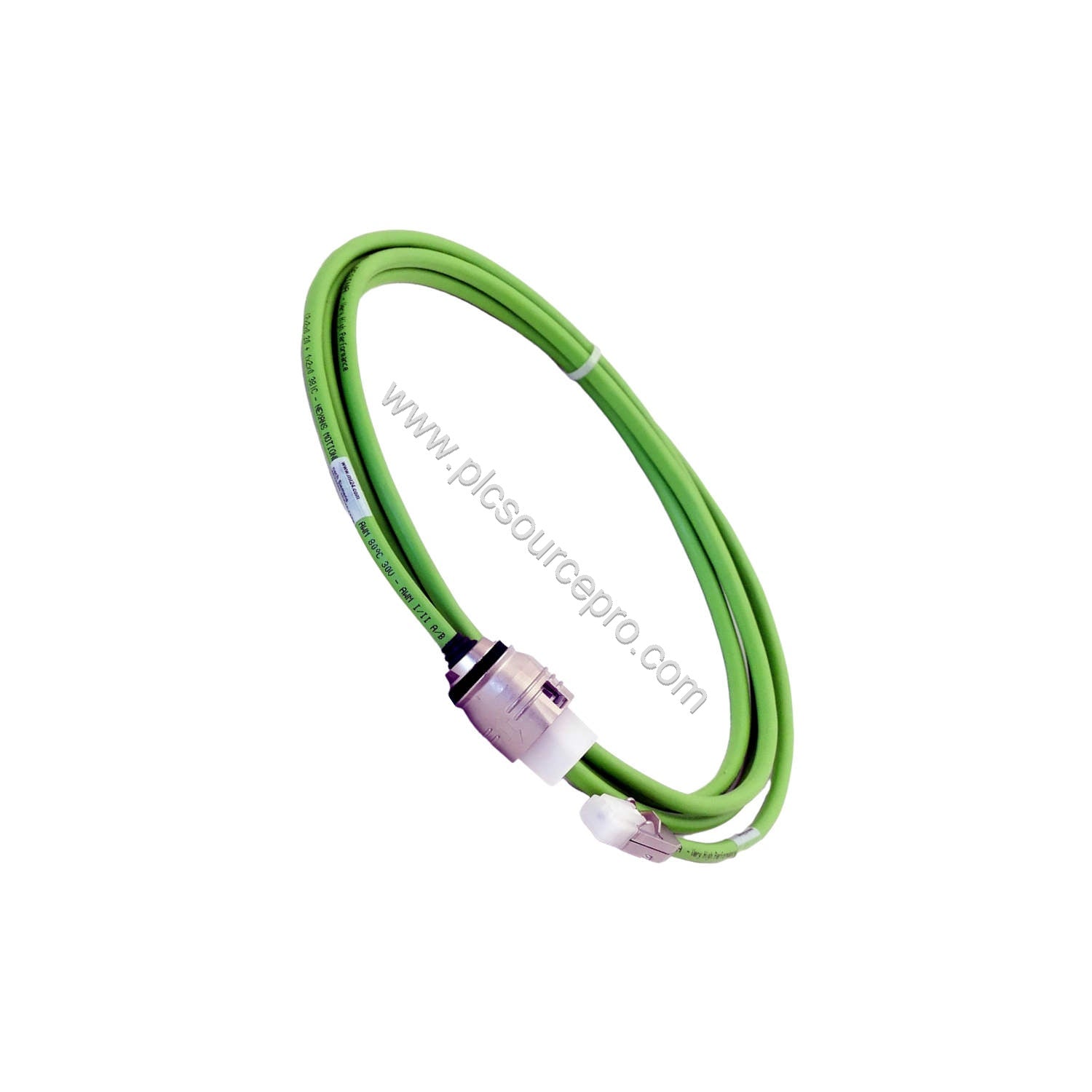

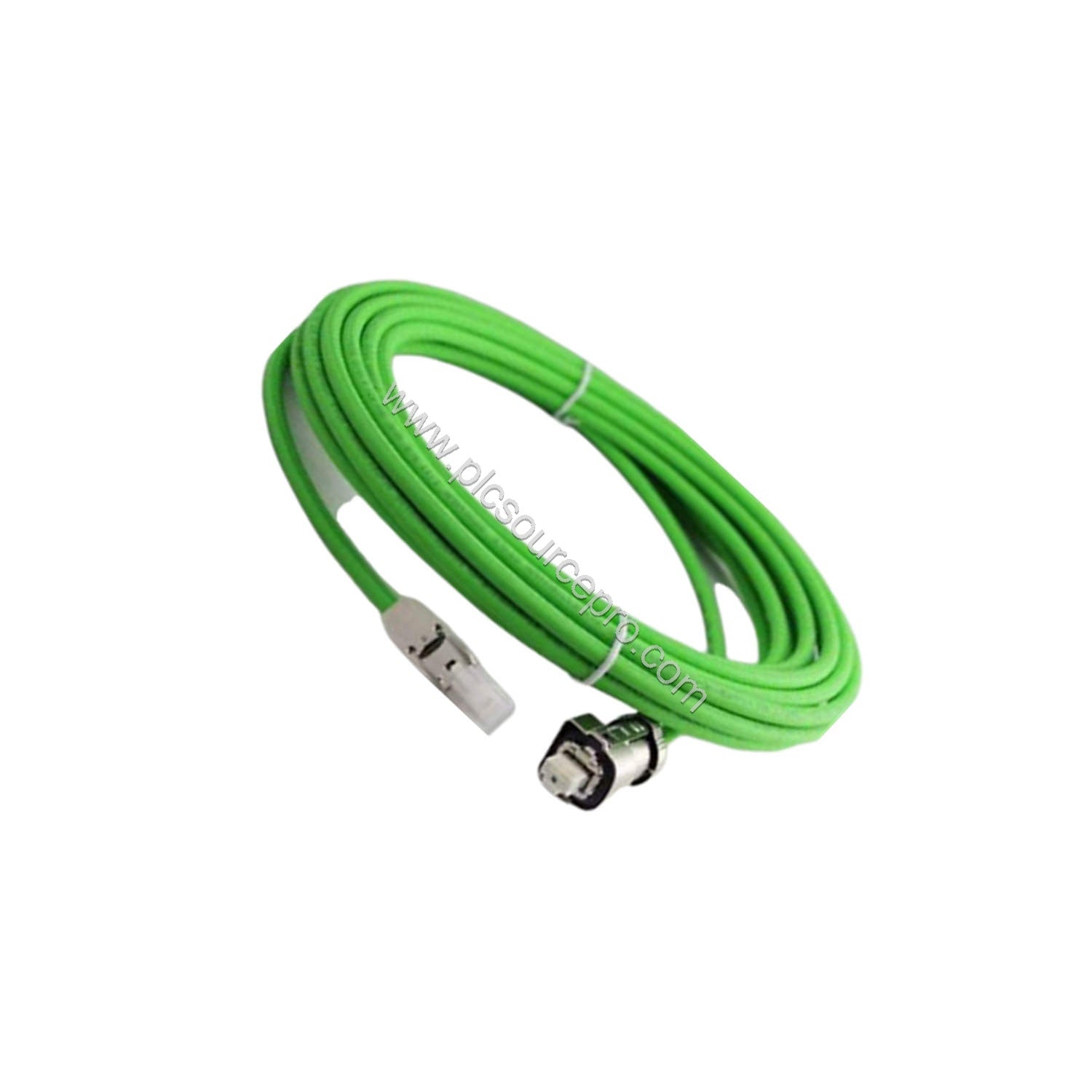

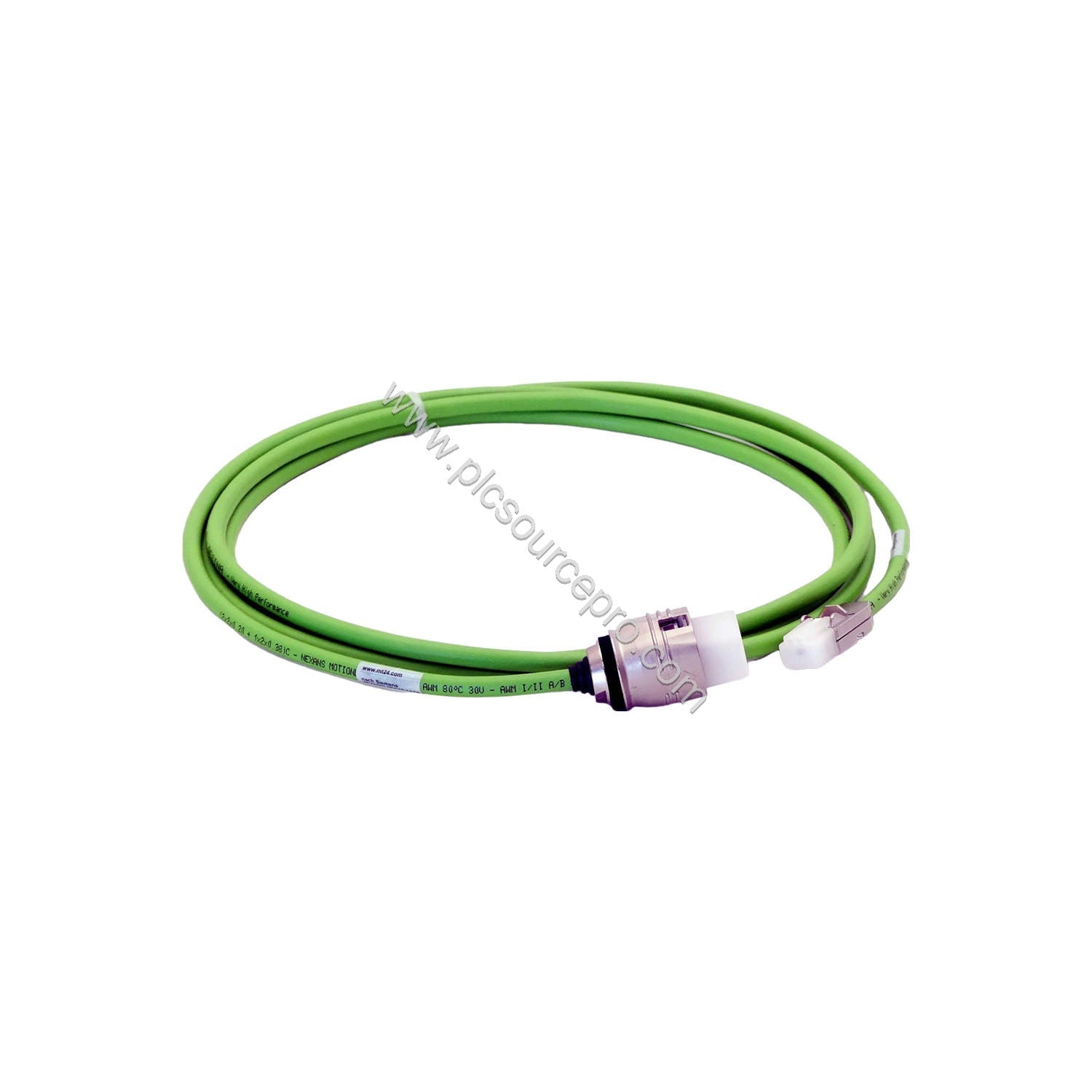

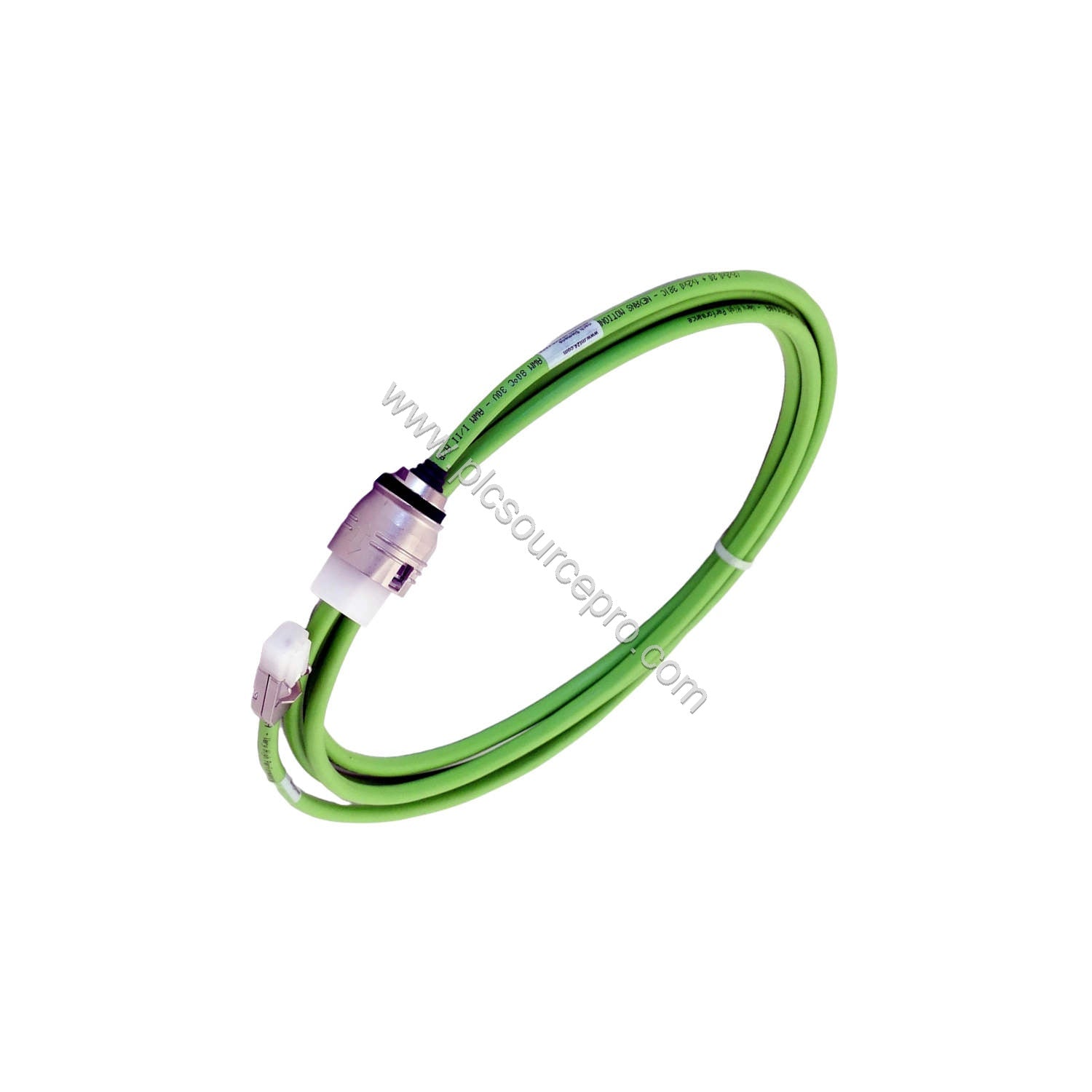

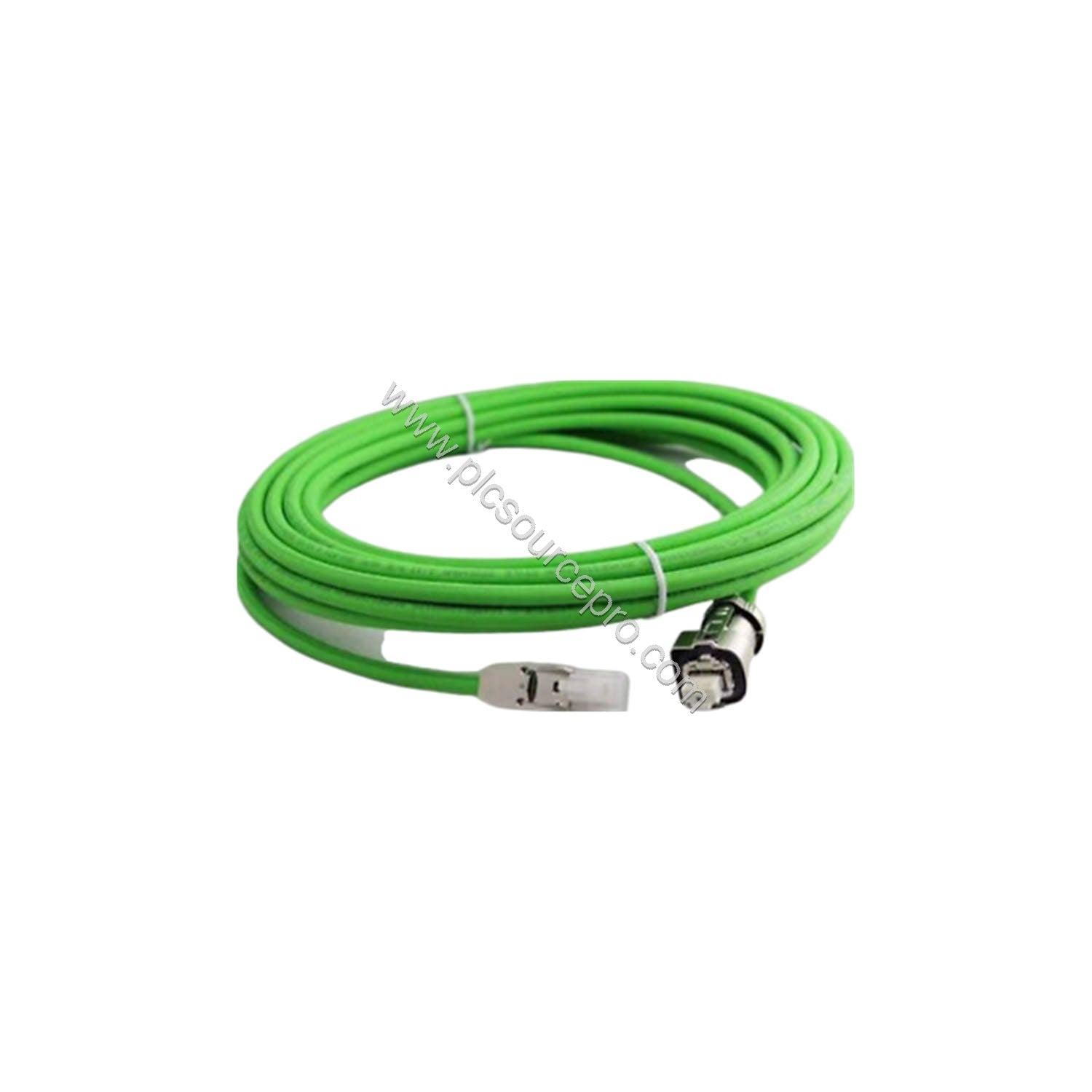

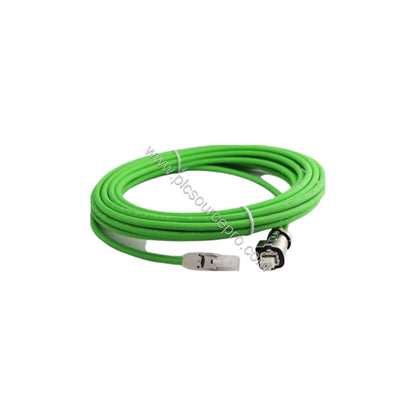

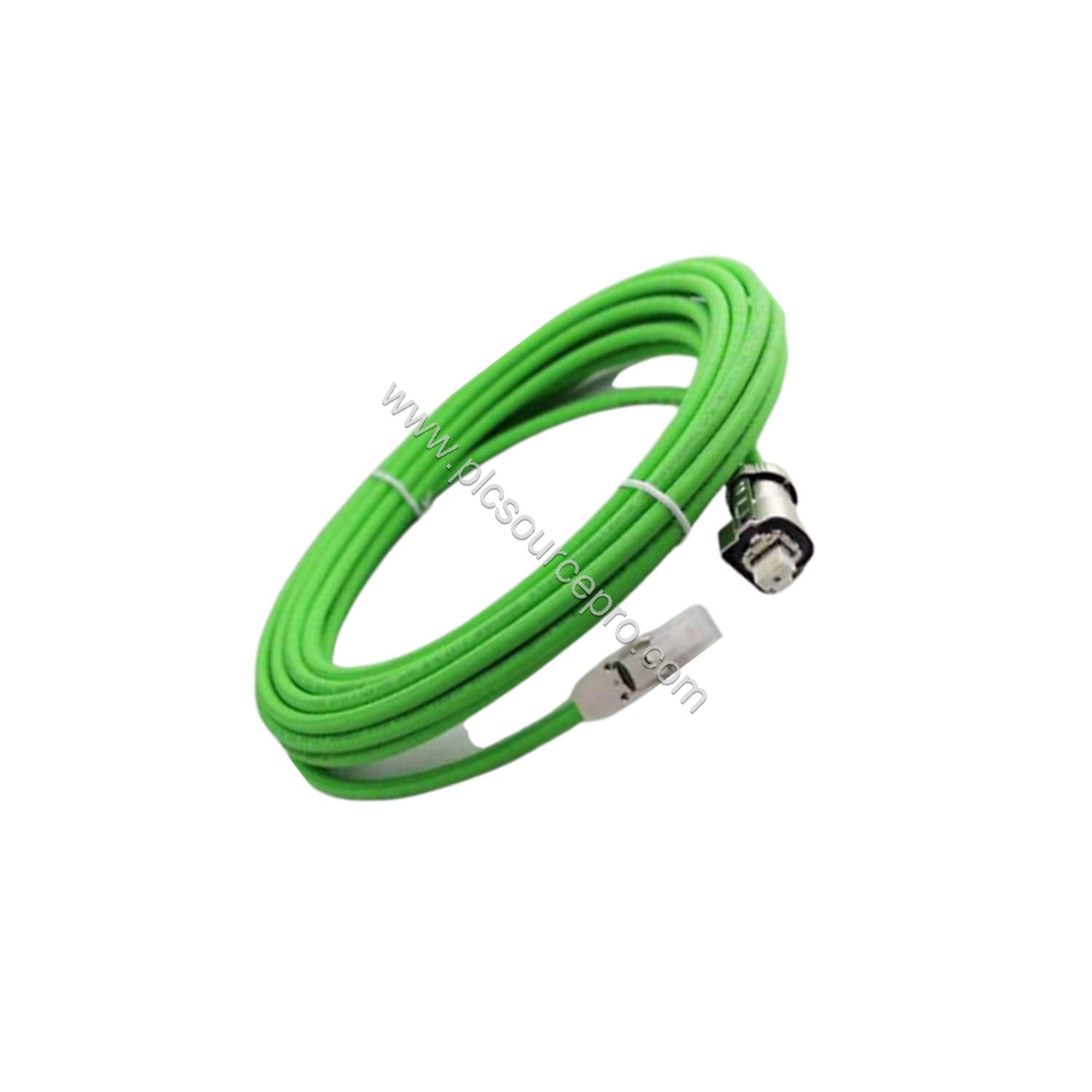

When signal cable failures halt production, the Siemens 6FX8002-2DC10-1BD0 provides a reliable solution. This preassembled DRIVE-CLiQ cable is engineered to prevent connection issues, signal noise, and physical damage in demanding industrial environments. Designed for Siemens drive systems, it ensures robust communication between controller and motor.
Technical Specifications
| Parameter |
Value |
| Product Type |
Signal Cable, Preassembled |
| Cable Type |
6FX8002-2DC10 DRIVE-CLiQ with 24 V plug |
| Connector (Module Side) |
RJ45, IP20 |
| Connector (Motor Side) |
RJ45, IP67 |
| Series |
MOTION-CONNECT 800PLUS |
| Maximum Length |
75 m |
| Outer Diameter (Dmax) |
7.1 mm |
| Net Weight |
0.913 kg |
The Siemens 6FX8002-2DC10-1BD0 features a 24 V plug integrated into the DRIVE-CLiQ connector, eliminating separate power wiring. The IP20 rating on the module side protects against dust and accidental contact, while the IP67 rating on the motor side withstands moisture and dust ingress. With a maximum length of 75 meters, it suits long cable runs in large machinery.
Industry Applications
This Siemens 6FX8002-2DC10-1BD0 cable is ideal for servo drive systems, conveyor controls, and robotic cells. In a packaging line, its IP67 motor-side connector resists washdown environments, reducing downtime from connector corrosion. In CNC machines, the DRIVE-CLiQ interface ensures high-speed data transfer for precise motion control, minimizing signal loss that can cause positioning errors.
Installation & Setup Guidance
Route the Siemens 6FX8002-2DC10-1BD0 cable away from sharp edges and high-heat sources. Avoid bending beyond the recommended minimum radius to protect the inner conductors. The preassembled RJ45 connectors simplify wiring: connect the IP20 end to the drive module and the IP67 end to the motor. Secure the cable with strain relief clamps near both connectors to prevent pull-out. For lengths exceeding 75 m, use additional signal repeaters (not included).
Maintenance & Reliability
Regularly inspect the Siemens 6FX8002-2DC10-1BD0 cable connectors for signs of wear or contamination. Clean the motor-side IP67 connector with a dry cloth if exposed to cutting fluids. Replace the cable if the outer jacket shows cracks or if intermittent communication errors occur. The preassembled construction reduces field failure points, and the robust MOTION-CONNECT 800PLUS design extends service life in high-flex applications.
Selection Guide & Purchasing Advice
Before ordering, verify the required cable length and ensure your drive and motor both support DRIVE-CLiQ communication. The Siemens 6FX8002-2DC10-1BD0 is available in fixed lengths; select the nearest standard length to your needs. For custom lengths, contact a trusted supplier like ubest101 for assistance. Always confirm compatibility with your Siemens drive series to guarantee plug-and-play operation.
