Product Introduction

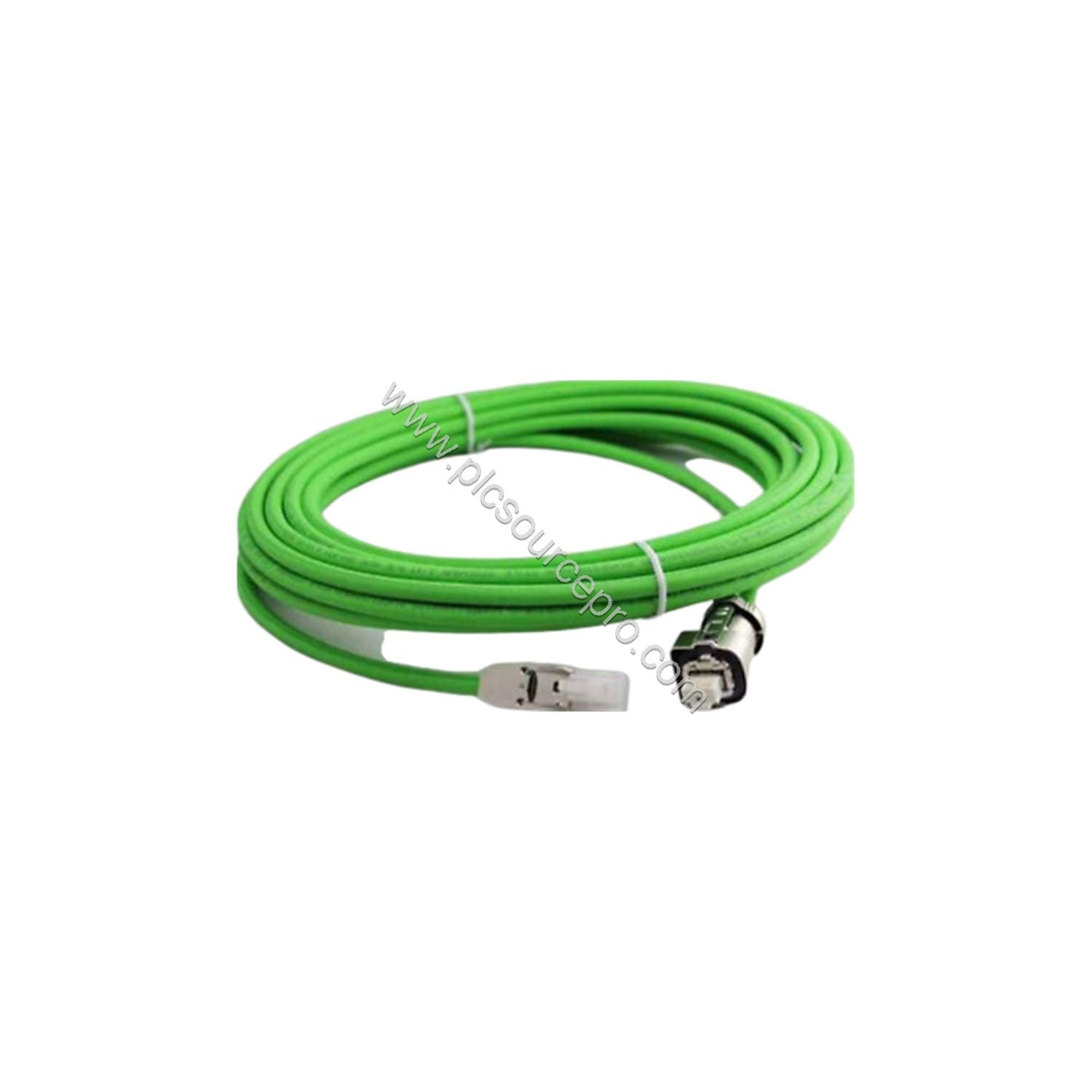

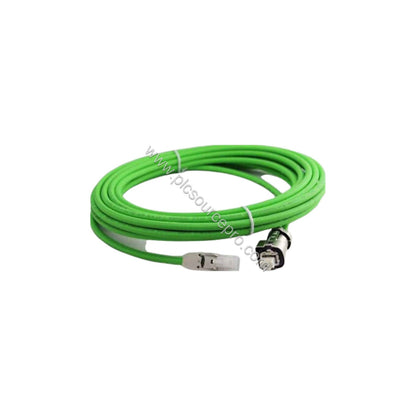

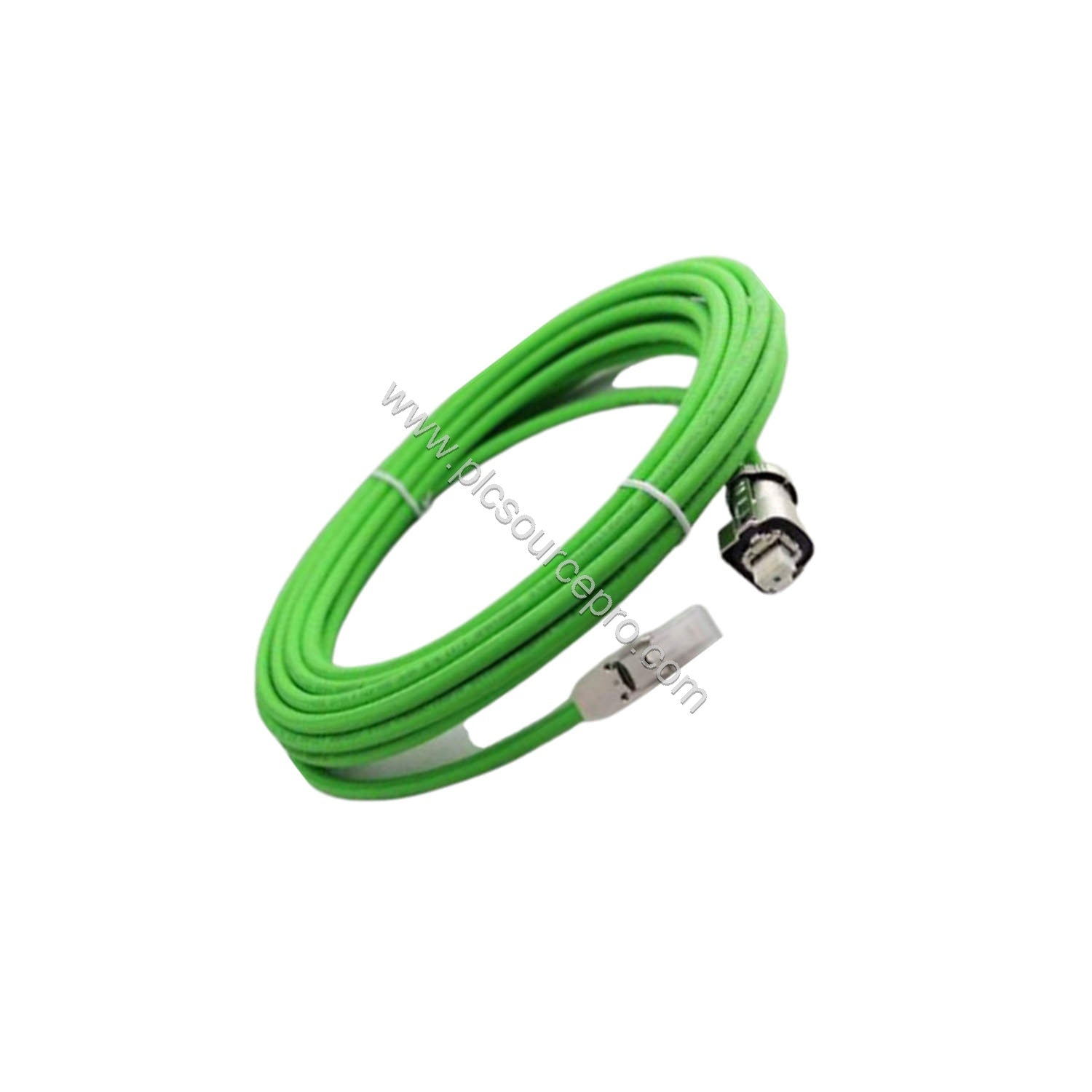

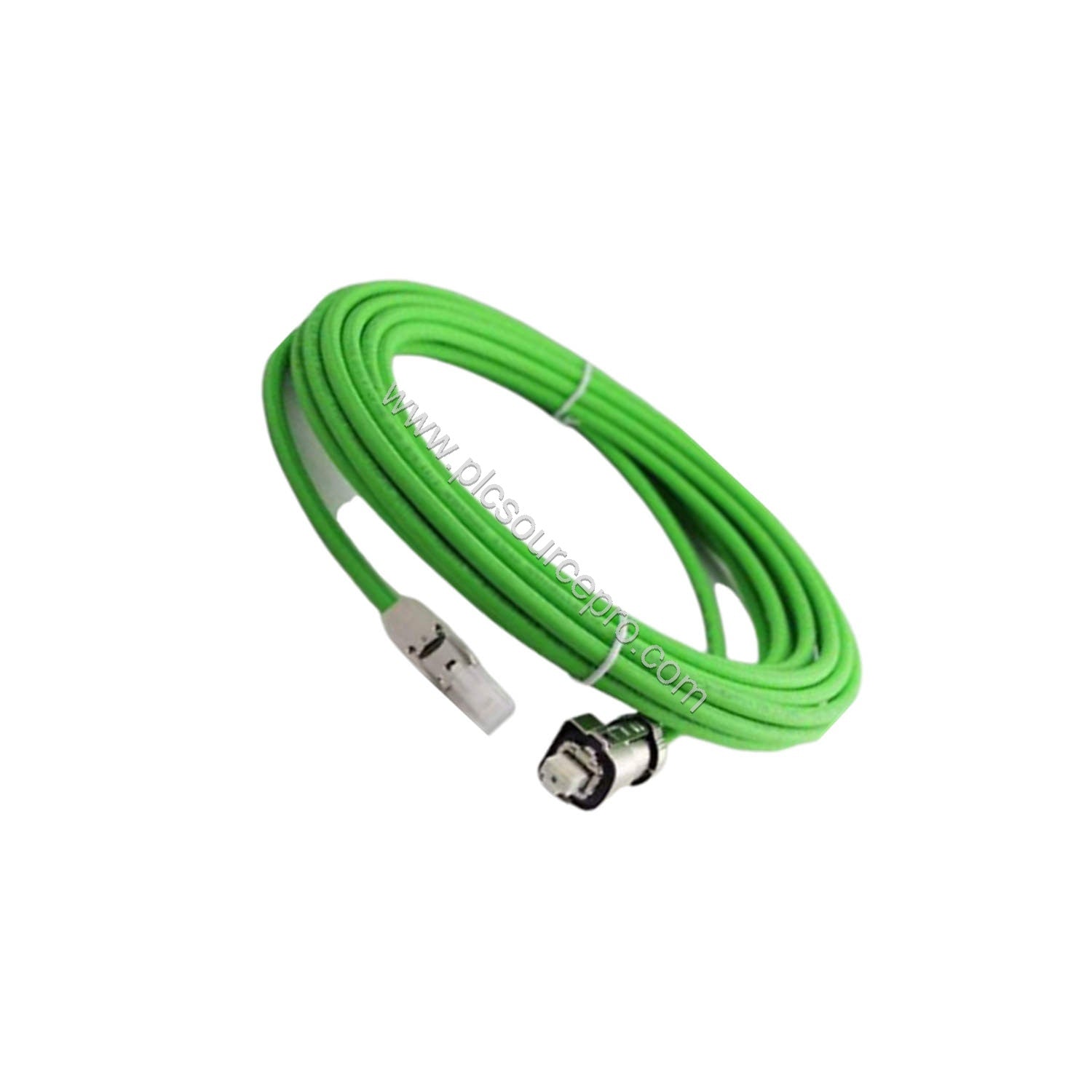

When upgrading or replacing signal cables in SINAMICS S120 and SINUMERIK 840D sl systems, the Siemens 6FX8002-2DC10-1AJ0 delivers reliable performance. This pre-assembled signal cable features a DRIVE-CLiQ interface with a 24 V plug. The connector on the module side is RJ45 with IP20 protection, while the motor side connector is rated IP67. Part of the MOTION-CONNECT 800PLUS series, this cable is released for lengths up to 75 meters.
Technical Specifications
| Parameter |
Value |
| Article Number |
6FX8002-2DC10-1AJ0 |
| Cable Type |
Pre-assembled DRIVE-CLiQ with 24 V plug |
| Maximum Length |
75 m |
| Cable Outer Diameter (Dmax) |
7.1 mm |
| Protection Module Side |
IP20 (RJ45) |
| Protection Motor Side |
IP67 |
| Net Weight |
0.573 kg |
| Country of Origin |
Slovakia |
| Product Family |
SINAMICS S120 Motor Module – SINUMERIK 840D sl |
Industry Applications
The Siemens 6FX8002-2DC10-1AJ0 is ideal for servo drive and CNC applications requiring robust signal transmission. Use it in machine tools, production lines, and automated assembly systems. The rugged IP67 motor-side connector ensures reliable operation in harsh environments. Upgrading to this cable reduces signal loss and improves system uptime.
Installation & Setup Guidance
Before installation, verify the cable length matches your application (max 75 m). Route the cable with a minimum bending radius considering the 7.1 mm outer diameter. Connect the RJ45 IP20 side to the module and the IP67 connector to the motor. Ensure the 24 V plug is securely fastened. The pre-assembled design simplifies installation and reduces wiring errors.
Selection Guide & Purchasing Advice
When selecting a replacement cable, confirm compatibility with your SINAMICS S120 Motor Module or SINUMERIK 840D sl system. The Siemens 6FX8002-2DC10-1AJ0 is an exact fit. For bulk orders or custom lengths, contact PLC Source PRO (formerly PLC Source PRO) for availability and lead times. Always verify the part number before purchase.
