Product Overview: Siemens 6FX8002-2CF02-1DA0 MOTION CONNECT 800PLUS

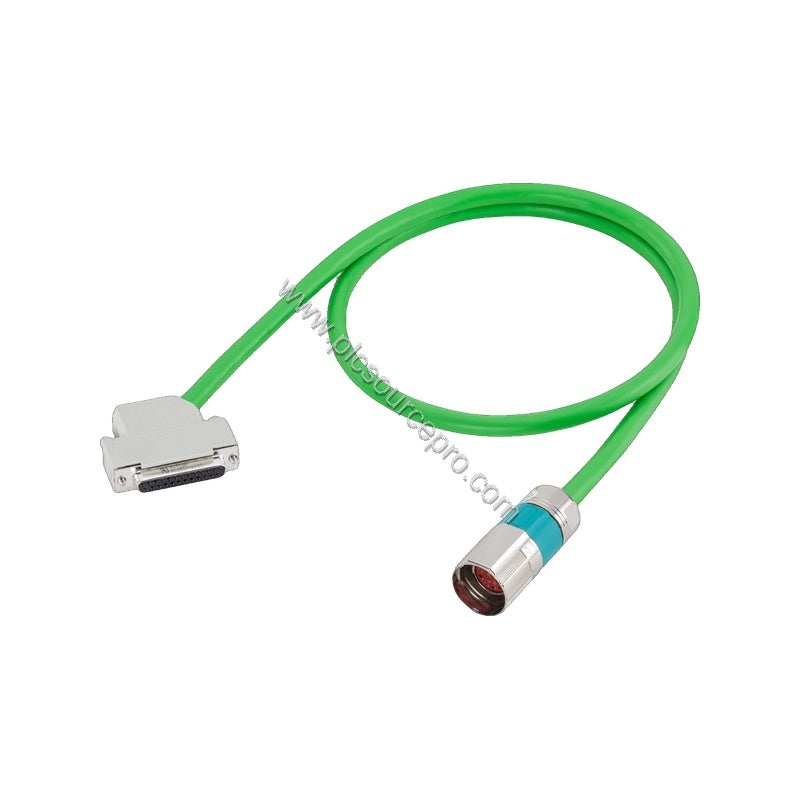

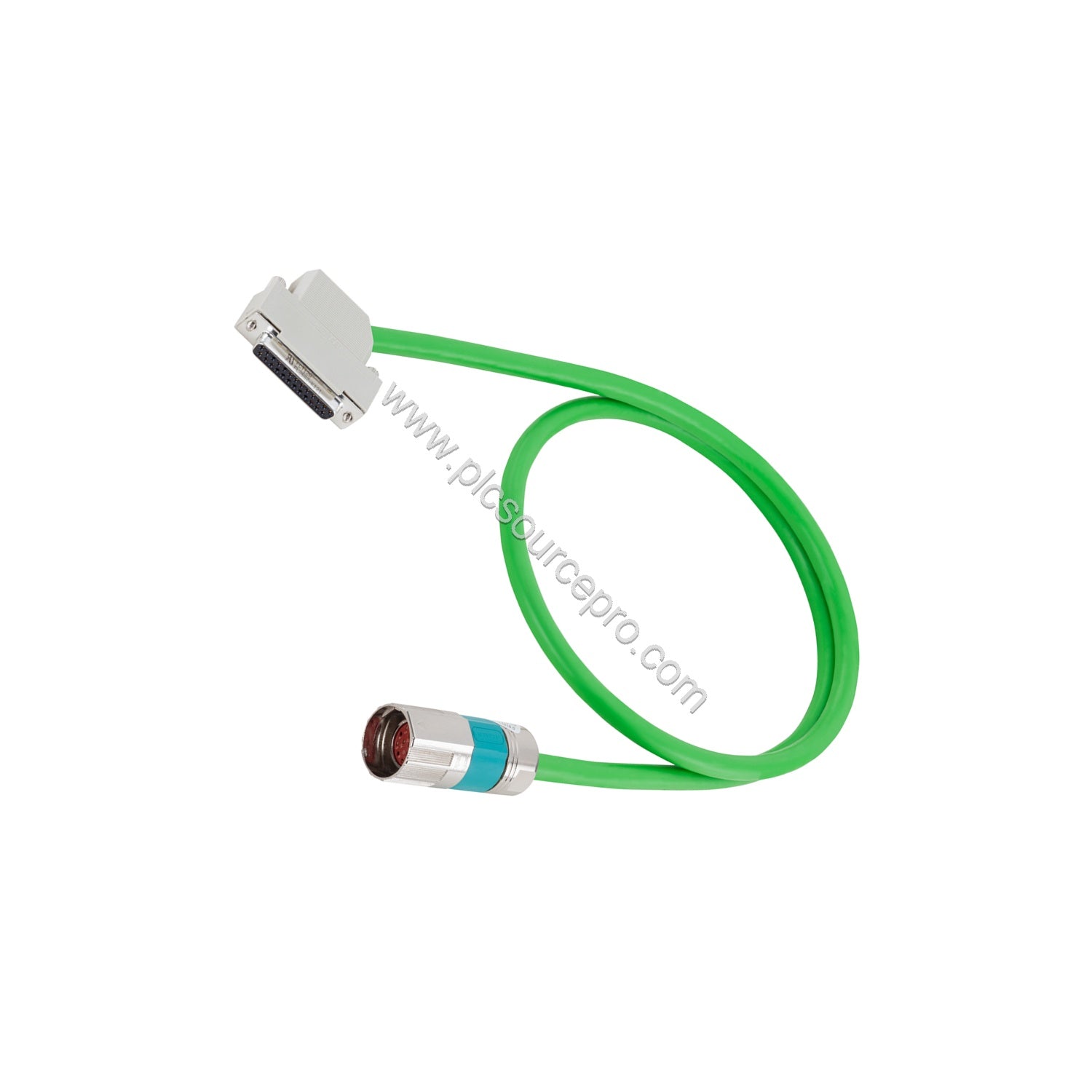

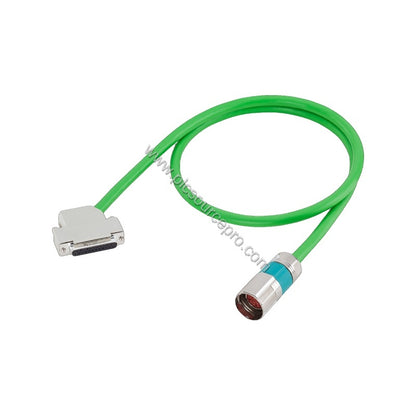

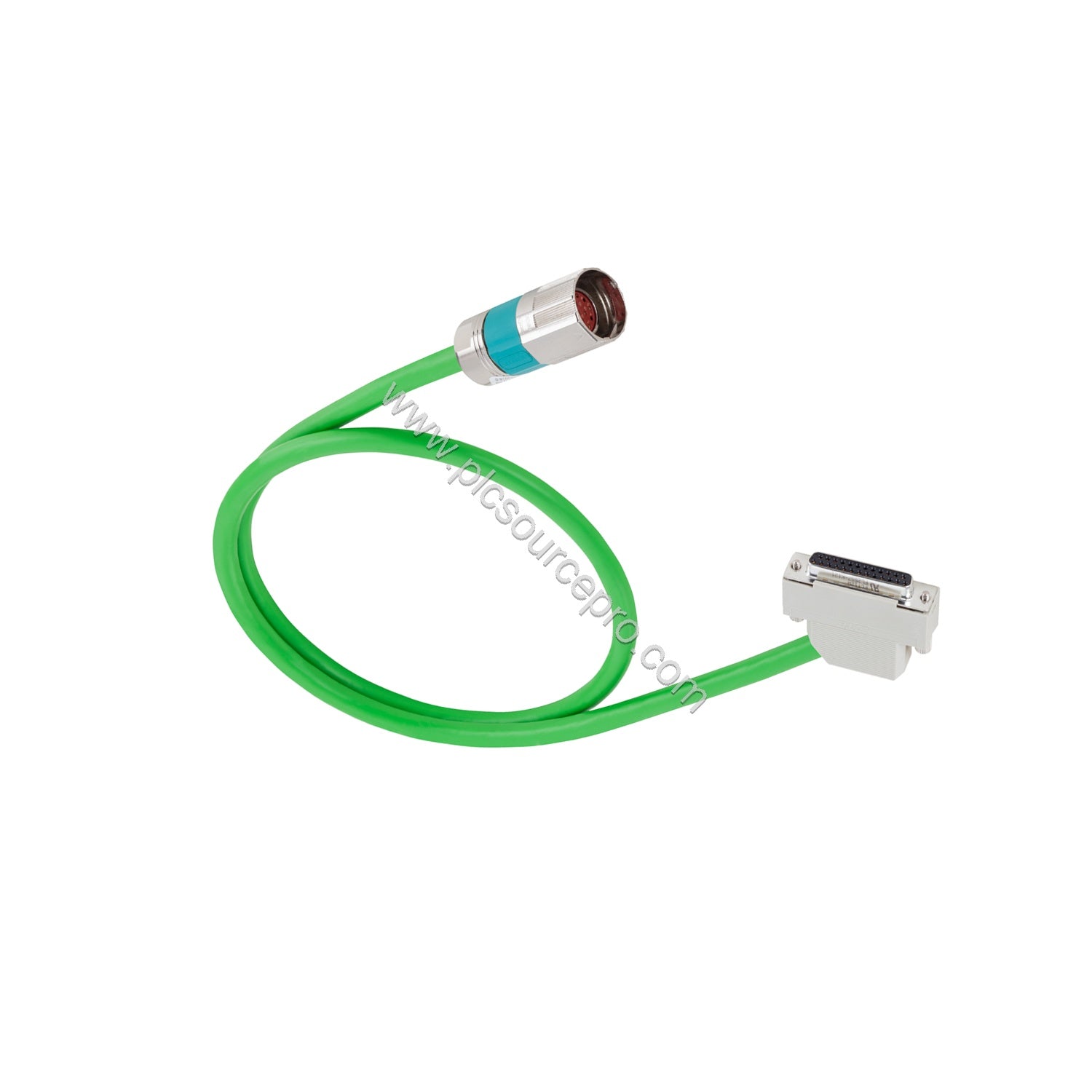

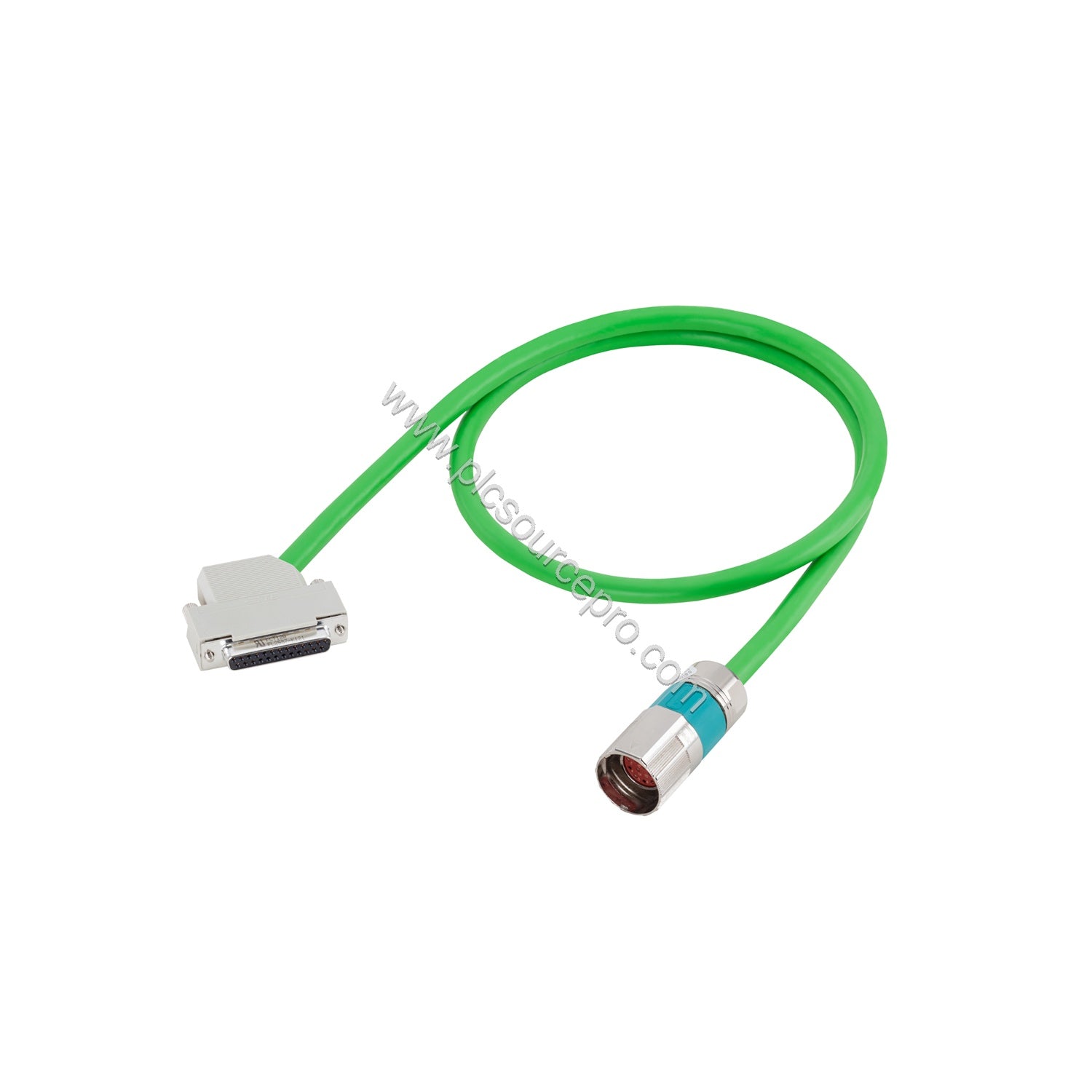

The Siemens 6FX8002-2CF02-1DA0 is a high-performance MOTION CONNECT 800PLUS industrial cable assembly designed for demanding servo drive and resolver feedback applications. This 30-meter cable integrates a 2-pole resolver sensor and provides robust electrical and mechanical characteristics to ensure reliable signal transmission in automated machinery. With its heavy-duty PUR jacket and flexible installation capabilities, the Siemens 6FX8002-2CF02-1DA0 delivers exceptional longevity and reduced downtime, offering a strong return on investment for high-cycle production environments.
Technical Specifications Breakdown
The following key specifications from the Siemens 6FX8002-2CF02-1DA0 demonstrate its suitability for rigorous industrial use:
-
Sensor design: Resolver 2-pole – ideal for precise position feedback in motion control loops.
-
Test voltage (signal conductors): 500 V rms – ensures insulation integrity under stress.
-
Rated voltage (power conductors): 30 V (EN 50395) – matches standard low-voltage drive interfaces.
-
Mechanical endurance: Up to 10,000,000 bends – critical for continuous-flex applications.
-
Temperature range (fixed installation): -50 to +80 °C – allows use in extreme environments.
-
Cable length: 30.0 m – suitable for long-reach connections between drives and motors.
-
Sheath material: PUR green RAL 6018 – oil-resistant and flame-retardant per EN 60332-1-1.
Industrial Applications
The Siemens 6FX8002-2CF02-1DA0 excels in automated production lines, robotics, and CNC machining centers. In a high-speed pick-and-place system, its 300 m/min traversing velocity and 50 m/s² acceleration capability ensure smooth, uninterrupted signal transfer even under rapid motion. For packaging machinery that operates millions of cycles per year, the cable's 10 million bend rating drastically reduces replacement frequency, directly lowering total cost of ownership. Its UL and CSA approvals simplify integration into North American installations.
Maintenance & Reliability
To maximize the service life of the Siemens 6FX8002-2CF02-1DA0, inspect the cable routing periodically for kinks or abrasion. The PUR sheath resists oils and coolants commonly found in machine shops, but avoid sharp edges near the connectors. The fixed-installation bending radius of 4 x Dmax (about 36.8 mm) prevents internal conductor fatigue. In moving-cable setups, the 70 mm minimum bend radius must be maintained to achieve the rated 10 million flex cycles. Storage between -20 and +80 °C preserves the material properties.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6FX8002-2CF02-1DA0, verify your drive system's connector requirements: the motor end uses a M23 full thread, and the converter end uses a SUB-D connector. This cable is a basic cable (no additional shielding or braking conductors). For customized lengths or alternative connectors, contact the supplier. PLC Source PRO (available at ubest101.myshopify.com) stocks genuine Siemens motion cables with fast shipping and technical support to ensure you get the exact part for your application.
